Isolation of 2,4-Di-tert-butylphenol and Butyrospermol 3-?-O-palmitate from Syzygium aqueum stem bark

Ei Ei Aung,1,2 Alfinda Novi Kristanti,3,4 Nanik Siti Aminah,3,4 Yoshiaki Takaya,5 Rico Ramadhan3

1PhD Student of Mathematics and Natural Sciences, Faculty of Science and Technology, Universitas Airlangga, Indonesia
2Department of Chemistry, Yadanarbon University, Amarapura-05063, Mandalay, Myanmar
3Department of Chemistry, Faculty of Science and Technology, Universitas Airlangga, Indonesia
4Biotechnology of Tropical Medicinal Plants Research Group, Universitas Airlangga, Surabaya, Indonesia
5Faculty of Pharmacy, Meijo University, Tempaku-468-8502, Nagoya, Japan, Department of Chemistry, University of Mandalay, Myanmar

Correspondence: Alfinda Novi Kristanti, Department of Chemistry, Faculty of Science and Technology, Universitas Airlangga, Komplek Kampus C Unair, Jl. Mulyorejo-60115, Surabaya, Indonesia, Tel 62-31-5936501, Fax 62-31-5936502

Received: August 14, 2020 | Published: August 31, 2020

Citation: Aung EE, Kristanti AN, Aminah NS, et al. Isolation of 2,4-Di-tert-butylphenol and Butyrospermol 3-?-O-palmitate from Syzygium aqueum stem bark. MOJ Eco Environ Sci. 2020;5(4):193-197. DOI: 10.15406/mojes.2020.05.00193

Download PDF

Abstract

Syzygium genus in Myrtaceae family is a rich source of phytochemical constituents that possess various bioactivities. One of well-known species of this genus, Syzygium aqueum, has been already utilized as traditional medicine. This plant is cultivated in countries of tropical regions of the world such as Malaysia and Indonesia. The aim of this study was intended to isolate phytochemical constituents from the stem bark of S. aqueum. To date, there have been no reports of chemical substances isolated from the stem bark of this plant. The powder of the stem bark was extracted followed by partitioned in order to obtain n-hexane extract which then was separated using silica gel column chromatographic several times until the pure compounds were resulted. The isolated compounds were identified by spectroscopie method including Fouirer Transform Infrared (FTIR) and nuclear magnetic resonance (NMR) and were known as 2,4-Di-tert-butylphenol & butyrospermol 3-β-O-palmitate, respectively. The spectoscopie data of those compounds were compared with references.

Keywords: Myrtaceae, Syzygium aqueum, phytochemical constituents, phenolic, ester of fatty acid, 2,4-di-tert-butylphenol and butyrospermol 3-β-O-palmitate

Introduction

Myrtaceae is an enormous family of wood flowering plants with 155 genera and around about 4000 species. The species are cultivated in South America, Southeast Asia, and Australia, but few species are found in Africa.1,2 Tropical regions, such as Malaysia and Indonesia, are native regions for one species of this family which is Syzygium aqueum.3,4 S. aqueum has the local name water jambu or water apple. The whole parts of the tree have been applied as traditional medicine such as for relieving child birth pains (bark), treating a cracked tongue (leaves), relieving itching and reducing swelling (roots)5–7 Moreover, the previous researchers have been tested leaves and fruits for antioxidant, anti-inflammatory, and anticancer (MCF-7 and MDA-MB-231 cell lines) activities.8–11 In recent, there are some reports about the phytochemicals constituents isolated from leaves such as flavonoid and tannin and some of these flavonoids have been determined the antidiabetic and antioxidant activities.1,6,12 The phytochemical compounds of stem bark of S. aqueum have never been reported by any researchers. Therefore, the present study was carried out to collect the phytochemicals compounds isolated from stem bark of this plant.

Material and method

General experimental procedure

FT-IR spectra (Fouirer Transform Infrared spectroscopy) were determined on Tracer-100 spectrophotometer (Shimadzu) and the spectra showed in cm-1.1H NMR,13C NMR (Nuclear Magnetic Resonance) and 2D NMR (HSQC, HMBC and COSY) were recorded on BRUKER 600 Hz using Tetramethylsilane (TMS). Chemical shifts of carbon and proton NMR were given in d (ppm).

Plant material

The stem bark of S. aquem was collected form Wage, Taman, Sidoarjo, East Java, Indonesia. This our sample had brown color and cracked. Department of Biology, Faculty of Science and Technology, Universitas Airlangga was identified and determined the scientific name. The stem bark obtained was crushed to form a powder and then was extracted using a general protocol.13

Extraction and isolation

The powdered of stem bark of S. aqueum (1kg) was macerated with 40L of methanol at room temperature for 3 days. The methanol extract (450g) was partitioned with n-hexane. n-hexane fraction obtained (50g) was then separated using silica gel 60 (700-200 mesh ASTM) in gravity column chromatographic method (GCC) with n-hexane: ethyl acetate (9:1) as eluent.13 The similar fractions were combined to yield 19 fractions (SA- 1 to SA-19). Fraction-1 (SA-1) was re-chromatographed by eluting with n-hexane: ethyl acetate (95:5), yielding 5 fractions (SA-1-1 to SA-1-5). One spot was found in SA-1-1 fraction and was named as Compound-1. Moreover, fraction-2 (SA-2) was also separated more through GCC using hexane: ethyl acetate (9:1) eluent to give 6 fractions (SA-2-1 to SA-2-6). One spot was discovered form fraction-1 (SA-2-1) and was marked as Compound-2. Hereinafter, Compound-1 and Compound-2 were elucidated by spectroscopie method in an attempt to determine their stucture.

Result and discussion

Compound-1 (2mg) was collected as yellow oil. 1H NMR dH: 1.29 (9H, s), 1.34 (9H, s), 7.13 (1H, dd, J= 2.5 and 8.7Hz), 7.36 (1H, d, J= 2.5Hz), 7.54 (1H, d, J= 8.7Hz). Three protons (dH: 7.13, 7.36, 7.54) showed in aromatic protons region. The remaining 18 protons (dH: 1.29 & 1.34) supposed to be six methyls. And then, COSY (1H-1H) and HMBC correlations (1H-13C) were joined for confirmation of the structure. The NMR spectra were also compared to previous literature data.14 From these data Compound-1 was determined as 2,4-di-tert-butylphenol and the molecular formula was C14H22O.

Compound-2 was obtained as pale yellow oil. FTIR spectra showed at 2926-2854 cm-1 (sp3 C-H stretching), 1708 cm-1 (C=O). 1H NMR dH: 0.77 (3H, s), 0.81 (3H, s), 0.86 (3H, s), 0.89 (6H, m), 0.94 (3H, s), 0.98 (3H,s), 1.19 (1H, m), 1.26 (24H, m), 1.42 (3H, m), 1.50 ( 4H, m), 1.61 (3H,s), 1.65 (3H, m), 1.67 (3H, m), 1.69 (3H, s), 1.78 ( 1H, m), 1.93 (2H, m), 1.98 (3H, m), 2.04 (2H, m), 2.13 (1H, m), 2.23 (1H, m), 2.30 (2H, t, J=7.5 Hz), 4.53 (1H, dd, J=3.9, 11.5Hz), 5.12 (1H, t, J=7.1Hz), 5.25 (1H, m). The proton signal at dH: 4.53ppm (C-3) belonged to the proton attached to the carbon that binds the ester group (C-3). The proton signal of 5.25 (1H, m) and 5.12 (1H, t, J= 7.1 Hz) linked to sp2 hybridized carbons (C-7 and C-24 respectively). COSY (1H-1H) and HMBC correlations (1H-13C) were joined for confirmation of structure. NMR spectra also compared to previous literature data.15,16 From these data Compound 2 was identified as Butyrospermol 3-β-O-palmitate and molecular formula was C46H80O2 (Figure 1) (Figure 2) (Table 1) (Table 2).

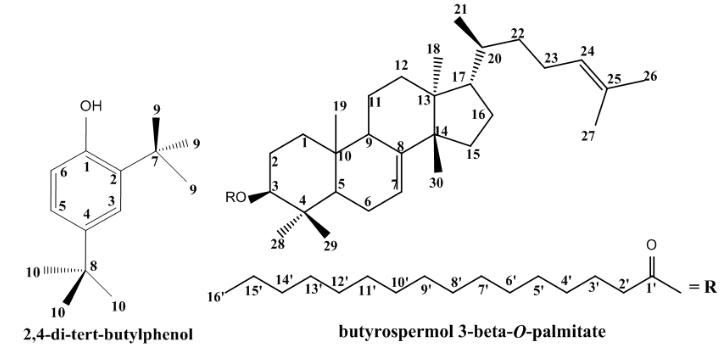

Figure 1 Chemical structure of 2,4-di-tert-butylphenol and butyrospermol 3-β-O-palmitate.

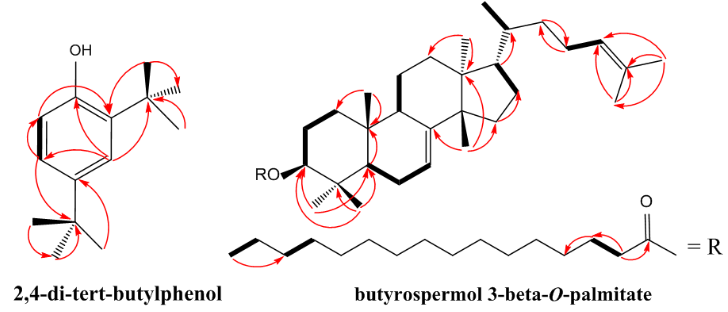

Figure 2 Selected () HMBC, () COSY of 2,4-di-tert-butylphenol and butyrospermol 3-β-O-palmitate.

Position

DEPT

HSQC (1H-13C)

HMBC

COSY

dC

dH

1

C

147.7

-

H-3

-

2

C

138.4

-

H-9, H-6

-

3

CH

124.4

7.36

H-5

-



(d, J= 2.5 Hz)



4

C

147.1

-

H-6, H-10

-

5

CH

123.9

7.13

H-3

H-6



(dd, J= 2.5, 8.7 Hz)



6

CH

119.1

7.54

H-5

H-5



(d, J= 8.7 Hz)



7

C

34.8

-

H-9, H-3

-

8

C

34.5

-

H-10, H-5

-

9

3CH3

30.2

1.34 (s)

-

-

10

3CH3

31.4

1.29 (s)

-

-

Table 1 NMR data (CDCl3, 600 MHz) of 2,4-di-tert-butylphenol

Position

DEPT

HSQC (1H-13C)

HMBC

COSY



13C

1H



1

CH2

36.8

1.67(m)

H-19

H-2



1,19(m)



2

CH2

25.7

1.67 (m)

-

H-1, H-3

3

CH

81

4.53

H-28, H-29

H-2



(dd, J= 3.9, 11.5 Hz)



4

C

38

-

H-29

-

5

CH

50.7

1.42 (m)

H-28, H-29

H-6

6

CH2

23.8

2.13 (m)

-

H-5,H-7



1.98 (m)



7

CH

117.6

5.25 (m)

-

H-6

8

C

146

-

H-30

-

9

CH

48.8

2.23 (m)

-

H-11

10

C

34.8

-

H-19,H-5

-

11

CH2

18.2

1.50 (m)

-

H-9

12

CH2

33.8

1.65 (m)

H-18

-



1.78 (m)



13

C

43.6

-

H-18,H-30

-

14

C

51.9

-

H-18,H-30

-

15

CH2

34

1.42 (m)

H-30

-



1.50 (m)



16

CH2

29.2

1.26 (m)

H-15

H-17

17

CH

53.2

1.50 (m)

-

H-16

18

CH3

22.1

0.81 (s)

-

-

19

CH3

13.1

0.77 (s)

-

-

20

CH

35.7

1.42 (m)

H-17

H-21

21

CH3

18.2

0.89 (m)

-

H-20

22

CH2

39.8

1.98 (m)

H-23

-

23

CH2

26.8

2.04 (m)

H-22

H-24

24

CH

125.1

5.12

H-26, H-27

H-23



(t, J= 7.1 Hz)



25

C

130.9

-

H-26, H-27

-

26

CH3

17.7

1.61 (s)

H-27

-

27

CH3

25.7

1.69 (s)

H-26

-

28

CH3

27.7

0.86 (s)

-

-

29

CH3

16

0.94 (s)

-

-

30

CH3

27.3

0.98 (s)

H-15

-

1’

C

173.6

-

H-2’

-

2’

CH2

35

2.3

-

H-3’



(t, J= 7.5 Hz)



3’

CH2

25.1

1.65 (m)

H-2’

H-2’

4’

CH2

29.7

1.26 (m)

H-3’



5

CH2

29.7

1.26 (m)

-

-

6’

CH2

29.6

1.26 (m)

-

-

7’

CH2

29.6

1.26 (m)

-

-

8’

CH2

29.6

1.26 (m)

-

-

9’

CH2

29.5

1.26 (m)

-

-

10’

CH2

29.4

1.26 (m)

-

-

11’

CH2

29.3

1.26 (m)

-

-

12’

CH2

29.2

1.26 (m)

-

-

13’

CH2

28.4

1.93 (m)

-

H-14’

14’

CH2

31.9

1.26 (m)

H-16’

H-13’

15’

CH2

22.7

1.26 (m)

-

H-16’

16’

CH3

14.1

0.89 (m)

-

H-15’

Table 2 NMR data (CDCl3, 600 MHz) of Butyrospermol 3-β-O-palmitate

The bioactivities of 2,4-Di-tert-butylphenol has been previously reported such as moderate cytotoxicity against HeLa and MCF-7, high percentage of antioxidant activity, active antibacterial against Pseudomonas aeruginosa and Staphylococcus aureus, prevention the fungal mycelial growth of Aspergillus niger, Fusarium oxysporum and Penicillium chrysogenumon.17–19 However, Butyrospermol 3-β-O-palmitate hasn’t been reported any bioactivities in literature. Therefore, we would like to recommend studying the various bioactivities of this compound for the next research.

Conclusion

In this study, 2,4-di-tert-butylphenol and Butyrospermol 3-β-O-palmitate were isolated from stem bark of S. aqueum. These phytochemical constituents are the first to be reported from the stem bark of this species.

Acknowledgments

The authors would like to special thanks Faculty of Science and Technology, Universitas Airlangga and Faculty of Pharmacy, Meijo University, Tempaku, Nagoya, Japan.

Funding

Universitas Airlangga supported the first author for the scholarship (ADS) and The Indonesian Ministry of Research, Technology, and Higher Education for research grant (Basic Research, 2020).

Conflicts of interest

The authors declare there are no conflicts of interest.

References

  1. Insanu M, Ramadhania ZM, Halim EN, et al. Isolation of 5,7-Dihydroxy, 6,8-Dimethyl Flavanone from Syzygium aqueum with its antioxidant and xanthine oxidase inhibitor activities. Pharmacognosy Research. 2018;10:24–30.
  2. Vasconcelos TNNC, Proença CEB, Ahma B, et al. Myrteae phylogeny, calibration, biogeography and diversification patterns: Increased understanding in the most species rich tribe of Myrtaceae. Molecular Phylogenetics and Evolution. 2017;109:113–137.
  3. Manaharana T, Chakravarthi S, Radhakrishnan AK, et al. In vivo toxicity evaluation of a standardized extract of Syzygium aqueum leaf. Toxicology Reports. 2014;1:718–725.
  4. Sagala E, Sihombing H, Agustini F, et al. Analysis of consumer demand on Syzygium aqueum In North Sumatera, Indonesia. IOSR Journal of Economics and Finance. 2017;5(1):44–48.
  5. Palanisamy UD, Ling LT, Manaharan T, et al. Standardized extract of Syzygium aqueum: a safe cosmetic ingredient. International Journal of Cosmetic Science. 2011;33:269–275.
  6. Manaharan T, Appleton D, Cheng HM, et al. Flavonoids isolated from Syzygium aqueum leaf extract as potential antihyperglycaemic agents. Food Chemistry. 2012;132:1802–1807.
  7. Osman H, Rahim AA, Isa NM, et al. Antioxidant activity and phenolic content of paederia foetida and Syzygium aqueum. Molecules. 2009:970–978.
  8. Saptarini NM, Herawat IE. Antioxidant activity of water apple (Syzygium aqueum) fruit and fragrant mango (Mangifera odorata) fruit. Asian Journal of Pharmaceutical and Clinical Research. 2017:54–56.
  9. Lim ASL, Rabeta MS. Proximate analysis, mineral content and antioxidant capacity of milk apple, malay apple and water apple. International Food Research Journal. 2013;20(2):673–679.
  10. Rocchet G, Lucini L, Ahmed SR, et al. In vitro cytotoxic activity of six Syzygium leaf extracts as related to their phenolic profiles: An untargeted UHPLC-QTOF-MS approach. Food Research International. 2019;126:1–23.
  11. Sobeh M, Mona F, Mahmoud MF, et al. Syzygium aqueum: A polyphenol-rich leaf extract exhibits antioxidant, hepatoprotective, pain-killing and anti-inflammatory activities in animal models. Forntiers in Pharmacology. 2018;9(6):1–14.
  12. Nonaka G, Aiko Y, Aritake K, et al. Samarangenins A and B, Novel proanthocyanidins with doubly bonded structures, form Syzygium samarangense and S. aqueum. Chemical and Pharmaceutical Bulletin. 1992; 40(10):2671–2673.
  13. Tukiran, Mahmudah F, Hidayati N, Shimizu K. A phenolic acid and its antioxidant activity from stem bark of chloroform fraction of Syzygium littorale (blume) amshoff (myrtaceae). Molekul. 2016;11(2):180–189.
  14. Chawawisit K, Bhoopong P, Phupong W, et al. 2, 4-Di-tert-butylphenol, the bioactive compound produced by Streptomyces sp. KB1. Journal of Applied Pharmaceutical Science. 2015;5(3);7–12.
  15. Wua J, Lia M, Xiao Z, Zhou Y. Butyrospermol fatty acid esters from the fruit of a chinese mangrove Xylocarpus granatum. Verlag der Zeitschrift f¨ur Naturforschung. 2006;61(11):1447–1449.
  16. Pietro MED, Mannu A, Mele A. NMR determination of free fatty acids in vegetable oils. Processes. 2020;8(410):1–15.
  17. Zhao F, Wang P, Lucardi RD, et al. Natural sources and bioactivities of 2,4-Di-Tert-Butylphenol and its analogs fuqiang. Toxins. 2020;12(35):1–26.
  18. Varsha KK, Devendra L, Shilp G, et al. 2,4-Di-tert-butyl phenol as the antifungal, antioxidant bioactive purified from a newly isolated Lactococcus sp. International Journal of Food Microbiology. 2015;211:44–50.
  19. Aissaoui N, Mahjoubi M, Nas F, et al. Antibacterial potential of 2,4-Di-tert-butylphenol and calixarene-based prodrugs from thermophilic Bacillus licheniformis isolated in algerian hot spring. Geomicrobiology Journal. 2018:1–10.
