Toxicogenomic Analysis for Livers from Sprague-Daley Rats Following 12-Week Inhalation Exposure to Silver Nanoparticles

doi:10.15406/jnmr.2016.03.00058

Journal of

eISSN: 2377-4282

Nanomedicine Research

Research Article Volume 3 Issue 3

Toxicogenomic Analysis for Livers from Sprague-Daley Rats Following 12-Week Inhalation Exposure to Silver Nanoparticles

Kim JS,¹ Sung JH,¹ Song KS,¹ Dong MS,² Lee JH,³ Song NW,⁴ Ji JH,⁵ Ahn K,⁶ Kim TG,³ Kim E,³ Yu IJ³

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

¹KCL, Incheon, Korea
²Korea University, Seoul, Korea
³Institute of Nanoproduct Safety Research, Hoseo University, Asan, Korea
⁴Korea Research Institute of Standards and Science, Daejeon, Korea
⁵Ecopictures, Seoul, Korea
⁶Hanyang University, Ansan, Korea

Correspondence: Il Je Yu, Institute of Nanoproduct Safety Research, Hoseo University, Asan, Korea, Tel 82-41-540-9630, Fax 82-41-540-9846

Received: January 26, 2016 | Published: March 29, 2016

Citation: Kim JS, Sung JH, Song KS, Dong MS, Lee JH, et al. (2016) Toxicogenomic Analysis for Livers from Sprague-Daley Rats Following 12-Week Inhalation Exposure to Silver Nanoparticles. J Nanomed Res 3(3): 00058. DOI: 10.15406/jnmr.2016.03.00058

Download PDF

Abstract

Silver nanoparticles (AgNPs) have been extensively applied to many industrial and biomedical fields due to their antibacterial effect. However, a large number of applications is also lead to health and environmental safety concerns. Up to date, it was well-known that AgNPs induced reactive oxygen species (ROS) production, cytotoxicity, pro-inflammatory effect, DNA damage, cell cycle disturb, necrosis and apoptosis by many researches. Also, several studies have been performed to investigate the microarray test for AgNPs in many cell types. However, no work reports the AgNPs toxicogenomic study in liver cell line and tissue until now. For this reason, we performed to in vivo toxicogenomic study for AgNPs inhalation exposed liver tissue. After 12 weeks inhalation exposure to AgNPs for the Sprague-Daley rats, we carried out silver concentration measurement for liver tissues and toxicogenomic analysis. As a result, we found that silver concentrations in livers were dose-dependently increased in male and female rats. However, a gender-different accumulation of silver in the livers did not observe. In toxicogenomic study, we observed that 109 and 150 genes significantly up- and down regulated by AgNPs inhalation exposure in male and female rats, respectively. The significantly altered male rat genes were involved in 54 biological pathways which were typically related with diabetes and metabolism. In female rat, the significantly expression changed genes were involved in 89 biological pathways which were mainly connected with metabolism and cell signaling. Plus, the gender-dependent gene expression changes of more than 2 fold were linked to 240 genes, with 114 genes in the male livers and 126 genes in the female livers. These were related to steroids and xenobiotics metabolism pathway.

Keywords: Silver nanoparticles, in vivo toxicogenomic study, Liver tissue, Inhalation, Gene expression

Abbreviations

AgNPs, Silver Nanoparticles; ROS, Reactive Oxygen Species; SPF, Specific-Pathogen-Free; OEL, Occupational Exposure Limit; DMAS, Differential Mobility Analyzing System; SMPS, Scanning Mobility Particle Sizer; GMD, Geometric Mean Diameter; GSD, Geometric Standard Deviation

Introduction

Nanoparticles increasingly used in consumer and industrial products, due to distinctive physicochemical properties as high reactivity, color change, lower melting temperature and greater solar radiation absorption.¹ One of the most commonly used nanoparticles is silver nanoparticles (AgNPs) which have been applied to clothing, food industry, paints, and electronics.^2-6 Also, AgNPs used in medical applications as the constituent elements of catheters, implant surfaces, dental alloys and for treating wounds and burns-related infections as well as in drug delivery in cancer therapies.^7-10 Such an increasingly widespread usage of AgNPs leads to the exposure of humans, animals and plants through industrial or domestic waste which could produce harmful biological response.¹¹The target organs for silver nanoparticles have been shown to be the liver in a 28-day oral toxicity study^12-13and 90-day oral subchronic study,¹⁴and the liver and lungs in 90-day inhalation studies.^15-16It was reported that AgNPs induced reactive oxygen species (ROS) production, cytotoxicity, pro-inflammatory effect, DNA damage, cell cycle disturb, necrosis and apoptosis in various in vitro test.^17-20However, in vitro studies could not reflect cell-cell and cell-matrix interaction and hormonal effect.²¹ For this reason, the importance of the in vivo studies has already been highlighted in the nanotoxicology fields.²²Additionally, the exact mode of action for silver nanoparticle was still poorly known. Accordingly, this study conducted a toxicogenomic examination of rat livers following 12 weeks of inhalation exposure to AgNPs. Fresh air exposed controls were compared with low and high concentration AgNPs exposed groups of male and female rats.

Material and methods

Generation of silver nanoparticles

The silver nanoparticles were generated as described in previous reports.²³The rats were exposed in a whole-body-type exposure chamber (1.3m³, Dusturbo, Seoul), which consisted of a small ceramic heater (50 × 5 × 1.5 mm³) that was housed within a quartz tube case (70mm diameter, 140mm length). Connected to an AC power supply, the heater achieved a surface temperature of about 1500⁰C within a local heating area of 5 × 10 mm² within about 10s. For the long-term testing, the source material (about 160 mg) was positioned at the highest temperature point. Clean (dry and filtered) air was used as the carrier gas, and the gas flow was maintained at 30 L/min (Re=572, laminar flow regime) using a mass flow controller (MFC, AERA, FC-7810CD-4V, Japan).²³ In this study, the system produced different concentrations of nanoparticles (high, medium, and low) in three separate chambers. The nanoparticle generator was operated for 45.99±0.02 L/min (mean±SE) using the MFC and mixed with 200 L/min at the main flow rate through the high-concentration chamber. Using the MFC for the first dilutor (27.19±0.05 L/min, mean±SE), a portion of the high-nanoparticle-concentration was then diverted to the medium-concentration chamber. Similarly, a portion of the medium-nanoparticle-concentration was then diverted to the low-concentration chamber using a second MFC (2.33 ± 0.01 L/min).¹⁶

Monitoring of inhalation chamber and analysis of silver nanoparticles

In the individual chambers, the nanoparticle distribution with respect to size was measured directly in real time using a differential mobility analyzer (Short type DMA, 4220, HCT Co., Ltd. Korea, range 5–150 nm) and condensation particle counter (CPC, 4312, HCT Co., Ltd. Korea, 0–10⁸/cm³ detection range), in combination referred to as a DMAS (differential mobility analyzing system) or SMPS (scanning mobility particle sizer). Nanoparticles from 4.23 to 46.95 nm were measured using sheath air at 5 L/min and polydispersed aerosol air at 1 L/min, in order to meet the operational conditions for the DMA and CPC, respectively. The particle concentration in the fresh-air control chamber was measured using a particle sensor (4123, HCT Co., Ltd. Korea) that consisted of 2 channels: 300–1000 nm and over 1000 nm.

Animals and conditions

The animal and exposure conditions were as described in the previous report by Song et al.¹³We purchased five-week-old specific-pathogen-free (SPF) Sprague Dawley male and female rats from KOATECH Co. (Korea) and acclimated for 1 week before starting the experiments. During the acclimation and experimental periods, the rats were housed in polycarbonate cages (3 rats per cage) in a room with controlled temperature (21.6 ± 1.2⁰C), humidity (43.7 ± 6.8%), and a 12 hr light/dark cycle. The rats were fed a rodent diet (Harlan Teklab, Plaster International Co., Seoul) and filtered water ad libitum. The 6-week-old rats, weighing about 171 g for the males and 135g for the females, were then divided into 4 groups (each group consisted of 17 male rats: 5 rats for 12-week exposure, 4 rats for 4-week recovery, 4 rats for 12-week recovery, and 4 rats for micronucleus test after 12-week exposure; plus 12 female rats: 4 rats for 12-week exposure, 4 rats for 4-week recovery, and 4 rats for 12-week recovery): fresh-air control, low-dose group (target dose, 0.6×10⁶ particles/cm³, 1.0×10⁹ nm²/cm², 48.76 μg/m³), medium-dose group (target dose, 1.4 × 10⁶ particles/cm³, 2.5 × 10⁹ nm²/cm², 117.14 381.43 μg/m³) and high-dose group (target dose, 3.0 × 10⁶ particles/cm³, 5.0 × 10⁹ nm²/cm², 381.43 μg/m³), and exposed to silver nanoparticles for 6 hr/day, 5 days/week, for 12 weeks. The doses were selected based on the current silver dust occupational exposure limit (OEL) (100 μg/m³), the medium dose was similar to the OEL, and the high and low-doses were higher and lower than the OEL, respectively. Eight animals (4 male and 4 female) from the control, low-dose, and high-dose groups were used for the gene expression profile study after 12 weeks of exposure. The animals were examined daily on weekdays for any evidence of exposure-related effects, including respiratory, dermal, behavioral, nasal or genitourinary changes suggestive of irritancy. The body weights were measured at the time of purchase, at the time of grouping, one day after exposure, once a week during the inhalation exposure and recovery, and before necropsy.

RNA preparation and Oligonucleotide chip microarray

After 12 weeks of silver nanoparticle inhalation exposure, the total RNA was isolated from the liver using the TRIZOL reagent (Life Technologies, USA) according to the manufacturer’s instructions. The RNA was then analyzed for quantity and purity based on the absorbance at 260 and 280 nm using NanoDrop ND-1000 (NanoDropTechnologies, Wilmington, DE). The gene expression profiling was performed using the Illumina Rat Ref-12 Expression BeadChip platform that contains 22,226 probes (Illumina Inc., San Diego, CA, USA). The quality control was repeated with labeled cRNA, and the hybridization on the Illumina® Rat Ref-12 Expression BeadChips was only performed with intact samples according to the manufacturers’ recommendations (Illumina® protocol, www.illumina.com). Briefly, 500 ng of total RNA was labeled using an Illumina Total PrepRNA Amplification kit (Illumina Inc., USA) based on cDNA synthesis with an oligo-dT primer containing a T7 RNA polymerase promoter. The double-stranded cDNA was then used in an in vitro transcription reaction, and the generated single-stranded RNA (cRNA) was labeled by incorporating biotin-16-UTP (Roche Diagnosics GmbH, Mannheim, Germany). 750 ng of the biotin-labeled cRNA was hybridized (16 hrs) to a RatRef-12 Expression BeadChip (Illumina, San Diego, CA). The hybridized biotinylated cRNA was then detected with streptavidin-Cy3 (Amersham Biosciences, USA) and quantitated using an Illumina Bead Station 500GX Genetic Analysis System scanner.^24,25

Microarray data analysis

Beadstudio v3.0 was used to evaluate the expression signals generated by the Illumina RatRef-12 Expression BeadChip arrays. The gene expression data were input into GenPlex^TM v3.0 software (ISTECH Inc., Korea), normalized using the Quantile method, and the normalized data log-transformed using base 2. Thereafter, the fold change and Welch t-test were applied to select the differentially expressed genes (DEGs) using a volcano plot with a fold change threshold of 1.5 fold and p < 0.05 to indicate significance. The 1.5-fold DEGs were clustered based on hierarchical clustering using the Pearson correlation as the similarity measure and complete linkage as the linkage method. In addition, the gene ontology classification was provided by the KEGG database. A three-dimensional principal component analysis (PCA) was used to analyze and visualize the distribution of the 6 different biological sample types (NC, MLK, MHK, FLK, and FHK) within the three orthogonal components, which were linear combinations of the expression profiles of the selected genes. The number of genes used for the PCA was chosen by a Kruskal Wallis H-test, which classified the six different sample types with the maximum accuracy in the error estimation procedure. The weighted K-nearest neighbor (K-NN) classifier and leave-one-out-cross-validation (LOOCV) were used for the unsupervised classification and error estimation, respectively

Results

The generated silver nanoparticles (AgNPs) properties and concentrations were measured regularly in exposure chamber.¹⁶In summary, In the high-concentration chamber, the geometric mean diameter (GMD), geometric standard deviation (GSD), total number concentration, and mass concentration and surface area of the silver nanoparticles were 15.00 ±1.75 nm, 3.24 ± 10⁶ particles/cm³, 381.43 mg/m³ and 4.85 ± 10⁹ nm²/cm³, respectively, in the medium-concentration chamber, these measurements were 14.38 ± 1.64 nm, 1.41 ± 10⁶ particles/cm³, 117.14 mg/m³ and 1.70 ± 109nm²/cm³, respectively, and in the low-concentration chamber they were 14.54 ± 1.62 nm, 0.66 ± 10⁶ particles/cm³, 48.76 mg/m³, and 0.76 ± 109 nm²/cm³, respectively. The concentrations of silver nanoparticles in each chamber were well maintained during the 12-week exposure period (Supplement 1). These data were summarized in Supplement 1. In each exposure chamber, the AgNPs were well maintained during the 12 weeks exposure period. The AgNPs observed by FE-TEM were spherical in shape and non-aggregated/non-agglomerated forms with diameters under 47 nm.¹⁶The diameters were log normally distributed from 4 to 47 nm and the Count media diameter (CMD) and geometric standard deviation (GSD) were 14.09 nm and 1.71, respectively, with a good correspondence to the mobility diameters.¹⁶To investigate tissue distribution of AgNPs, we measured silver concentration in livers. As a result, we observed that the silver concentration in the livers dose-dependently increased in both male and female rats after 12 weeks of inhalation exposure to AgNPs (supplement 2). However, we could not observe the significant gender difference of silver concentration in livers. Then, we analyzed in vivo gene expression profiles with obtained liver tissue after 12 weeks AgNPs inhalation exposure. Using the DNA microarray, the gene expression changes were evaluated for the livers which obtained from male and female rats exposed to the low and high concentration of AgNPs. The over 1.3-fold up- or down-regulated genes (p<0.05) were regarded as significant and used for the data mining categories. Among 403 genes, 109 and 150 genes were observed expression changes by AgNPs inhalation exposure in male and female rats, respectively. (Figure 1A) (Table 1&2).

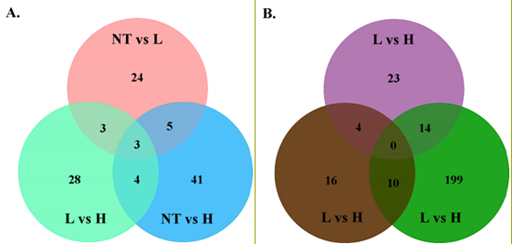

Figure 1 Venn diagram for the numbers of genes expressed significantly different to each control group (Fold change > 1.3, p<0.05).
NT: No Treatment; L: Low; H: High .

NCBI Accession No.	Gene Symbol	Average Fold Change
NCBI Accession No.	Gene Symbol	NT vs L	NT vs H	L vs H
NM_053299.1	Ubd	0.183	0.47	3.612
XR_009519.1	RGD1562652_predicted	0.259	0.661	2.585
NM_001008857.1	RT1-S2	0.379	0.664	1.754
XM_574280.1	LOC498989	0.479
NM_001009651.1	Clic2	0.511		1.777
XM_001063078.1	Pex11b	0.564
NM_024385.1	Hhex	0.588
XM_575533.1	LOC500181	0.638		1.717
XM_001061818.1	RGD1565561_predicted	0.652	0.676
XM_228301.4	RGD1311375_predicted	0.654
XM_001063114.1	Prcp_predicted	0.664
NM_207603.1	Fcgr3a	0.685	0.74
XM_001068101.1	isg12(b)	0.699	0.691
NM_019316.1	Mafb	0.705
XM_578320.1	LOC502820	0.706		0.743
NM_198740.1	Hla-dmb	0.725
XM_001066853.1	RGD1562052_predicted	0.733
NM_012896.1	Adora3	0.738
XM_232259.3	LOC312688	0.752	0.654
XM_001056311.1	Fhl3_predicted	0.754
XM_001061010.1	RGD1564163_predicted	0.755
NM_001025750.1	Plek	0.762		1.408
NM_001024289.1	LOC499300	0.765
NM_053535.1	Enpp1	0.768
XM_231833.4	Ppm1k_predicted	1.302
XM_001053727.1	Bmp7	1.374
NM_053371.1	Fxc1	1.382
NM_001012072.1	Ppp1r3c	1.393
XM_575738.1	LOC500380	1.394
XM_576498.1	LOC501086	1.399
XM_574174.2	RGD1562987_predicted	1.403
NM_022701.1	Flot1	1.405
NM_057133.1	Nr0b2	1.481
NM_013098.1	G6pc	1.52
XM_579222.1	RT1-149	1.522
NM_001024334.2	LOC500300	1.79	2.056
NM_013144.1	Igfbp1	2.137
NM_012703.2	Thrsp		0.526
NM_173096.2	Mx1		0.529	0.658
NM_031742.1	Kcnh1		0.621
XM_001078678.1	RGD1560242_predicted		0.628
NM_001011922.1	Nedd9		0.64
XM_238366.4	RGD1563633_predicted		0.669
NM_012621.3	Pfkfb1		0.681
NM_001007235.1	Itpr1		0.698	0.746
NM_022604.2	Esm1		0.699
XR_008204.1	RGD1565690_predicted		0.705
XM_001072449.1	RT1-S3		0.713
XM_224824.3	LOC306428		0.732
XM_001075137.1	Tyki_predicted		0.734
XM_579055.1	LOC497712		0.738
XM_573861.1	LOC364514		0.745
XM_225947.4	Trim36_predicted		0.745
NM_032082.1	Hao2		0.748
NM_001004277.2	Lypla3		0.75
XM_001075502.1	Ms4a11_predicted		0.751
XM_001054526.1	Zbp1		0.752
XM_001065014.1	RGD1307882_predicted		0.756
NM_133593.2	Ap3m1		0.757
XM_001056345.1	Rtp4_predicted		0.761
XM_001059523.1	Rarb		0.762
NM_032612.2	Stat1		0.765
NM_017159.1	Hal		1.302	1.542
NM_001014193.1	RGD1359529		1.325
XM_219785.4	Gldc_predicted		1.327
NM_031345.1	Tsc22d3		1.345
NM_001035255.1	LOC502603		1.352
XM_223945.4	Samd4_predicted		1.356
NM_152936.1	Spink3		1.366
XM_214172.4	Pabpn1		1.419
NM_001012111.1	Lpin1		1.432	1.616
NM_031108.1	Rps9		1.437
XR_009081.1	RGD1564649_predicted		1.446
NM_017127.1	Chka		1.459
XM_577408.1	LOC501979		1.505
NM_021762.1	Tsn		1.59
NM_032074.1	Irs3		1.613
NM_022238.1	Abcb9		1.628
NM_031776.1	Gda		1.661
NM_172335.2	Gm2a		1.706
XM_574013.2	LOC498736		1.916
NM_019216.1	Gdf15		2.002
NM_212505.1	Ier3			0.65
NM_031986.1	Sdcbp			0.695
NM_133543.2	Rdh3			0.706
XM_226988.4	Fndc3b_predicted			0.717
XM_576619.1	LOC501191			0.725
NM_001004261.1	RGD1303232			0.73
XM_573464.1	LOC498241			0.743
NM_001008859.1	Mrps10			0.745
XM_001056150.1	LOC362068			0.754
NM_031510.1	Idh1			0.754
NM_001012007.1	Irgm			0.755
XM_001073260.1	RGD1306565_predicted			0.758
NM_053995.3	Bdh1			0.766
XM_213574.4	Polr2h_predicted			0.767
NM_001014076.1	Nol10			0.768
NM_134415.1	Cdk105			1.313
NM_017171.1	Prkce			1.316
NM_153308.1	Grina			1.374
XM_344454.2	LOC364468			1.381
XM_345140.2	Arsb			1.392
NM_001003706.1	LOC360228			1.402
XM_235156.4	Ptprb_predicted			1.409
NM_001012206.1	Phlda3			1.435
NM_012603.2	Myc			1.521
XM_579988.1	LOC499620			1.529
NM_019278.1	Resp18			2.524
XM_001054526.1	Zbp1		0.752

Table 1 Gene expression associated with silver nanoparticles (AgNPs) inhalation exposure in male livers

C: Fresh-Air Control; L: Low Concentration; H: High Concentration

Gene assession no.	Gene symbol	Average fold change
Gene assession no.	Gene symbol	Nt vs l	Nt vs h	L vs h
NM_017272.15	Aldh1a7	0.026
NM_019314.1	Kcnn2	0.544
XM_342602.3	RGD1306721	0.576
XM_574196.1	LOC498907	0.605	0.627
XM_214618.4	Abhd3_predicted	0.613	0.675
NM_001005530.1	Slc16a13	0.675
XM_574750.1	LOC365566	0.719	0.767
XM_223397.3	LOC305332	0.728	0.742
NM_031073.2	Ntf3	0.736
NM_024135.2	Limk2	0.738
NM_152790.2	Carhsp1	0.744	0.719
XM_220690.2	LOC287518	0.747
NM_133543.2	Rdh3	0.751
NM_020976.1	Tmem27	0.754
NM_057114.1	Prdx1	0.756
XM_579805.1	LOC498268	0.759	0.761
NM_053883.2	Dusp6	0.764
XM_217254.4	Ifrd2_predicted	1.303
NM_178096.2	Nrep	1.307		0.701
XM_231599.4	RGD1306697_predicted	1.335	1.368
XM_001058675.1	LOC368158	1.336
NM_001037787.1	MGC112727	1.338	1.480
XM_222245.4	Hps4_predicted	1.343
XR_007378.1	RGD1563521_predicted	1.348
NM_001007671.1	Cyb5d2	1.353
XM_578335.1	LOC502835	1.358
NM_017016.1	Hdc	1.374
NM_001037355.1	Mettl7a	1.416	1.377
XM_233551.2	LOC313615	1.421		0.768
NM_001017496.1	LOC498335	1.426	1.439
NM_173322.1	Pnrc1	1.426	1.449
XM_579556.1	LOC497689	1.438
XM_001054760.1	Rnf125_predicted	1.452
NM_013215.1	Akr7a3	1.465		0.708
XM_213769.4	Vps37b_predicted	1.470
NM_012603.2	Myc	1.490	1.914
NM_199113.1	Popdc2	1.491	1.400
NM_001009681.1	Oasl1	1.507
XM_576044.2	RGD1564008_predicted	1.685
NM_012571.1	Got1	1.800
NM_053380.1	Slc34a2	1.887
NM_206950.1	Mig12		0.447
XM_342965.3	Arhgef19_predicted		0.449
XM_213329.4	Srebf1		0.495
NM_012703.2	Thrsp		0.534
XM_216452.4	Dhcr24		0.544
NM_017136.1	Sqle		0.580
NM_013134.2	Hmgcr		0.597
XM_343823.2	Serpina7		0.605
NM_138863.2	Ltb4dh		0.610	0.601
XM_001059113.1	Slc35d2_predicted		0.615
NM_130408.1	Cyp26a1		0.631
NM_022389.2	Dhcr7		0.644
NM_013105.1	Cyp3a3		0.644	0.619
NM_171992.2	Ccnd1		0.645
NM_001014216.1	RGD1306658		0.665
NM_144748.1	LOC246263		0.667
XM_576589.1	Ihh		0.668
NM_019339.1	Rgs12		0.673
XM_238366.4	RGD1563633_predicted		0.675
NM_017080.2	Hsd11b1		0.681
NM_173144.1	Cyp3a1		0.681
NM_175762.2	Ldlr		0.695
XM_216756.4	RGD1310769_predicted	RGD131	0.698
NM_173293.1	Olr59		0.706
NM_199101.1	Plekha4		0.719
NM_031649.1	Klrg1		0.719
NM_001004214.1	Nqo2		0.730
XM_342979.2	Pgd		0.733
NM_138836.1	Prss8		0.734
NM_001033694.1	Srebf2		0.735
XM_001078178.1	Klb_predicted		0.739
XM_221047.4	Polg2_predicted		0.740
XR_008878.1	RGD1560462_predicted		0.742
XM_577565.1	Gcnt2		0.742
NM_001009399.1	Nsdhl		0.745
XM_342986.2	Tas1r1		0.746
NM_001007672.1	Tmem98		0.751
NM_203335.2	Vkorc1		0.752
XM_575223.1	LOC499880		0.752
NM_138710.1	Dab2ip		0.753
XM_215423.4	Sesn1_predicted		0.754
XM_575430.1	LOC500080		0.757
XM_001078486.1	RGD1308481_predicted		0.757
NM_053019.2	Avpr1a		0.758
NM_012770.1	Gucy1b2		0.765
NM_001025277.1	RGD1308076		1.303
NM_013086.1	Crem		1.304
NM_001013193.1	Tial1		1.306
XM_001063880.1	Dusp8_predicted		1.311
NM_001007691.1	Prss23		1.315	1.326
NM_199086.1	Nob1p		1.323
XM_001076614.1	Chic2_predicted		1.326
XM_001078898.1	LOC691575		1.328
XM_575373.2	RGD1564980_predicted		1.329
XM_230961.4	RGD1306056_predicted		1.333	1.304
XM_221724.2	Nrip1_predicted		1.338
XM_341874.3	Isg20l1_predicted		1.346
NM_031512.1	Il1b		1.347
NM_022186.1	Nrbf2		1.351
XM_573296.1	LOC498090		1.352	1.320
NM_022289.2	Snx16		1.353
XM_236656.3	Tmem7_predicted		1.357
NM_031732.1	Sult1c1		1.379	1.654
NM_001015004.1	Vgll4		1.396
XM_574989.2	RGD1560263_predicted		1.421
XM_218704.4	Smox_predicted		1.423
NM_031335.2	Polr2f		1.436
NM_012743.1	Foxa2		1.453
NM_017340.1	Acox1		1.463
XM_001078182.1	Snrp1c_predicted		1.472
NM_017192.1	Edg5		1.475
NM_181090.2	Slc38a2		1.476
NM_212505.1	Ier3		1.477
NM_031507.1	Egfr		1.495
XM_222107.4	RGD1559988_predicted		1.539
XM_001066533.1	Nnmt_predicted		1.572
NM_019195.2	Cd47		1.587
XM_343472.2	Cish		1.688
NM_053727.2	Nfil3		1.753
NM_199115.2	Angptl4		1.753
XM_001063345.1	Zfp364_predicted		2.039
NM_053551.1	Pdk4		2.058
NM_001013187.1	Slc25a30		2.119
XM_001053888.1	Gadd45g		2.163	2.112
XM_001076548.1	RGD1566118_predicted		2.209
XM_342803.3	Plekhf2_predicted		2.234
NM_198750.2	Cry1		2.264
NM_058208.1	Socs2		2.558
XM_341791.2	LOC361510		21.003
XM_232684.3	RGD1309085_predicted			0.674
NM_030850.1	Bhmt			0.701
XM_001077068.1	Cfd			1.305
XM_341578.3	Riok3_predicted			1.312
XM_001058249.1	LOC680665			1.323
NM_021762.1	Tsn			1.339
XM_001061682.1	Hist1h2bp_predicted			1.361
XM_574280.1	LOC498989			1.362
NM_017196.2	Aif1			1.363
NM_001013048.1	Igfbp7			1.370
NM_020103.1	Ly6c			1.373
XM_001079607.1	RGD1560542_predicted			1.425
NM_012823.1	Anxa3			1.450
XM_577145.1	LOC501744			1.496
NM_207603.1	Fcgr3a			1.529
XM_342602.3	RGD1306721			1.742
NM_053372.1	Slpi			1.787
XM_573284.2	Ssg1			2.433
XM_213106.4	RGD1566136_predicted			5.336
NM_001008829.1	RT1-A2			19.684

Table 2 Amplitude in mill volts of the Lead-1 of electrocardiography in sheep

C: Fresh-Air control; L: Low Concentration; H: High Concentration

In male rats, 35 genes expressions were significantly changed by low concentration exposure, where 12 genes up-regulated and 23 genes down-regulated (Figure 1 & Table 1). Also, the high concentration AgNPs exposure changed the expression of 53 genes which consisted of 21 up-regulated and 32 down-regulated genes (Figure 1A & Table 1). The 80 genes expression changed by both the low and high concentration exposure, and 8 genes were commonly changed where the only one gene (LOC500300) was down-regulated and 7 genes that increased their expression were Ubd, RGD1562652_predicted, RT1-S2, RGD1565561_ predicted, Fcgr3a, isg12(b) and LOC312688. Among the 109 changed genes by AgNPs exposure, 29 genes were involved in the KEGG pathway and related to 54 biological pathways. We selected 10 representative pathway such as Type I diabetes mellitus, antigen processing and presentation, insulin signaling pathway, cell adhesion molecules, purine metabolism, starch and sucrose metabolism, Type II diabetes mellitus, adipocytokine signaling pathway, TGF-beta signaling pathway and Gap junction (Table 3).

KEGG pathway	Probe ID	P-Value
Type I diabetes mellitus	RT1-149, RT1-S2, RT1-S3, Hla-dmb	1.17E-06
Antigen processing and presentation	RT1-149, RT1-S2, RT1-S3, Hla-dmb	2.81E-06
Insulin signaling pathway	Flot1, Irs3, Ppp1r3c, G6pc	1.21E-05
Cell adhesion molecules (CAMs)	RT1-149, RT1-S2, RT1-S3, Hla-dmb	2.32E-05
Purine metabolism	Gda, Enpp1, Polr2h_predicted	2.61E-04
Starch and sucrose metabolism	Enpp1, G6pc	0.001037
Type II diabetes mellitus	Irs3, Prkce	0.001272
Adipocytokine signaling pathway	Irs3, G6pc	0.003071
TGF-beta signaling	Bmp7, Myc	0.00336
Gap junction	LOC498736, Itpr1	0.005107

Table 3 Genes showing expression changes following silver nanoparticles (AgNPs) exposure and their relevant KEGG pathways in male rat livers

In female rats, the low concentration of AgNPs exposure changed the expression of 41 genes, where 24 genes up-regulated and 17 genes down-regulated their expression (Figure 1B & Table 2). Plus, the high concentration of AgNPs exposure changed the expression of 103 genes, where 52 genes up-regulated and 51 genes down-regulated their expression (Figure 1B & Table 2). 131 genes were significantly changed by low and high concentration of AgNP inhalation exposure. Among these genes, 13 genes were commonly up- (7 genes: LOC498335, Mettl7a, Myc, Pnrc1, Popdc2, RGD1306697_predicted, MGC112727) and down-regulated (6 genes: LOC498907, Abhd3_ predicted, LOC365566, LOC305332, Carhsp1, LOC498268). Among the 150 changed genes by AgNPs exposure, 43 genes were involved in the KEGG pathway and related to 89 bioloTable 4gical pathways. Ten representative pathways are described in Table 4.

KEGG pathway	Probe ID	P-Value
Biosynthesis of steroid	Dhcr7, Hmgcr, Vkorc1, Dhcr24, Nsdhl, Sqle	8.96E-13
Bladder, Colorectal, Endometiral cancer	Ccnd1, Egfr, Myc	3.72E-05
Fatty acid metabolism	Cyp3a3, Acos1, Aldh1a7	4.81E-05
Jak-STAT signaling pathway	Ccnd1, Cish, Socs2, Myc	5.54E-05
MAPK signaling pathway	Il1b, Egfr, Dusp6, Myc, Ntf3	5.92E-05
Cysteine metabolism	Got1, Sult1c1	2.74E-04
Gammar-Hexachlorocyclohexane degradation	Cyp3a3, Sult1c1	3.19E-04
Histidine metabolism	Hdc, Aldh1a7	5.96E-04
Cytokine-cytokine receptor interaction	LOC498335, Il1b, Egfr	0.00237
Thyroid cancer	Ccnd1, Myc	0.001212

Table 4 Genes showing expression changes following silver nanoparticles (AgNPs) exposure and their relevant KEGG pathways in female rat livers

The genes with the most significant change in their expression following silver nanoparticle exposure were identified as involved in biosynthesis of steroids, bladder, colorectal, endometrial cancer, fatty acid metabolism, Jak-STAT signaling pathway, MAPK signaling pathway, cysteine metabolism, gamma-Hexachlorocyclohexane degradation, histidine metabolism, cytokine-cytokine receptor interaction and thyroid cancer. Additionally, we analyzed gender difference in liver gene expression levels. According to our result, 240 genes showed a more than 2-fold changes when the male and female rat liver gene expression level compared after AgNPs inhalation exposure. Among these genes, 114 male genes and 126 female genes were increased over 10-fold than their counterparts (Table 5).

Gene association	Gene symbol	Fold Change	P-Value
XM_001062261.1	LOC682605	0.0022	9.84E-10
NM_147212.1	LOC259244	0.0023	1.59E-08
NM_198784.1	Mup4	0.0026	1.47E-08
NM_147214.1	LOC259246	0.0027	2.09E-06
NM_147214.1	LOC259246	0.0032	2.13E-10
NM_153312.2	Cyp3a2	0.0032	8.40E-10
NM_203325.1	Mup5	0.0037	8.22E-09
NM_147212.1	LOC259244	0.0042	3.65E-04
XM_233029.3	LOC298111	0.0048	6.32E-06
XM_001074217.1	Ste2	0.0052	1.07E-06
NM_019184.1	Cyp2c	0.0075	2.50E-04
XM_578458.1	LOC502953	0.0086	0.005275
NM_001003409.1	LOC298116	0.0088	6.06E-08
NM_001013098.1	Dhrs7	0.0094	2.30E-10
XM_575837.1	LOC500473	0.0106	0.001043
NM_147215.2	Obp3	0.012	8.66E-08
NM_012584.1	Hsd3b	0.0153	3.49E-09
XM_001056439.1	Stac3_predicted	0.0282	4.61E-05
NM_031732.1	Sult1c1	0.0361	1.03E-05
NM_134380.1	Ust5r	0.0408	9.79E-08
NM_001014240.2	LOC364773	0.0423	1.41E-05
XM_575821.1	LOC500457	0.0453	7.81E-05
NM_152936.1	Spink3	0.0588	1.91E-05
NM_017061.1	Lox	0.0616	9.16E-06
NM_145782.1	Cyp3a18	0.0668	1.15E-04
NM_019292.3	Ca3	0.0871	1.23E-06
NM_053977.1	Cdh17	0.098	0.015137
NM_017070.3	Srd5a1	10.0837	1.16E-04
XM_216107.3	Cpa2_predicted	12.5769	3.25E-04
NM_031572.1	Cyp2c12	24.0966	2.45E-04
NM_012630.1	Prlr	38.9271	3.12E-06
NM_017272.15	Aldh1a7	40.8982	0.005545
NM_016998.2	Cpa1	42.0376	0.002719
NM_022384.1	Ascl1	84.8827	3.28E-04
NM_053781.1	Akr1b7	85.1113	7.73E-08
XM_235351.3	RGD1564515_predicted	169.3112	1.15E-04
NM_022258.2	A1bg	226.3963	2.49E-06

Table 5 Significant gene changes (over 10 fold) in liver mRNA levels between male and female rats

Among the 240 genes which have over 2-fold changes, 68 genes were involved in the KEGG pathway and related to 79 biological pathways. We sorted the major 10 pathway as Biosynthesis of steroid, polysaturated fatty acid biosythesis, Bile acid biosynthesis, PPAR signaling pathway, Terpenoid biosynthesis, Cytokine-cytokine receptor interaction, Linoleic acid metabolism, Jak-STAT signaling pathway and ABC transporters (Table 6).

KEGG pathway	Gene counts	P-Value
Biosynthesis of steroids	9	0
Polyunsaturated fatty acid biosynthesis	3	1.72E-06
Bile acid biosynthesis	3	5.36E-06
PPAR signaling pathway	4	5.44E-06
Terpenoid biosynthesis	2	1.75E-05
Cytokine-cytokine receptor interaction	4	9.66E-05
Linoleic acid metabolism	2	7.87E-04
Pyruvate metabolism	2	8.55E-04
Jak-STAT signaling pathway	3	8.88E-04
ABC transporters - General	2	0.001233

Table 6 Amplitude in mill volts of the Lead-1 of electrocardiography in sheep

Discussion

It was well-known that Silver nanoparticles (AgNPs) have antimicrobial properties and extensively used in various medical and general applications.²Thus, consumers and workers may be exposed to AgNPs, which may pose harmful effects on their health.²⁶Exposure to silver nanoparticles have been shown to induce liver toxicity including increase of cholesterol and alkaline phosphatase and bile duct hyperplasia in 28-day oral toxicity study^12-14and 90-day oral subchronic study¹⁴and a 90-day inhalation studies.¹⁵ The toxicity of AgNPs on cells are well established and it was reported that AgNPs induced cytotoxicity in primary liver cells and increased superoxide dismutase and glutathione.^27-29 In addition, AgNPs produced reactive oxygen species (ROS) which induced oxidative cell damage and mitochondria-involved apoptosis in human liver cell.²Moreover, most mechanistic studies were focused on in vitro system than in vivo model.³⁰To find the exact mode of action, this study conducted a toxicogenomic examination with rat livers which were inhalation exposure for 12 weeks to AgNPs. Nanoparticles exposure could occur via inhalation, dermal contact and ingestion during manufacturing and consuming. So, researchers were administered AgNPs with various ways and then they observed tissue distribution for AgNPs to investigate the toxic effect and target organ.

Especially, liver is one of the most importance target organs. Because, the liver is the first line of defense against for exogenous xenobiotic materials and involved in detoxification of heavy metals, including silver.^10,20Additionally, Kupffer cells, reticulo-endothelial system in the liver, can efficiently remove impurities from the blood.²⁰ Also, many studies reported that AgNPs deposition was observed in the liver after oral, inhalation, intraperitoneal and intravenous administration.^20,31 In our study, we also observed AgNPs deposition was observed in liver after 12 weeks inhalation exposure. We found that liver tissue silver contents were dose-dependently increased in both male and female rat after 13 weeks inhalation exposure. However, we could not observe sex difference in silver contents of liver tissues. In case of gold nanoparticles (AuNPs) intravenous injection, AuNPs were rapidly and consistently accumulated in liver and spleen among 25 organs after administration. Also, these liver and spleen tissues were significantly altered to genes related to detoxification, lipid metabolism, cell cycle, defense response and circadian rhythm.³² To elucidate the exact mode of action of AgNPs, we have conducted a toxicogenomic study to rat livers which have been exposed silver nanoparticles for 12 weeks inhalation. 1.3 fold up or down regulated genes (p < 0.05) were regarded as significant and used for data mining. According to Park et al., ICR male mice exposed Ag NPs up to 500 μg/kg by single instillation were conducted for microarrary with the mouse lung tissue at day 1 after exposure.³⁰ Inflammation and tissue damage relative genes were identified as significant gene alteration. Also, more than 1000 genes were up-regulated by 1.3 μg/ml Ag NPs in the human lung epithelial cell line (A549).

The up-regulated genes included member of metallothionein, heat shock protein and histone family.³³ In present study, we observed that 109 and 150 genes significantly up- and down regulated by AgNPs inhalation exposure in male and female rats, respectively (Table 3&5). The significantly altered male rat genes were involved in 54 biological pathways which were typically related with diabetes and metabolism. In female rat, the significantly expression changed genes were involved in 89 biological pathways which were mainly connected with metabolism and cell signaling. Furthermore, the gender-dependent gene expression changes of more than 2 fold were linked to 240 genes, with 114 genes in the male livers and 126 genes in the female livers. 68 genes of these genes were involved in the KEGG pathway and related to 79 biological pathways which were related to steroids and xenobiotics metabolism. For this result, liver metabolic enzymes activation was different between male and female rat by AgNPs inhalation exposure. Although, we could not observe the significant gene alterations such as the redox system, inflammation, cell cycle, and apoptosis-related genes, metabolism pathway related genes showed a significant alteration.

Conclusion

Silver concentrations in livers were dose-dependently increased in male and female rats. The used-exposure concentration and tissue accumulated concentration of Ag NPs could not induce pivotal toxicogenomic alterations and did not cause serious toxicity in this study. 109 and 150 genes significantly up- and down regulated by AgNPs inhalation exposure in male and female rats, respectively. The significantly altered male rat genes were involved in 54 biological pathways which were typically related with diabetes and metabolism. In female rat, the significantly expression changed genes were involved in 89 biological pathways which were mainly connected with metabolism and cell signaling. Plus, the gender-dependent gene expression changes of more than 2 fold were linked to 240 genes, with 114 genes in the male livers and 126 genes in the female livers. To surely verify the toxicogenomic-mechanism for AgNPs inhalation exposure, we need to find a significant exposure level and carry the long-term study for recovery groups.

Acknowledgments

This research was supported by the NanoMaterial Technology Development Program (Green Nano Technology Development Program) (2011-0020504) through the National Research Foundation of Korea (NRF) funded by the Korean Ministry of Science, ICT and Future Planning and supported by the ‘‘Development of technologies for safety evaluation and standardization of nanomaterials and nanoproducts (10059135)’’ through the Korea Evaluation Institute of Industrial Technology by the Korean Ministry of Trade, Industry & Energy and supported by the Ministry of Trade, Industry and Energy(MOTIE) through the Special Education program for Industrial Convergence.
