Many drug molecules have low solubility in aqueous media and, hence, poor bioavailability. The formation of a host-guest complex with some other compound which has a good solubility profile can facilitate solubilization of hydrophobic drugs. Complex formation relies upon the formation of non-covalent interactions between the host molecule and the drug guest. The use of calix[n]arenes, a well-characterized class of cyclic oligomers, has been investigated for their ability to form complexes with a variety of ionic and molecular species. This review highlights those studies which have demonstrated the potential of calix[n]arenes as host molecules in novel drug delivery systems.

 Keywords: Calix[n]arene, Calix.⁴resorcinarene, Drug solubilization

The administration of drug molecules to the body requires them to be formulated into a suitable dosage form that may be dictated by the fundamental properties of the drug or the site of the drug target and disease being treated. It is essential for a drug to have a high degree of bioavailability so the choice of formulation can be critical if the drug is to progress from the drug discovery phase to the clinic. More specifically, many hydrophobic drugs suffer from poor bioavailability so there is a need for specific formulations to overcome this, thus enhancing the efficacy of these drugs and enabling the administration of lower dosages. This is particularly important for certain drug classes, especially cytotoxic agents which are used in cancer chemotherapy. In order for drug molecules to be administered effectively intravenously they need to be readily soluble in aqueous media. This is often problematic and complex systems of excipients are used to aid such solubility. However, many conventional excipients experience disadvantages such as instability upon dilution, viscosity implications and adverse side effects. As such novel formulation technologies are being introduced to overcome such hurdles and render drug compounds useable which would have otherwise been redundant. Amongst these technologies emerging as suitable vehicles for drug delivery are calix[n]arenes and calix.⁴resorcinarenes.

Calix[n]arenes and the closely related calix.⁴resorcinarenes area group of cyclic oligomers with characteristic structures prepared easily from the reaction of a phenolic substrate with an aldehyde, typically under acidic conditions. The synthesis, properties and potential of calix[n]arenes and calix.⁴resorcinarenes has been described.^1-3 Calix[n]arenes and calix.⁴resorcinarenes have found use in supramolecular chemistry, catalysis and separation science but they have attracted much interest for their potential use in drug design and delivery.^4-10 The compounds consist of substituted aromatic rings joined together by a bridging atom, normally the carbon within a methylene group, to form a cyclic structure typically represented as a truncated cone with an upper and lower rim (Figure 1). Substituents on these peripheral rims confer specific chemical, structural and physical properties on the molecules. Closely related series of compounds, heterocalix[n]arenes in which the phenolic residues are bridged by sulfur atoms and calix.⁴pyrroles, for example, have also been studied but not to the same extent as the parent compounds. This review will focus on the use of calix[n]arenes and calix.⁴resorcinarenes bearing functionalities on the upper and lower rims in facilitating the solubilization of drug molecules in aqueous media.

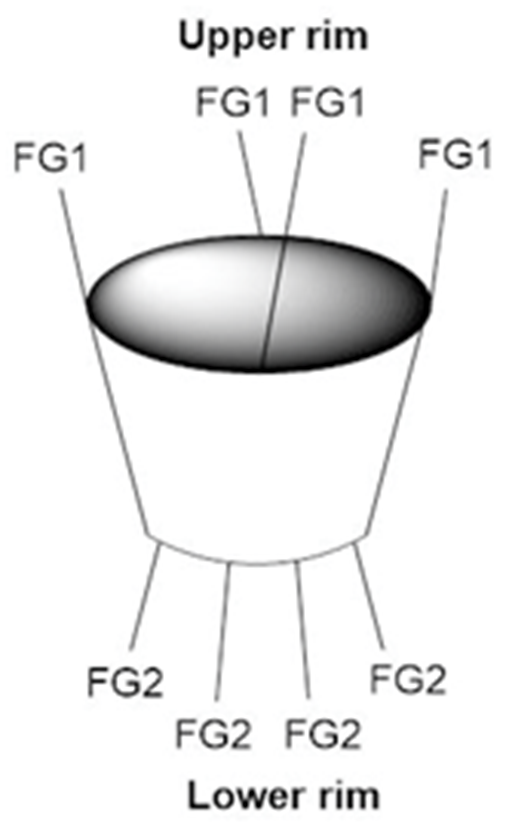

Figure 1 Representation of the idealized cone-like calix[n]arenes and calix[4] resorcinarenes.

Drug solubilization and delivery using calix[n]arene aggregates or calix[n]arenes that have been assembled into or form part of larger supramolecular structures has been reported .^11-15 For example, sulfonatocalix[n]arenes have been incorporated into larger architectures in which the hydrophobic drug molecule becomes encapsulated within a supramolecular assembly; the capsule walls of these assemblies contains the calix[n]arene.^16,17 Release of the drug molecule contained within such a complex may be triggered by an external stimulus, facilitating site-specific delivery. Such supramolecular chemistry is out with the scope of this review. The use of calix[n]arenes and calix.⁴resorcinarenes as drug delivery systems is still a relatively novel concept and as such, the number of reported studies are much fewer compared with other technologies such as cyclodextrins. However, these structures do offer a number of advantages including their ease of synthesis and modification and low toxicity. There is also the opportunity to develop formulations which enhance the site-specific delivery of drug molecules using novel formulation strategies and the development of image guided theranostics is a progression of this, combining imaging capability with site specific drug delivery. The main disadvantage of these systems is their tendency to be non-universal solubilizers since solubilization is dependent on molecular size of drug or complexation ability. Additionally, it is possible for aggregation to occur during long term storage which would hinder drug incorporation.

The most familiar and widely studied calix[n]arenes are the calix.⁴arenes, molecules which consist of four phenolic residues bridged by methylene groups. Besides the familiar cone conformation which presents a bowl-like cavity, calix[4]arenes can exist in several other conformations (Figure 2). Conceptually the bowl-shaped cone attracts the most attention in host-guest chemistry due to the obvious presence of an interior cavity. Many other studies of significance employ substituted calix.⁶arenes and calix.⁸arenes, which consist of six or eight phenolic residues joined through methylene bridges, respectively (Figure 3). Of course, as the number of phenolic residues within the calix[n]arene core structure increases so does the number of possible conformations. The greater number of rotatable bonds in these larger oligomers can present a challenge: for example, there are four possible conformations which can be adopted by calix.⁴arenes but this increases to sixteen for calix.⁸arenes, each conformation having different properties and, hence, potential for host-guest complex formation .¹⁸ Most studies into calix[n]arene facilitated drug solubilization have focused upon the synthesis of novel calix[n]arene derivatives bearing, for example, ionizable groups or rich functionality on either or both the upper and lower rims. Such calix[n]arenes are often amphiphilic and may self-assemble into larger networks in an aqueous environment, sometimes an advantage for solubilization of small molecules.¹⁹ Calix[n]arenes and calix.⁴resorcinarenes with more complex functionalities that also have biological activity and potential for solubilization have been reported, glycosylated calix[n]arenes and other multivalent calix[n]arenes for example.^20-23

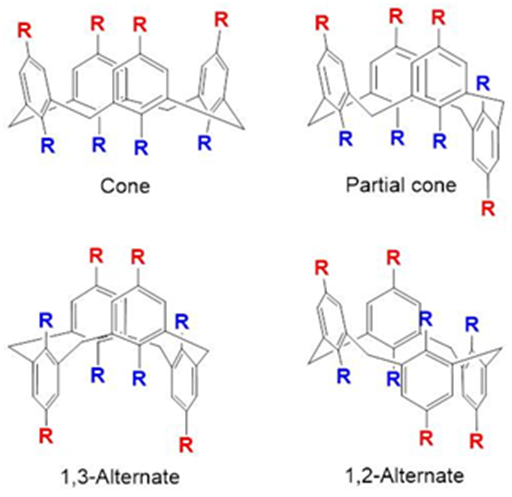

Figure 2 The four possible conformations of a calix.4arene.

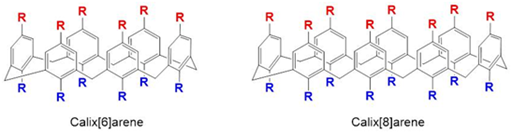

Figure 3 The structures of a calix.6arene and a calix.8arene.

Calix.4resorcinarenes are a related class of cyclic tetramers prepared by reacting resorcinol with an aldehyde to give a cone-like structure (Figure 4).²⁴ The key features of this class of compounds is that unlike the calix[n]arenes, which are prepared from the reaction of a phenol with methanal to form the methylene bridges, calix.4resorcinarenes can be prepared from the reaction of resorcinol with quite complex aldehyde precursors, usually in the presence of a suitable acid catalyst. For example, a glycosylated calix.4resorcinarene was readily prepared from the condensation of resorcinol with a glycosylated benzaldehyde (Figure 5).²⁵ The calix.4resorcinarenes are often represented as a truncated cone functionalized on the upper and lower rims. However, a number of well-characterized conformations of calix.4resorcinarenes may be isolated and the distribution of these conformations depends upon the starting materials in addition to the reaction conditions used.^26,27 It is possible to lock the calix.4resorcinarene into a cone-like structure by adding additional methylene bridges between the phenolic oxygen atoms on adjacent aromatic rings to form a generic structure colloquially known as a cavitand (Figure 6). This obviously removes some opportunities to functionalize the upper rim of the molecule but standard aromatic chemistry can be used to add additional functional groups and the lower rim can be decorated with diverse functionalities also. The chemistry and uses of calix.4resorcinarenes and cavitands has been described: cavitands and analogues form the basic structural unit of a widely studied series of supramolecular assemblies which have been used as hosts for small molecular species, molecular containers (carcerands) and catalysts.^28-31

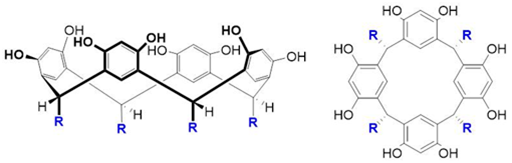

Figure 4 The structure of a calix.4resorcinarenes.

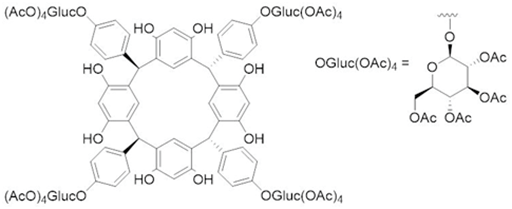

Figure 5 A tetraglycosylated calix.4resorcinarenes.

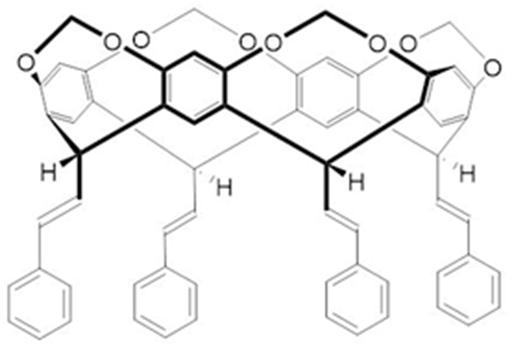

Figure 6 A simple cavitand.

Unfunctionalized calix[n]arene and calix.⁴resorcinarene molecules are typically hydrophobic in nature and insoluble in aqueous media. They must be functionalized with suitable groups in order to make them soluble and relevant for studies in drug solubilization. Shinkai et al. first reported the synthesis of water-soluble calix[n]arenes bearing sulfonate functional groups on the upper rim and alkyloxy groups on the lower rim.^32-35 The interior cavity of calix[n]arenes and calix.⁴resorcinarenes in the cone conformation is typically hydrophobic and this can be exploited to form reversible host-guest complexes with small organic molecules via non-covalent interactions. In studies such as these the calix[n]arenes are often referred to colloquially as ‘nano-baskets’, indicating their proposed use. Many early studies into complex formation with calix[n]arenes have been undertaken in non-aqueous environments. Once in an aqueous environment water-soluble calix[n]arenes can, in some cases, enhance the solubility of hydrophobic drugs via a non-covalent hydrophobic interaction within the core of the calix[n]arene. Studies in aqueous environments in which there is an abundance of water molecules capable of forming hydrogen bond networks with polar functional groups present on the calix[n]arene have shown that the solubilization of specific drugs with particular structural features depends not only upon this hydrophobic interaction but also the functional groups on the upper and lower rims and the size of the calix[n]arene, whether it is a calix.⁴arene or calix.⁶arene for example. Larger molecules or those with specific functional groups, for example groups which can form hydrogen bonds, may actually form complexes with the functional groups on the upper or lower rims of the calix[n]arene rather than enter the cavity at all. Often, though, the principal consideration to be overcome is that in order to increase the binding capacity for hydrophobic molecules within the calix[n]arene the size of the cavity must be appropriate. This should then allow complexation with larger, more sophisticated drug molecules. Effectively, the hydrophobic cavity must be sufficiently deep or wide, or in a specific conformation. However, this is not the sole factor to consider and the majority of examples of calix[n]arenes which have demonstrated enhanced drug solubilization potential have ionisable substituents on the upper rim and, perhaps, the lower rim also. In some studies the solubilizing potential of calix[n]arenesis compared directly with that of cyclodextrin analogues.

It should be noted here that derivatization of calix[n]arenes by changing the functionality on the lower rim, especially by attaching pendant groups or the joining of two calix[n]arene units together, and their use in delivery of molecules of pharmaceutical relevance has been reported.³⁶ Such lower rim-functionalized molecules can form complexes with other species, with metal ions in the development of sensors for example, but have not received the same attention for drug solubilization.

Biological studies of the toxicity of calix[n]arenes investigated for clinical use have been reported alongside studies into drug solubilization and other applications.^37,38 These studies have shown that the calix[n]arenes are biocompatible with negligible toxicity in vivo. This is obviously critical if they are to be clinically useful in pharmaceutical formulations to enhance drug solubilization and facilitate delivery. A fluorescent probe derived from an aminocalix.⁴arene was shown to be no more toxic towards Chinese hamster ovary cells (CHO) and human promyelocytic leukemia (HL-60) cells than PBS buffer over a range of concentrations.³⁹ Para-sulfonatocalix.⁴arene-was screened for cytotoxicity against human ovarian carcinoma cell line A2780 and the corresponding cisplatin-resistant daughter line A2780cis. Results from the MTT test indicate that the calix.⁴arene is not cytotoxic.⁴⁰

Para-Sulfonatocalix.⁴arene and substituted analogues do not give rise to haemolysis at concentrations up to 200 mM. Increased haemolysis is observed for the corresponding para-sulfonatocalix.⁶arene and para-sulfonatocalix⁸arene at the same concentration but this is much reduced for all sulfonated calixarenes at lower concentrations.⁴¹ No haemolytic effects were observed for solid lipid nanoparticles derived from a series of amphiphilic calixarenes.42The three para-sulfonatocalix[n]arenes showed no activation of neutrophils, even at relatively high concentrations, indicating that they do not illicit an immune response.⁴³

In contrast to the minimal observed toxicity of calix[n]arenes with potential use for drug solubilization and delivery, it should also be noted here that calix[n]arenes have been developed as molecules with clinically relevant biological activity in their own right. Functionalized calix[n]arenes have been demonstrated to have antibacterial, antifungal, antiviral and anticancer activity.^37,38 They have also been used in enzyme inhibition and gene transfection studies.⁴⁴ Calix[n]arenes have also been used as a non-therapeutic residue in prodrug assemblies.⁴⁵ The use of calix[n]arenes as pharmaceutical agents in their own right is not detailed within this review but such compounds do provide opportunities for dual use.

Within the area of drug solubilization using calix[n]arenes, it is the anionic calix[n]arenes which dominate reported studies. Such calix[n]arenes have been demonstrated to form host-guest complexes with amino acids and other biomolecules and knowledge gained from these investigations informs the pharmaceutical applications.^46-49 Sulfonated calix[n]arenes are attractive for applications in drug delivery because they are highly soluble in water and readily form host-guest complexes with hydrophobic molecules in aqueous media. The sulfonate groups on the upper rim of sulfonatocalix[n]arenes are completely ionized at pH 0.4 but most studies are conducted at pH 7.4 with few examining drug association at pH 2.0. In many cases the sulfonate groups on the upper rim play a complementary role and aid in the formation of complexes by combining ionic interactions and hydrogen bonding with other non-covalent interactions within the hydrophobic cavity. Interestingly, it has been reported that the hydrophobic cavity within para-sulfonatocalix.⁴arenes is not sufficiently large to accommodate small, substituted benzene derivatives. It is not surprising, therefore, that para-sulfonatocalix.⁶arenes and para-sulfonatocalix.⁸arenes have dominated drug solubility studies.

Sulfonatocalix[n]arenes for drug solubilization

Para-Sulfonatocalix.4arene, para-sulfonatocalix.⁶arene and para-sulfonatocalix.⁸arene (Figure 7) were investigated for their potential to form complexes with testosterone in aqueous media. Predictably, para-sulfonatocalix.⁴arene formed a weak complex and measurements indicated that the steroid had not entered the hydrophobic cavity. The solubility of testosterone was enhanced by 1:1 complex formation with para-sulfonatocalix.⁶arene and para-sulfonatocalix.⁸arene, studied across a range of pH; it was noted here that the conformation of a para-sulfonatocalix[n]arene in solution may affect the stability of any complex formed. In fact, the solubility enhancement exceeded that which is observed when testosterone is complexed with β-cyclodextrin, demonstrating at this stage the great potential of sulfonatocalix[n]arenes.^50,51

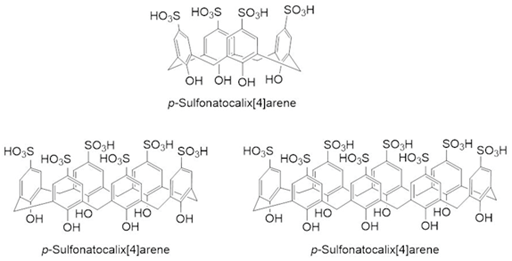

Figure 7 Para-Sulfonatocalix[n]arenes most commonly used in solubilization studies.

Sulfonatocalix[n]arenes of various sizes have thus been shown to form simple host-guest complexes with drug substances in which the drug molecule is partially inserted within the hydrophobic cavity of the calix[n]arene. Studies with the sodium salt of para-sulfonatocalix.⁴arene revealed that it was capable of forming a complex with topotecan, a topoisomerase I inhibitor used in the treatment of a number of different cancer types.⁵² The hydrochloride salt of topotecan is soluble in aqueous media but the non-protonated form is only sparingly so, therefore careful formulation is required in order for it to be clinically appropriate. A strong stoichiometric complex was formed between topotecan and para-sulfonatocalix.⁴ arene. Nuclear magnetic resonance (NMR) spectroscopy was used to determine the structure of the complex formed and the various non-covalent interactions which were involved, in particular. It was shown that the relatively hydrophobic quinolone-containing moiety of the complexed topotecan molecule is held within the hydrophobic cavity of the calix[n]arene whilst the more hydrophilic hydroxylated lactone portion resides outside of the cavity. Solubility of the complexed topotecan was five-fold greater than topotecan alone .⁵²

Carvediol, a non-selective β-antagonist used in the treatment of hypertension is freely soluble in dimethylsulfoxide but practically insoluble in water, hampering administration. The drug molecule forms a 1:2 complex with para-sulfonatocalix.⁴arene and a 1:1 complex with the corresponding para-sulfonatocalix.⁶arene, both of which were markedly more soluble than the free drug. Additionally, there was no increase in the toxicity observed for the free drug when compared to each of the complexes in in vivo studies.⁵³ This exciting study highlights the potential of these systems to act as drug solubilizers without increasing the event of any adverse side effects.

A derivative of para-sulfonatocalix.⁴arene bearing tetrabutyloxy groups in place of the hydroxyl groups on the lower rim was shown to form a stoichiometric complex with ascorbic acid in water.⁵⁴ Interestingly the association constant, determined by fluorescence spectroscopy, increased dramatically as the temperature of the solution increased, indicating that entropy plays a significant role in determining the degree of complexation. NMR studies demonstrated that the ascorbic acid molecule was complexed such that the hydroxylated chain was embedded within the hydrophobic cavity, leaving the unsaturated lactone moiety projected out of the cavity facilitating the formation of a hydrogen-bonded network with the sulfonate functional groups .⁵⁴

Para-Sulfonatocalix.⁶arene was shown to form complexes with the local anaesthetics tetracaine and proparacaine in their protonated forms, which would be present in vivo at physiological pH.^55,56 para-Sulfonatocalix.⁶arene formed a strong, stoichiometric host-guest complex with each molecule which was confirmed by NMR and other spectroscopic studies. The association between para-sulfonatocalix.6arene and the non-protonated proparacaine was demonstrated to be considerably weaker. Indeed, studies revealed that the ionized amino groups are held closely to the calixarene cavity, highlighting the importance of ionic interactions in complex formation with calix[n]arenes in addition to any considerations of the hydrophobic effect .^55,56

Para-Sulfonatocalix.⁴arene and para-sulfonatocalix.⁶arene were employed in investigations into the solubilization of the hydrophobic anticonvulsant drug carbamazepine.⁵⁷ The drug suffers from poor bioavailability and is thus an excellent investigational tool to determine if increased solubility by complex formation may enhance the clinical utility of a drug molecule. It was shown that carbamazepine forms stable complexes with both calix[n]arenes, with a 1:1 stoichiometry for the complex with para-sulfonatocalix.⁶arene and a 2:1 stoichiometry for the complex with para-sulfonatocalix.⁴arene. Dissolution studies confirmed that the differing sizes and, hence, cavity volumes of the calix[n]arenes used influenced the increased solubility of carbamazepine. Importantly the dissolution rates of the carbamazepine complexes were increased significantly as compared to the drug alone .⁵⁷ These results indicate that the novel formulations were more effective and showed great potential as drug carriers for carbamazepine.

The sodium salts of para-sulfonatocalix.⁴arene and para-sulfonatocalix.⁶arene were investigated for their ability to form a complex with the tuberculostatic drug isoniazid with the goal of developing a system for protecting the drug from the biological environment before it reached the site of action.⁵⁸ Analysis of the stoichiometric complexes formed between the sulfonated calixarenes indicated that the isoniazid molecule is held with the planar pyridine residue occupying the hydrophobic cavity within the calix whilst the hydrazine residue interacted with the sulfonate groups on the upper rim. The activity of each of the isoniazid: calixarene complexes against Mycobacterium tuberculosis was investigated and determined to be close to the activity of isoniazid alone.⁵⁸ These studies highlight the potential of these systems in the protection of drug molecules in their in vivo journey before reaching their desired site of action.

Para-sulfonatocalix⁸arene was investigated as a solubilizing agent for fluroquinolone antibiotics, more specifically norfloxacin.⁵⁹ As would be expected from its structure the solubility of norfloxacin in aqueous media is pH-dependent and it is least soluble at plasma pH of 7.4. Experiments conducted over a range of pH and in the presence of various co-solvents and surfactant demonstrated that a stoichiometric complex is formed between norfloxacin and para-sulfonatocalix.⁸arene with association predominantly governed by electrostatic and hydrogen bonding interactions rather than any hydrophobic effect. Interestingly the addition of bovine serum albumin to a solution containing the complex caused the norfloxacin to be released and associate with the serum protein, thus demonstrating the potential of calixarenes for the controlled release of drug molecules.⁵⁹

Para-Sulfonatocalix.⁴arene, para-sulfonatocalix.⁶arene and para-sulfonatocalix.⁸arene, each with various cavity volumes dependent upon confirmation, have been investigated for their ability to solubilize a range of drug molecules with widely differing structural features and, thus, requirements for complex formation. The drug molecules used in three linked studies suffered from extremely poor solubility in water, ranging from 38 μgmL^-1 for the diuretic furosemide, 5μgmL^-1 for calcium channel blocker nifedipine and 230 ngmL^-1 for the anthelmintic niclosamide, which is detrimental to their bioavailability. For furosemide the solubilizing effects of each para-sulfonatocalix[n]arene was studied across a pH range designed to mimic the acidic gastric environment. Each of the para-sulfonatocalix[n]arenes studied formed a stable 1:1 complex with furosemide, with the molecule occupying the central cavity. Para-Sulfonatocalix.⁶arene increased the solubility of furosemide the greatest, followed by para-sulfonatocalix[8]arene and para-sulfonatocalix.⁴arene. The solubility of niclosamide was increased by complex formation with para-sulfonatocalix.⁶arene and para-sulfonatocalix.⁴arene but the experimental data indicated that the complexes with each of the calix[n]arenes investigated became insoluble at higher concentrations. The solubility of nifedipine was increased when complexed with para-sulfonatocalix.⁸arene and para-sulfonatocalix.⁴arene whereas it was decreased when challenged with para-sulfonatocalix.⁶arene. In each case solubilization of the drugs by the sulfonatedcalix[n]arenes investigated reflected a tangible dependence upon a number of factors, including calix[n]arene cavity size, conformations of both the drug molecule and the calix[n]arene across a range of pH and concentration of the calix[n]arene .^60-62

Phosphonatocalix[n]arenes for drug solubilization

The fundamental properties and chemistry of calix[n]arenes functionalized with phosphonate groups has been described.⁶³ They have been demonstrated to form complexes with small molecules due to non-covalent interactions, specifically those which exploit the phosphonate moieties. The sodium salts of para-phosphonatocali.⁴arene, para-phosphonatocalix⁶arene, para-phosphonatocalix.8arene and a partially phosphorylated calix.4arene bearing two tert-butyl groups (Figure 8) were investigated for their ability to also solubilize furosemide, nifedipine and niclosamide. Analyses indicated that each of the phosphonatocalix[n]arenes in this series formed 1:1 complexes with the drugs investigated. The aqueous solubility of both furosemide and nifedipine was increased greatly by complexation with the partially phosphorylated calix.4arene; in the case of furosemide the phenyl residue again occupied the central cavity. Niclosamide was solubilized by complex formation with para-phosphonatocalix.4arene and para-phosphonatocalix.⁶arene with experimental data again indicating that the substituted aryl residue becomes embedded within the calixarene cavity; this is particularly interesting because the polar nitro group is also taken up by the cavity .^64,65

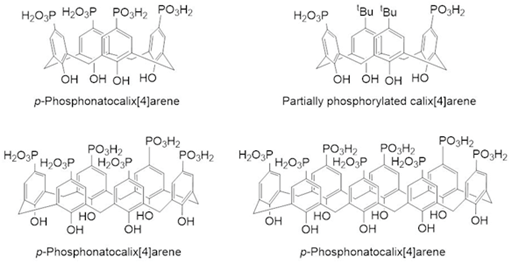

Figure 8 Para-Phosphonato calix[n]arenes used in solubilization studies.

Aminocalix[n]arenes for drug solubilization

The synthesis and properties of diverse series of calix[n]arenes that bear amino- functional groups and other basic residues has been studied .⁶⁶ This includes calix[n]arenes bearing basic functional groups on both upper- and lower-rims. However, their potential for drug solubilization has not been explored as widely as the sulfonated and phosphonated calix[n]arenes, for example. As mentioned above aminocalix[n]arenes typically have other inherent pharmacological properties which makes them attractive for further studies in nanomedicine. The key differentiator is that the aminocalix[n]arenes may be protonated to present positive charge to interacting drug molecules. Also, the hydrophilicity and, hence solubilizing potential, of the amino-substituted calix[n]arenes depends upon the interplay between several factors including: whether the amino substituent is bonded directly to the calixarene annulus, the accessibility of the charged moiety to water molecules and the aggregation behavior of amphiphilic calix[n]arenes. As with the sulfonated and phosphonated calix[n]arenes the pH of the aqueous media also plays a key role in determining solubility of aminocalix[n]arenes. For example, at neutral pH calix[n]arenes bearing both amino- and phenolic hydroxyl groups exist in the zwitter ionic form and become appreciably less soluble as pH increases.

The potential of an aminocalix.⁴arene bearing tetra-alkyl ammonium residues on the upper rim and propyloxy groups on the lower rim was compared to that of β-cyclodextrin with respect to the solubilization of a series of drug molecules at pH 7.4. The aminocalix.⁴arene was notably better in facilitating the solubilization of lidocaine, paracetamol, ketoprofen and hydrophobic steroids, with 17β-estradiol being the most affected. However, observations suggested that aggregation of the aminocalix[n]arene may be influential and the formation of stoichiometric complexes should not be assumed .^67,68

A natural extension to the work described above is the study of calix[n]arenes which bear charged residues on both the upper and lower rims. Such amphoteric calix[n]arenes have potential for the retention and release of a complexed drug molecule by varying the pH of the aqueous environment enabling site-specific delivery, for example. A multi functionalised calix.⁸arene bearing anionic sulfonate residues on the upper rim and cationic tetra-alkyl ammonium groups on the lower rim self-condenses as expected through ion-ion interactions to form particulate species. However, the broad spectrum antibiotic ciprofloxacin can be accommodated within the condensed material, partially occupying the hydrophobic core of the calix.⁸arene and forming hydrogen bonds with groups on the upper rim. Drug release from the complex was extremely pH-dependent; little release of ciprofloxacin was observed at pH 7.4 but this increased greatly as the pH was varied either side of physiological pH. This sort of complex formation sits at the interface between supramolecular chemistry and the formation of 1:1 host-guest complexes with simple calixarenes bearing either anionic or cationic groups.⁶⁹

Sulfonated resorcinarenes for drug delivery

The potential of calix[n]arenes in drug solubilization has been demonstrated, particularly the para-sulfonatocalix[n]arenes. However, use of the corresponding calix.4resorcinarene analogues has not been studied so widely despite calix.4resorcinarenes being readily prepared and modified and also the focus of many studies in supramolecular chemistry. The solubility of the immunosuppressant mycophenolate mofetil was enhanced by host-guest complex formation with the readily available para-sulfonatocalix.4resorcinarene (Figure 9): mycophenolate mofetil is practically insoluble in water but in the presence of para-sulfonatocalix.4resorcinarene a 1:2 complex was formed which was markedly more soluble. In vivo studies also indicated that the toxicity of the drug was much reduced by complex formation .⁷⁰ In a more recent report the para-sulfonatocalix.4resorcinarene was demonstrated to form a 1:1 complex with the common potent anticonvulsant drug lamotrigine; this was characterized using various analytical techniques and supported by molecular modelling. The complex was stabilized by hydrogen bonding and π-π interactions. The complex was also reported to display much reduced toxicity in animal studies when compared to the free drug .⁷¹

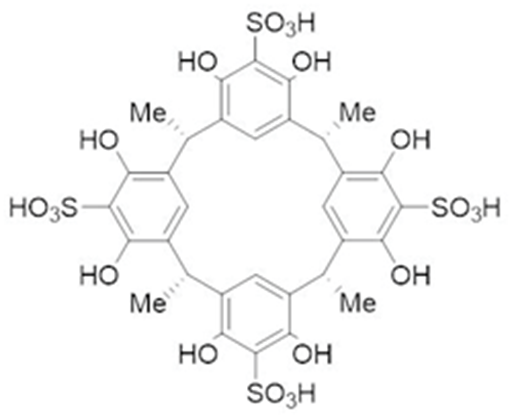

Figure 9 Para-Sulfonato calix.4resorcinarenes.

In conclusion, water-soluble calix[n]arenes and calix.⁴resorcinarenes have been demonstrated to improve the solubility of a variety of drug molecules in aqueous media. The reported low toxicity of the calix[n]arenes makes them attractive in comparison to other common solubilizing agents. Complex formation is not simply determined by the chemical and physical properties of the host calix[n]arene and the guest drug molecule. The various non-covalent interactions that mediate complex formation are influenced greatly by the aqueous environment, especially pH, and this may limit the potential of certain calixarenes due to the formation of aggregates and other architectures in solution. There is thus a requirement to further study and develop the range of calix[n]arenes available for drug solubilization.

None.

None.

1. Gutsche CD Calixarenes: An Introduction. (2nd edn), The Royal Society of Chemistry, Cambridge. 2008
2. Sliwa W, Kozlowski C Calixarenes and Resorcinarenes: Synthesis, Properties and Applications. Wiley-VCH, Weinheim, pp. 304. 2009
3. Mokhtari B, Pourabdollah K, Dalali N Molecule and ion recognition of nano-baskets of calixarenes since 2005. J Coord Chem. 2011;64(5):743-794.
4. da Silva E, Lazar AN, Coleman AW Biopharmaceutical applications of calixarenes. J Drug Del Sci Tech. 2004;14(1):3-20.
5. de Fátima Â, Fernadez SA, Sabino AA Calixarenes as new platforms for drug design. Curr Drug Discov Technol. 2009;6(2):151-170.
6. Rodik RV, Boyko VI, Kalchenko VI Calixarenes in bio-medical research. Curr Med Chem. 2009;16(13):1630-1655.
7. Mokhtari B, Pourabdollah K Applications of calixarene nano-baskets in pharmacology. J Incl Phenom Macrocyl Chem. 2012;73(1-4):1-15.
8. Shah MD, Agrawal YK Calixarene: A new architecture in the analytical and pharmaceutical technology. J Sci Ind Res India. 2012;71(1):21-26.
9. Mokhtari B, Pourabdollah K Applications of nano-baskets in drug development: high solubility and low toxicity. Drug Chem Toxicol. 2013;36(1):119-132.
10. Varejao EVV, de FátimaÂ, Fernadez SA Calix[n]arenes as goldmines for the development of chemical entities of pharmaceutical interest. Curr Pharm Design. 2013;19(36):6507-6521.
11. Lee M, Lee SJ, Jiang LH Stimuli-responsive supramolecular nanocapsules from amphiphilic calixarene assembly. J Am Chem Soc. 2004;126(40):12724-12725.
12. Pojarova M, Ananchenko GS, Udachin KA et al. Solid lipid nanoparticles of p-hexanoylcalix[4]arene as a controlling agent in the photochemistry of a sunscreen blocker. Chem Mater. 2006;18(25):5817-5819.
13. Sansone F, Baldini L, Casnati A et al. Calixarenes: from biomimetic receptors to multivalent ligands for bio molecular recognition. New J Chem. 2010;34(13):2715-2728.
14. Weeden C, Hartlieb KJ, Lim LY Preparation and physicochemical characterization of a novel paclitaxel-loaded amphiphilic aminocalix arene nanoparticle platform for anticancer chemotherapy. J Pharm Pharmacol. 2012;64(10):1403-1411.
15. GuoD-S, Liu Y Supramolecular chemistry of p-sulfonatoclix[n]arenes and its biological applications. Acc Chem Res. 2014;47(7):1925-1934.
16. Wang K, Guo D-S, Wang X et al. Multistimuli responsive supramolecular vesicles based on the recognition of p-sulfonatocalix arene and its controllable release of doxorubicin. ACS Nano. 2011;5(4):2880-2894.
17. Guo DS, Wang K, Wang Y-X et al. Cholinesterase-Responsive Supramolecular Vesicle. J Am Chem Soc. 2012;134(24):10244-10250.
18. Guo D-S, Wang K, Liu Y Selective binding behaviors of p-sulfonato calixarenes in aqueous solution. J Incl Phenom Macrocycl Chem. 2008;62(1-2):1-21.
19. Helttunena K, Shahgaldian P Self-assembly of amphiphilic calixarenes and resorcinarenes in water. New J Chem. 2010;34(12):2704-2714.
20. Fulton DA, Stoddart JF Neoglycoconjugates based on cyclodextrins and calixarenes. Bio conjugate Chem. 2001;12(5):655-672.
21. Baklouti L, Cheriaa N, Mahouachi M et al. Calixarene-based dendrimers. A timely review. J Incl Phenom Macrocycl Chem. 2006;54(1-2):1-7.
22. Baldini L, Casnati A, Sansone F et al. Calixarene-based multivalent ligands. Chem Soc Rev. 2007;36(2):254-266.
23. Dondoni A, Marra A Calixarene and calixresorcarene glycosides: their synthesis and biological applications. Chem Rev. 2010;110(9):4949-4977.
24. Timmerman P, Verboom W, Reinhoudt DN Resorcinarenes. Tetrahedron. 1996;52(8):2663-2704.
25. Curtis ADM Novel calix[4]resorcinarene glycosides. Tetrahedron Lett. 1997;38(24):4295-4296.
26. Hogberg AGS Cyclooligomeric phenol-aldehyde condensation products. 2. Stereoselective synthesis and DNMR study of two 1,8,15,22-Tetraphenyl[14]metacyclophan-3,5,10,12,17,19,24,26-octols. J Am Chem Soc. 1980;102(19):6046-6050.
27. Wand I, Wzorek A Introduction to the Chirality of Resorcinarenes. Mini-Rev Org Chem. 2009;6(4):398-411.
28. Sherman JC. Carceplexes and hemicarceplexes: molecular encapsulation-from hours to forever. Tetrahedron. 1995;51(12):3395-3422.
29. Cram DJ, Cram JM. Container molecules and their guests (Monographs in supramolecular chemistry) Stoddart JF (Ed). The Royal Society of Chemistry, London. 1997.
30. Roach P, Warmuth R. The room-temperature stabilization of bicyclo[2.2.2]oct-1-ene and bicyclo[3.2.1]oct-1-ene. Angew Chem Int Ed. 2003;42(26):3039-3042.
31. Hooley RJ, Rebek J. Chemistry and catalysis in functional cavitands. Chem Biol. 2009;16(3):255-264.
32. Shinkai S, Mori S, Tsubaki T, et al. New water-soluble host molecules derived from calix[6]arene. Tetrahedron Lett. 1984;25(46):5315-5318.
33. Shinkai S, Tsubaki T, Sone T, et al. New syntheses of calixarene-p-sulphonates and p-nitrocalix arenes. J Chem Soc Perkin Trans I. 1987;2297-2299.
34. Morzheriny Y, Rudkevich DM, Verboom W, et al. Chloro sulfonylated calix[4]arenes: Precursors for neutral anion receptors with a selectivity for hydrogen sulfate. J Org Chem. 1993;58(26):7602-7605.
35. Makha M, Raston CL. Direct synthesis of calixarenes with extended arms: p-phenylcalix[4,5,6,8]arenes and their water-soluble sulfonated derivatives. Tetrahedron Lett. 2001;42(35):6215-6217.
36. Jose P, Menon S. Lower-rim substituted calixarenes and their applications. Bioinorg Chem Appl. 2007;65815.
37. Perret F, Lazar AN, Coleman AW. Biochemistry of the para-sulfonato-calix[n]arenes. Chem Commun. 2006;42(23):2425-2438.
38. Perret F, Coleman AW. Biochemistry of anionic calix[n]arenes. Chem Commun (Camb). 2011;47(26):7303-7319.
39. Lalor R, Baillie-Johnson H, Redshaw C, et al. Cellular uptake of a fluorescent calix[4]arene derivative. J Am Chem Soc. 2008;130(10):2892-2893.
40. Wheate NJ, Abbott GM, Tate RJ, et al. Side-on binding of p-sulphonatocalix[4]arene to the dinuclear platinum complex trans-[{PtCl(NH3)2}2l-dpzm]2+ and its implications for anticancer drug delivery. J Inorg Biochem. 2009;103(3):448-454.
41. Da Silva E, Shahgaldian P, Coleman AW. Haemolytic properties of some water-soluble para-sulphonato-calix-[n]-arenes. Int J Pharm. 2004;273(1-2):57-62.
42. Shahgaldian P, da Silva E, Coleman AW. A first approach to the study of calixarene solid lipid nanoparticle (SLN) toxicity. J Incl Phenom Macrocycl Chem. 2003;46(3-4):175-177.
43. Paclet MH, Rousseau CF, Yannick C, et al. An absence of non-specific immune response towards para-sulphonato-calix[n]arenes. J Incl Phenom Macrocycl Chem. 2006;55(3-4):353-357.
44. Rodik RV, Klymchenko AS, Mely Y, et al. Calixarenes and related macrocycles as gene delivery vehicles. J Incl Phenom Macrocycl Chem. 2014;80(3-4):189-200.
45. Dibama HM, Clarot I, Fontanay S, et al. Towards calixarene-based prodrugs: Drug release and antibacterial behaviour of a water-soluble nalidixic acid/calix[4]arene ester adduct. Bioorg Med Chem Lett. 2009;19(10):2679-2682.
46. Antipin IS, Stoikov IL, Pinkhassik EM, et al. Calix[4]arene based α-aminophosphonates: Novel carriers for zwitter ionic amino acids transport. Tetrahedron Lett. 1997;38(33):5865-5868.
47. Arena G, ContinoA, Gulino FG, et al. Complexation of native L-β-aminoacids by water soluble calix[4]arenes. Tetrahedron Lett. 1999;40(8):1597-1600.
48. Da Silva E, Coleman AW. Synthesis and complexation properties towards amino acids of mono-substituted p-sulphonato-calix-[n]-arenes. Tetrahedron. 2003;59(37):7357-7364.
49. Arena G, Casnati A, Contino A, et al. Inclusion of naturally occurring amino acids in water soluble calix[4]arenes: a microcalorimetric and 1H NMR investigation supported by molecular modeling. Org Biomol Chem. 2006;4(2):243-249.
50. Millership JS. A preliminary investigation of the solution complexation of 4-sulphonic calix[n]arenes with testosterone. J Incl Phenom Macrocycl Chem. 2001;39(3-4):327-331.
51. Da Silva E, Valmalle C, Becchi M, et al. The use of electrospray mass spectrometry (ES/MS) for the differential detection of some steroids as calix-[n]-arenesulphonate complexes. J Incl Phenom Macrocycl Chem. 2003;46(1-2):65-69.
52. Wang G-S, Zhang H-Y, Ding F, et al. Preparation and characterization of inclusion complexes of topotecan with sulfonatocalixarene. J Incl Phenom Macrocycl Chem. 2011;69(1-2):85-89.
53. Menon SK, Mistry BR, Joshi KV, et al. Evaluation and solubility improvement of carvedilol: PSC[n]arene inclusion complexes with acute oral toxicity studies. J Incl Phenom Macrocycl Chem. 2012;73(1-4):295-303.
54. Zhou Y, Ding X, Fang X, et al. Studies on the inclusion behavior of amphiphilic p-sulfonatocalix[4]arene with ascorbic acid by spectrofluorometric titrations. Opt Photonics J. 2011;1(2):59-64.
55. Fernandes SA, Cabeça LF, Marsaioli AJ, et al. Investigation of tetracaine complexation with beta-cyclodextrins and p-sulphonic acid calix[6]arenes by nOe and PGSE NMR. J Incl Phenom Macrocycl Chem. 2007;57(1-4):395-401.
56. Arantes LM, Scarelli C, Marsaioli AJ, et al. Proparacaine complexation with β-cyclodextrin and p-sulfonic acid calix[6]arene, as evaluated by varied 1H-NMR approaches. Magn Reson Chem. 2009;47(9):757-763.
57. Panchal JG, Patel RV, Menon SK. Preparation and physicochemical characterization of carbamazepine (CBMZ): para-sulfonated calix[n]arene inclusion complexes. J Incl Phenom Macrocycl Chem. 2010;67(1-2):201-208.
58. deAssis JV, Teixeira MG, Soares CGP, et al. Experimental and theoretical NMR determination of isoniazid and sodium psulfonatocalix[n]arenes inclusion complexes. Eur J Pharm Sci. 2012;47(3):539-548.
59. Wang X, Luo C, Lv Z, Lu F. Investigation of the inclusion behaviour between p-sulfoniccalix [8] arene and norfloxacin by fluorescence spectroscopy. J Lumin. 2011;131(9):1986-1990.
60. Yang W, de Villiers MM. Aqueous solubilization of furosemide by supramolecular complexation with 4-sulphonic calix[n]arenes. J Pharm Pharmacol. 2004;56(6):703-708.
61. Yang W, de Villiers MM. The solubilization of the poorly water soluble drug nifedipine by water soluble 4-sulphonic calix[n]arenes. Eur J Pharm Biopharm. 2004;58(3):629-636.
62. Yang W, de Villiers MM. Effect of 4-sulphonato-calix[n]arenes and cyclodextrins on the solubilization of niclosamide, a poorly water soluble anthelmintic. AAPS. 2005;7(1):241-248.
63. Martin AD, Raston CL. Multifunctional p-phosphonated calix arenes. Chem Commun (Camb). 2011;47(35):9764-9772.
64. Bayracki M, Ertul Ş, Yilmaz M. Phase solubility studies of poorly soluble drug molecules by using O-phosphorylated calixarenes as drug-solubilizing agents. J Chem Eng Data. 2011;56(12):4473-4479.
65. Bayracki M, Ertul Ş, Yilmaz M. Solubilizing effect of the p-phosphonate calix[n]arenes towards poorly soluble drug molecules such as nifedipine, niclosamide and furosemide. J Incl Phenom Macrocycl Chem. 2012;74(1-4):415-423.
66. Ukhatskaya EV, Kurkov SV, Matthews SE, et al. Encapsulation of drug molecules into calix[n]arene nano baskets. Role of aminocalix[n]arenes in biopharmaceutical field. J Pharm Sci. 2013;102(10):3485-3512.
67. Ukhatskaya EV, Kurkov SV, Matthews SE, et al. Evaluation of a cationic calix[4]arene: solubilization and self-aggregation ability. Int J Pharm. 2010;402(1-2):10-19.
68. Xue Y, Guan Y, Zheng A, et al. Amphoteric calix[8]arene-based complex for pH-triggered drug delivery. Colloids Surf B Biointerfaces. 2013;101:55-60.
69. Menon SK, Modi NR, Mistry B, et al. Improvement of some pharmaceutical properties of mycophenolate mofetil (MMF) by parasulfonatocalix [4] resorcinarene inclusion complex. J Incl Phenom Macrocycl Chem. 2011;70(1-2):121-128.
70. Patel MB, Valand NN, Modi NR et al. Effect of p-sulfonatocalix [4] resorcinarene (PSC [4] R) on the solubility and bioavailability of a poorly water soluble drug lamotrigine (LMN) and computational investigation. RSC Advances. 2013;36(3):15971-15981.
71. Acharya A, Samanta K, Rao CP Conjugates of calixarenes emerging as molecular entities of nanoscience. Coord Chem Rev. 2012;256(17-18):2096-2125.
