Carbon Nanotube Enhanced Shape Memory Polymer Nanocomposites for Development of Biomedical Devices

Jingyu Wang,¹ Shoieb Chowdhury,¹ Dee Wu,² Bradley Bohnstedt,³ Yingtao Liu,¹

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

Chung-Hao Lee¹

¹School of Aerospace and Mechanical Engineering, University of Oklahoma, USA
²Department of Radiological Sciences, University of Oklahoma Health Sciences, USA
³Department of Neurosurgery, University of Oklahoma Health Sciences, USA

Correspondence: Yingtao Liu, School of Aerospace and Mechanical Engineering, University of Oklahoma, Norman, OK, USA

Received: July 05, 2017 | Published: August 4, 2017

Citation: Wang J, Chowdhury S, Wu D, Bohnstedt B, Liu Y et al. (2017) Carbon Nanotube Enhanced Shape Memory Polymer Nanocomposites for Development of Biomedical Devices. J Nanomed Res 6(1): 00141. DOI: 10.15406/jnmr.2017.06.00141

Download PDF

Abstract

This paper presented the synthesis and characterization of carbon nanotubes (CNTs) enhanced aliphatic urethane shape memory polymer (SMP) nanocomposites for the development of biomedical devices. Critical polymer properties, such as the glass transition temperature and shape memory function, have been tailored to desired applications, by adjusting the polymer composition. CNTs were uniformly dispersed within the polymer during nanocomposite fabrication. The synthesized SMPs nanocomposites were characterized to understand their thermal and mechanical properties. Novel biomedical devices for intracranial aneurysm treatment will be developed using these SMPs.

Keywords: Shape memory polymer, Carbon nanotubes, Nanocomposites, Aneurysm occlusion devices

Introduction

Incidental rupture of an intracranial aneurysm results in subarachnoid hemorrhage, which accounts for about 5% of all strokes and causes about 10% of individual’s death before reaching medical attention in the USA .¹ Endovascular embolization is a surgical procedure for treating the abnormal blood vessel by excluding the aneurysmal sac and neck from intracranial circulation by means of complete and lasting occlusion. Although it has become an established therapy in the past decade, current clinical challenges associated with disappointing long-term therapeutic outcomes, including high risk of aneurysm’s rupture and recurrence rates (about 41%), as well as incomplete occlusion due to the complex geometry of the treated aneurysms .^2,3

Shape memory polymers (SMPs) have attracted significant attention for their potential applications to develop novel biomedical actuators, sensors, devices and smart systems .⁴ In general, SMPs possess the advantages of high elastic deformation, light-in-weight, low cost, easy synthesis, and potential biocompatibility and biodegradability. Aneurysm occlusion devices are a promising application for biocompatible SMPs. Compared to current devices (Guglielmi detachable coil), SMP-based medical devices can reduce the risk of aneurysm rupture, increase the long-term treatment results, and be applicable to more complex aneurysm geometries. SMPs have been used to coat platinum coils in aneurysm treatment .⁵ Promising initial results were obtained in in-vivo animal models. However, coil compaction and aneurysm recanalization rates increased due to resorption of the polymer coating, which resulted in low volumetric filling and need for retreatment. Recently, SMP foams based on DiAPLEX polyurethane have been investigated as a material to occlude aneurysms. Metcalfe et al. reported that the open cellular structure of SMP foams increased the growth of cells in neointima formation .⁶ However, current SMP foams cannot be designed to specific geometry using patient specific aneurysm data.

In this paper, we reported our experimental efforts to synthesize and characterize aliphatic urethane SMPs and carbon nanotube (CNTs) reinforced nanocomposites for the development of novel devices for the endovascular embolization of intracranial aneurysms. We demonstrated that the critical polymer properties, such as the glass transition temperature, can be tailored by adjusting the polymer formula. The developed SMPs are the foundation for the development of medical devices with the optimal endovascular embolization capability for treating cerebral aneurysms.

SMP synthesis and characterization

Three monomers were used to synthesize the aliphatic urethane SMPs. All the materials were purchased from Sigma Aldrich and used without any additional modification. The monomers used were:

Hexamethylene diisocyanate (HDI)
N,N,N0,N0-tetrakis (hydroxypropyl) ethylenediamine (HPED)
Triethanolamine (TEA). Five different SMPs using different molar ratio of each monomer were prepared (HDI: HPED: TEA = 1.00:0.50:0.00, 1:00:0.45:0.067, 1.00:0.40:0.133, 1.00:0.35:0.20, 1.00:0.3:0.267 mole ratio). CNTs were added to increase the thermal conductivity of SMPs in this paper. An ultra-sonication based method was employed to uniformly disperse CNTs within the polymer. HPED and CNTs were first dispersed within a solvent before HDI and TEA were added to the solution. Once all the solvent has been evaporated, the mixed materials were cured in the designed molds for sample fabrication.

Dynamic mechanical analysis (DMA) was employed to determine the thermal transitions in the synthesized SMPs. Experiments were conducted using a Q800 dynamic mechanical analyzer (TA Instruments (New Castle, DE). Beam samples (17.5×15×2 mm) were tested using three-point bending mode from 50℃ to 130℃. All the synthesized SMPs were tested and repeated four times. In addition, cyclic tensile tests were carried out using dog bone samples (ASTM Standard D638-10, Type V) at temperature above their glass transition temperature to determine the suitability for device applications. The samples were tested in a dual-column Instron mechanical testing system (Instron, Norwood, MA) within an environmental chamber. The samples were clamped in the chamber and kept at the required temperature for 10 minutes before each test. Due to the low Young’s modulus of such synthesized SMP materials, a load cell with the maximum load capacity of 100N was used in the tests. Both pristine SMPs and CNTs reinforced SMPs were tested under cyclic tensile load conditions.

Results and discussion

The shape memory function of the synthesized SMPs nanocomposites were first investigated. Each straight beam sample was first immersed into hot water (5-10℃ above the expected glass transition temperature), bended up to 90°, and cooled back to room temperature while maintaining the bended shape. Then the SMP nanocomposite sample was placed back to hot water and the material restored to the initial straight form autonomously. The samples at different shape is illustrated in Figure 1.

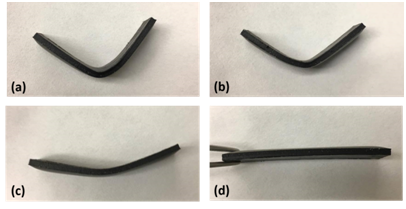

Figure 1 CNT reinforced SMP specimen changes shapes as heated above its glass transition temperature.

DMA tests were conducted to evaluate the glass transition temperature of different polymers with different molar ratio and polymer formulation. As we tailored the polymer formulation, the glass transition temperature of SMPs varied in the range of 65-80℃. Since CNTs only increase the thermal and electrical conductivity of SMPs, the glass transition temperature of SMPs with dispersed CNTs are considered to the same as pure SMPs. CNT dispersion quality was examined using a field emission SEM system. The sample was sputter coated before SEM tests. Three SEM images with different magnifications were shown in Figure 2. It can be seen that CNTs were uniformly dispersed in the SMP matrix.

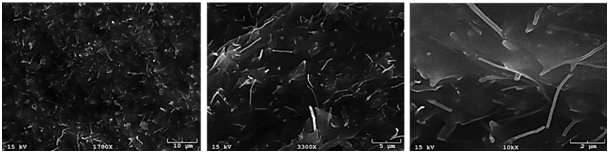

Figure 2 SEM images of different magnifications showing good CNT dispersion in SMP.

Cyclic tensile tests were used to evaluate the level of strain recovery for shape memory applications. The comparison of tensile results using pristine SMP and CNT reinforced SMP nanocomposites are shown in Figure 3. For the pristine SMP sample, it is noted that in the first cycle there was initial hysteresis, which can be due to the residual stress, material relaxation, or the re-arrangement of dangling chains and side-groups in the polymer. Once the SMP have been fully stretched and relaxed for the first cycle, the hysteresis became relatively insignificant. However, the initial hysteresis was not obvious in the CNT reinforced nanocomposite sample, mainly due to enhancement of mechanical properties by CNTs.

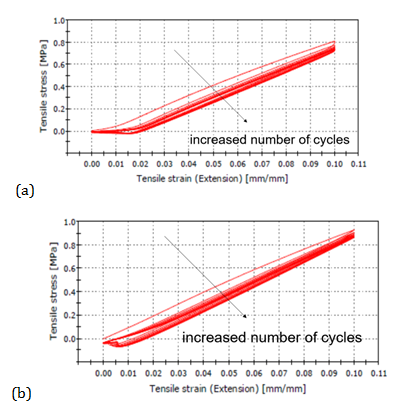

Figure 3 Cyclic tensile testing of CNT reinforced SMP sample up to 10% engineering strain and 10 cycles, (a) sample without CNTs, (b) sample with CNTs.

Conclusion

This paper reported the development of nanocomposites using aliphatic urethane SMPs and CNTs for the potential application in the endovascular embolization of intracranial aneurysms. Our preliminary results showed that the synthesized polymer had good shape memory function when heated up to their glass transition temperature. The critical properties, such as their glass transition temperature, can be optimized by adjusting the polymer formulation. Moreover, cyclic mechanical tensile tests showed that the SMPs had initial hysteresis when operated above their glass transition temperature. The preliminary results showed good potential for the application of the developed SMP in the development of novel devices for aneurysm treatment.
