It has been estimated that approximately 20% of ischemic strokes have a cardioembolic origin and that the cause is not detected or that there may be more than one in 9-25% of them. An adequate diagnostic process of ESUS (embolic strokes of undetermined source) would allow optimization of antithrombotic treatment. Our objective with the publication of this protocol is to propose the essential diagnostic tests to make the diagnosis of ESUS and the optimization of patients who can benefit from prolonged cardiac monitoring.

Keywords: TIA, transient ischemic attack; ESUS, embolic stroke of undetermined source; PFO, patent foramen ovale, AST, aspartate aminotransferase; CT, computed tomography, MRI, magnetic resonance imaging

This protocol refers to those patients who have suffered an episode of acute cerebral ischemia, in the form of established stroke or TIA (transient ischemic attack), classified as cryptogenic stroke, that is, those patients in whom after performing a complete etiological study (Figure 1), it is not possible to establish the exact etiology of the stroke.

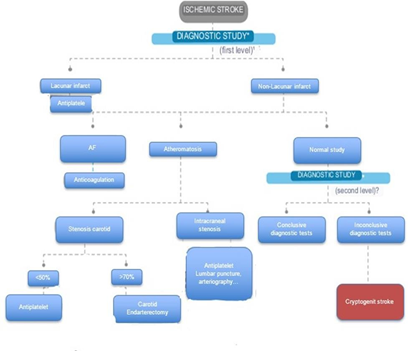

Figure 1 Diagnostic protocol

Once the complete etiological study has been carried out, for those patients whose diagnostic tests have resulted negative, prolonged monitoring of cardiac rhythm will be required. In a significant percentage of patients with cryptogenic stroke, the cause of the stroke is hidden atrial fibrillation, and its detection is essential to identify the cause of the stroke and to adopt a highly effective preventive strategy such as anticoagulation.^1–5

Within cryptogenic strokes, prolonged cardiac monitoring is especially indicated in the subgroup called ESUS (embolic stroke of undetermined source) characterized by:

1. To define a stroke as ESUS, a minimum of 24 hours of cardiac frequency monitoring is required.
2. Ischemic stroke detected in CT/MRI of NON-lacunar etiology (<1.5cm in CT or <2cm in MRI).
3. Absence of extracranial or intracranial atheromatosis that originates a stenosis greater than 50% in the arteries that supply the ischemic area.
4. There are no major cardioembolic sources (Table 2).
5. Unusual causes of stroke have been ruled out (dissection, thrombophilia, arteritis, vasospasm/migraine, toxins, etc.).^6–12

Prior to prolonged monitoring, it is necessary to rule out infrequent causes of paradoxical embolisms associated with PFO (patent foramen ovale), pulmonary shunt and venous thrombosis (especially important in hypercoagulability states associated with cancer). Keep in mind that, according to the 2022 ESO Guidelines, any 55-year-old patient with PFO and a diagnosis of cryptogenic stroke would benefit from prolonged cardiac monitoring implantation.

Selection of cardiac monitoring method

1. Continuous Monitoring during Hospital Admission: Whenever available, patients will remain monitored during their admission for a minimum of 24hours, preferably 48-72hours.
2. 24h Holter: Only for those patients who cannot be monitored during their admission or access via consultation without hospital admission.
3. Insertable Holter Reveal: Patients in whom AF has not been detected during admission (or during Holter 24h). In these cases, an individual patient assessment will be performed, and those who meet any of the following criteria will be candidates for implantation

1. CHA2DS2-VASC>5.
2. Left atrial dilation (>45 mm).
3. Non-lacunar cerebral infarctions in different vascular territories.
4. Other atrial rhythm disorders.
5. Presence of spontaneous echo contrast or flow slowing in the atrial appendage.

The following patients will not be considered candidates for the present protocol

1. Patients in whom detection of AF is not going to modify the treatment regimen: patients with current oral anticoagulation treatment; or patients who cannot receive anticoagulation treatment.
2. Patients with a life expectancy of less than 1 year.
3. Patients for whom in-person or remote device follow-up will not be possible.
4. Patients without a caregiver and with disability according to the Rankin scale ≥4, or with cognitive or neuropsychological sequelae that impede the correct development of the protocol.
5. Patients with a known etiology of TIA or stroke (based on neuro/cardio/vascular imaging information) (Figure 1).

The finding of these minor abnormalities will classify the patient's experienced cerebral infarction as "possible" cardioembolic as long as there are no other potential causes of cerebral infarction. Aortic arch atheromatosis should be evaluated in the context of atherothrombotic mechanism, not cardioembolic Tables 1 & 2.

Classification adapted from SSS-TOAST, based on the annual risk of stroke > 2% (major sources) or <2% (minor sources).

These predictors should be taken as support to assess the risk of atrial fibrillation, they are not necessary criteria to request prolonged cardiac monitoring (Table 3).^13–18

ANNEX 1: Etiological Classification of Ischemic Stroke, Study Group of Cerebrovascular Diseases of the SEN (adapted from that of the ad hoc committee of the SEN. Cerebrovascular Diseases Study Group (A. Arboix et al., 1998 and 2002).

Atherothrombotic Ischemic Stroke (Due to large artery atherosclerosis)

Medium or large-sized infarction, with cortical or subcortical topography and carotid or vertebrobasilar location, which meets one of the following two criteria:

1. A. Presence of atherosclerosis with stenosis: ≥50% stenosis of the vascular lumen diameter or occlusion of the extracranial artery or a large intracranial artery (middle cerebral, posterior cerebral or basilar trunk), in the absence of another explanation.
2. B. Atherosclerosis without stenosis: the presence of plaques with a stenosis of less than 50% in the middle cerebral, posterior cerebral or basilar artery, in the absence of another etiology. At least two of the following cerebrovascular risk factors must be present: person over 50 years old, hypertension, diabetes mellitus, smoking or hypercholesterolemia.

Cardioembolic ischemic stroke

Medium or large-sized infarction, usually with cortical topography, for which there is evidence (in the absence of an alternative etiology) of any of the following embolic heart diseases: the presence of an intracardiac thrombus or tumor, rheumatic mitral stenosis, aortic or mitral prosthesis, endocarditis, atrial fibrillation, sinoatrial node disease, acute myocardial infarction in the previous three months with or without left ventricular aneurysm or extensive akinesia, or presence of global cardiac hypokinesia or dyskinesia regardless of the underlying heart disease.

Small artery occlusive disease (lacunar infarction)

Small infarction (diameter less than 1.5cm) in the area of a cerebral perforating artery, which usually causes a lacunar clinical syndrome (pure motor hemiparesis, pure sensory syndrome, sensory-motor syndrome, ataxic hemiparesis or clumsy-hand dysarthria) in a patient with a history of hypertension or other cerebrovascular risk factors, in the absence of another etiology.

Ischemic stroke of unusual etiology

Small, medium, or large-sized infarction, with the cortical or subcortical location in the carotid or vertebrobasilar territory in a patient in whom atherothrombotic, cardioembolic, or lacunar origin has been ruled out. It may be caused by systemic diseases (metabolic disorders, coagulation disorders, connective tissue diseases, myeloproliferative syndrome, or infectious processes) or other causes such as cerebral venous thrombosis, migraine, septal aneurysm, arterial dissection, fibromuscular dysplasia, arteriovenous malformation, vasculitis, or iatrogenic causes.

Cryptogenic ischemic stroke

Medium to large infarction, cortical or subcortical location, in the carotid or vertebrobasilar territory, in which, after an exhaustive diagnostic study, atherothrombotic, cardioembolic, lacunar, and unusual subtypes have been ruled out.

Ischemic stroke of undetermined origin due to the coexistence of causes

Medium to large infarction, cortical or subcortical location, in the carotid or vertebrobasilar territory, in which more than one possible etiology coexists.

Ischemic stroke of undetermined origin due to insufficient study

Medium to large infarction, cortical or subcortical location, in the carotid or vertebrobasilar territory or in which the cause has not been determined due to an incomplete or insufficient study.

Optimizing treatment after a stroke is essential to reduce the risk of recurrences. There are certain patients with ESUS who could benefit from anticoagulation, such as those with a possible origin cardioembolic. Since AF constitutes the etiology most frequent cardioembolic stroke, it is their detection is very important to start, as soon as possible, the timely treatment. Longer monitoring in patients with a greater number of risk factors would increase the chances of diagnosing AF and, therefore, the potential benefit of anticoagulant treatment.

None.

None.

Author declares there are no conflicts of interest towards publication of this article.

1. Andrade J, Khairy P, Dobrev D, et al. The clinical profile and pathophysiology of atrial fibrillation: relationships among clinical features, epidemiology, and mechanisms. Circ Res. 2014;114(9):1453–1468.
2. Thijs VN, Brachmann J,  Morillo CA, et al. Predictors for atrial fibrillation detection after cryptogenic stroke: Results from CRYSTAL AF. Neurology. 2016;86(3):261–269.
3. Favilla CG, Ingala E, Jara J, et al. Predictors of finding occult atrial fibrillation after cryptogenic stroke. Stroke. 2015;46(5):1210–1215.
4. Miller DJ, Khan MA, Schultz LR, et al.  Outpatient cardiac telemetry detects a high rate of atrial fibrillation in cryptogenic stroke. J Neurol Sci. 2013;324(1–2):57–61.
5. Poli S, Diedler J, Hartig F, et al. Insertable cardiac monitors after cryptogenic stroke –a risk factor based approach to enhance the detection rate for paroxysmal atrial fibrillation. Eur J Neurol. 2016;23(2):375–381.
6. Kochhauser S, Dechering DG, Dittrich R, et al. Supraventricular premature beats and short atrial runs predict atrial fibrillation in continuously monitored patients with cryptogenic stroke. Stroke. 2014; 45(3):884–886.
7. Gladstone DJ, Sharma M, Spence JD. Cryptogenicstrokeand atrialfibrillation. N Engl J Med. 2014;371(13):1260.
8. Svennberg E, Henriksson P, Engdahl J,  et al. N– terminal pro B–type natriureticpeptidein systematicscreening for atrialfibrillation. Heart. 2017 ;103(16):1271–1277.
9. Rodriguez–Yanez M, Arias–Rivas S, Santamaria–Cadavid M, et al. High pro–BNP levelspredictthe occurrenceof atrialfibrillation aftercryptogenicstroke. Neurology. 2013;81(5):444–447.

10. Wolf PA, Abbott RD, Kannel WB. Atrial fibrillation: a major contributor to stroke in the elderly. The Framingham Study. Archives of Internal Medicine. 1987;147(9):1561– 1564.
11. Kirchhof P, Benussi S, Kotecha D, et al. 2016 ESC Guidelines for the management of atrial fibrillation developed in collaboration with EACTS. Eur Heart J. 2016;37(38):2893–2962.
12. Sanna T, Diener HC, Passman RS, et al. Cryptogenic stroke and underlying atrial fibrillation. N Engl J Med. 2014;370(26):2478–2486.
13. Haeusler KG, Gröschel K, Köhrmann M, et al. Expert opinion paper on atrial fibrillation detection after ischemic stroke. Clin Res Cardiol. 2018;107(10):871–880.

14. Nielsen JC, Lin YJ, de Oliveira Figueiredo MJ, et al. European Heart Rhythm Association (EHRA)/Heart Rhythm Society (HRS)/Asia Pacific Heart Rhythm Society (APHRS)/Latin American Heart Rhythm Society (LAHRS) expert consensus on risk assessment in cardiac arrhythmias: use the right tool for the right outcome, in the right population. Europace. 2020;22(8):1147–1148.
15. Tsivgoulis G, Katsanos AH, Grory BM, et al. Prolonged Cardiac Rhythm Monitoring and Secondary Stroke Prevention in Patients With Cryptogenic Cerebral Ischemia. Stroke. 2019;50(8):2175–2180.
16. Rubiera M, Aires A, Antonenko K, et al. European Stroke Organisation (ESO) guideline on screening for subclinical atrial fibrillation after stroke or transient ischaemic attack of undetermined origin. Eur Stroke J. 2022;7(3):VI.
17. Arboix A, Alvarez–Sabín J, Soler L on behalf of the ad hoc Drafting Committee of the SEN Cerebrovascular Diseases Study Group. Ictus. Classification and diagnostic criteria. Neurology. 1998;13 (suppl. 3):3–10.
18. Arboix A, Díaz J, Pérez–Sempere A. Alvarez–Sabín J on behalf of the ad hoc Drafting Committee of the Disease Study Group SEN cerebrovascular. Ictus. Etiological types and diagnostic criteria. Neurology. 2002;17(suppl 3):3–12.
