Objectives: A mild decrease in blood pressure and increase in heart rate (HR) are considered normal hemodynamic responses to dipyridamole. In this study, we tried to investigate the relation between the responses of heart rate to dipyridamole stress test with left ventricular perfusion and function data obtained from myocardial perfusion scintigraphy.

Methods: Forty consecutive patients undergoing dipyridamole stress Technetium - 99m (Tc 99m) Sesta MIBI gated myocardial perfusion single photon emission computed tomography (SPECT) at the nuclear cardiology Lab of the cardiology department of the main university hospital of Alexandria University were prospectively enrolled from July 2013 for 6 months. Dipyridamole was infused over 4 min and TC 99m Sesta MIBI was injected 2 min after the end of infusion. Blunted heart rate response to dipyridamole considered if the HR ratio (peak HR/rest HR) was 1.20 or less. Summed stress score (SSS), summed rest score (SRS), and summed difference score (SDS) for myocardial perfusion in addition to total perfusion defect TPD, ejection fraction and territory of perfusion defect were obtained.Patients were grouped according to HR response and groups were compared. A logistic regression analysis was used to determine independent predictors of reduced HR response.

Results: Blunted heart rate response was found in 67.5 % of patients. Patients with abnormal heart rate response were more frequently had a history of diabetes mellitus (X² = 4.01). High baseline heart rate (t = 1.9), low post stress ejection fraction (t = 3.21) and perfusion defect in left circumflex territory (X² = 4.01) was found in blunted heart rate response group more than normal group.

Conclusion: Severe perfusion defectis associated with blunted heart rate group as left ventricular dysfunction is associated with reduced chronotropic response to dipyridamole.Diabetes mellitus and cardiac autonomic neuropathy may reflect higher baseline heart rate.

Keywords:myocardial perfusion scintigraphy, heart rate, diabetes mellitus, left ventricular failure, autonomic dysfunction

SSS, summed stress score; SRS, summed rest score; SDS, summed difference score; CAD, coronary artery disease; LVEF, leftventricular ejection fraction

The heart rate of an individual reflects an integrated physiological response comprising of autonomic system, central and peripheral reflexes as well as intrinsic cardiac conditions. An abnormal heart rate response to physiological stress may be secondary to multiple metabolic abnormalities such as diabetes or renal failure as well as intrinsic cardiac conditions such as coronary artery disease (CAD) and cardiomyopathy.¹ Subsequently, Ellestad et al.² demonstrated that a slow heart rate response during exercise was a greater predictor of cardiac events than stress - induced ischemic ST depression and coined the term ‘‘chronotropic incompetence’’ for these responses. Dipyridamole is an indirect coronary artery vasodilator which results in a mild increase in heart rate (HR) and a mild decrease in both systolic and diastolic blood pressures³ Lee et al.⁴ demonstrated blunted heart rate response to dipyridamole in diabetic patients and explained this phenomenon by autonomic neuropathy.

The increased risk of death found in patients with a blunted HR response to dipyridamole, even in the presence of normal perfusion, reinforces the importance of the search for the reasons for this phenomenon.⁵ Therefore, the aim of this study was to investigate the association demographic, hemodynamic and gated SPECT variables and severity of perfusion defect, ejection fraction and if the blunted heart rate is related to specific territory in patients undergoing myocardial perfusion scintigraphy.

Study population

Adult patients undergoing stress/rest dipyridamole Tc99m sesta MIBI SPECT study 2 days protocol in the Nuclear Cardiology Lab. Cardiology department in Alexandria Main University Hospital from July 2013 for 6 months, 40 patients were enrolled in the study (27 male, 13 female, mean age 58±7.33, range 42-73) after signature of an informed consent. All of them answered a questionnaire with clinical information. Hypertension was defined by history of BP > 140/90 mm Hg and/or antihypertensive drug use; diabetes was defined by history of diagnosis made by a physician and/or use of insulin or oral hypoglycemic medications. Exclusion criteria were the presence of tachy arrhythmias, second or third degree AV block, pacemaker rhythm, congestive heart failure (NYHA classes III/IV) or significant valvular heart disease.

Dipyridamole protocol

Patients were instructed not to smoke nor consume caffeinated food and beverages nor methyl-xanthene’s containing products for 12 hours before testing and to With hold beta-blockers, calcium channel blockers and nitrates for at least 24 - 48h prior to the study. Dipyridamole is administered at 0.56 mg/kg intravenously over a 4-min period. A 12 lead ECG was monitored continuously. HR and blood pressure were measured at rest and every min after the initiation of dipyridamole infusion for a total period of 6 min. Tc-99m sesta MIBI was injected at 6 minutes after onset of infusion. The occurrence of symptoms was asked at the time of and after the infusion of dipyridamole. Aminophylline was intravenously given 2 minutes after radiotracer injection at peak stress in a dose of 120 to 240mg to reverse any adverse effect caused by dipyridamole. Significant ST segment depression during dipyridamole stress was defined as ≥1mm of horizontal or down sloping depression occurring at 80 milli seconds after the J point. Peak HR and BP values were defined as the highest HR and lowest BP during the observation period (before the administration of aminophylline, if that happened), since the effects of dipyridamole may be still relevant after the completion of the infusion. We calculated the HR ratio (HR at peak/HR at rest), the difference between peak and rest HR (delta HR) and peak and rest systolic BP (delta BP). An attenuated HR response to dipyridamole was considered present if the HR ratio was ≤1.20, a value derived from the study of Bhateja et al.⁵

SPECT protocol

2 day stress/ rest protocol was performed by Tc-99m sestaMIBI myocardial perfusion SPECT in all patients. For stress imaging, Tc-99m sestaMIBI (15-30 mCi) was injected intravenously after 2 minutes of finishing pharmacological stress (with dipyridamole). Eight-framegated MPS imaging acquisition was started 60 minutes after radioisotope injection. Resting image in the second day was performed after 60 minutes of injection of Tc-99m sestaMIBI (15-30 mCi). Image acquisitions were obtained using Siemens Symbia E Gamma Camera with ECG gating.

Image interpretation

Semi quantitative visual interpretation of MPS images was performed with short axis and vertical long axis tomograms divided into 17 segments. Each segment was scored using a 5-point scale (0=normal; 1=equivocal; 2= moderate; 3= severe reduction of tracer uptake; 4= absence of detectable radiotracer activity in a segment). The summed stress score (SSS), a measure of the total perfusion defect, and the summed rest score (SRS), a measure of the rest defect meaning infarcted tissue, were obtained by means of adding the scores for the 17 segments of the stress and rest images, respectively. The difference between the summed stress score and SRS was defined as the summed difference score (SDS), a measure of the amount of myocardial ischemia. After automatic reorientation, post stress gated short-axis images were processed using quantitative gated SPECT software and left ventricular ejection fraction (LVEF), end-diastolic volume, and end-systolic volume were automatically calculated.

Case study (group A)

Sixty five years old male patient hypertensive, not diabetic and non-smoker. The patient complaint of atypical chest pain with no dyspnea. During dipyridamole stress, his resting HR is 58 beat /minute whilepeak HR is 71 beat / minute. HR ratio >1.2, his study revealed mild ischemia in RCA territory. There was transient ischemic dilatation during stress. TPD during stress = 3% and during rest 2%. EF during stress and rest 77%. ECG revealed right bundle branch block with no changes after stress (Figure 1).

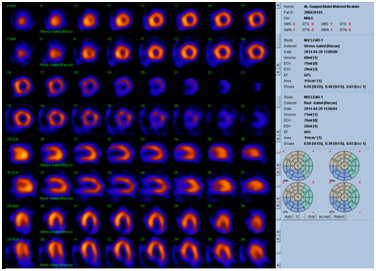

Figure 1 EF during stress and rest 77%.

Case study (group B)

Fifty six years old male patient hypertensive, diabetic, ischemic and smoker. During dipyridamole stress testing, his resting HR was 82 beat/ minute while peak HR was 85 beat/ minute, HR ratio <1.2, the study revealed an extensive perfusion defect involving apex, septum, anteroseptal, inferoseptal and inferior wall from the apex up to the base. There was apical scar and aneurysm. LV was permanent dilated during stress and rest. The delayed resting with reinjection revealed partial reperfusion in the septum, anteroseptal, inferoseptal and inferior wall. TPD during stress 41% and during rest 30%. EF during stress 31% and during rest 34% (Figure 2).

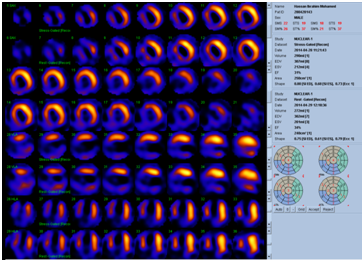

Figure 2 EF during stress 31% and during rest 34%.

Study population had high prevalence of hypertension and Diabetes mellitus (70 and 37% respectively). Demographic data of the patients are shown in Table 1. 13 patients (32.5 %) had normal HR response and 27 (67.5 %) patients have reduced HR response to dipyridamole. There was no significant difference by means of gender, age, history of IHD and smoking. Hypertension predominates in reduced heart rate group (77.7%) to normal heart rate group (53.8%) but with no statistical significance. The prevalence of diabetes mellitus was significantly high in reduced HR response group [48 vs. 15.3 % (p=0.04*)]. By studying the hemodynamics (Table 2), resting HR was higher in blunted HRR group than normal HRR group with statistically significant value (P=0.03). Resting and peak blood pressure had not a significant difference between 2 groups. Perfusion study (Table 3) demonstrate a significant perfusion defect noticed in blunted HRR group as well as post stress EF was highly different between 2 groups and dropping of EF was noticed in blunted HRR group (48.9±10.7 Vs. 62.5±9.2) to normal HRR group. Blunted HRR group is associated with a perfusion defect in LCX and LAD territory.

Despite the link between attenuation of the HR response todipyridamole and risk of death,⁵ similar to the increased mortality found in patients with chronotropic incompetence during exercise,⁶ the pathophysiology of this phenomenon is not completely understood. Lee et al.⁴ have ascribed a low HR response to dipyridamole in diabetic patients to cardiac autonomic neuropathy; however, their findings were obtained in selected patients with normal perfusion images and no history of coronary artery disease, ascenario which neither mirrors the routine of the myocardial perfusion imaging laboratory - the evaluation of patients with known or suspected coronary artery disease - nor mirrors the actual diabetic population, whose well-known high prevalence of coronary artery disease may lead to abnormal MPS images.

In our study, blunted HR response to dipyridamole was frequent (67.5%) and associated with LV dysfunction as found with Kim et al.⁷ who described a correlation between reduced chronotropic response to dipyridamole and LVEF in post-myocardial infarction patients. Infact, chronotropic incompetence is not uncommon in left ventricular dysfunction.⁸ Increased serum catecholamine levels and increased sympathetic tone during heart failure may be responsible for blunted effects of vasodilators on heart rate.⁹ High rest HR might be considered not only a sign of cardiacautonomic neuropathy,¹⁰ but also of left ventricular dysfunction.¹¹ The most significant Pvalue found for LVEF may suggest that left ventricular dysfunction is the strongest predictor of blunted ofthe HR response to dipyridamole.

Recent evidence indicates that inflammation and sustained tachycardia interact at several levels of the cardiovascular continuum,¹² and may here by exert a synergistic effect on cardiovascular morbidity and mortality. For example, elevated heart rate increases tensile stress which apart from inducing endothelial injury also increases endothelial permeability to circulating inflammatory mediators.¹³ Dysfunctional autonomic nervous activity may underlie both progressions of inflammation as well as elevated resting heart rate.¹⁴ Elevated sympathetic activity modifies the inflammatory process and thereby promotes endothelial dysfunction and subsequent at hero progression.¹⁵ So, The European Society of Hypertension/European Society of Cardiology guidelines recently proposed the inclusion of elevated heart rate when evaluating the cardiovascular risk profile of an individual.¹⁶

Parameters of perfusion defect like SSS, SRS, SDS and TPD had significant value in our study with blunted HR group that found increasing the severity, the more prominent blunted HR (P<0.05*). Andrea De Lorenzo et al.¹⁷ recommended in his study that finding of blunted HR response is strongly associated with reduced EF and elevated resting HR.

By studying the coronary artery lesions provided by coronary angiogram and its perfusion defect by MPI we found that significant lesions in LCX and LAD territories that supply left ventricle were associated with blunted heart rate response. This proves that any factor affect TPD and LV dysfunction is associated with blunted response to dipyridamole. By studying RCA (that is supplying SAN) lesions, we found 25% only of blunted HRR to dipyridamole had RCA territory perfusion defect. In another word, SAN affection is not a risk factor of blunted HRR to dipyridamole, and this blunting HRR is more physiological attributed to LV dysfunction than anatomical (SAN affection). So the limitation of our study include; inflammatory markers was not investigated that may explain of presence or absence of blunted HR in some cases.

Blunted HR response to dipyridamoleis independent predictor of the severity of perfusion defect and reduced post stress EF. Perfusion defect in LCX territory was prominent in blunted HR response group than other territories. Elevated resting HR is associated with increasing morbidity and mortality.

1. Hinkle LE, Carver ST, Plakun A. Slow heart rates and increased risk of cardiac death in middle–aged men. Arch Intern Med. 1972;129(5):732–748.
2. Ellestad MH, Wan MK. Predictive implications of stress testing: Follow–up of 2700 subjects after maximum treadmill stress testing. Circulation. 1975;51(2):363–369.
3. Iskandrian AS, Verani MS, Heo J. Pharmacologic stress testing: mechanism of action, hemodynamic responses, and results in detection of coronary artery disease. J Nucl Cardiol. 1994;1(1): 94–111.
4. Lee K, Yoon JK, Lee MG. Dipyridamole myocardial SPECT with low heart rate response indicates cardiac autonomic dysfunction in patients with diabetes. J Nucl Cardiol. 2001;8(2):129–135.
5. Bhateja R, Francis GS, Pothier CE. Heart rate response during dipyridamole stress as a predictor of mortality in patients with normal myocardial perfusion and normal electrocardiograms. Am J Cardiol. 2005; 95(10): 1159–1164.
6. Elhendy A, Mahoney DW, Khandheria BK. Prognostic significance of impairment of heart rate response to exercise: impact of left ventricular function and myocardial ischemia. J Am Coll Cardiol. 2003; 42(5):823–830.
7. Kim YH, Lee KH, Chang HJ, et al. Depressed heart rate response to vasodilator stress for myocardial SPECT predicts mortality in patients after myocardial infarction. Int J Cardiovasc Imaging. 2006;22(5):663–670.
8. Clark AL, Coats AJ. Chronotropic incompetence in chronic heart failure. Int J Cardiol. 1995;49(3): 225–231.
9. Dhalla AK, Wong MY, Wang WQ, et al. Tachycardia caused by A2A adenosine receptor agonists is mediated by direct sympathoexcitation in awake rats. J Pharmacol Exp Ther. 2006;316(2):695–702.
10. Boulton AJM, Vinik AI, Arezzo JC, et al. Diabetic neuropathies: a statement by the American Diabetes Association. Diabetes Care. 2005;28(4):956–962.
11. Esler M, Kaye D, Lambert G, et al. Adrenergic nervous system in heart failure. Am J Cardio. 1997;80(11A):7L–14L.
12. Zamorano JL. Heart rate management: a therapeutic goal throughout the cardiovascular continuum. European Heart Journal Supplements. 2008;10(Suppl F):F17–F21.
13. Giannoglou GD, Chatzizisis YS, Zamboulis C, et al. Elevated heart rate and atherosclerosis: an overview of the pathogenetic mechanisms. Int J Cardiol. 2008;126(3):302–312.
14. Tracey KJ. The inflammatory reflex. Nature. 2002;420(6917):853–859.
15. Redwine LS, Wirtz PH, Hong S, et al. Depression as a potential modulator of Beta–adrenergic–associated leukocyte mobilization in heart failure patients. J Am Coll Cardiol. 2010;56(21):1720–1721.
16. Mancia G, De Backer G, Dominiczak A, et al. 2007 ESH–ESC Practice Guidelines for the Management of Arterial Hypertension: ESH–ESC Task Force on the Management of Arterial Hypertension. J Hypertens. 2007;25(9):1751–1762.
17. De Lorenzo A, Lima RS, et al. Reduced Heart Rate Response to Dipyridamole as a Marker of Left Ventricular Dysfunction in Diabetic Patients Undergoing Myocardial Perfusion Scintigraphy. Clin Nucl Med. 2009;34(5):275–278.
