Fossil fuels, the dominant source of energy in today’s modern civilization has significant negative impact on global climate change. The lignocellulosic biomass can be a more sustainable replacement of fossil fuel in the production of transportation fuels and petrochemical feedstock. However, high concentration of oxygen functionalized compounds in biomass presents a major challenge in the development of biomass technology. For a biomass conversion to be efficient, achieving faster heating rate >10°C/s of the solid biomass is the key to achieve higher liquid yield and lower coke make. In the fast pyrolysis,

There are again two major approaches:

1. Thermal pyrolysis of biomass and subsequent separate treatment of bio-oil
2. Combining catalytic fast pyrolysis within-situ upgrading of the generated bio oil in a single reactor system. The bio-oil produced by the first approach can be co-processed in an existing secondary conversion unit of a refinery, such as FCC or hydroprocessing.

Fluidized bed has proven to be the best reactor for biomass pyrolysis in both the approaches i.e. thermal or catalytic, mainly due to the excellent heat/ mass transfer rate and high solid handling flexibility of fluidized system. However, the major challenges, following the second approach i.e. the catalytic fast pyrolysis is to achieve high degree of de-oxygenation, while retaining maximum C and H within the liquid. Good de-oxygenation >70% is essential to get a stable liquid product with acceptable corrosivity. The other challenge is the fast deactivation of catalyst due to the impurities present in biomass, specifically K > 5 ppm. Upgrading the bio oil quality to achieve the high standard of transportation fuel requires costly multi step high pressure hydroprocessing system. Thus the new advent is to directly produce olefins and aromatics from biomass which not only helps to enhance the product value but also greatly minimizes the need of too much hydrotreating Figure 1.

Keywords: pyrolysis, lignocellulosic biomass, fuels, catalyst, reactor

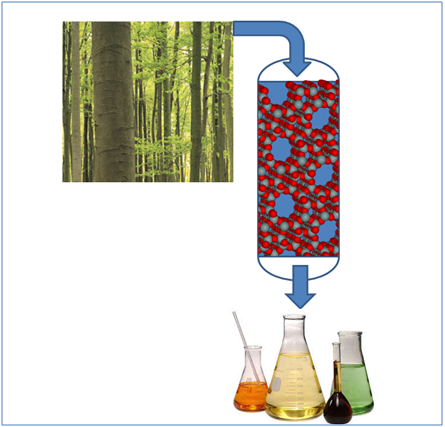

Figure 1 Graphical Abstract.

The global energy demand is estimated to be increasing continuously at an average of 1.5 %/ year to 2035 due to mainly growing economic of China and India, and other developing countries.¹ Fossil fuels are the principal source of energy to meet the huge energy demand, even although it is diminishing and responsible for global warning. Projections indicate that the CO₂ concentration in air could reach over 800 ppm by the year 2100 with the present rate of emission, which is more than double the current concentration of 390 ppm.² Even though the effect of greenhouse gas on climate is evident, but the effects of such a large increase of carbon dioxide in the atmosphere are not well understood and could be harmful to humanity and the rest of the ecosystem. Therefore, “Carbon –neutral” sources of energy should be developed to mitigate the change in atmospheric CO₂ concentration and limit the effects of climate change. The direct production of organic compounds from CO₂ has been the subject of much current research. However, these transformations are thermodynamically unfavourable and require the development of better catalytic materials and methods for CO₂ capture.³ In this context, biomass contains concentrated, partially reduced carbon, is the only source of abundant, concentrated source of non-fossil carbon which is available on Earth. Hence, in the future energy arena, biomass is considered as an imminent potential source taking into cognisance its abundant availability, carbon-neutral characteristic and its forthcoming contribution towards significant employment prospect in rural areas.

In India,⁴ Biomass still provide approximately 32% of the total primary energy use and energy needs of more than 70% of the country’s population depends upon utilisation of biomass resources. Biomass power generation in India is an industry in itself which invites yearly investments of over 100 million US$, generating more than 5000 million units of electricity and yearly employment of more than 10 million man-days in the rural areas. Bagasse, rice husk, straw, cotton stalk, coconut shells, soya husk, de-oiled cakes, coffee waste, jute wastes, groundnut shells, saw dust etc. are covered under Biomass materials which are being used for power generation. Being such a widely utilised source of energy, the current availability of biomass in India is estimated at about 500 million metric tonnes per year. Studies sponsored by the Ministry have estimated surplus biomass availability at about 120–150 million metric tonnes per annum covering agricultural and forestry residues.

It is necessary to know the composition of lignocellulosic biomass as it is more attractive renewable feedstock. Subsidies for the production of ethanol from corn and sugar cane have had frequently led to concerns about the competition between using these crops for food and for fuel production,⁵ but lignocellulosic energy crops do not complete with food supply and have less demanding growing conditions. Lignocellulosic biomass is predominantly composed of five major components; three of them are oxygenated solid polymers, accounts for the bulk of biomass, i.e., cellulose (30-50 wt. %), hemicellulose (10-40wt. %), and lignin (15-40 wt. %). Small amounts of inorganic ash and low-molecular weight extractives make up the reminder. The relative amounts of these components are dependent on the type of biomass.^6,7

In general, herbaceous biomass contains much more ash, slightly more hemicellulose, and less lignin than woody biomass. Cellulose fibres provide wood’s strength and comprise ≈40-50 wt. % of dry wood.⁸ Cellulose, a high molecular weight (10⁶ or more), is composed entirely of glucose monomers connected into straight chains typically thousands of repeat units. The glucose monomer units are connected by β (1-4) glycosidic bonds giving cellulose an overall atomic composition of C₆H₁₀O₅. The hydroxyl groups on the sides of the cellulose molecules form strong bonds with other nearby cellulose molecules,⁹ aiding the formation of rigid micro fibrils that gives plant cell walls their strength. The tightly packed nature of these micro fibrils resists the depolymerisation of cellulose to glucose monomer units due to poor mass transfer and the inability of water to reach the glycosidic bonds.

Hemicellulose, also known as polyose, is the second most abundant polymer found in lignocellulose, also composed of sugar monomer units. It functions largely as a connection between the cellulose fibrils and the lignin in plant cell walls. Hemicellulose is a mixture of various polymerized 5-carbon sugars (xylose, arabinose), 6-carbon sugars (glucose, mannose), and sugar–like carboxylic acids (glucuronic acid, mannuronic acid).¹⁰ Hemicelluloses exhibit lower molecular weights than cellulose. The number of repeating saccharide monomers is only ≈150, compared to the number in cellulose (5000-10000). The atomic composition of hemicellulose is approximately C₅H₈O₄ and highly branched and amorphous. The branched structure of hemicellulose makes it relatively easy to hydrolyse the ether bonds holding together the sugar monomers.

Lignin is an amorphous, random, polymer comprised of phenolic monomer units. It is primarily composed of phenyl propane monomer derivatives of sinapyl alcohol, coiferyl alcohol, and coumaryl alcohol. Lignin typically accounts for roughly 30 wt.% of woody biomass, and due to its low oxygen content relative to cellulose and hemicellulose, it contains approximately 40% of the energy content.¹¹ It is a mechanically tough material found largely in the cell walls of plants, providing a shield against the rapid microbial or fungal destruction or thermal degradation.^12,13 This chemical structure makes lignin a difficult feedstock to process, and in many bio-mass-processing schemes lignin is simply separated and burned to generate process heat and electricity. As lignin contains low oxygen and high energy density, it could be a valuable part of a Biofuel production process if it could be depolymerized in an economical manner.

There are several types of structural linkages connecting the phenyl propane units of lignin. The most common linkage is the β-O-4 ether linkage,¹⁴ and this accounts for roughly half of the structural linkages. This ether bond is fairly labile, but breaking these bonds is often insufficient to convert lignin to low molecular weight compounds suitable for downstream processing. Biphenyl linkages (5-5 and dibenzodioxocin) are much difficult bonds to break, and these account for 20-30% of those present in softwood lignin.¹⁴

Ash is mostly composed of a mixture of metal oxides those are commonly oxides of silicon, aluminium, iron, potassium, calcium and manganese.¹⁵ These impurities can lead to problems during the production of Biofuel as they can be deposited on biomass upgrading catalysts and cause significant deactivation by blocking catalytically active sites. These metal oxides have acidic/basic properties, and as biomass is rich in oxygen functional groups, inorganic ash can promote undesirable side reactions which reduce the quality of the biofuel product.

Extractives are small organic molecules and oligomers (typically <C₄₀) which are incorporated into the polymeric cellulose, hemicelluse, and lignin.¹⁶ These molecules account for about 5 wt. % of wood on a dry basis,¹⁷ but can be present in higher quantities in algae, herbaceous biomass, seeds, and beans.¹⁸ Fatty acids, triglycerides, terpenoids, and small phenolic oligomers derived from lignin are extractive compounds typically found in wood.¹⁹

Several potential feedstocks have been identified as candidates for the production of Biofuel and bio-mass derived chemicals. Some of these are so-called “energy-Crops” such as switch grass, miscanthus and poplar, selected for their high growth rates and low requirements for water, pesticides, and soil quality. Agricultural wastes such as corn Stover, cotton trash, paddy trash, municipality waste, waste from wood processing and bagasse are also promising feedstocks,²⁰ as they have little value beyond use for heating and in low–grade livestock feed. There is no single ideal crop for a biomass-based economy; the selection of crop is heavily dependent on regional climate and land availability.

The conversion of biomass to fuels has been the focus of a great deal of research within the past decade. The U.S. Department of Energy has set renewable fuels standard that would require 36 billion gallons per year of renewable fuels within the US by 2022.²¹ of these 36 billion gallons, at least 22 billion gallons must be produced without using corn as a feedstock. On 12^th September 2008, Indian Government announced its “National Biofuel policy” and targeted to achieve 5% ethanol as gasoline blend in certain sates and 20% bio-diesel by 2012.²² The technologies for production of first generation Biofuel such as bio ethanol and biodiesel are currently commercialized, but they depend mostly on food crops such as soybeans, corn, and sugar cane.²³

The so-called “1st generation” Biofuel (biodiesel and bio ethanol) are currently the dominant technologies for renewable transportation fuel production. Biodiesel is a fuel similar to conventional diesel in terms of molecular weight and combustion characteristics. It is primarily produced from the transesterification of triglycerides from plant oil. These triglycerides can be treated with methanol in the presence of a basic catalyst (usually a combination of NaOH and sodium methoxide), which leads to the production of fatty acid methyl esters (FAMEs) useful as biodiesel and glycerol as a by product.²⁴ Soybean oil and rapeseed oil in U.S and Europe and Jatropha seed oil in India are the most common feeds for biodiesel processes, though waste cooking oils have also been used to a small extent. Approximately 1 billion gallons of Biofuel were produced in the US in 2011, creating 270 million kg of glycerol as a by product in the process.²⁵ The rate of biodiesel production is further expected to increase dramatically in the near term.

Bioethanol is produced by the fermentation of corn (in the U.S), cane (in Brazil) sugar and molasses (in India).Bioethanol has been widely used as a gasoline additive and presently accounts for over 10% by volume of the gasoline sold in the US.²⁶ Although these Biofuel have had some commercial success with the help of government subsidies, they still have major shortcomings such as, firstly these feed stocks to grow, need stringent growing conditions necessitating high quality soil and more energy input in terms of irrigation, chemical pesticides and fertilizers than cellulosic energy crops. Secondly, a small portion such as the simple sugar, small starches of these feed stocks is used for the production of bio fuels as major portions like cellulose, hemicellulose and lignin are not easily usable. If these cellulose, hemicellulose and lignin could be converted into more fuel, the efficiency of the process would be much improved. Lastly, the competition between Biofuel and food industries for available crops and land has raised concerns about their best use. In view of the above, developing effective technologies for the conversion of the lignocellulose into transportations fuels could avoid use of food crops for fuels.

The bio fuels those are produced from cellulosic biomass is called 2^nd generation bio fuels, is of much interest for which extensive research works are in progress.²⁷ The cellulosic biomass feedstock are mostly woods, grasses, agriculture residues and municipal wastes which are more difficult to process than those for 1^st generation feedstock. These feed stocks contain very small amount of simple sugar and triglycerides, are almost entirely composed of the larger polymeric cellulose, hemicellulose and lignin. Hence, technologies suitable for 1^st generation bio fuel are not adequate for processing these complex lignocellulose biomasses. A primary challenge in converting these feeds to fuels is finding effective methods for decomposing these polymeric materials into more easily processed low-molecular compounds. In fact, other major challenge for converting biomass to transportation fuel or chemical is the removal of oxygen without cleavage of C-C bond or altering C-C bonds to make desirable chemical structure by rearranging hydrogen available in biomass or minimum hydrogen addition. These objectives can be typically achieved by two steps (i) partial removal of oxygen while converting the solid lignocelluse biomass feedstock to a gaseous or liquid phase chemical and (ii) catalytic upgrading of the liquid formed in the first step by removal of remaining oxygen functionality and controlled coupling of C-C bonds.²⁸ These two steps of reactions may achieve in single step or in two steps occurring one after another.

The most frequently considered strategies for biomass processing are (i) thermo chemical and (ii) Hydrolysis.²⁸ the thermo chemical routes can be pyrolysis, gasification and liquefaction. The merits and demerits of these approaches are summarized in Table 1.

In the production of sustainable fuels and chemicals, both thermo chemical and hydrolysis pathways may be important, depending on the available feedstock and desired product. The authors²⁸ recommended that a combination of hydrolysis and pyrolysis pathways can be proved to be more efficient by adopting appropriate upgrading strategies for hydrolysis products and potential applications of pyrolysis of lignin to produce value –added chemical intermediates or fuel additives. In the recent past, more research emphasis is given for conversion of any types of biomass to fuel and petrochemical feedstock by employing pyrolysis route. This review focuses on advancement of pyrolysis route for production of bio-fuel and petrochemical feedstock.

Pyrolysis is the thermo chemical decomposition of biomass in absence of oxygen at temperatures in the range of 290 to 650°C to produce gas, a black, viscous fluid i.e., bio-oil and bio-char. The amount of these three products and its compositions depend on operating parameters such as heating rate, vapour residence time and decomposition temperature. Lower decomposition temperature (~400°C) and longer vapour residence times (hours to days) is classified as slow pyrolysis or carbonization, favour the yield of charcoal (35%) and gas (~35%) whereas higher temperature (~500°C) and lower vapour residence times (10-30 s), defined as intermediate pyrolysis, increases lower gas make and charcoal. The moderate temperature, high heating rate >10°C/s and short vapour residence time (<2 s) are optimum for maximization of liquid yield.³² This mode of pyrolysis is classified as Fast pyrolysis which is getting great importance currently as it maximizes liquid fuels. The heat and mass transfer processes and phase transition phenomena, as well as chemical reaction kinetics, play significant roles in fast pyrolysis as it occurs in a few seconds or less. Among these technical challenges for developing fast pyrolysis, the most significant is heat transfer to the reactor. Although the endothermic heat of reactions is insignificant, but substantial heat input is required to raise the biomass to reaction temperature. Therefore, design of fast pyrolysis reactor is very important. The most research and development has focused on developing and testing different reactor configuration on a variety of feedstocks.³² The merits & demerits of different reactor design are summarized in Table 2.

Among all reactor configurations, circulating fluid bed and bubbling fluid reactor configurations are being preferred as these configuration have definitive advantages such as easy to scale up, fluidization technology is well known and widely practiced in industry, better heat and mass transfer etc.

Pyrolysis oil typically is dark brown, free-flowing liquid, has many compounds similar in molecular weight to those found in crude oil. The high content of oxygen functional groups leads to multiple physical properties which make raw pyrolysis unsuitable in internal combustion engines, and restricts its direct use to industrial boiler units and other stationary heat sources. Pyrolysis oil typically contains a large amount of water, and has a heating value much lower than those for both hydrocarbon fuels (45 MJ/kg) and ethanol (30 MJ/kg).³⁵ It has a low pH due to presence of carboxylic acid groups, and are prone to corrosion of conventional engine parts. In addition, its chemical stability is also problematic for any application requiring long term storage as it contains mixture of carboxylic acids, furans, aldehydes and phenolic compounds.

Pyrolysis oil contains a number of compounds that have some value as fine chemicals (e.g., phenol, vanillin, furfural, hydroxymethylfurfural), but high boiling point of the mixture make it difficult to purify into individual components. Effective distillation of pyrolysis oil is nearly impossible due to its reactivity and tendency to self-polymerize. To improve its flexibility and allow it to be used for transportation applications, pyrolysis oil must be upgraded to a product more similar to conventional transportation fuels.

The major issue can be attributed to the high concentration of oxygen functional groups, developing routes for removal of these oxygen groups is a rational strategy for upgrading of pyrolysis oil to more valuable fuel product.

The effective hydrogen to carbon atomic ratio defined as H_eff/C= (H-2O-3N)/C, is approximately 1.5-2 for crude oil, 0.4 for lignocellulosic biomass, and 0.30 for pyrolysis oil.³⁶ This indicates that dehydration chemistry alone is not capable of converting oxygen-rich biomass into a product chemically similar to crude oil. Therefore, either hydrogen is to be added to increase effective hydrogen or oxygen must be removed from pyrolysis oil in the form of CO and CO₂. Both of these approaches would benefit from the advancement of heterogeneous catalysts to enable these oxygen removal reactions to occurs selectively and rapidly.

Hydrodeoxygenation (HDO) of pyrolysis oils is an attractive route for their conversion to transportation fuels.³⁷ The use of hydrogen to remove oxygen as in case of HDO is analogous to the hydrodesulphurization (HDS). As sulfur and oxygen are elements in the same group, the chemical requirements are fairly similar between HDO and HDS. Accordingly, from previous HDS experience with Ni, Co, Mo in oxide forms on silica and alumina supports, much of predictive knowledge regarding HDO has been extrapolated. Al₂O₃ is not acceptable to its acidic nature which causes coking and sintered at high temperatures in the presence of water and therefore deactivate.³⁹ Furthermore, this approach would require a supply of hydrogen, and since most hydrogen is derived from steam reforming of natural gas, this would introduce a fossil fuel input. Much research is aimed at gasification/reforming of biomass as a potential renewable source of hydrogen, but these processes require further development.³⁸ additionally, these catalysts require a co-feed of H₂S to maintain activity. It is not only undesirable to introduce sulfur containing compounds into biomass conversion process wherein sulfur is very low, it make process more complex as H₂S is to be sourced from refinery or produce H₂S from sulfur and hydrogen. Therefore, it is required to identify effective catalytic materials which can remove oxygen using a minimal amount of hydrogen and can operate stably without the need for sulfiding treatment.

In view of the above, catalytic work has been undertaken on both catalysts and supports. For example, research has acclaimed that neutral carriers like C usually show lower coke formation than alumina supports.⁴⁰ Longevity of the catalyst and in turn low coke formation is of crucial importance as catalyst functionality including oil yield and resulting H/C ratio gets directly affected by the number of recycles, although O/C ratios seems as if unaffected.⁴¹ Different supports have also been shown to give different final liquid yields and degrees of deoxygenation. For example, in an autoclave setup at 450°C and 350bar of H2, Ru/TiO2 and Ru/C yielded more final liquid with lower oxygen content than Ru/Al₂O₃.⁴²

There are a number of alternatives explored by researcher for development of more traditional catalyst. As per Gutierrez et al.³⁹ multiple noble metals used simultaneously interacted with each other and gave different results than simply combining two separate catalyst results. In a batch reactor at 80bar, HDO of guaiacol was studied using zirconia-supported mono- and bi-metallic noble metal catalysts. All Rh, Pd, Pt, RhPd, RhPt, and PdPt performed better in the hydrogenation of guaiacol at 100°C and at 300°C than the conventional sulfided CoMo/Al₂O₃ catalyst because due to carbon deposition and contamination with sulfur, these elements deactivated. In comparison to monometallic Pt and Pd catalysts, the bimetallic catalysts containing Rh gave better results in terms of guaiacol hydrogenation. The PdPt catalyst was seen to be less reactive than that of the separate monometallic catalysts. Hence it is implied that, when used simultaneously, catalysts react with each other in a variety of ways in addition to reacting with the biomass. These interactions are yet to be understood fully.^40–42

The reduction of H₂ consumption, which is required for removal of chemically bonded oxygen in HDO process, has been studied using the donation of H₂ by a liquid with an easily donated, acidic proton that lowers the H₂ pressure required. Xiong et al.⁴³ studied the sourcing of hydrogen from formic acid over Ni, Pd, and Ru on various supports. The catalyst supports did not make a significant difference, but Ni and Ru outperformed Pd in final product quality. Oxygen content was lowered while a reduction in the unsaturated components was observed, along with the conversion of organic acids into esters. All of these reactions occurred without obvious coke formation. In another study, Kunkes et al.⁴⁴ described a method of reforming polyol over Pt-Re/C, where reforming refers to C-C cleavage and the corresponding production of H₂, CO, and CO₂ that can be used to de-oxygenate the remainder of the feed thus eliminating the need for co-feeding of hydrogen. Similarly, Pt elements can promote the water-gas shift (WGS) reaction.⁴⁵ Pt/Al₂O₃ catalyst showed selectivity for producing H₂ in situ, eliminating the need for co-feeding of hydrogen.⁴⁶ Wildschut et al.⁴² and Elliott³⁸ worked on HDO including product properties and molecular composition of HDO oils. Oasmaa et al.⁴⁷ has studied comparison of several methods for characterizing HDO oils.⁴⁹ Table 3 provides a summary of the yield, product quality, and operating conditions for several catalysts investigated for HDO.

Andrew³⁵ studied HDO reaction for model m-cresol at 260°C, 0.5 atm hydrogen pressure, w/f of 63 gm.hr/mol using different bimetallic Pt-oxophilic metal catalysts. The results showed that PtRe on carbon support is the best catalyst for m-cresol conversion and unique selectivity towards toluene (>95%).

Although studies on model compounds are invaluable for a better understanding of how the catalyst functions and improving the ability of catalysts to deactivate specific classes of compounds, they are not truly representative of performance under realistic operating conditions. Therefore, the catalyst performance with more realistic feedstock is required to be studied. In particular, water, nitrogen-containing compounds and small organic acids (i.e., acetic acid) are components of pyrolysis oil that may be particularly problematic for catalyst processing.

Water is detrimental to dehydration reactions as it tends to adsorb strongly to acid sites, reducing their availability on the catalyst surface. The presence of liquid water can also cause phase changes in some common support materials such as alumina, further impacting activity. Basic nitrogen-containing compounds such as amines and amides, are also present in pyrolysis oils in low concentrations, and may poison acid sites on the catalyst more strongly than water.

There are several research works on co-processing pyrolysis oil in fluid catalytic cracking or in hydro-treater or hydro-cracker. In the recent past , research works on combining biomass fast pyrolysis and in-situ upgrading of the generated pyrolysis oil into a one-spot catalytic fast pyrolysis system are getting attention and this route seems more economically attractive option for fuel production.

Catalytic Fast Pyrolysis that involves pyrolysis of biomass in presence of zeolite based catalyst for converting solid biomass to fuel and aromatic is a promising technology. Adsorption of the oxy-compound produced from pyrolysis of biomass occurs on an acid site. This is followed by either decomposition or bimolecular monomer dehydration, as determined by pore size. This transformation involved a combination of acid-catalysed reactions for the removal of oxygen including dehydration, decarbonylation, and decarboxylation reactions. ^[35] With sulphide/oxide and transition metal catalysts, the acidity of the zeolite affects the reactivity and yields, with high acidity leading to a higher affinity for C and water formation⁵³. In HZSM-5 zeolite, acidity is linked to the Si/Al ratio,³⁵ with a low ratio indicating high acidity. Pore blockage from polymerization and polycondensation reactions causes deactivation of the catalyst. Therefore, zeolites should have correct pore size and acidic sites to promote desired reactions while minimizing carbon formation.³⁵

Zeolites produce aromatics at atmospheric pressures without H₂ requirements.^54,55 Anellotech Inc.⁵⁴ developed a process for biomass to aromatics wherein the biomass is dried and sized and then injected into fluid bed reactor in presence of spray dried ZSM-5 catalyst with SiO₂/Al₂O₃=30. The biomass first rapidly heated and resulted products are immediately converted to aromatics. The biomass WHSV and reaction temperature can be used to control aromatic yield and selectivity. At low WHSV, more valuable mono aromatic is produced with low coke yield. Recycling of olefinic gases mainly ethylene and propylene also produces additional aromatic yield. Moreover, co-feeding of propylene to the reactor results increase in aromatic yield. Research is generally conducted at temperatures from 350 to 600°C. For HZSM-5, yields are in the 15% range with predictions of 23%⁵⁶. Excessive carbon production and therefore catalyst coking is a problem. In one study, coke deposition at all temperatures led to a decrease in the catalytic activity after only 30 min time on stream.^35,57 Furthermore, coke has been shown to significantly increase at temperatures above 400°C.⁵⁸ Some coke can be burned off, but irreversible dealumination and loss of acid sites occurs at temperatures as low as 450°C in the presence of water. Paasikallio et al.⁵⁹ shown that zeolite based catalyst is get deactivated due to the presence of biomass alkali metal especially potassium as it neutralizes the Bronsted acid sites. Research on the reduction of coking is important, with a variety of approaches showing promise. For example, the recycling of non-condensable gases into a catalytic reactor has the potential to reduce char/coke yields while increasing oil yields.⁶⁰

The elemental composition of the fast pyrolysis bio-oil feedstock, as measured by its H/C_eff ratio (effective hydrogen Index: EHI) has been determined to have a large impact on the production of olefins, aromatics, and coke. Experiments have shown that pyrolytic bio-oil feedstock with a ratio of at least 1.2 or higher perform better in zeolite cracking upgrading.⁶¹ Ten feedstocks were studied over HZSM-5. Yields of olefins and aromatics increased while coke production decreased with increasing H/C_eff ratios. Catalyst life increased as coke yield decreased. This suggests that it may be beneficial to increase the H/C_eff ratio to 1.2 through hydrogenation of the bio-oil feedstock before upgrading with a zeolite catalyst.

Another method of effectively increasing the H/Ceff ratio is to co-pyrolyze a hydrogen donor such as methanol. Horne et al.⁶² studied the pyrolysis of wood waste in a dual zone, fluidized bed reactor. Pyrolysis was carried out at 550°C. Varying amounts of methanol were also injected, and the pyrolysis/methanol gases were passed over a fixed bed of HZSM-5 held at 500°C. There was an overall increase in hydrocarbon products including alkylated phenols and aromatics. The addition of methanol also increased water formation and decreased CO and CO₂ yields, which is in line with findings by Chen et al.⁶³ However, these observations do not agree with a study by Evans et al.⁶⁴ that showed an increase in the CO₂/H₂O ratio. In all cases, methanol had a synergistic effect on yields, and further research on co-pyrolysis seems justified. Separation of compounds that don’t react well with the particular catalyst being used could also be used in place of increasing the H/C_eff ratio. Gayubo et al.⁶⁵ has proposed separating aldehydes and phenols before upgrading over HZSM-5.

Pyrolysis temperature was found to have an impact on product composition with high temperatures producing more light gases. Cheng⁵⁷ studied furan conversion to aromatics and olefins using HZSM-5. Products included CO, CO₂, allene, C₂-C₆ olefins, benzene, toluene, styrene, benzofuran, indene, and naphthalene. Varying temperatures favoured different final products. At 450°C, benzofuran and coke formed, at 500 to 600°C, aromatics formed, however, at 650°C, olefins were produced along with CO and aromatics.

H₂O also plays a role in chemical conversions. The conversion of anisole was studied in a quartz tube reactor over HZSM-5 at 400°C.⁶⁶ The presence of controlled quantities of water in the feed was discovered to have a positive effect on catalytic activity. Interestingly, in this study, the deactivation rate of the zeolite was unrelated to the addition of water. Furthermore, H₂ was shown to have a positive effect on reducing coke formation, which is affirmed by other studies.⁶⁷ This is especially true when a metal function is present.⁶⁸

Other zeolites have been studied in comparison to HZSM-5. In one study using a fixed bed micro-reactor operating at 1 bar, 3.6 weight hourly space velocity (WHSV), and 330 to 410°C, HZSM-5 was found to yield more hydrocarbons than HY, H-mordenite, silicalite, and other silica-alumina zeolites. HZSM-5 and H mordenite also showed higher selectivity for aromatics than aliphatics while the other catalysts produced the opposite effect.^35,55,69 In a similar study, silicalite produced the least coke. Silica-alumina best converted the non-volatile fraction of the bio-oil. HZSM-5 produced the most yields in the gasoline boiling point range while HY and H-mordenite produced fewer yields and in the kerosene boiling point range.⁷⁰ In another study, catalytic pyrolysis of pinewood over zeolites HBeta-25, HY-12, HZSM-5-23, mesoporous ZSM-5, and HMOR-20 was conducted in a fluidized bed reactor at 450°C.^35,71 Overall, ketones and phenols were produced. Compare to other catalysts, HZSM-5 produced more ketones, less alcohols and acids. It also produced more liquid, similar in quantity to the quartz bed but containing more water. Mordenite and quartz produced almost no PAHs. However one major advantage to be noted here that the catalysts were regenerated successfully.

 The possibility of upgrading biomass as a co-feeding with vacuum gas oil in a traditional petroleum fluid catalytic cracker (FCC) is also studied.^72,73 Corma et al.⁷⁴ studied the cracking of glycerol and sorbitol using various FCC catalysts co-fed with vacuum gasoil. This work suggests that, in an industrial petroleum catalytic reactor, biomass and petroleum derived oil streams can be co-fed thereby producing a desirable final product. Samolada et al.⁷⁵ also studied about co-feeding of hydrotreated bio-oil in a traditional FCC reactor with promising results.^76–79 Table 4 provides a summary of the operating conditions and products for several catalysts that have been investigated for zeolite cracking.

At present, one of the major issues with catalyst Fast Pyrolysis for the production of aromatics is the high yield of coke produced during the process. Although this coke has some value as source of process heat, it diminishes the total possible yield of aromatics and also deactivates zeolite catalyst. This suggests that the addition of hydrogen donor could be useful in limiting the amount of coke produced during the pyrolysis. Zhang et al.⁶¹ has demonstrated in a study that oxygenated feedstocks with a higher H/C_eff ratio produced less coke during CFP over a ZSM-5 catalyst than those with lower H/C_eff. Hydrogen can be used during CFP to prevent the formation of coke and possibly improve the yield to hydrocarbons.⁸⁴ In presence of a catalyst, hydropyrolysis has been shown to produce pyrolysis oil with lower molecular weight and significantly reduced oxygen content than in the absence of hydrogen.⁸⁵ This route has demonstrated some promise for reducing the coke formation. Using hydrogenation metal-modified H-ZSM-5( Mo-ZSM-5, Pt-ZSM-5, Co-ZSM-5) and 400 psi of H₂, the yield of volatile aromatic products from pine wood CFP was significantly improved from that over unmodified H-ZSM-5.⁸⁶ Although hydrogen comes with extra cost, the improved yield of volatile aromatics may make this a worthwhile process. Further research could be directed at comparing catalyst stability in the presence and absence of hydrogen, at identifying metal additives to improve selectivity at lower hydrogen pressure. As an alternative to gaseous hydrogen, compound with high H/C_eff ( e.g. methanol, ethanol, acetone) could be blended with the biomass feedstock and co-fed into pyrolysis reaction, which could reduce formation of coke make and enhance selectivity towards valuable products.

Fast pyrolysis is an inherently complex reaction system, with hundreds of intermediate species, several simultaneous reactions steps, the presence of multiple phases, and transport effects. To date this complexity has hindered the molecular understanding of how the reaction proceeds, and the discovery of CFP catalysts has been guided by heuristic methods. However, the necessary tools for better understanding the reaction network and the role of the acid catalyst are beginning to emerge. Therefore, there is more opportunity to study the reaction network of lignin model compounds in an effect to better understand its catalytic chemistry that may lead to design the even more effective CFP catalysts for the production of aromatics from lignin.

Fossil fuels, the dominant source of energy in today’s modern civilization causes for changes in the global climate. The lignocellulosic biomass is a renewable source of carbon compounds that can be used as a more sustainable replacement of fossil fuel in the production of transportation fuels and building block for many chemicals. However, high concentration of oxygen functionalized compounds in biomass presents a challenge for the development of biomass based process. Several researchers are working in laboratory and pilot plant/demo scale to develop biomass conversion process. Among different conversion approaches, catalytic fast pyrolysis is getting major attention. The management of heat, mass transport for biomass pyrolysis is very important which encourages researchers to develop suitable reactor configuration. Fluid bed reactor or circulating fluid bed reactors are advantageous over other reactor configurations for handling better heat and mass transport phenomenon resulting higher liquid product yield, less coke make, with better operating flexibility. The treatment of bio oil by HDO process resulted development of several catalyst formulation based on mainly model compound studies. Several issues like stability of catalyst in presence of high concentration of water, presence of acid in bio-oil, basic nitrogen compounds are required more attention for successful development of HDO process.

In the recent past , research works on combining biomass fast pyrolysis and in-situ upgrading of the generated pyrolysis oil into a one-spot catalytic fast pyrolysis system using fluid bed or circulating fluid bed reactor configuration are getting more attention and this route seems more economically attractive option for fuel production. However, higher coke make and hydrogen management for removal of functionalized oxygen are still major issues. These issues are being addressed by adopting hydropyrolysis approach which resulted additional cost on capex and opex cost. CFP process using metal modified ZSM-5 zeolite shows better and promising process for making light olefins and petrochemical feedstock like paraxylene, benzene, toluene etc in absence of hydrogen, resulting lower cost process, but catalyst deactivation due to cokeis an issue, which can be handled by adopting circulating fluid bed system like Fluidized Catalytic Cracking (FCC) process where catalyst gets regenerated continuously. However, catalyst deactivation due to the presence of potassium, sodium etc in feedstock is still a challenges and hence, researchers are engaged to resolve this problem. Lignocellulosic biomass to fuels and chemical process development still demands more extensive works on better catalyst development to come up as viable and reliable process.

The authors are thankful to management of Reliance Industries limited for giving permission to publish this article.

The author declare that there is no conflict of interest
