In this study, the geochemistry data of 162 coal measure tight gas samples (77) samples from Ordos Basin, 85 samples from Sichuan Basin) is collected. Then, the carbon isotope evolution of coal measure tight sandstone gas is investigated. The result indicates that three features in carbon isotope evolution of coal measure tight gas appear. (1) The coal measure tight gas has a same feature as shale gas, that the carbon isotope of heavy gas would show a rollover with the decreasing wetness of gases. The corresponding range of gas wetness is about 2.5%~5% at which the carbon isotope of ethane begin to rollover. (2) The carbon isotope series of coal measure tight gas presents successively positive sequence, partial reversal and full reversal with increasing maturity of source rock. (3) The maturity ranges corresponding to of coal measure tight gas with the positive sequence, partial reverse and full reverse of carbon isotope are Ro<2.0 %, Ro=1.75~3.0% and Ro>3.0% of in-situ source rock, respectively. On the bases of pyrolysis experiment of a I type of organic matter, the authors propose that the mixing between primary and cracking gas could just only cause the carbon isotope rollover of heavy hydrocarbon gases, but not cause the carbon isotopic reversal of hydrocarbon. Finally, a conclusion is suggested that carbon isotope reversal of coal measure gas has a close relationship with demethylation happening at the maturity above 3.0% Ro according to published data about coal chemical structure measurement. The isotopic fractionation during the process of heavy gases formation by linkage of methyl from demethylation is one of capital factors of carbon isotopic reversal.

Keywords: coal measure tight gas, carbon isotope evolution, carbon isotopic reversal, maturity of source rock, formation mechanism

In classic theory, the natural gas generated by organic matter (OM) would become dry with the increase of source rock maturity.¹ Meanwhile, the carbon isotope of gas would become heavy during the evolution process of source rock.^2-4 However, some new characteristics of geochemistry appear in shale gas found in shale with over maturity, such as the isotopic rollover, partial reversal and full reversal.^5-9 The isotopic rollover refers to that the isotopic value of one heavy gaseous component (>C2) does not become heavy with the decreasing wetness or increasing maturity of source rock, but become light in a certain range of gas wetness. For example, the carbon isotope of ethane from shale gas found in North America increases with its decreasing wetness initially. Then it decreases with the further decreasing wetness of shale gas.⁷ While, the isotopic reversal means that the isotope value do not increase with the increase of carbon number in gas, but become light (δ¹³C₁>δ¹³C₂ >δ¹³C₃).

Hao et al.⁷ proposed there is a close relationship between the carbon isotope distribution of shale gas and the maturity level of source rock (shale). The corresponding maturity ranges at which the isotope rollover, partial isotope reversal and completely isotope reversal of shale gas occurred are about 1.3~1.5 %Ro, 1.5~1.9 % Ro and much more than 2.0% Ro, respectively. The corresponding wetness at which δ¹³C₂ begins to rollover is about 6% for Barnett shale gas. Although many researchers had been studied the mechanisms and the causes of the isotopic rollover and reversal of shale gases, their origins are not inadequately understood. Some suggested that the isotopic reversal of shale gases at the over-mature stage is caused by the mixing of both kerogen cracking and secondary cracking of retained hydrocarbons.^5,8,10 Others proposed that the redox reaction between water and methane generated isotopically light carbon dioxide and hydrogen at geological temperatures of 250-300°C (5.0% Ro), further reaction between carbon dioxide and hydrogen formed isotopically light ethane.^6,11 In last few years, the isotopic reversal was observed in coal measure tight gas whose reservoir closes to its source rock of coal bearing formation and maturity of source rock arrives over maturity level.^12,13 Thus, the isotopic reversal is common characteristic for natural gas no matter from shale or coal bearing formation with over maturity. Meanwhile, a question arises whether the isotope of coal measure tight gas has a similar evolution trend as shale gas with increasing maturity of source rock or decreasing wetness of gas. This is very significant to interpret the isotopic reversal mechanisms and further unravel the mechanism of gas generation from the source rock at over maturity stage.

In this study, the geochemistry of 155 coal derived gas samples from Xujiahe formation of Sichuan basin (88) and Upper Paleozoic of Ordos basin (67), west-central China is collected Figure 1. The objective of this study is to clear the carbon isotope evolution of coal measure tight gas and to probe preliminarily the isotopic reversal mechanisms of natural gas generated at over maturity stage.

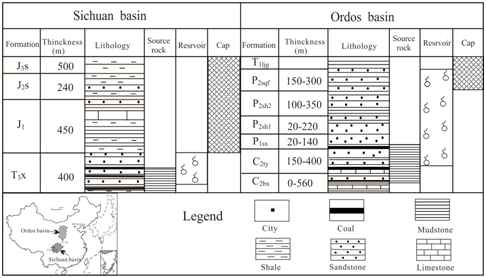

Figure 1 The assemblage of source rock, reservoir and cap for gas fields found in Xujiahe (T) group of Sichuan basin and in Upper Paleozoic (C-P) of Ordos basin.

Sichuan and Ordos basins are located in the west-central China (Figure 1). The Xujiahe group (T) and Upper Paleozoic (C-P) are chief coal bearing formations in Sichuan and Ordos basins, respectively. The Xujiahe group in Sichuan basin is divided into six segments (T_3X¹~ T_3X⁶). The lithology of T_3X¹, T_3X³ and T_3X⁵ is mainly mudstone, shale, carbon shale and coal interbedded with thin sandstone, which is the main source rock. The lithology of T_3X², T_3X⁴ and T_3X⁶ is tight sandstone chiefly, which is the reservoir of coal measure gas. The source rock of Xujiahe group shares a relatively low maturity and its range is 0.5~2.0 % R_o.¹⁴ The tight sandstone of gas reservoir in Upper Paleozoic of Ordos basin is developed in Permian chiefly. The cover layer of gas reservoir is the mudstone of Upper Shihezi group developed in Permian. The maturity of C-P source rock is high and arrives to 1.0~3.2% R_o.¹⁴ Previous work had proved that the gas found in Xujiahe group of Sichuan basin and the Upper Paleozoic of Ordos basin is coal derived gas.^14,15 Thus, the maturity range (R_o=0.5~3.2%) of source rock selected from the two basins in this study is wide enough to unravel the isotopic evolution of coal measure tight gas with increasing maturity of source rock.

The carbon isotopic evolution with decreasing wetness of gas

The conventional theory of gas generation suggests that the higher of source maturity, the less of wetness for gas generated by one type of OM is. Thus, the wetness of natural gas is often taken as a parameter to scale the maturity of its source rock. The carbon isotopic evolution of methane and ethane from the two basins with decreasing wetness is present in Figure 2. There are three similar features in evolution of δ¹³C₁ and δ¹³C₂ with decreasing wetness for the coal gas from the two basins. (1) δ¹³C₁ value becomes heavy with decreasing wetness of the gas. (2) A rollover feature in δ¹³C₂ is displayed with decreasing wetness of the gas. (3) The rollover threshold of δ¹³C₂ is about -20‰; Meanwhile, two different evolution features in carbon isotope with decreasing wetness of the gas could also be observed. (1) The rollover degree of δ¹³C₂ of gas (-20‰ ~ -39‰) from Ordos basin is higher than that of gas (-20‰ ~ -30‰) from Sichuan basin. (2) The value of wetness which corresponds to the turning point of δ¹³C₂ rollover is different for the gas from two basins. The wetness corresponding to the turning point of δ¹³C₂ rollover for the gases from Sichuan and Ordos basin is about 2.5% and 5%, respectively.

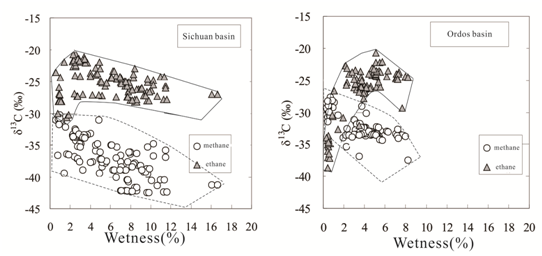

Figure 2 The δ¹³C₁ and δ¹³C₂ evolution with decreasing wetness of gas.

The carbon isotope relationships among of different hydrocarbon components

The carbon isotope relationships among of different hydrocarbon components are presented in Figure 3. In overall, a wide “V” shape relationship between δ¹³C₁ and δ¹³C₂ could be observed (Figure 3a). δ¹³C₂ becomes heavy with increasing δ¹³C₁ initially. Then it becomes light with increasing δ¹³C₁ at the point of δ¹³C₂=-20‰. Finally, the reversal between δ¹³C₁ and δ¹³C₂ appears (below the line of δ¹³C₁=δ¹³C₂). Most gas samples from Sichuan basin sharing relatively low maturity of source rock are located in the left area of “V” shape. Although some gas samples from Sichuan basin are located in the right area of “V” shape, all the samples from Sichuan basin present a normal series distribution between δ¹³C₁ and δ¹³C₂ (δ¹³C₁<δ¹³C₂). All the gas samples from Ordos basin bearing high maturity of source rock are located in the right area of “V” shape. There is a rough decreasing trend in δ¹³C₂ with increasing δ¹³C₁ of the gas samples from Ordos basin. However, there still are 75% gas samples from Ordos basin sharing a normal distributing feature in carbon isotope (δ¹³C₁< δ¹³C₂). About 25% gas samples from Ordos basin presents reversal between δ¹³C₁ and δ¹³C₂ (δ¹³C₁>δ¹³C₂, below the line of δ¹³C₁=δ¹³C₂).

The carbon isotope relationship between δ¹³C₂ and δ¹³C₃ is relatively complex (Figure 3b). All the samples are near the line of δ¹³C₂=δ¹³C₃. The samples from Sichuan basin is in a relatively narrow range along the line of δ¹³C₂=δ¹³C₃. Only a little samples (about 15%) from Sichuan basin are below the line of δ¹³C₂=δ¹³C₃, which means a reversal between δ¹³C₂ and δ¹³C₃. The gas samples from Ordos basin is in a relatively wide range along the line of δ¹³C₂=δ¹³C₃. 30% gas samples from Ordos basin share reversal between δ¹³C₂ and δ¹³C₃.

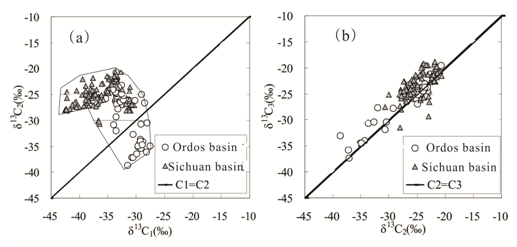

Figure 3 The carbon isotope relationships among of different hydrocarbon components.

The relationship between the carbon isotope series of gas and the maturity of source rock

Hao et al.⁷ divided shale gas into following 4 types according to their carbon isotopic series. Type 1: normal series of carbon isotope with ¹³C₁ <δ¹³C₂ <δ¹³C₃, type 2: partial reversal with δ¹³C₁ <δ¹³C₂ >δ¹³C₃, type 3: partial reversal with δ¹³C₁ >δ¹³C₂ <δ¹³C₃ and type 4: complete reversal with δ¹³C₁ >δ¹³C₂ >δ¹³C₃. They further proposed that the distribution of above type shale gases was closely relative with the maturity of shale. Here, their thought is borrowed to inquire whether similar feature exists between the distribution of coal measure tight gas with different type of carbon isotope series and the maturity of in-situ source rock. The distributions of different type of coal measure tight gas from Sichuan and Ordos basin are presented in Figure 4, Figure 5, respectively.

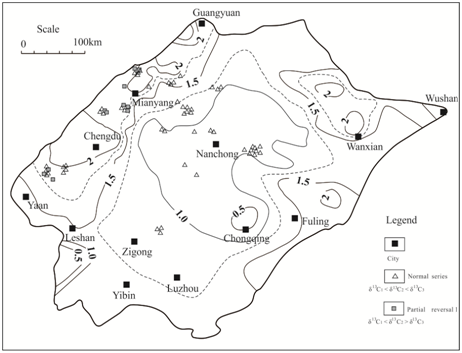

Figure 4 The distributions of gas with different carbon isotopic series and from Xujiahe group, Sichuan basin.

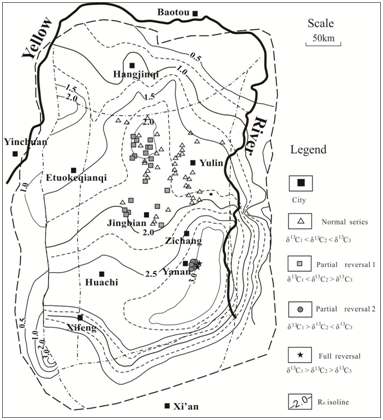

Figure 5 The distributions of gas from Upper Paleozoic, Ordos basin and with different carbon isotopic series.

The maturity of source rock developed in Xujiahe group, Sichuan basin is relatively low (R_o=0.5~2.0%, Figure 4). Only type 1 and type 2 gases were found. Only type 1 gas was found in the area with the maturity of source rock less than 1.75 %R_o. Both type 1 and 2 gas were found in the area where the maturity of source rock is in the range of R_o=1.75~2.0%; the maturity of source rock developed in Upper Paleozoic, Ordos basin is relatively high (R_o=1.0~3.2%, Figure 5). All the four type of gases were found. Similar as the distributions of different type gases found in Xujiahe group of Sichuan basin, type 1 gas distribute in area with the maturity of source rock less than 1.75 %R_o in Upper Paleozoic of Ordos basin. Both type 1 and 2 gases were found in the area where the maturity of source rock is in the range of R_o=1.75~2.0%. Type 3 gas was found in the area with R_o=2.0~3.0%. Type 4 gas was found in the area with R_o more than 3.0%. It is difficult to determine the boundary line of the maturity area where the type 1 and 2 gases distribute for no gas found in the area with maturity of source rock ranged from 2.0 R_o% to 2.75 R_o% in Ordos basin at present. Nevertheless, the area of different type gas distribution is clear. Type 1 gas with normal carbon isotopic series is found in the area with R_o<1.75%. The gas with partial reversal of carbon isotopic series occurs in the area with R_o=1.75~3.0%. Type 4 gas with complete reversal of carbon isotopic series is in the area with R_o>3.0%.

The relationship between wetness of gas and the maturity of source rock

Although the reservoir of coal measure tight gas is close to its source rock, it experiences a short distance migration. There should be some difference in gas field formation between shale gas and coal measure tight gas. However, coal measure tight gas shares similar feature in carbon isotopic evolution as shale gas that carbon isotopic series presents successively normal series, partial reversal and complete reversal distribution with decreasing maturity of source rock. The relationship between wetness of coal derived tight gas from Sichuan and Ordos basin and the maturity of source rock is presented Figure 6. It is clear that there is close relationship between the wetness of coal measure tight gas and the maturity of source rock. This indicates that the coal measure tight gas come from in-situ source rock and have no experience long distance migration. Hence, the isotopic fractionation of coal measure tight gas is weak during its migration or gas filed formation¹⁶ and the geochemistry of coal measure tight gas could mirror its generation mechanism.

Figure 6 The relationship between wetness of gas and the maturity of in-situ source rock.

Although the wetness (2.5~5%) corresponding to δ¹³C₂ rollover of coal measure tight gas from Ordos and Sichuan basin is different, but it is more than that of shale gas from Barnett (6%, Figure 7). This is easy to understand because the marine OM from Barnett is oil prone and would generate gas with high wetness during its thermal evolution process comparing with that of coal. The wetness (5%) corresponding toδ¹³C₂ rollover of coal measure tight gas from Ordos basin is more than that (2.5%) of gas from Sichuan basin. This is contributed to deposition of limestone or marlstone of Benxi and Taiyuan groups under coal bearing formation of Ordos basin (Figure 1). The oil prone source rock deposited transitional facies could generate gas with relatively high wetness during thermal evolution. The oil type gas with the relatively high content of heavy gas migrates into tight sandstone and mixes with coal derived gas.¹⁷ Thus, the wetness corresponding to δ¹³C₂ rollover of tight gas from Ordos basin (5%) is close to that of wetness value of shale gas (6%) from Barnett and higher than that of gas from Sichuan basin. Nevertheless, the maturity corresponding to δ¹³C₂ rollover for the gas from both Ordos basin and Sichuan basin is in same range of 1.5~1.7% R_o. This maturity range is slightly higher than that of 1.3~1.5 % R_o for shale gas proposed by Hao et al.⁷

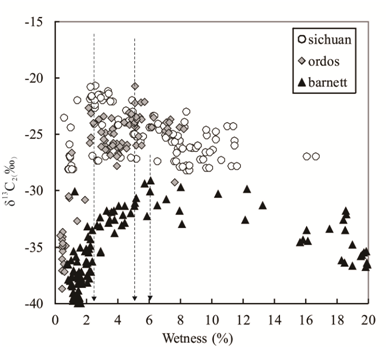

Figure 7 The comparison of wetness corresponding to δ¹³C₂ rollover for coal measure tight gas and shale gas.

This maturity range of 1.5~1.7 % R_o is just in the stage of oil cracking. Although the coal is gas prone during its thermal evolution, but some oil could be generated. This is proved by the oil inclusion existed in tight sandstone of Ordos basin and cluster of bitumen with fluorescence.¹⁸ The oil remained in coal would crack and generate some gas with high content of heavy component and negative carbon isotope comparing to the primary gas generated by coal. The mixing between the primary and cracking gas would cause the carbon isotopic rollover of heavy gas generated by coal. Banett shale deposited in marine facies is oil prone.⁵ It would generate more oil during its thermal evolution process than coal. Thus, the amount of secondary cracking gas from shale will be more than that from coal. Meanwhile, the amount of primary gas from coal with relatively high dryness is more than that generated by type I and II source rock at a same maturity for its gas prone feature. There must be have a high cracking degree of oil generated by coal to match the δ¹³C₂ rollover of coal derived gas. So, the maturity corresponding to δ¹³C₂ rollover (R_o=1.5~1.7%) of coal derived gas is higher than that of shale gas (R_o=1.3~1.5%) proposed by Hao et al.⁷

As mentioned in introduction, the view about isotopic reversal genesis of shale gases generated in over maturity stage in recent years could be induced into following aspects:

1. mixing between primary gas and cracking gas
2. Redox reaction between water and methane. The two reasons to cause the abnormal characteristic of isotopic at over maturity stay in theory and have no positive experimental proofs to support these explanation at present.

Gao et al.¹⁹ proved that mixing between primary gas from kerogen and secondary gas by remained hydrocarbons cracking could not produce isotope reversal, but just isotope rollover in shale gas observed in laboratory pyrolysis experiments conducted at hydro condition in closed system. In this study, a kerogen sample from lacustrine facies source rock (R_o=0.6% and HI=788mg/g.TOC) was selected to simulate hydrocarbon generation in gold tube system. This is a typical experiment to prove whether mixing between primary gas and the cracking gas could cause the carbon isotopic rollover of heavy gas and reversal of hydrocarbon gas for its close feature. The carbon isotopic evolution of methane, ethane and propane with increasing experimental temperature and Easy R_o of sample residues is presented in Figure 8. Surely, there is a depletion of δ¹³C₂ and δ¹³C₃ in 400~450°C. The corresponding Easy R_o to the turning point of δ¹³C₂ and δ¹³C₃ rollover is about 1.26% R_o. The maturity of 1.26% R_o is just end of oil window and the start of oil cracking. Nevertheless, the carbon isotope of hydrocarbon hold a normal feature of ¹³C₁ <δ¹³C₂ <δ¹³C₃ in all experimental temperature. The result of the experiment indicates that the mixing between primary gas and the cracking gas could not make the isotopic reversal of hydrocarbon gas. It just only causes the isotopic rollover of heavy gases. The Easy R_o of 1.26% corresponding to δ¹³C₂ and δ¹³C₃ rollover from above experiment is lower than 1.3~1.5 % R_o corresponding to δ¹³C₂ and δ¹³C₃ rollover of shale gas proposed by Hao et al.⁷ This is contributed to the pyrolysis experiment is conducted in compeltely close system and no oil expelled during experiment. Of course, the isotopic full reversal of coal derived gas caused by mixing between primary gas and the cracking gas is more unlikely for less oil and high dryness of primary gas generated by coal comparing with oil prone OM during its thermal evolution.

The second view about isotopic reversal of shale gas that cause by the redox reaction of methane and further reaction to form isotopically light ethane is just a theoretical assumption or model. It needs to be proved by more experiments. The second part reaction of this assumption is similar with Fischer-Tropsch (FT) Synthesis between carbon dioxide and hydrogen. Although the FT synthesis between H₂ and CO₂ could generate hydrocarbon gas with isotopic reversal,²⁰ this reaction conducted in lab and with transition metal as catalyst generally. However, whether the amount of transition metal existed in source rock is enough or not to make the happening of FT synthesis between H₂ and CO₂ could is doubtable. Even if the synthesis between H₂ and CO₂ could happen in source rock, the reactants of H₂ and CO₂ could not come from the redox reaction of methane, but come from the thermal evolution process of source rock. The geological temperature range of 250-300°C or maturity of 5.0 % R_o at which the redox reaction of methane happens is so high that the ethane generated by FT synthesis would crack at once. Thus, the carbon isotopic series of hydrocarbon gas could not share the reversal characteristic for the cracking of heavy gas. CO₂ generation occurs in all process of OM evolution.¹⁸ Moreover, H₂ could generate at over maturity stage of OM by condensation of aromatic rings to form graphite. However, bulk H₂ generates by condensation of aromatic rings at the maturity more than 3.0% R_o.²¹ Thus, FT synthesis between H₂ and CO₂ in source rock system should happen above 3.0%R_o. Nevertheless, whether the hydrocarbon gas generated by FT synthesis between H₂ and CO₂ at the maturity stage more than 3.0% R_o would happen or not in source rock system needs more experimental data to support.

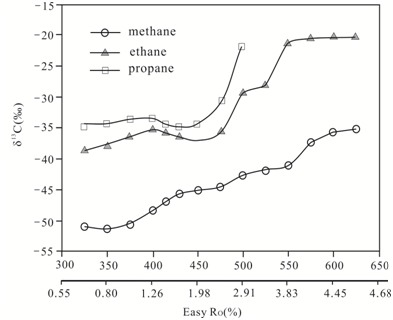

Figure 8 The carbon isotope of hydrocarbon generated by oil prone organic matter in pyrolysis experiment.

The geochemistry data of natural gas indicates that the isotopic reversal is not a peculiar feature for shale gas. Coal measure tight gas also shares the feature of the carbon isotopic reversal at the maturity stage more than 3.0% R_o. Yao et al.²² proposed that there is no aliphatic chains with more than two carbon atom in the chemical structure of coal with maturity of 2.8% R_o by measurement using fourier transform infrared spectroscopy (FTIR) for geological samples and the residues of coal pyrolysis. Mi et al.²³ presented a similar result that only methyl as side chain could be measured by ¹³C nuclear magnetic resonance in the chemical structure of coal with maturity more than 3.0% R_o. The carbon isotopic reversal must have relationship with demethylation. Fusetti et al.²⁴ Studied the demethylation contribution to gas generation from OM and extensively existed at over maturity level by trimethylbenzene pyrolysis experiment in gold tube. Their experimental result indicated that there is some heavy gas produced beside methane. Unfortunately, carbon isotope of ethane did not be measured in their experiment. Nevertheless, the fractionation mechanism of carbon isotope during heavy gas generation by demethylation could be deducted according to the relative theory. It is well know that inorganic hydrocarbon gas has a feature of isotopic reversal.^25-27 The heavy gas of inorganic origin is suggested by via conjunction of methane.^25,27,28 The isotope fractionation during of heavy gas generation is well recognized to be the reason of isotope reversal for inorganic hydrocarbon gas. This thought could be borrowed to interpret the carbon isotopic reversal of natural gas generated by demethylation, which extensively exists in OM at over maturity stage.

The measurement results about chemical structure indicate that only methyl as the side chains linked on aromatic rings for the coal samples with maturity more than 3.0%R_o.²³ In theory, the unique component of gas generated via demethylation at the maturity more than 3.0%R_o should just be methane. However, there is some heavy gas occurred both in the natural gas found in shale gas or coal measure tight gas with source rock maturity more than 3.0%R_o and in the gases produced in lab by trimethylbenzene cracking. The heavy gas must be generated by reciprocally conjunction of free CH₃⁺, which forms via cleavage of methyl linked on aromatic rings. The free CH₃⁺ would links with H⁺ and forms CH₄. Some CH₃⁺ would connect reciprocally and form heavy gas. There are two kinds of carbon isotopic components in free CH₃⁺, ¹²CH₃⁺ and ¹³CH₃⁺. ¹²CH₃⁺ bears a higher kinetic energy than¹³CH₃⁺ in a same energy system for its relatively light mass during above linkage. Thus, a relative higher conjunction probability to form heavy gas among ¹²CH₃⁺ exists than that between ¹²CH₃⁺ and ¹³CH₃⁺, or than that between ¹³CH₃⁺ and ¹³CH₃⁺. So, heavy gas generated by free CH₃⁺ conjunction has a depleted carbon isotope component (Appendix 1). Thus, the isotopic fractionation during the process of heavy gases formation by linkage of methyl from demethylation is one of capital factors of carbon isotopic reversal.^29-32

The statistical analysis on geochemistry data of gas from Xujiahe, Sichuan Basin and Upper Paleozoic reservoirs, Ordos Basin, China indicates that coal measure tight gas share a similar evolution feature in carbon isotope as shale gas. The carbon isotope of heavy gas would present a rollover with the decreasing wetness of coal measure tight gas. The corresponding range of gas wetness is about 2.5%~5% at which the carbon isotope of ethane begin to rollover, which is less than that of shale gas (6%). The carbon isotope series of coal measure tight sandstone gas would present successively positive sequence, partial reverse and full reversal with increasing maturity of in-situ source rock. The close relationship between the wetness and the maturity of source rock indicated that coal measure tight gas is the in-situ gas. Moreover, the distribution of coal measure tight gas with different carbon isotopic series is relative with the maturity of source rock. The maturity ranges corresponding to of coal measure tight sandstone gas with the normal sequence, partial reversal and full reversal of carbon isotope are Ro<1.75%, Ro=1.75~3.0% and Ro>3.0%, respectively. The authors suggest that the mixing between the primary gas and the cracking gas just only cause the carbon isotopic rollover of heavy gases, but not make the complete reversal in carbon isotope of hydrocarbon gas. A conclusion is proposed that the carbon isotopic reversal of gas is contributed to demethylation happening at the maturity above 3.0%Ro of source rock. The carbon isotopic fractionation during the process of heavy gases formation by linkage of methyl is one of real factors caused the full reverse of carbon isotope for coal measure gas.

This research supported by Projects supported by the National Natural Science Foundation of China (Grant No，41673047) and the Major Program of the National Oil and Gas Foundation of China (Grant No, 2016ZX05007-001).

The author declares no conflict of interest.
