The influence of Artimisia Judaica extract as corrosion inhibitor for carbon steel (CS) in 0.5 mol L^-1 sulfuric acid has been given by employing some electrochemical and chemical methods. The examination of CS surface was tested. The rate of corrosion was break down by 91 % as the dose of Artimisia Judaica rise to 300 ppm. The influence of the temperature in the range of 25 to 45°C was studied. Parameters of thermodynamic were measured among the performance of the excellent adsorption fitting isotherm. The extract compounds were adsorbed on CS surface following Langmuir adsorption isotherm. The potentiodynamic polarization (PP) data indicated that this extract plays as mixed-type inhibitor. The addition of extract rise the (R_ct) charge transfer resistance and lower the (C_dl) capacitance of the double layer. The film coated on a CS sample and surface analysis was obtained utilizing (SEM) scanning electron microscope, (FTIR) Fourier transform infrared spectroscopy and (AFM) atomic force microscopy analysis.

Keywords: A. judaica, corrosion inhibition, chemical techniques, electrochemical techniques, adsorption, sulfuric acid

The corrosion definition is not constrained to alloy and metals, but rather the term, corrosion, can likewise be stretched out to earthenware production and other nonmetallic materials. Corrosion can prompt to problems significant in furthest fields for man-factory.¹ Corrosion gets to be distinctly a standout amongst the most difficult points for researchers and the society for building. From the stance of the significance of alloy in manufacture, CS is choice among the metal of because of its unmistakable attributes and wide application side. In a few man-factory procedures, for example, corrosive cleaning, corrosive well acidizing, and acidic pickling, rust and polluted scales were generally evacuated utilizing acidic medium. In the pickling procedures of metals sulfuric and hydrochloric acids are the most generally utilized. As a result of the general dangerous assault of acidic corrosive medium, the inhibitors utilization to control the forcefulness of acidic corrosive condition was found to have across the board utilized in numerous industry.² The practicality of insurance strategies rely predominantly on the process of encompassing environment that materials, especially metals, experienced during service conditions. The utilization of inhibitor to limit rate of corrosion in system closed service is well-based and accepted continually.^3–7 In research, many organic assembled have been noted as corrosion potential inhibitor for various metals, but on the other side, ecological and healthy problems have been arisen because of utilized such synthetic assembled. In like manner, naturally take place substances, for example, plant extract can be utilized as options.^8–14The utilization of the plant extracts as potential specialists to lessen consumption in different regular mechanical arrangements. Inhibitors from plant concentrates are renewable, promptly accessible, and satisfactory and earth inviting. The utilization extracts as potential versus to lower corrosion in unlike typical industrial. Plant extracts are assets renewable for inhibitors, the target from paper are utilized an aqueous extract readying from the Artimisia Judaica, as inhibitor to minimize the corrosion habit of CS in solutions of sulfuric acid.

Samples

The CS utilized in the present paper was obtained from Fields Company for Petrobel. The chemical composition of the material (weight %) is as; (0.003) Si, (0.20) C, (0.025) P, (0.35) Mn and the rest iron. For (MR) tests, sheet of CS (measured 20mlx20mlx1ml) was abraded with different grades of emery papers, washed by bi-distilled water, acetone, dried and then weighed. Hooks made from glass were utilized to hold the coins in the testing solutions under the corrosive medium surface by 1 cm.

Solutions

The test solution was H₂SO₄ (0.5M). From Al-Gomhoria Company, Egypt the sulfuric acid (98%, specific gravity=1.84) had been purchased. 100 ml of solutions of H₂SO₄ was utilized as testing solution and prepared freshly before each test. Also, bi-distilled water was utilized for the preparation of acidic solution.

Preparation of plant extract

The collected aerial parts of Plant A. Judaica from the Region El-Arish of the Peninsula Sinai, Egypt and shade at room temperature and grind using electrical mill into fine powder, then take 10 g of powder in 500 ml measuring flask and dissolved it in bi-distilled water and leave the flask on the hot plate, after that the solution leave too cool at room temperature then filtrate. Take 10 ml filtrate + 5 ml ethanol in condensate-collecting flask of rotary evaporator to determine concentration of dissolved substance in plant extract solution. The extract was dried and refrigerating keeping at 5°C, over needed for the tests. 1000 mg L^-1 stock solutions were obtained by dissolving one gram of the extract in bi-distilled water and complete to 1000 ml. The doses of the plant extract range from 50 mg L^-1 to 300 mg L^-1. Table 1 recorded phytochemical bioactive extract of A. Judaica. One sesquiterpene lactone, vulgarin (1); three terpenoidal compounds, taraxerol acetate (2), β-amyrin (3), and lupeol (4); one sterol, β-sitosterol (5), in addition to a flavone aglycone, lutoelin-3’-methyl ether ( 6 ), and its glycoside, luteolin 3’-methyl ether-7-glucoside (7); two polymethoxy flavones, luteolin-6, 7, 4’-trimethyl ether (8) and artemetin (9), were identified. Characterization of these compounds Table 1 was achieved through their chemical, chromatographic, physical and spectral tests (MS, UV, 13 C NMR and 1 H NMR). The analytical values were in agreement with reported in the literatures.¹⁵

Mass reduction (MR) tests

The CS coins surface were scratching, to a finish mirror surface, utilized various grades of paper emery began with kind coarser 80 to smooth one 1200, bi-distilled water rinsed and dried gently utilized filter papers. The procedure for (MR) as follows; first, the coins was weighted by utilized electronic balance with a higher sensitive and then the coins were dipped into 100 ml of solution 0.5 mol L^-1 H₂SO₄ in existence and lack of unlike dose of A. Judaica extract at 30°C. For (MR) test, the intervals time were (0.5 to 3 hour). After each time, the tested coins were exited from the solution, rinsed with bi-distilled water, dried and re-weighted again and listed. The rate of corrosion (C_R) was measured from the data of (MR) divided by time (min) and the total surface area (cm²).

Electrochemical tests

Three various electrochemical tests were obtain utilized three electrode arranged in a cell from glass as follows; (WE) working electrode CS coins, (SCE) saturated calomel play as electrode reference, and Pt wire as an electrode auxiliary. In the present paper, the WE was obtain of squared coins of CS from one side were welded with rod of copper. The electrode reference was related to a capillary Luggin. All the tests were found were stagnant conditions subjected. Before began electrochemical tests, the WE was readying in the same manner of (MR) tests and the potential electrode for 25 min stabilized. All results from electrochemical have given by utilized Instrument Gamry (PCI4/750) system contain software DC105 for EFM140 for EFM tests, PP tests and software EIS300 for EIS (AC). In appending, software Echem 6.03 was utilized for fitting value, drawing and graphing.

PP tests

PP diagrams given from Tafel polarization by changing the potential of working electrode automatically from -1000 to 0 mV with a rate of scan of 1 mVs^-1 from at open potential circuit. The current corrosion was measured by the Tafel lines (cathodic and anodic) (β_c and β_a) to gives log i_corr and (E_corr). The protection efficiency (% IE) and (θ) were measured utilized the given data of i_corr.

EIS tests

EIS tests were occurred at OCP and were carried out in the frequency range 10⁵-10^-1 Hz, and the AC signal was 0.005 V in amplitude. EIS diagrams are given in the Nyquist and Bode representations. Equivalent Circuit was utilized to fit the impedance data.

EFM tests

A frequency of two varies 2 and 5 Hz with frequency base=0.1 Hz¹⁶ was performance to give the EFM. It is insistent form data of minimum frequency not stronger than a half of the maximum frequency. The frequency maximum must also be lower enough that the double layer charging does not to the current contribute response. The maximum peaks function to measure the causality factors corresponding [CF-2 and CF-3], (β_a and β_c) and (i_corr).

Surface analysis

Three CS coins of area=(20ml×20ml×1ml) were utilized in this tests, the first coins of CS was utilized to analyze the surface of CS nonexistence neither acid exposure nor extract treatment, the second coins was dipped completely for 12 hours into the blank (0.5 mol L^-1 H₂SO₄) and exposure lake to plant extract. The last coins of metal were inundation for 12 hours in a solution test of 0.5 mol L^-1 H₂SO₄ including 300 mg. L^-1 of A. Judaica extract. The surface were tested utilized (SEM, JOEL, JSM-T20, Japan).

Atomic force microscopy (AFM)

AFM is a process powerful for roughness crowd value from a surfaces verity and insight direct into the exchanges in the shape of surface occurred at several nanometers hundred when topographical exchanges because the begin of formation and corrosion of film covered on the CS in the attendance of extract A. Judaica. The size examination of all the AFM picture at a rate of scan of 2.4 lines per second

FTIR Spectra

The composition of the product form corrosion on the CS surface was examined by FTIR spectroscopic study. IR Affinity (Perkin-Elmer) spectrophotometer was used for recording the FTIR spectra of the copper plate and lupine extract (crude) at central laboratory in faculty of pharmacy Mansoura University. A range of frequency = 4000 – 400 cm^-1 was utilized.

MR tests

MR was measured after equal interval time of immersion into the test solution of 0.5 mol L^-1H₂SO₄ nonexistence and existence of unlike dose of the investigated extract. Figure 1 plots for systems contain extract fall below of the acidic free. This led to the CS is a function of both the kind and the additive dose. The (θ), similar, the protection efficiency improve when the additive plant dose rise and MR was occurs dropped, while the protection efficiency break down as temperature rise, this can illustrated the physical adsorption formed on the surface of CS by the plant extract constituents. Table 2 recorded (%IE) and (θ) given from MR measured. The outcome data were analyzed from Eq. (1):

%I.E=Cx100=100x [(C_R^{`</sup> - C<sub>R</sub>) / C<sub>R</sub><sup>`}……………. (1)

C_R, C_R^` the rates of corrosion nonexistence and existence of extract A. Judaica, continually.

Figure 1 Immersion time vs MR for CS dissolution in 0.5 mol L^-1 H₂SO₄ nonexistence and existence the A. Judaica treatment extract at 25˚C.

Adsorption isotherm

The research of corrosion protection process was fitting to adsorption Langmuir obtains in next:

C/θ=C + 1/k_ads……………. (2)

Where, C=plant extract dose of the inhibitor and K_ads=constant equilibrium of adsorption belong ΔG°_ads by eqn.3:

K_ads=1/5.55 e ^(-ΔG°ads/^/RT)………………. (3)

Straight lines given when drawing C vs. C/θ for A. Judaica appending adsorption on the CS surface of sulfuric acid at 25°C is obtain in Figure 2 and thermodynamic adsorption have and listed measured in Table 3. The –ve sign of ΔG°_ads, in other hand, improving when temperature improve. The adsorption takes place by the electrostatic attraction and spontaneous process. The analyses for the given data of ΔG°_ads were lower negative than -20 kJ mol^-1 led to that the process of adsorption of the extract on CS in 0.5 mol L^-1 H₂SO₄ solution is physisorption.¹⁷ The (∆H^°_ads) could be measured by equation Vanʼt Hoff:

Log K_ads=(-∆H°_ads/2.303 RT) + constant………….. (4)

Figure 3 plot 1/T against Log K_ads for measure (∆H^°_ads). From the diagrams given slope=(-∆H°_ads/2.303 RT). In suitable by the next:

∆G°_ads=∆H°_ads–T ∆S°_ads………………. (5)

Figure 2 Langmuir diagrams for dissolution of CS in 0.5 mol L^-1 H₂SO₄ at various temperatures in nonexistence and existence of various doses of A. Judaica.

Figure 3 (1000/T) vs (Log K_ads) diagrams for the CS dissolution in 0.5mol L^-1 H₂SO₄ in presence of A. Judaica.

Effect of temperature

The temperature influence on protection efficiency was illustrated by transition-state and Arrhenius equations.

Transition state equation:

Rate (k_corr)=TR/ Nh e ^{(-ΔH* /RT)} e ^{(ΔS* /R)}………… (6)

Arrhenius relation:

Log k_corr=constant + (- E_a^* /2.303 RT)………………… (7)

The mean data for the rate of corrosion (k_corr) given from MR tests at different temperatures was utilized to study the temperature effect. Depending on Arrhenius relation, the data of 1/T were drawn vs Log k_corr. The outcome diagrams were straight lines with slopes = (- E_a^* / R 2.303), from which E_a^* can be measured. The same behavior was given when drawing the data of 1/T vs. Log (k_corr/T) as given in Figure 4, Figure 5. By the transition state relation, the intercept = [(ΔS^* /2.303R) + (log (R/Nh)], the slope = (-ΔH^*/2.303R) and from which the data of ΔH^* and ΔS^* were found and recorded in Table 4.The outcome data lead to E_a^* improve in attendance of extract than in its nonexistence. i.e. the molecules of extract physically adsorbed on surface of CS. By temperature improving the lowering % IE due to desorption of extract molecules from the CS surfaces. The analysis of parameters give E_a^* rise when the plant extract dose improve. The energy barrier of reaction corrosion rise, as outcome data, the rate of corrosion was decreased. However, the data interpretation of and (ΔH^*) has +ve sign reflect the nature endothermic of dissolution of CS in sulfuric acid. ΔS^* data is suitable to nonexistence and existence acid solution are negative. This indicate that the activated complex, in the step of rate determining, associated by dissociation rather than accumulation, i.e., rise dis-ordering happens on going from reactants to the activated complex.¹⁸

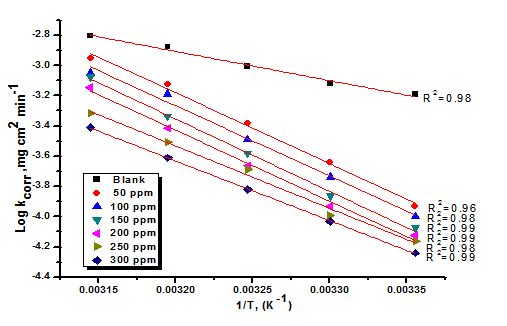

Figure 4 Plots 1/T vs log k_corr for CS dissolution in 0.5mol L^-1 H₂SO₄ in nonexistence and existence of various doses of A. Judaica extract.

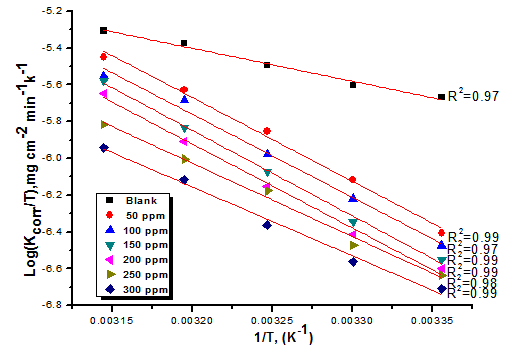

Figure 5 Diagrams (1/T vs (Log (k_corr/T)) for CS corrosion in 0.5mol L^-1 H₂SO₄ in nonexistence and existence of various doses of A. Judaica extract.

PP methods

The cathodic and anodic kinetic reactions were done by calculation from Tafel polarization (TP). Figure (6) given the addition of A. Judaica on cathodic and anodic polarization diagrams of CS in 0.5 mol L^-1 H₂SO₄ in non existence and existence of various doses of A. Judaica extract. Both reactions were affected when the A. Judaica is added to the test solution. Addition of extract lowers both metal corrosion and evolution of hydrogen. Parameters from PP, i.e. (E_corr), (β_a, β_c) and (i_corr) given from the polarization extrapolation diagrams, are recorded in Table 5. The area among linear section of anodic branch and cathodic of PP plots becomes larger when A. Judaica extract is added to the acid medium.¹⁹ The obtained data were listed in Table 5. The addition of the extract reduces both cathodic and anodic currents and the absence of any change in potential of corrosion. This extract A. Judaica plays as mixed kind inhibitor. The PP data were similar with those given from MR tests. θ and (% IE) were measured from the equation below :

%IE=θx100=100×[1- (i^°/i)]………………. (8)

Where i^°, i are the data of corrosion current in nonexistence and existence of A. Judaica extract, continually.

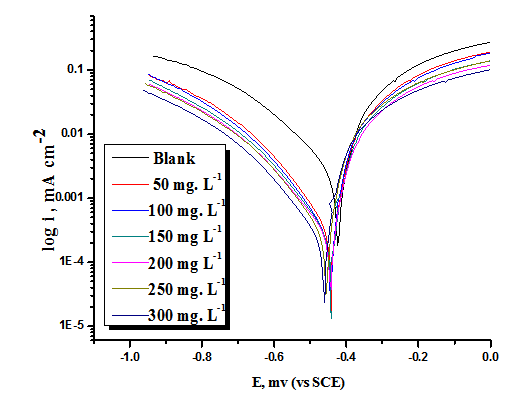

Figure 6 PP diagrams corrosion in 0.5mol L^-1 H₂SO₄ in nonexistence and existence of various doses of A. Judaica extract at 25˚C.

EIS method

The 𝐶dl and 𝑅ct, parameters from EIS tests are written in Table 6. Further, Figure 7–9 shows the Nyquist diagrams of CS in presence and absence of the extract. The nature semicircular of EIS plots led to that a process of charge transfer governs mainly the CS corrosion.20 The EIS curves can be obtained. This modeling simulation help to measure not only the resistance of solution 𝑅𝑠, but also this can also be useful to predict other important parameters such as the 𝑅ct resistance charge transfer and the 𝐶dl double layer capacitance.

Figure 7 Nyquist diagrams of CS in 0.5mol L^-1 H₂SO₄ in nonexistence and existence of various doses of A. Judaica.

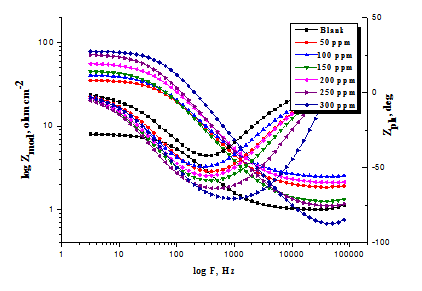

Figure 8 Bode diagrams of CS in 0.5mol L^-1 H₂SO₄ in nonexistence and existence of various doses of A. Judaica at 25˚C.

Figure 9 equivalent Circuit model for fitting impedance spectra.

The data 𝑅ct were measured at various doses from the extract. The 𝑅ct data is a measure of transfer electron occurs on surface of CS and it is inversely to the rate of corrosion. The 𝐶dl was measured at the frequency 𝑓max at which the maximal imaginary component utilized the following.

$C_{dl} =\frac{1}{2\pi f_{max}{R}_{ct}}$ ……………… (9)

The obtained data from EIS are recorded in Table 6. These data led to that the values of 𝑅ct rise while that of 𝐶dl decreased with the adding of various doses of A. Judaica to 0.5 mol L-1 H2SO4. The lower in data of 𝐶dl indicate that A. Judaica components are adsorbed at the surface of CS. The 𝐶dl among the solution and the metal charged surface is regard as an electrical capacitor. The A. Judaica adsorption on surface of CS lower its electrical capacity with exchange the molecules of water indicating the performance of a coating layer of adsorption on the CS. The thickness of the coating layer (𝑑) is depending on 𝐶dl in equivalent with model Helmholtz; obtain by the next equation:

$C_{dl} =\frac{{\text{εε}}_{\text{o}}\text{A }}{d}$ …………………… (10)

Where 𝜀=constant dielectric of the medium and 𝜀𝑜 = free space permittivity (8.854×10−14 F cm-1) and 𝐴 = the electrode area effective. From Table 6, addition of A. Judaica to the corrosive medium is found to lower the data of 𝐶dl and also the minimum data was given for the A. Judaica with the maximum protection efficiency. The break down in 𝐶dl data on rising doses of A. Judaica is due to the decrease of the surface blocked by the action of building layer adsorbed on interface surface among acidic medium and the surface of CS. The %IE of A. Judaica for the CS corrosion in 0.5 mol L-1 H2SO4 is measured utilized 𝑅ct data as next: %IE=100xθ=100×[1- (R°ct/Rct)]…………………(11)

EFM tests

Table 7 The peaks maximums were utilized to measure the current corrosion data lack prior information of Tafel slopes, and attendance only a lower polarization signal.²¹ CF-2 and CF-3 measured from the EFM spectrum. Figure (10) give the spectra of EFM (frequency vs. current) of CS in solution 0.5 mol L^-1 H₂SO₄ including various doses of A. Judaica extract. The current of corrosion lower on improving the dose of A. Judaica extract, lead to this extract A. Judaica exhibit the CS corrosion in 0.5 mol L^-1 H₂SO₄ among a barrier film performance by adsorption on surface of CS. The CF given under various test conditions are equal approximately to its data from theoretical (2 and 3) lead to the valid calculated value. The rise in dose of A. Judaica associated by an improving in the protection efficiency and the %IE_EFM was measured utilized by Eq. (12):

%IE_EFM=[1-(i_corr/i^°_corr)]×100…………………….. (12)

Where i_corr and i^°_corr are the corrosion currents in nonexistence and existence of A. Judaica extract

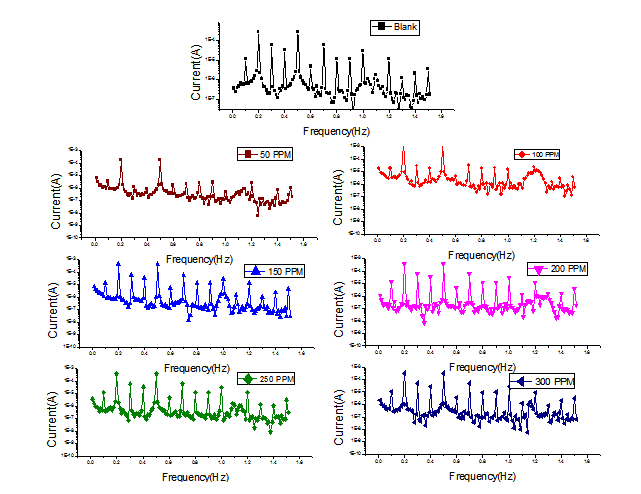

Figure 10 EFM data for CS corrosion in 0.5mol L^-1 H₂SO₄ in nonexistence and existence of A. Judaica extract at 25˚C.

SEM tests

Plate 1 illustrated the image given for CS coins after and before dipping into 0.5 mol L^-1 H₂SO₄ for half day, existence and nonexistence of additive 300 mg. L^-1 of A. Judaica. It can be given that the surface of CS suffers from severe corrosion in solution containing free acid. The CS surface is performed to be lower influence by the corrosive by utilized acid solution when encounter to solution 0.5 mol L^-1 H₂SO₄ include 300 mg. L^-1 of A. Judaica extract. The CS morphology surface is smooth apparently parallel to the image given in the free acid case. However, a thin layer coating is performed and distributed randomly on surface of CS. This prove the addition of molecules of A. Judaica blocking the active site on CS, in turn, break down the contact among CS and the aggressive solution and sequentially give good characteristics for protection.^22–28

Plate 1 (a-b-c) SEM Images of CS in solution 0.5 mol L^-1 H₂SO₄ a) CS, b) Acid Free and c) 300 mg. L^-1 of A. Judaica.

AFM tests

AFM is a powerful tool to investigate the surface morphology of various samples at Nano-micro scale that is currently used to study the influence of corrosion inhibitors on metal solution interface. From the analysis, it can be gained regarding the roughness on the surface. The roughness profile values play an important role in identifying and report the efficiency of the inhibitor under study. Among the roughness take a role in explanation about the nature of the adsorbed film on the surface.^28–35 Figure 11 shows the 3D images as well as elevation profiles of polished of carbon steel in absence and present of A. Judaica extract as an inhibitor. It observed in Figure 11 that the surface of CS specimen (a) exposed to corroded solution affected vales structure with large and deep crack but the surface (b) reveal that is covering film adsorbed on the metal surface. The conclusion, that the adsorption film can protect the surface of the metal from corrosion process. Analysis of the values indicated higher the values of roughness parameter reached. The mean roughness is found to be (993.76 nm) for the blank in acid solution which placed in 0.5mol L^-1 H₂SO₄ for 12 hrs. and analyzed. The observation of the metal surface which immersed in 0.5mol L^-1 H₂SO₄ in presence of 300 mg. L^-1 of extract inhibitor possess roughness (303nm) compared to the blank solution and the roughness of free carbon steel (17.46 nm). It can be noted that the value is lower than that of the blank value. The decrease in the roughness value reflected the adsorption of extract molecules on metal surface thereby reducing the rate of corrosion.

Figure 11 AFM analysis of CS in acidic solution a) free steel, b) CS in 0.5 mol L^-1 H₂SO₄ solution and c) in presence of 300 mg. L^-1 A. Judaica extract after immersion for 12 hrs.

FTIR analysis of the extract and corrosion product

Figure 12 represent the IR spectrum of A. Judaica extract and that of the film created on the carbon steel immersed in 0.5mol L^-1 H₂SO₄, A. Judaica (300 mg. L^-1). The FTIR spectrum of pure A. Judaica is given in Figure 12. The stretching -OH- frequency at 3361 cm^-1, the stretching -CH frequency at 2942 cm^-1, the stretching C=O frequency appears at 1704 cm^-1, the stretching -C=C frequency appears at (1405-1547 cm^-1) (multiple bands), the -CN stretching frequency appears at 1246 cm^-1 and the stretching -CO frequency appears at 1055 cm^-1. The FTIR spectrum of the film formed on the CS inundation in 0.5 mol L-1H₂SO₄ and A. Judaica (300 mg. L^-1) is shown in Figure 12. The -CH stretching frequency shifts from 2942 cm^-1 to 2933 cm^-1. The stretching C=O frequency shifts from 1704 cm-1 to 1714 cm^-1. The stretching -C=C frequency shifts from 1405 cm^-1 to 1425 cm^-1. The stretching -CN frequency shifts from 1246 cm^-1 to 1284 cm^-1. The stretching -CO frequency shifts from 1055 cm^-1 to 1042 cm^-1.^36–39

Figure 12 FTIR spectra of the film created on the CS immersed in 0.5mol L^-1 H₂SO₄ + 300 mg. L^-1 A. Judaica

Mechanism of inhibition

Since A. Judaica include a maximum capacity of kaempferol O-glycosides flavones (mono- and di-) lactone, terpenoidal vulgarin assembled, artemetin derivatives, tiliroside and taraxerol acetate. These molecules were found onto CS surface. This confirms the adsorption of these components of the extract on CS surface. These adsorbed molecules give a physical barrier among the corrosion medium and metal, thereby lowering aggressive attack of acidic medium and metal surface protecting by film coating. A. Judaica extract given a maximum protection because the higher degree of surface coverage resulting from the molecules adsorbed on the metal surface.^40–45

The excellent agree with all obtained data given from various tests led to A. Judaica can be utilized as an effective inhibitor in solutions of sulfuric acid. The % IE improved with raising the plant extract dose, but break down with improving the solution temperature. The ∆G°_ads, ∆H°_ads, ∆S°_ads of adsorption lead to that the adsorption is spontaneous and exothermic. The performance of phytochemical of the extract adsorbed on CS surface and formed a protective film by physical adsorption. E_a^* value rises as the dose of A. Judaica improved. However, the nature endothermic of the corrosion of CS process can be given from enthalpy data. In appending, the activation entropy improved with raised dose of extract; hence, the system disorder is raised.

None.

The author declares no conflict of interest.
