The effect of introducing nano-tinania (TiO₂) particles to the epoxy coatings on mild steel in natural seawater was analyzed using Scanning Electrochemical Microscopy (SECM) and Electrochemical Impedance Spectroscopy (EIS). Line profile and topographic image analysis were measured by applying -0.70 V and +0.60 V as the tip potential for the cathodic and anodic reactions, respectively. The tip current at -0.70 V for the epoxy coated sample with TiO₂ nanoparticles decreased rapidly due to cathodic reduction of dissolved oxygen. The EIS measurements were conducted in natural seawater after wet and dry cyclic corrosion test. The EIS measured the film resistance (R_f) and charge transfer resistance (R_ct) values which were increased by the addition of TiO₂ nanoparticles in the epoxy coating. SEM/EDX and FIB-TEM analysis showed that complex oxides of titania were enriched in corrosion products at the scratched area of the coated steel and confirmed the presence of the nanoscale oxide layers of titania in the rust of the steel. The formation of complex oxides of titania had a beneficial effect on the corrosion resistance of coated steel.

Keywords: Corrosion; Epoxy Coating; TiO₂; Nanoparticle; EIS; SECM

In Oil & Gas industry, the total loss due to Corrosion and Erosion (Wear) is calculated approx US $500 Billion. The protection problem arises from rain rapidly saturating the outer skin, particularly through mortar joints, and wetting the exposed steelwork Figure 1. The design should ensure adequate drainage the steelwork. Various parts of connections need to be protected by a coating system including high performance paint systems. Many factors contribute to the complexity of designing efficient pipeline coating formulations; climate, properties of the substrate traveling through the pipeline, product flammability and rate of flow to name a few. In addition it must be taken into consideration if the pipeline is laid underwater, underground or above ground and the coating must be formulated to provide long term internal and external durability, the coating must be formulated with some basic tenets in mind. Epoxy coatings for oil and gas applications offer excellent resistance to high temperatures, chemicals and corrosion. Cathodic protection and polymeric coatings are usually employed to protect metallic constructions against the corrosion, but isolating the metal from corrosive agents is still the most conventional method to prevent corrosion.^1–3 In this regard, polymeric coatings can provide protection either by a barrier action from the layer or from active corrosion inhibition supplied by pigments in the coating, which give protection to the underlying substrate.⁴ However all polymeric coatings are permeable to corrosive species such as oxygen, water and ions to some extent.^5–8 Water molecules at the metal/coating interface may reduce the coating adhesion, thus favoring corrosion of the metal underneath the film.

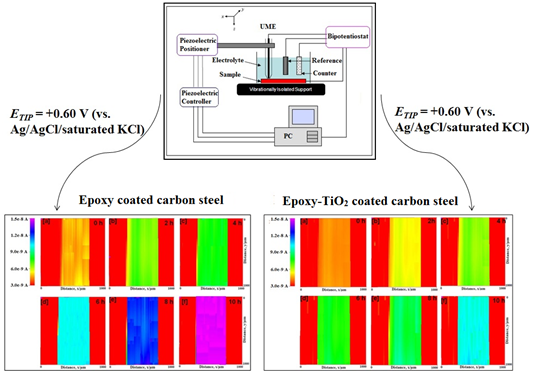

Figure 1 Graphical Abstract.

Nanoparticles, owing to high specific surface area and small particle size, can enhance the corrosion resistance of the organic coatings by increasing the electrolyte pathways length. Inclusion of metal nanoparticles to the organic coating provides cathodic protection to the underlying substrate. They also provide barrier and passive protection by generating oxides at a later stage. The importance of nanomaterials compared to conventional micro sized pigments is mainly due to their small size and large specific surface area. The decrease in size of the particles causes mechanical properties enhancement of the coating. There are a large number of reports indicating that the anticorrosion properties of the polyurethane coatings can be markedly improved in the presence of nanoparticles.^9-16 Titanium oxide is highly corrosion resistant and provides a barrier protection which is stable over a wide pH range. It is not classified as dangerous for human health and for environment. This has shown interest in using titanium oxide in organic coatings in the corrosion protection of steel. SECM has been introduced to evaluate the localized corrosion process, since it provides electrochemical activity and topographic information about the surface reactions at the micrometer scale in aqueous environments.^17-21 The application of SECM has facilitated experiments on the solid/liquid interface because of its high spatial resolution and electrochemical sensitivity.

In this study, SECM was used primarily to evaluate the effect of TiO₂ nanoparticles on the corrosion protection performance of an epoxy coating over mild steel in natural seawater. The tip current was detected during the corrosion of the sample at open circuit potential to evaluate the suppressing effect of the coating on the corrosion around a defect area. Additionally, electrochemical behavior of coated steel without and with TiO₂ nanoparticles was investigated by the electrochemical impedance spectroscopy (EIS).

Preparation of the sample

The chemical composition of the JIS-SM CS specimen in mass % is given in Table 1. The steel specimens were abraded mechanically with different grades of silicon carbide papers (400-1200) and washed with double distilled water. Further the samples were degreased with acetone using ultrasonicator and thoroughly washed with double distilled water and dried in air

Preparation of coatings

Epoxy resin based on diglycidal ether of bis-phenol-A was used. It is a fast drying type and the curing agent was based on aliphatic amines. The mass ratio of the epoxy resin to the curing agent was 2:1. The sample was washed with distilled water and acetone before the application of coating. Using a wire-wound draw down bar, no. 18 from RDS specialties, epoxy was coated at a constant speed and then kept at room temperature for 24 h. A uniform coating of thickness about 40μm was achieved. Commercially available TiO₂ nanoparticle, obtained from Tokyo Chemical Industry Co. Ltd, sizes ranging from 50 to 100 nm were used. The TiO₂ nanoparticles were added to the epoxy resin to produce a 10 mass percentage of TiO₂ in the mixture. The sample was coated with the mixture by the same procedure. Artificial scratches with an approximate diameter of 100-150µm were produced in the coated samples. The electrolyte used was the natural seawater collected in a sterilized brown flask at Marina beach on the southern coast of Chennai, India.

Scanning electrochemical spectroscopy (SECM) measurements

SECM was conducted over a scratched suR_face area of coated steel as a function of immersion time. The schematic representation of SECM experimental set up is shown in Figure 2. All the experiments were conducted at room temperature in a naturally aerated cell containing natural seawater. As reduction of oxygen is dominant for the cathodic process in corrosion, change in the concentration of dissolved oxygen due to corrosion reactions was the primary factor. SECM was peR_formed in order to measure the concentration of oxygen in the scratched area of the coated sample as a function of time. Oxygen could be monitored at the tip of the SECM by setting the potential of the tip at -0.70 V vs. the Ag/AgCl/saturated KCl reference electrode. Then, the diffusion limited current of oxygen at the tip was able to be determined at this potential. The main anodic reaction for corrosion of iron in natural seawater is dissolution of iron. By setting the tip potential at +0.60 V vs. Ag/AgCl, Fe²⁺ ions dissolved in the solution can be detected through their oxidation to Fe³⁺ at the tip. Since no Fe²⁺ was originally present in the test solution, it can only be originated from corrosion processes at the steel inside the scratch. In this way, soluble Fe²⁺ ions would diffuse away from the scratch and would be eventually detected at the tip through oxidation.

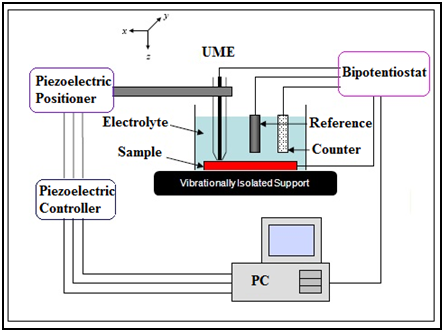

Figure 2 Schematic representation of SECM experimental set up.

In this study, SECM was conducted in natural seawater to estimate the corrosion peR_formance of the epoxy-TiO₂ coated mild steel. Platinum microelectrodes with a diameter of 10μm were employed as SECM tips. The movement of the tip was controlled in the x, y and z directions using optically encoded inchworm piezo motors. The Pt tip was scanned at a constant height above the sample while all experiments were peR_formed. A bipotentiostat designed for SECM was used to control the potentials of the sample and tip separately. A video microscope mounted above the cell was used to aid in positioning the microelectrode over the sample. All measurements were peR_formed using an Ag/AgCl reference electrode and a Pt wire as a counter electrode. The coated sample was mounted horizontally at the bottom of a micro flat cell. The sample of coated steel was examined at the OCP in all SECM experiments. A line scan was observed across the scratched area in the coated sample at a scan rate of 20μm s^-1 in the x direction. SECM maps were obtained on the coated steel in order to detect the continuous change in corrosion at a constant height of 20µm. Detailed experimental conditions for SECM are shown in Table 2.

Electrochemical impedance spectroscopy measurement

A wet/dry cyclic test was conducted under the condition (12 h immersion in natural seawater and 12 h in the dry) for 15 days. EIS measurements were taken periodically in natural seawater for electrochemical characterization. The EIS was peR_formed in a conventional three-electrode cell, using coated steel as the working electrode and a saturated calomel electrode (SCE) as the reference electrode. A frequency response analyzer was used for EIS measurements with amplitude of 10 mV over a frequency range of 40 kHz to 1 mHz. All measurements were carried out at the open circuit potential at room temperature (25˚C). The EIS experimental data were analyzed using curve fittings.

SuR_face characterization

The suR_face state of the corrosion product on the coated steel was observed by FE-SEM (Field Emission Scanning Electron Microscope) and FIB-TEM (Focused Ion Beam-Transmission Electron Microscope, JEM-2100F) analysis. After the cyclic corrosion test, the coated steel was cast in resin and polished using emery paper, followed by diamond paste. Carbon was then evaporated on the sample in order to compensate for charging effects. A cross section of the rusted steel was examined using FE-SEM at an acceleration voltage of 20 kV and irradiation current of 10μA. The concentrations of Fe and TiO₂ in the rust were measured by EDX (Energy Dispersive X-Ray Spectroscope). TEM observation was peR_formed with EDX analysis. The rust was cut from the inner rust by FIB, and line profile analysis was carried out in order to identify the concentrations of Fe and TiO₂ in the rust.

Scanning electrochemical microscopy (SECM) analysis

SECM images for the epoxy coated mild steels without and with nano-titania particles in natural seawater with scratches at the tip potential at +0.60 V (vs. Ag/AgCl/saturated KCl) are depicted in Figure 3 & 4 respectively. The variation in color in the SECM images represents the local anodic and cathodic area in the scratched sample. The current measured at the scratch is significantly higher than that of other places. The tip current at the scratch of the epoxy coated mild steel increases with increase in test time from 4.7 nA (orange) to 14.8 nA (pink). This shows that dissolution of Fe²⁺ increases with test time. The electrochemical behavior of epoxy-TiO₂ coated mild steel is same as that of the mild steel. However, the tip current at the scratch increases very slowly as compared with the epoxy coated mild steel from 4.2 nA (orange) to 9.6 nA (cyan). Thus, the dissolution of Fe²⁺ at the scratch is reduced in epoxy-TiO₂ coated mild steel as compared with epoxy coated mild steel.

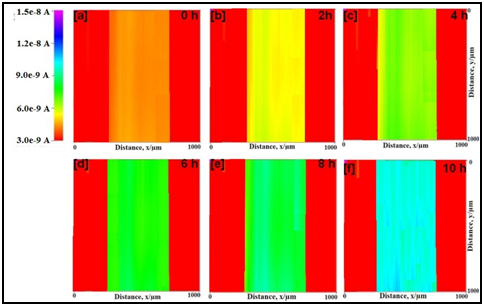

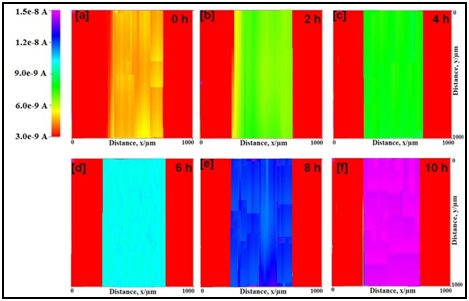

Figure 3 SECM topographic images of scratched epoxy coated mild steel in natural seawater in different hours at the tip potential of +0.60 V vs. Ag/AgCl/KCl reference electrode.

Figure 4 SECM topographic images of scratched epoxy-TiO₂ coated mild steel in natural seawater in different hours at the tip potential of +0.60 V vs. Ag/AgCl/KCl reference electrode.

SECM images of epoxy and epoxy-TiO₂ coated mild steel in natural seawater for different time at -0.70 V are depicted in Figure 5 & 6 respectively. The tip current in epoxy coated mild steel decreases with increasing test time at the scratch from 4.7 nA to 3.1 nA. This is shown by an increase in the red color. The intense red color near the scratched area implies that the dissolved oxygen current is very less where it is consumed by the iron from the scratched area. It shows high current for dissolved oxygen in other areas where the suR_face is covered with the resin. Therefore, the increase in the red color is due to a increase in the cathodic reaction at the scratch. However, in the case of epoxy-TiO₂ coated mild steel, the tip current measured at the scratch is significantly smaller (2.8 nA) than that over the coated suR_face (7.9 nA). This behavior shows that the consumption of oxygen occurs at the scratch. As anodic dissolution of Fe²⁺ occurs, concentration of oxygen is decreased by the consumption as cathodic reaction at the scratch. It is evident from the measurement that the presence of TiO₂ particles in the epoxy coating reduces the dissolution of iron from the metal suR_face by covering the suR_face by forming complexes. The formation of complexes on the metal suR_face provides additional barrier protection to the suR_face apart from the film resistance.

Figure 7 & 8 show the SECM line scan of the tip current near the scratches on the epoxy and epoxy-TiO₂ coated mild steels respectively when the tip potential was +0.60 V vs. Ag/AgCl/saturated KCl and -0.70 V vs. Ag/AgCl/saturated KCl (Figure 7b & 8b) respectively. The tip was moved over the scratched area (S) and unscratched area (R) during the scan as shown in Figure 7 & 8. It can be seen form Figures 7a & 8a that the tip current at +0.60 V is very high at point S and shows a decrease towards point R from the initial test time. This behavior is due to the dissolution of Fe²⁺ at the scratch (S). Moreover, the tip current at point S was smaller in the epoxy-TiO₂ coated mild steel than in the epoxy coated mild steel. It suggests that the dissolution of Fe²⁺ is suppressed at the scratch on the epoxy-TiO₂ coated steel due to the formation of the corrosion products of TiO₂ complexes present in the scratch. It is seen from Figure 7b & 7b that the tip current at -0.70 V (vs. Ag/AgCl/saturated KCl) around point R is very high and shows a decrease in the tip current toward point S. This behavior is due to the consumption of oxygen by the cathodic reaction at the scratch, where anodic dissolution of Fe²⁺ occurs. However, the diffusion current of oxygen from the bulk solution to the scratched suR_face is too small that the cathodic current for the epoxy coated mild steel as well as epoxy-TiO₂ coated mild steel was found to be more or less same. This is due to the result of higher residual current and very small value of tip current. From this analysis, it was concluded that the rate of corrosion of the epoxy coated mild steel is much higher than that of the epoxy-TiO₂ coated mild steel. These results are in good agreement with the SECM imaging results.

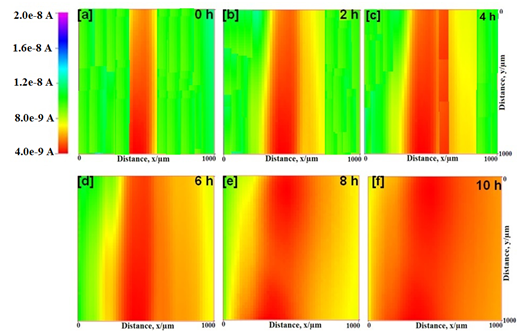

Figure 5 SECM topographic images of scratched epoxy coated mild steel in natural seawater in different time at the tip potential of -0.70 V vs. Ag/AgCl/KCl reference electrode.

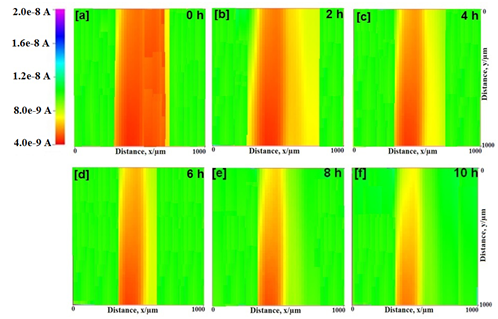

Figure 6 SECM topographic images of scratched epoxy-TiO₂ coated mild steel in natural seawater in different time at the tip potential of -0.70 V vs. Ag/AgCl/KCl reference electrode.

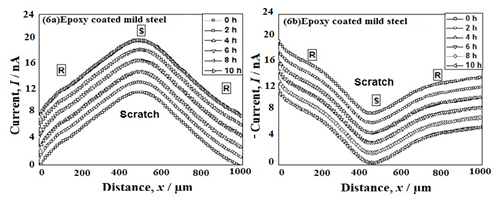

Figure 7 SECM lines scan near the scratch of coated mild steel (Fig. 7a and 7b) and when the tip potentials were +0.60 V vs. Ag/AgCl/KCl reference electrode and -0.70 V vs. Ag/AgCl/KCl reference electrode respectively at different immersion time in natural seawater.

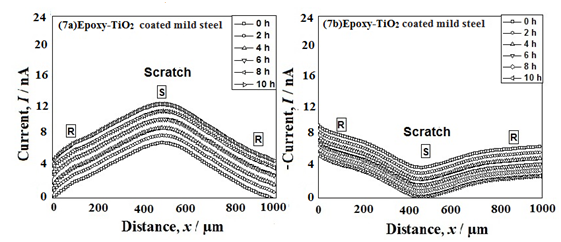

Figure 8 SECM lines scan near the scratch of epoxy-TiO₂ coated mild steel (Fig. 8a and 8b) and when the tip potentials were +0.60 V vs. Ag/AgCl/KCl reference electrode and -0.70 V vs. Ag/AgCl/KCl reference electrode respectively at different immersion time in natural seawater.

Steel and stainless steel are widely used in different industrial fields because of their mechanical and corrosion properties. However, they still tend to corrode in the presence of aggressive medium. The corrosion resistance behavior of different nanoparticle coatings or coating films deposited onto steel substrate has been extensively studied,^22-26 as summarized in Table 3. TiO₂ has excellent chemical stability, heat resistance and low electron conductivity, making it an excellent anti-corrosion material. But pure TiO₂ film is mostly used in catalyst chemistry. Some TiO₂ films have been reported as protective coatings on steel substrate.²⁷

Electrochemical impedance spectroscopy (EIS) measurements

The Bode plots for epoxy coated mild steels without and with nano-titania particles in natural seawater are depicted in the Figure 9 & 10 respectively. It was possible to fit all the impedance spectra using the equivalent circuit model shown in Figure 11. The spectra for the two samples exhibit two time constants corresponding to the resistance and capacitance behavior of the coating film. It is evident from the Figure 9 & 10 that the EIS spectra of the scratched sample show two resistances. The resistance in the high frequency region is the resistance of the film (R_f) that explains the coating behavior. On the other hand, the resistance in the low frequency region is the charge transfer resistance (R_ct) that corresponds to the corrosion reaction occurring on the steel. Moreover, the EIS spectrum suggests the presence of two capacitances. The capacitance at high frequency region corresponds to the film capacitance (C_f), since it shows a lower value. On the other hand, the capacitance in the low frequency region is due to the double layer capacitance (C_dl), because it shows a higher value of 10^-5 ~ 10^-7 F cm^-2. The high resistance and low capacitance values in the high frequency region can be attributed to the polymeric phase. The low resistance and high capacitance values in the low frequency region can be attributed to the corrosion reaction taking place at the substrate suR_face.

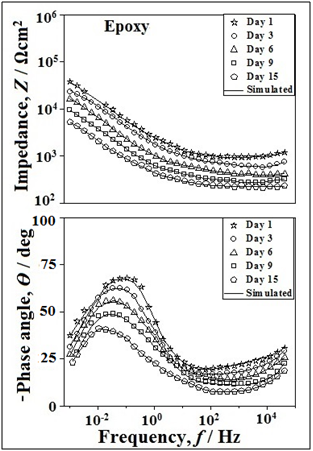

Figure 9 Bode plots of scratched epoxy coated mild steel after wet/dry cycles test in natural seawater for various days.

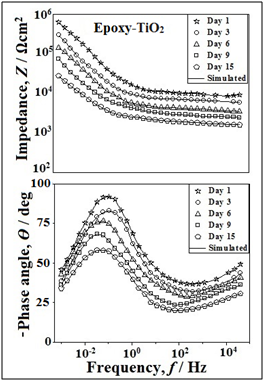

Figure 10 Bode plots of scratched epoxy-TiO₂ coated mild steel after wet/dry cycles test in natural seawater for various days.

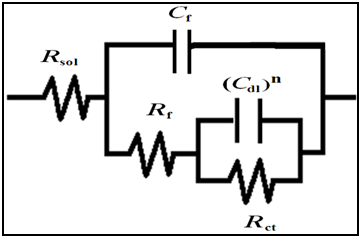

Figure 11 Equivalent circuit diagram for scratched epoxy coated and epoxy-TiO₂ coated mild steels after wet/dry corrosion test in natural seawater for various days.

Figure 12 shows the charge transfer resistance (R_ct), film resistance (R_f) and double layer capacitance (C_dl) obtained by curve fitting using the equivalent circuit model shown in the figure. The epoxy-TiO₂ coated steel showed relatively higher resistance than the coated mild steel during the wet/dry cycles. A decrease in R_ct shows that the corrosion process takes place at the coated samples. A low R_ct value of 58 kΩ cm² is initially observed and decreased further to 15 kΩ cm² after 15 days in the case of the epoxy coated mild steel. On the other hand, a high R_ct value of 120 kΩ cm² is observed for epoxy coated mild steel with TiO₂ nanoparticles and reaches a constant value of 69 kΩ cm² after 9 days. In addition, the R_ct value of epoxy coated mild steel with TiO₂ nanoparticles at 15 days is significantly higher (65 kΩ cm²) than that of epoxy coated mild steel (16 kΩ cm²). The R_f value of the mild steel decreased from 9.2 to 1.7 kΩ cm² during the test time of 15 days.R_f value describes the ionic transport through the coating film. Thus, the decrease of R_f during the first few days of the test corresponds to the penetration of the solution through the coating. The decrease of R_f during the test time indicates a loss of the barrier properties of the film. However, R_f of the epoxy coated mild steel with TiO₂ nanoparticles decreases more slowly during the 15 day period from 18.0 to 10.5 kΩ cm². Thus, R_f of epoxy coated mild steel with TiO₂ nanoparticle shows a higher value than that of epoxy coated mild steel. The slow decrease in film resistance of epoxy-TiO₂ coated sample is due to the formation of corrosion product of the oxides of Ti complexes which prevent the drastic decrease in film resistance of the sample. Apart from the film providing barrier protection, the formation of the oxides of Ti complexes on the suR_face also provides additional barrier protection extending the lifetime of the coating.

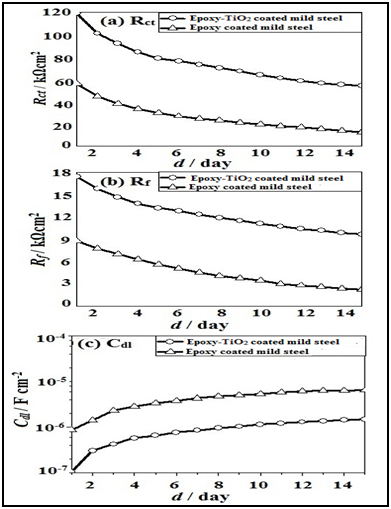

Figure 12 Impedance values of R_ct, R_f and C_dl for scratched epoxy coated and epoxy-TiO₂ coated mild steels after wet/dry cycles test in natural seawater.

The C_dl value of epoxy coated mild steel was low value in the order of 2.2 ×10^-7 F cm^-2 initially and then these values increased gradually to 6.8 × 10^-6 F cm^-2 with increase in immersion time. The C_dl values of epoxy-TiO₂ coated mild steel showed a lower value of 1.5 x 10^-6 F cm^-2 at 15^th day. The value of C_dl depends on the corrosion area under the film. Thus, the lower value of C_dl of epoxy coated mild steel with TiO₂ nanoparticles means a smaller area of corrosion under the film as compared with epoxy coated mild steel without nanoparticles. Thus, an increase of R_ct and decrease of C_dl occurred in the epoxy coated mild steel with TiO₂ nanoparticles during the corrosion test. The enhancement of corrosion resistance of epoxy coated mild steel with TiO₂ nanoparticles is due to the formation of corrosion products containing TiO₂ in the scratched suR_face of the mild steel.

Thus, the coating resistance decreased continuously with increasing the immersion time due to the diffusion and penetration of water and movement of ionic species through the coating film.²⁸ This causes the coating conductivity to increase. The electrolyte diffuses in the coating film and arranges conducting paths at various depths through the coating film.²⁹ This can be attributed to the increase in the rate of corrosion reactions, possibly through the presence of further pores in the coating or an increase in the area exposed at the base of the existing pores or flaws.

SuR_face characterization

FE-SEM analysis: In order to identify the corrosion products of coated steel after 15 days of wet/dry cyclic corrosion test, the SEM analysis was carried out. The cross section of SEM image and EDX results for epoxy-TiO₂ coated carbon steel are shown in Figure 13. EDX analysis confirmed the presence of TiO₂ in the inner rust of carbon steel. This is due to the formation of complex iron oxides containing TiO₂ during the corrosion test. This result implies that complex oxides are formed during the cyclic corrosion test, which enhances the barrier protection properties of the epoxy coated steel.

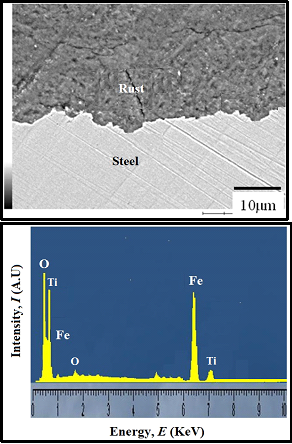

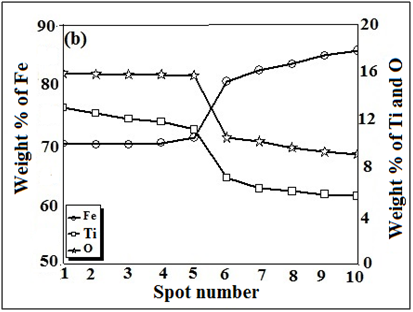

Figure 13: SEM image and EDX mapping of the rust formed on the epoxy-TiO₂ coated mild steel after wet and dry cyclic corrosion test.

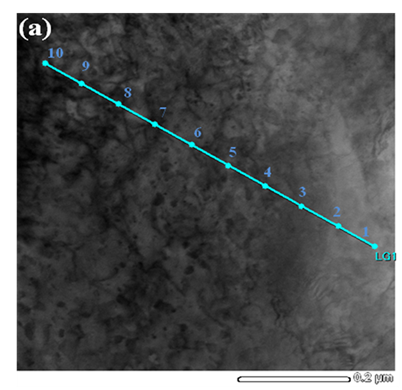

TEM analysis: TEM observation was peR_formed to investigate the nanostructure of the rust as shown in Figure 14. The inner rust was cut by FIB and then examined by TEM. Other elements except iron was shown as a little white color in the bright field image of the TEM. Thus, it was possible to select the rust containing TiO₂ by EDX analysis. The spot position of the micrograph analysis is shown in Figure 14a & 14b shows the elemental composition of TiO₂ and O in mass % corresponding to each spot in Figure 14a. This figure clearly shows an enrichment of TiO₂ from spot 1~6 and also a decrease of Fe. Actually, these layers are said to be made by the oxide containing Ti that could increase the corrosion resistance of epoxy-TiO₂ coated steel.

Corrosion inhibition mechanism of the TiO2 nanoparticles

It has been shown that the epoxy coating on metal showed enhanced anticorrosion properties. However, the improvement was most pronounced in the case of suR_face when TiO₂ nanoparticles were added to the epoxy coating. The TiO₂ nanoparticles could enhance the corrosion protection properties of the coating through two main mechanisms. Both barrier and active protection mechanisms are expected using this nanoparticle. The TiO₂ nanoparticles are slightly soluble in water releasing inhibitive species such as Ti⁴⁺cations. The Ti⁴⁺cations released reaches to the coating/metal inteR_face and react with hydroxyl ions produced on the cathodic regions. As a result, a protection layer is precipitated on the cathodic regions causing cathodic sites blockage against corrosive species access. This results in less under film corrosion and coating delamination. The second mechanism is the high barrier protection properties of the nanoparticles. The nanoparticles produce high barrier protection properties due to their smaller size and greater suR_face area. Thus, the addition of TiO₂ to epoxy coating increases specific suR_face area and inhibits corrosion. Moreover, the addition of TiO₂ nanoparticles to the epoxy coating produces strong bonds with the coating matrix. Therefore, the coating damage is not significant as a result of electrolyte diffusion into the coating matrix. It can be seen that as the nanoparticles were added to the epoxy coating, the corrosion protection properties of the nanoparticles increased.

In EIS, epoxy-TiO₂ coated steel which contains TiO₂ in the epoxy shows increased value of R_ct and R_f after the wet/dry corrosion test. The presence of TiO₂ in epoxy coat on steel suR_faces increases R_ct of the steel substrate itself because the anodic reaction is suppressed by this element. Actually, R_ct of epoxy-TiO₂ coated steel displayed a much higher value of 120 kΩ cm² as compared with that of epoxy coated mild steel of 58 kΩ cm² at 1 day of the wet/dry corrosion test. Moreover, the formation of the complex oxide layer containing TiO₂ suppresses the anodic reaction. The anodic current is suppressed significantly by the formation of this oxide layer. In the actual results, R_ct of epoxy-TiO₂ coated steel was higher at 65 kΩ cm² as compared with the epoxy coated mild steel of 15 kΩ cm² after 15 days of the wet/dry test. Thus, the effect of epoxy-TiO₂ coated on the steel is also considered significant by forming corrosion products at defects and scratches in the film, which suppress the anodic reaction. In the case of R_f, the R_f of epoxy-TiO₂ coated mild steel shows a slightly higher value as compared with coated mild steel. The film of epoxy-TiO₂ coated steel has little damage because the rust is much smaller. Thus, R_f of epoxy-TiO₂ coated steel shows a higher value. The C_dl of epoxy-TiO₂ coated mild steel shows a lower value as compared with coated mild steel. Since the value of C_dl depends on the corrosion area under the thin film, the lower value of C_dl of epoxy-TiO₂ coated on steel indicates a smaller area of corrosion under the film as compared with epoxy coated mild steel. These analyzes demonstrated that the presence of TiO₂ nanoparticles in the epoxy on the steel had a beneficial effect on corrosion resistance of coated steel by forming corrosion products in wet/dry cyclic test.

The effect of introducing nano-titania to the epoxy coating on mild steel has been investigated using SECM and EIS techniques. It has been concluded from the line profile and topography analysis of SECM technique, the dissolved oxygen and iron dissolution tip current decreases implying that the TiO2 nanoparticles plays a role in protecting the metal surface. The dissolution of Fe2+ in nano-titania on epoxy coated steel was lower than that in epoxy coated mild steel, resulting in a lower anodic current of steel. It has been shown from EIS studies, the increase in film resistance and the charge transfer resistance implies that the nano-titania and the complex oxide formation provide barrier protection to the coating as shown from the EIS studies. In other words, the high resistance of anodic dissolution of Fe in nano-titania coated on steel showed that the dissolution at the scratch was deeply suppressed in the epoxy coated steel with nanoparticle. Therefore, TiO2 nanoparticles enhanced the barrier protection performance of the epoxy coating compared to other nanoparticles in the organic coating on steels. Thus, titania nanoparticles can be introduced into the epoxy coatings for the corrosion protection of mild steel.
