Effect of n-butanol fuel additive to methanol-gasoline blend on combustion and emission characteristics in a single cylinder spark ignition engine

Lennox Siwale,1 Bereczky Akos2

1Copperbelt University, Zambia
1Copperbelt University, Zambia
2Department of Energy Engineering, Budapest University of Technology and Economics, Hungary
2Department of Energy Engineering, Budapest University of Technology and Economics, Hungary

Correspondence: Lennox Siwale, Copperbelt University, Zambia, Tel 27764422347

Received: March 31, 2018 | Published: May 18, 2018

Citation: Siwale L, Bereczky A. Effect of n-butanol fuel additive to methanol-gasoline blend on combustion and emission characteristics in a single cylinder spark ignition engine. Int J Petrochem Sci Eng. 2018;3(3):98-105. DOI: 10.15406/ipcse.2018.03.00081

Download PDF

Abstract

In order to reduce the effect of emissions on the environment by burning petroleum oil in engines, researchers have sought out one of the solutions to be the blending of oxygenated additives with the fossil fuels. In this study n-butanol was added to a blend of methanol-gasoline fuel. The effects on Combustion and emission are reported using a single cylinder Octane rating BASF internal combustion engine. The results obtained indicated that the combustion duration reduced with increased shared volume of n-butanol in the methanol-gasoline blends. The blends used were M10, (10% methanol 90% gasoline by volume), M10:20 (10% methanol, 20% n-butanol, 70% gasoline), M20:30, M80:10. The peak pressure increased with the methanol fraction in the blend with gasoline. Unburned hydrocarbon (UHC) emissions reduced with m80 to about 300 ppm and reduced even further with 10% n-butanol added to m80 showing that n-butanol has the effect of reducing UHC emissions when methanol fraction is above 20% in gasoline. As n-butanol was increased further by 30% in m20 (M20:30), Nox concentration did not change significantly when comparing values with the blends of m10 and M10:20

Keywords: n-butanol, methanol, gasoline, combustion, emission, spark ignition engine

Introduction

The efforts of researchers world-wide have been and continue to be directed towards finding fuels that are cleaner than fossil fuels in internal-combustion engines. The goal is to replace or reduce the use of petroleum oil because conventional fuels such as gasoline degrade the environment. Use of petroleum oil in transportation greatly contributes to the deterioration of the environment through the emission of regulated emissions such as nitrogen oxides (NOx), unburned hydrocarbon (UHC), carbon monoxide (CO), particulate matter (PM) and carbon dioxide (CO2). The CO2 pollutant accumulating into the atmosphere contributes to the greenhouse gases (GHG) effect, global warming and climate change. Unburned hydrocarbon and soot cause respiratory problems and are carcinogenic. Oxygenated fuels such as alcohols have been used extensively by researchers world-wide to reduce the negative effects on the environment by burning petroleum oil.

In their studies of combustion of n-butanol-gasoline blends1 observed that the cylinder pressure was lowest for gasoline but increased with content of n-butanol in gasoline or volume ratio of butanol in gasoline: 20 % butanol (B20), B60 and B100. The experiments were conducted on a 4-cylinder 1.6 L spark ignition engine with compression ratio (CR) 9.6. It was reported by2 that ignition timing parameter has a significant effect on the performance of Spark Ignition engines. In their studies for lean mixtures retarding the ignition timing decreases the peak pressure and temperature inside the cylinder during combustion leaving less time available for complete combustion.3 reported that peak indicated mean effective pressure (IMEP) for 30% butanol-gasoline at equivalent ratio ɸ =1. 1 is higher than (IMEP) for 30 % methanol-gasoline.

The study of engine performance is not new. Equations used to calculate engine performance are well documented in literature.4–6 it was reported7 that the accumulation of the heat release due to the changes of the physical, and chemical properties of the fuel affect the emission and thermal efficiency. An excessively late Crank Angle (CA) results in a lower BTE and causes UHC and CO emissions to deteriorate, due to remarkable heat transfer and incomplete combustion.8 Conducted experiments on an SI engine, and found that butanol blends: B20, B40, B60 and B80 indicate higher CO emission concentration than that of GF. Concentration of CO was the lowest on equivalence ratio near 0.95 for the test fuels. The lowest concentration of CO was indicated by GF followed by B20, B40, B60, and B80 blends.9 reports a lower concentration of CO emission for B30 than B50 blends with gasoline. Evaluating the combustion characteristics of butanol/gasoline in spark ignition engines at stoichiometric mixtures, B0, B20 and B40 results obtained in8 indicates that all blends yielded the same UHC emission. Further increasing n-butanol in gasoline: B60 and B80 brings UHC emissions level above that of gasoline

Conducted2 experiments on a Hydra 4-stroke, single-cylinder, SI engine operating at the steady state. As the fuel-air mixture is weakened, the oxygen concentration increase, thus absorbing energy as diluents thereby reduces the temperature of mixture and NOx, which is temperature dependent. This is evident using 30% isobutanol-gasoline blend which records lower NOx than GF does. The cited author stated that for a rich mixture, there is little oxygen to dissociate and attach to nitrogen atoms to form NOx. The author reported that production of NOx in a cylinder is controlled by the fuel-air equivalence ratio, maximum cycle temperature and combustion rate or combustion duration during the compression and expansion process. In the experiments conducted by,8 NOx varied as the function of equivalence ratio Φ. NOx reduces with increased fraction of n-butanol in GF. The blends used were B20, B40, B60 and B80. The blend B0 recorded the highest NOx concentration. In the excess-air region, the concentration of nitrogen oxides reduced when the butanol fraction was increased. This trend was similar in the fuel-rich region where the equivalence ratio is greater than 0.95. This occurs because the evaporative cooling effects (latent heat) of the n-butanol-gasoline mixture or the diluents reduce the combustion chamber’s temperature and therefore Nox concentration is reduced. The effect of n-butanol additive to methanol-gasoline blends on combustion and emission is reported in this study. The good properties of one alcohol for engine performance become the leverage to enhance the undesirable impact of a competing alcohol included in the gasoline blend.

In gasoline engines, biobutanol has been studied and discussed as potential fuel.1,8,10,11 A substantial number of studies exist in literature where single alcohols are blended with gasoline to fuel SI engines.12–14 However, moderately fewer studies involving combustion characteristics of isomeric butanol and methanol have been reported.1,12,15 Most of the studies that have evaluated the potential of alcohol were based on methanol and ethanol.16 Alcohols can be promoted as alternative-fuels or alternative-fuel components in transportation for many reasons, including the following:

  1. Reduction of greenhouse-gas emission
  2. Enhancement of overall energy-efficiency
  3. Social reasons (e.g. employment in the agricultural sector and utilization of agricultural lands for fuels)
  4. High laminar flame propagation, which shortens and enhances combustion and so improves the BTE of the engine.
  5. Lower viscosity of alcohols in comparison with diesel improves injection, atomization and vaporization of the charge.
  6. High evaporative cooling, resulting in cooler intake charge. This raises the volumetric efficiency and reduces the compression work.17 some fuel properties of methanol, n-butanol and gasoline are compared in Table1.

The advantages of methanol in comparison with the properties of ethanol and gasoline18 are as follows:

  1. Methanol-gasoline blended with a stoichiometric mixture of gasoline has the same lower heating value (LHV). However, more blended fuel is delivered to maintain the same engine power as with gasoline. Experiments show that, if a small fraction of methanol is used in blends of methanol-gasoline, the engine runs stably and successfully.
  2. The engine automatically keeps the air-to-fuel ratio: (A/F) equal to 14.7. This occurs with a lambda closed-loop control, to aid the electronic-control Unit (ECU). Methanol has a higher Research Octane Number (RON). The RON can be increased by using methanol-gasoline blends,

Methanol has a high laminar flame propagation speed: 58 cm/s with reference Tu (unburned gas temperature of 348 K); atmospheric pressure, Po of 1 atm with reference λ of 0.9.19 this may reduce the combustion duration and improve the engine’s thermal efficiency.20,21



Methanol

Ethanol

Gasoline

*Butanol

Molecular formula

CH3OH

C2H5OH

-

C4H9OH

Oxygen content (%)

50

46

0

22

Density [kg/m3]

792

785

740

810

LHV [MJ/kg]

20

26.9

44.3

33.3

Octane Number

111

108

>90

113

Auto-ignition temp [°C]

465

425

228-470

385

Stoichiometric (A/F) ratio[kg/kg]

6.47

9.0

14.8

11.1

Latent heat[kJ/kg]

1103

840

305

581.4

Vapour pressure at 23.5°C [kPa]

3.2

-

60-90

32

Table 1 Comparison of fuel properties for methanol, n-butanol and gasoline

*Source:1,21

Objectives

The general objective is to reduce the negative impacts of petroleum oil based fuels in reciprocating engines on the environment through the use of oxygenated (alcohol) blends, while not deteriorating engine performance. The specific objectives are as follows: Specific objectives

i. To compare the combustion and emission characteristics of dual alcohol (methanol n-butanol-gasoline) blends with single alcohol (methanol-gasoline) blends in a single-cylinder spark ignition (SI) engine.

ii. To determine the effect of n-butanol to a single-alcohol blend with gasoline on performance combustion and emission characteristics.

Materials and methods

The test facility for the single-cylinder SI engine and general schematic layout including control panel, intake, exhaust lines, measuring instruments for emissions concentration, and data collection, processing, and display is as indicated in Figure 1. The single-cylinder, spark ignition octane rating engine used in this study was the BASF (Badische Anilin- und Soda Fabrik). The control panel is shown in Figure 2. The equipment consists of two main parts; the internal combustion engine and the electric motor, which is used to launch the engine. To adjust the compression ratio to 7.3:1, the wheel for adjusting the compression ratio was turned counter-clockwise, moving the cylinder of the engine down, and increasing the compression ratio.

The fuel container is lifted by rotating it to fill the carburetor nearly full to a fuel level of maximum 50 divisions etched on the glass scale, or other division depending on the blends. The alcohol-gasoline blends with a higher-alcohol content is required to fill the carburetor to a higher division than blends with a lower-alcohol content because of the lower-energy content of the alcohol blends. The hydrostatic pressure increases the mass-fuel flow into the carburetor or reduces it depending on the level (height) of the fuel in the glass tube. The basic engine parameters are presented in Table 2. The accuracy of measuring instruments is presented in Table 3. The engine used was a

Determination of the heat release rate

The heat release rate is determined by the following Equation (1)

dQ dθ = 1 γ1 (γ*p dv dθ +V dp dθ ) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamyuaaqaaiaadsgacqaH4oqCaaGaeyypa0ZaaSaaaeaa caaIXaaabaGaeq4SdCMaeyOeI0IaaGymaaaacaGGOaGaeq4SdCMaai OkaiaaysW7caWGWbWaaSaaaeaacaWGKbGaamODaaqaaiaadsgacqaH 4oqCaaGaey4kaSIaamOvamaalaaabaGaamizaiaadchaaeaacaWGKb GaeqiUdehaaiaacMcaaaa@511F@ ………… (1)

The term on the left-hand side dQ dθ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamyuaaqaaiaadsgacqaH4oqCaaaaaa@3AF2@ is the heat release rate; and γ MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaaeaaaaaaaaa8 qacqaHZoWzaaa@37BE@ is the specific heat ratio. On the right hand, V is the instantaneous engine displacement, and dp dθ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamiCaaqaaiaadsgacqaH4oqCaaaaaa@3B11@ is the change in indicated pressure in the combustion chamber divided by the crank angle change and dv dθ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamODaaqaaiaadsgacqaH4oqCaaaaaa@3B17@ is the change in volume divided by the crank angle change. Using a computer model, the heat release was evaluated using the pressure values from the experimentally recorded computer pressure traces and the instantaneous volume evaluated from the following Equation (2):

dv dθ = πA 180 *r { sin( πθ 180 )+ R 2 sin 2 ( πθ 180 ) 2* (1 R 2 sin 2 ( πθ 180 )) } MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamODaaqaaiaadsgacqaH4oqCaaGaeyypa0ZaaSaaaeaa cqaHapaCcaWGbbaabaGaaGymaiaaiIdacaaIWaaaaiaacQcacaWGYb WaaiGaaeaadaGabaqaaiGacohacaGGPbGaaiOBamaabmaabaWaaSaa aeaacqaHapaCcqaH4oqCaeaacaaIXaGaaGioaiaaicdaaaaacaGLOa GaayzkaaGaey4kaSYaaSaaaeaacaWGsbWaaWbaaeqabaqcLbmacaaI YaaaaKqbakGacohacaGGPbGaaiOBamaaCaaabeqaaKqzadGaaGOmaa aajuaGcaGGOaWaaSaaaeaacqaHapaCcqaH4oqCaeaacaaIXaGaaGio aiaaicdaaaGaaiykaaqaaiaaikdacaGGQaWaaOaaaeaacaGGOaGaaG ymaiabgkHiTiaadkfadaahaaqabeaajugWaiaaikdaaaqcfaOaci4C aiaacMgacaGGUbWaaWbaaeqabaqcLbmacaaIYaaaaKqbakaacIcada Wcaaqaaiabec8aWjabeI7aXbqaaiaaigdacaaI4aGaaGimaaaacaGG PaGaaiykaaqabaaaaaGaay5EaaaacaGL9baaaaa@7437@ …………….. (2)

Where A is the cylinder cross-sectional area, the ratio of the connecting rod to radius (R=l/r), θ MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaH4oqCaaa@385B@ ;is the crank angle, degrees.

Lower heating value

The LHV of the blend is given by Equation (3):

LH V bl = 1 2 vi v * ρ i *LH V i / i=1 2 vi v * ρ i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamitai aadIeacaWGwbWaaSbaaeaajugWaiaadkgacaWGSbaajuaGbeaacqGH 9aqpdaaeWbqaamaalaaabaGaamODaiaadMgaaeaacaWG2baaaaqaaK qzadGaaGymaaqcfayaaKqzadGaaGOmaaqcfaOaeyyeIuoacaGGQaGa eqyWdi3aaSbaaeaajugWaiaadMgaaKqbagqaaiaacQcacaWGmbGaam isaiaadAfadaWgaaqaaiaadMgaaeqaaiaac+cadaaeWbqaamaalaaa baGaamODaiaadMgaaeaacaWG2baaaaqaaKqzadGaamyAaiabg2da9i aaigdaaKqbagaajugWaiaaikdaaKqbakabggHiLdGaaiOkaiabeg8a YnaaBaaabaqcLbmacaWGPbaajuaGbeaaaaa@6321@ ……….. (3)

Where LHVbl is the lower heating value (MJ/kg) of the blend; LHVi is the lower heating value of component, i, of the blend, i=1 is n-butanol, i=2 is gasoline

Density of a blend is calculated from the following Equation (4):

ρ= i=1 2 vi v * ρ i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaeqyWdi Naeyypa0ZaaabCaeaadaWcaaqaaiaadAhacaWGPbaabaGaamODaaaa aeaajugWaiaadMgacqGH9aqpcaaIXaaajuaGbaqcLbmacaaIYaaaju aGcqGHris5aiaacQcacqaHbpGCdaWgaaqaaKqzadGaamyAaaqcfaya baaaaa@4A84@ ………. (4)

Where ρ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaeqyWdi haaa@3844@ is the density of the blend (kg/m3) and vi/v is the volume fraction of component i of the blend.

Air-to-fuel ratio

Equation (5) for the calculation of air-to-fuel ratio is given below:

A/F s bl ={ i=1 2 vi v * ρ i *A/Fsi }/ i=1 2 vi v * ρ i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamyqai aac+cacaWGgbGaam4CamaaBaaabaqcLbmacaWGIbGaamiBaaqcfaya baGaeyypa0JaaGPaVpaacmaabaWaaabCaeaadaWcaaqaaiaadAhaca WGPbaabaGaamODaaaaaeaajugWaiaadMgacqGH9aqpcaaIXaaajuaG baqcLbmacaaIYaaajuaGcqGHris5aiaacQcacqaHbpGCdaWgaaqaaK qzadGaamyAaaqcfayabaGaaiOkaiaadgeacaGGVaGaamOraiaadoha caWGPbaacaGL7bGaayzFaaGaai4lamaaqahabaWaaSaaaeaacaWG2b GaamyAaaqaaiaadAhaaaaabaqcLbmacaWGPbGaeyypa0JaaGymaaqc fayaaKqzadGaaGOmaaqcfaOaeyyeIuoacaGGQaGaeqyWdi3aaSbaae aajugWaiaadMgaaKqbagqaaaaa@6A36@ ………… (5)

Where: A/Fsbl is the stoichiometric air-fuel ratio of the blend and A/Fsi is the stoichiometric air-fuel ratio for i component of the blend. The calculated properties of the test blends are listed.

The unburned hydrocarbon, (UHC), was measured by the hydrocarbon analyzer HORIBA FID–FIA-22, accuracy ±2 % of FSD which is equipped with a heated type flame ionisation detector. Nitrogen oxide (Nox) was measured by analyzer HORIBA Mexa 8120 F. NOx was measured by means of a chemiluminescence detector (CLD) of the type CLD-53M, accuracy ±2% of FSD. The detector allowed the NO/NOX content to be measured in the range 0 and 5000ppm. The in-cylinder pressure was measured by a piezo-electric pressure transducer; and piston speed, (in RPM), and the top dead centre (TDC) were measured by a pick-up sensor crank angle trigger/ Octane rating engine type Kübler 8.5822.3851.1024, 1024 pulses/round, max 6000 RPM.

Exhaust gas is pumped through a pre-sampler (12) (Figure 1) with pipe connection before the three-way catalytic converter (6). In the pre-sampler, the exhaust gas is filtered and passed through to the individual gas analysers (13, 14, and 15) dedicated to measuring UHC, NOx, and CO and so forth. The measured values were displayed on the PC (8) after conversion by means of the (analogue/digital) A/D converter. The fuel-mass flow was measured and delivered as described in this section.

The n-butanol alcohol was manufactured by VWR Prolabo (BDH), with 99.99% purity, and density of Boiling point: 118°C (at 101.3kPa), melting point: -89.8°C, and flash point: 30°C. The methanol had purity of 99.9 %, and was manufactured by Molar Chemicals (KFT 1151 Budapest). It has density of 790kg/m3(20°C), water content of 0.028 %, and evaporation residual: 0.0008 %. The characteristics of diesel used for the experiments was: D2, standard EN 590, CN, ≥51, sulphur content ≤10mg/kg; water content ≤200mg/kg; and kinematic viscosity 2.00 to 4.5(mm2/s) at 40°C, specific density at 15°C, ≥0.82; and flash point of >55°C. Gasoline was manufactured by MOL with a specification of EN-228 of octane number 95.

The aim of this study was to determine the combustion and emissions characteristics of alcohol-gasoline blends fired in the BASF octane rating, single-cylinder, SI, engine illustrated in figure 1. The effect of methanol added to gasoline was initially compared with a study by others;22 thereafter the effect of n-butanol on methanol-gasoline was determined. The engine was warmed up during a 20 minutes run. The blends were evaluated in terms of indicated pressure and heat release rate (HRR) with respect to Crank angle Degrees (CAD); whereas emission characteristics were evaluated in terms of excess-air ratio (λ) at a constant speed of 600 RPM. The HRR was calculated using the indicated pressure data from the engine runs and computer software, COMBI-PC (SMEtech GmbH). The blends were prepared by an in-tank blending method (using standard laboratory glassware) a few minutes before testing in the spark ignition engines. The blends in shared volume percentage used are indicated.

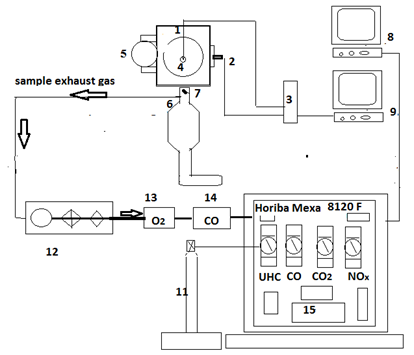

Figure 1 schematic arrangements of octane test engine and gas analyzers.
Legend(1) Single piston BASF engine, (2) Crank angle optical encoder, (3) Charge amplifier, (4) Piezo-electric pressure transducer, (5) Carburretor, (6) Three-way catalytic converter, (7) Thermocouple, (8) Data acquisition PC to measure emissions, (9) PC to measure indicated pressure, (11) H2-He cylinder, (12) heated pre-sampler system, (13) Paramagnetic-analyzer (O2), (14) Carbon monoxide gas analyzer, (15) Horiba Mexa 8120F analyzers

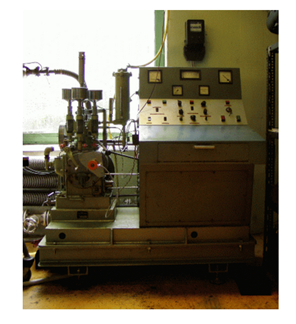

Figure 2 Control panel and BASF octane rating engine.

Description

Value

Model

BASF Prufmotor 368/64, (1964)

Bore [mm]

65

Stroke [mm]

100

Displacement [ccm]

332

Maximum power at full load and 600 RPM [kW]

0.6

Maximum power at full load and 900 RPM [kW]

0.9

Maximum fuel consumption [g/h] at 600 RPM

400

orifice diameter [mm]

0.6

Mixture Heater [W]

750

Compression ratio

4:1 to 11:1

Speed

600 RPM

Ignition

13 deg BTDC

Spark plug

Kistler 6517BCD

Pressure transducer

Kistler 6051B (error ±1%)

Oil pressure [min.atm]

1

Intake air temperature [°C]

21±2

Cooling temperature [°C]

100

Spark advance [deg. btdc]

26

Spark plug gap [mm]

0.5

Breaker point gap [mm]

0.5

Valve clearance, cold: intake valve [mm]

0.2

Valve clearance, cold: exhaust valve [mm]

0.25

Table 2 test engine parameters (BASF)

Single alcohol –gasoline (SAG)

Blend #

1

2

3

4

5

6

7

Methanol %

10

15

20

25

30

40

80

Ctot

10

15

20

25

30

40

80

Gasoline %

90

85

80

75

70

60

20

Abbrev.

M10

M15

M20

M25

M30

M40

M80

Calculated Lower heating value (LHVbl(MJ/kg)

40.75

39.68

38.60

37.47

36.44

34.34

25.34

Air–fuel ratio (A/Fs)

14.2

13.8

13.4

12.9

12.5

11.7

8.1

Dual _alcohol-gasoline (DAG)

Blend #

8

9

10

11

12

13

14

Methanol-M

10

15

20

25

30

40

80

Butanol(-nB)

20

25

30

35

20

20

10

Ctot

30

40

50

60

50

60

90

Gasoline

70

60

50

40

50

40

10

M-nB

10:20

15:25

20:30

25:35

30:20

40;20

80;10

LHVbl

38.79

37.22

35.64

34.08

34.45

32.38

24.37

A/Fs

13.4

12.8

12.2

11.5

11.7

10.8

7.8

Table 3 Single and dual alcohol-gasoline blends for experimental evaluation

Results and discussions

Peak pressure and combustion characteristics

Figure 3 illustrates the effect of single alcohol gasoline,(SAG):methanol-gasoline blends and dual alcohol gasoline (DAG): n-butanol additive to methanol-gasoline blends on indicated pressure (IP) and heat release rate (HRR).

The ignition delay and the combustion duration are defined as the crank angle from the spark event to 10% and from 10% to 90% cumulative heat release respectively. It was observed that the combustion duration was shorter for M80 (steeper curve of HRR) and therefore the peak of HRR or advance crank angles for M80 was closer to TDC than those for M20 and M10. The authors in this study used a single cylinder, carburetor fuel delivery system with operating speeds of 300 RPM at (ʎ) 1.1. In studies by others22 the combustion duration is advanced by 6 degrees with reference to that of gasoline attributed to the fast laminar speed propagation of methanol. The blends studied were M10 (10% methanol, 90% gasoline fuel by volume), M20 and M85 where the advance crank angles for M85 was closer to TDC than M20 and M10. The operating condition and the engine types used for the cited work is a three cylinder port injection engine and speed 3000 RPM. The comparison between the cited study and this study confirms the results obtained of the effect of methanol–gasoline on the combustion duration. The peak pressure increases with the methanol fraction in the blend with gasoline. Comparing the HRR curve for 30% n-butanol additive to 20% methanol-gasoline: M20:30 with the curve of 20% methanol-gasoline: M20 indicates a steeper curve for M20:30 than M20 proving that addition of n-butanol to methanol-gasoline reduces combustion duration.

Figure 4 depicts the effect of the blends at stoichiometric conditions at (ʎ) =1.0. The effect of lambda (ʎ) from 1.1 to 1.0 improves the combustion process in the engine because of the stoichiometric conditions attained at lambda 1.0. However, heat release rate, (HRR) is sensitive to the addition of n-butanol to methanol-gasoline blends. The heat release and the combustion efficiency increases with the fraction of n-butanol added to methanol-gasoline blend. Combustion efficiency is given by the formula: brake thermal efficiency (BTE) is 1/(BSFC*LHV) where BSFC is Brake Specific Fuel Consumption and LHV is Lower Heating Value. The 30% by volume of n-butanol produces a lower BSFC than M30;21 less fuel is burned when a higher carbon-content alcohol such as n-butanol-gasoline blend increases the heating value of the blend.23

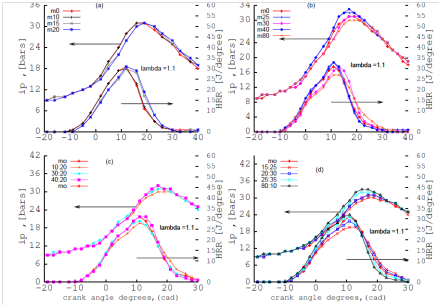

Figure 3 effect of SAG (A, B) and effect of DAG (C, D) blends on mean indicated pressure (IP) and heat release rate (HRR) at λ=1.1

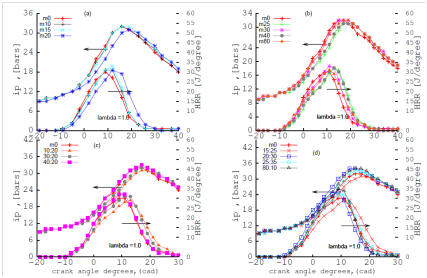

Figure 4 effect of SAG (A, B) and DAG(C, D) blends on mean indicated pressure (IP) and heat release rate (HRR) at λ=1.0.

Source23

Emission characteristics

Unburned hydrocarbon (UHC)

Unburned hydrocarbons are pollutants that result from inadequate combustion of fuel-air mixture. A layer of UHC is left behind when cold surfaces of cylinder walls of the combustion chamber quench the flame. Similar UHC emission layer develops when UHC fuel-mixture escapes the primary combustion process filling crevices (because of flame quenching at the entrance of these crevices).24

Figure 5 indicates the effect of 20% n-butanol fraction added to M10, or (M10:20) on the emission of unburned hydrocarbon (UHC). The blends do not require any engine modification. The UHC emission increases with n-butanol addition for M10 as the excess-air ratio (ʎ) is also increased above 1.1. However, at stoichiometric condition or minimum excess-air: from 7% up to about 11%, the addition of n-butanol to M10 reduces the UHC emission. As the fuel-air mixture is weakened, through the addition of n-butanol to the methanol-gasoline blend, the oxygen concentration increase, thus absorbing energy as diluents thereby reducing the temperature of the mixture.3 this in turn causes a reduction of temperature along the walls of the cylinders resulting in flame quenching and increasing UHC emission. At stoichiometric condition the improved combustion efficiency of the fuel blend reduces the occurrence of flame quenching and therefore reduces UHC emission.

In Figure 6 the addition of 30% n-butanol to m20 causes a reduction of UHC emission between 5% and 26% excess air. Experiments show that the higher the total alcohol content in the blend the lower the UHC emission. The increased n-butanol fraction in the blend reduces the in-cylinder temperature while the engine runs at steady state and prolongs or slows the overall combustion rate expecting that the UHC emission level would increase. However, higher combustion efficiency occasioned by raising n-butanol content in the blend causes UHC emission to reduce more than it does with methanol-gasoline blends. The overall UHC emission for M20:30 lie between 500 and 600 ppm, which is lower than that of M10:20 which lie between 600 and 800 ppm. In Figure 7 the UHC emissions reduce by using m80 to about 300 ppm and reduce even further by adding 10% n-butanol to m80 proving that n-butanol has the effect of moderately reducing UHC emissions above 20% methanol in the blend. However, the reduced energy density of M80:10 and cost implications may not probably favor its wide use.

Nox emission

Thermal NOx is a by-product of combustion, and its exponential formation rate is dependent on temperature. Thermal NOx formation, which is well studied and understood,25 depends upon the residence time and higher temperatures. The peak emission of NOx for test fuels occurs at approximately: λ = 1.1. This means that its formation is more probable at very high temperatures as a function of heat release.

Figure 8 illustrates the emission of NOx for the blends m10 and m10:20. The effect of 20% n-butanol additive to m10 on NOx emission shows a fall in the Nox emission concentration due to the drop in temperatures by the addition of n-butanol. The fuel n-butanol has a high latent heat of evaporation being an alcohol which causes evaporative cooling within the combustion chamber thereby limiting the formation of NOx. As 30% of n-butanol is added to m20 the profile obtained is shown in Figure 9. It is observed generally that NOx concentration does not change much when comparing values with the blends m10 and M10:20 near stoichiometric condition. In one study by the authors it was reported that the combustion rate26 for blends of n-butanol and methanol-gasoline are slower than methanol-gasoline blends, causing an accumulation of heat release into the expansion and exhaust strokes and raising the cylinder temperatures enough to increase NOx concentration. However, due to interference caused by energy absorption by oxygen dilution from n-butanol, the temperature threshold is not reached for the formation of thermal NOx. The general explanation is that the high latent heat of evaporation in alcohols results in an evaporative cooling of the mixture. This lowers the temperature in the cylinder. Because of this any increase in the alcohol percentage of the fuel mixture causes NOx to drop. Therefore, Nox emission did not change much even when 30% n-butanol was added to m20. Figure 10 indicates NOx emission reduces from 3500 ppm for m10:20 and m20:30 blends to about 3000 for the m80:10 blends near stoichiometric condition or for 7 to 11 % excess air. Besides, the shortened combustion rate of blends of methanol-gasoline diminishes the emission of Nox

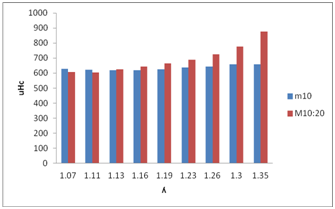

Figure 5 effect of 20% n-butanol additive to M10 on (UHC) in ppm.

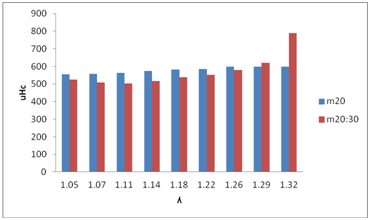

Figure 6 effect of 30% n-butanol additive to M20 on (UHC) in ppm.

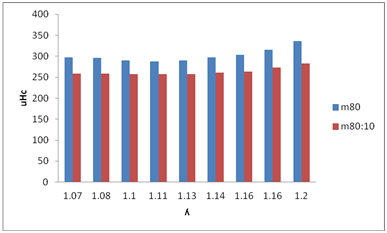

Figure 7 effect of 10% n-butanol additive to M80 on UHC in [ppm].

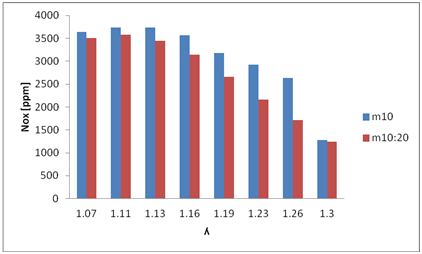

Figure 8 effect of 20% n-butanol additive to M10 on Nox emission.

Figure 9 effect of 30% n-butanol additive to M20 on Nox emission.

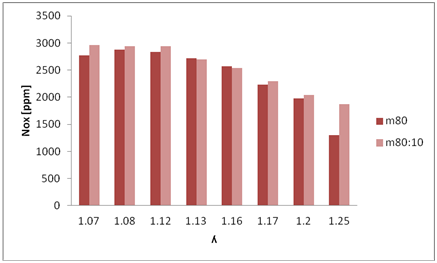

Figure 10 effect of 10% n-butanol additive to M80 on Nox emission.

Conclusion

The study was made on a single cylinder spark ignition engine to determine the effect of n-butanol additive to a blend of methanol-gasoline of combustion and emission characteristics. The combustion duration reduces with increased shared volume of total alcohols in the methanol-butanol-gasoline blends. The peak pressure increases with the methanol fraction in the blend with gasoline. Unburned hydrocarbon (UHC) emissions reduce with m80 to about 300 ppm and reduce even further with 10% n-butanol added to m80 proving that n-butanol has the effect of moderately reducing UHC emissions when methanol fraction is above 20% in gasoline. As n-butanol is increased further by 30% additive to m20: (methanol 20% by volume and gasoline 80%), NOx concentration does not change significantly when comparing values with the blends of m10, M10:20 (10% methanol, 30 %n-butanol 70% gasoline) and M20:30. In order to reduce emissions in spark ignition engine the suitable blend would be M80:10. However, the Lower heating value is prohibitively low whereby the power output from the engine would be affected. Therefore a compromise would be to select m20:30 which would improve the performance in the spark ignition engine at the set conditions given in the study.
