Surface Plasmon resonance sensors for disease diagnosis

Tan Tai Nguyen

Department of Materials Science, Tra Vinh University, Vietnam

Correspondence: Tan Tai Nguyen, Department of Materials Science, School of Applied Chemistry, Tra Vinh University, Vietnam, Tel +84 294 3855 246 (Ext: 393)

Received: December 14, 2017 | Published: December 20, 2017

Citation: Nguyen TT. Surface Plasmon resonance sensors for disease diagnosis. Int J Biosen Bioelectron. 2017;3(5):361–362. DOI: 10.15406/ijbsbe.2017.03.00082

Download PDF


This review paper presents the recent process in optical biosensors based on surface plasmon resonance (SPR). In particular, it will be focused on the optical sensors that employ the change of refractive index as the sensing transduction signal. The performance advantageous and disadvantageous will be given to the description of optical sensors structure and their respective experimental configurations. The application disease diagnosis will be presented. And future expectations of SPR biosensor are also discussed.

Keywords: detection limit, optical fiber, prism, surface plasmon resonance, sensitivity


Most of the optical sensors based on surface plasmon resonance (SPR) are imitated from two main configurations. Firstly, in the Kretschmann- Raether configuration, a thin metal layer is sandwiched between the prism and the air. Otherwise, the Otto configuration, there is a gap between the metal and the prism. However, the Kretschmann-Raether geometry is more conventional scheme to generate the surface plasmon wave in sensing technique.1 The incident light wave is also transverse magnetic wave (TM wave) that can be existed on the metal-air interface and used to excite the SPR under the boundary condition.2 Most of optical excitation of surface plasmon is based on prism,3 waveguide 4, optical fiber5 and grating.6 The SPR wave is described as an electromagnetic wave propagating along the interface between metal and dielectric medium. For three layers system, glass/metallic/analyzed solution, the propagation constant (β) of the surface plasmon wave propagated along the metal-analyze solution interface and the angular frequency, which can be described in the following

β= ω c ( ε bm ε s ε bm + ε s ) 1/2 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbakabek7aIj abg2da9maalaaabaGaeqyYdChabaGaam4yaaaadaqadaqaamaalaaa baGaeqyTdu2aaSbaaeaacaWGIbGaamyBaaqabaGaeqyTdu2aaSbaae aacaWGZbaabeaaaeaacqaH1oqzdaWgaaqaaiaadkgacaWGTbaabeaa cqGHRaWkcqaH1oqzdaWgaaqaaiaadohaaeqaaaaaaiaawIcacaGLPa aadaahaaqabeaajugWaiaaigdacaGGVaGaaGOmaaaaaaa@4E9C@

Where εbm and εs are the dielectric constants of the metal and the analyze solution, respectively. ω is the angular frequency of the incident light and c is the speed of laser light. In the prism coupling configuration as depicted in Figure 1, an incident light wave passes through a high refractive index prism and then some portion of the light is reflected at the prism – metal interface. The evanescent wave will be generated by the coming laser light and penetrates into the thin metal film. The propagation constant of the evanescent wave shows below

k x = ω c n p sinθ MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbakaadUgada WgaaqaaiaadIhaaeqaaiabg2da9maalaaabaGaeqyYdChabaGaam4y aaaacaWGUbWaaSbaaeaacaWGWbaabeaaciGGZbGaaiyAaiaac6gacq aH4oqCaaa@42EA@

Where θ is the incident angle of the light, np is the refractive index of the prism. The SPR will be generated by given the proper thickness of metal film and the resonance angle of light. Thus, the propagation constant of the evanescent wave will match that of the surface plasmon wave as shown below

k x = ω c n p sin θ res = ω c ( ε bm ε s ε bm + ε s ) 1/2 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeGaam4AaK qbaoaaBaaabaqcLbsacaWG4baajuaGbeaajugibiabg2da9Kqbaoaa laaabaqcLbsacqaHjpWDaKqbagaajugibiaadogaaaGaamOBaKqbao aaBaaabaqcLbsacaWGWbaajuaGbeaajugibiGacohacaGGPbGaaiOB aiabeI7aXLqbaoaaBaaabaqcLbsacaWGYbGaamyzaiaadohaaKqbag qaaKqzGeGaeyypa0tcfa4aaSaaaeaajugibiabeM8a3bqcfayaaKqz GeGaam4yaaaajuaGdaqadaqaamaalaaabaqcLbsacqaH1oqzjuaGda WgaaqaaKqzGeGaamOyaiaad2gaaKqbagqaaKqzGeGaeqyTduwcfa4a aSbaaeaajugibiaadohaaKqbagqaaaqaaKqzGeGaeqyTduwcfa4aaS baaeaajugibiaadkgacaWGTbaajuaGbeaajugibiabgUcaRiabew7a LLqbaoaaBaaabaqcLbsacaWGZbaajuaGbeaaaaaacaGLOaGaayzkaa WcdaahaaqcfayabeaajugWaiaaigdacaGGVaGaaGOmaaaaaaa@7198@

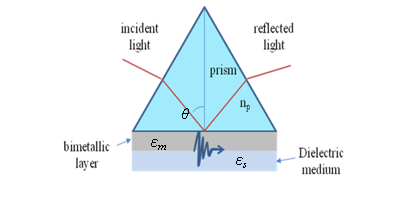

Figure 1 The schematic of the SPR sensor based on prism.

Disease diagnosis based on SPR biosensor

The SPR sensors have been developed for disease diagnosis applications by detection of some proteins, enzyme or antigen. This work has been focused on the detection and classification of the bio-elements mentioned. An operation of the SPR sensors for examination the measurement of the target biomolecules can be classified in four steps including (1) incubate or capture the first targets, (2) inject the different concentration of the second binding targets, (3) perform the data, (4) regenerate the sensor. There are numerous scopes in SPR biosensors such as immunoassays including competitive immunoassay, noncompetitive immunoassay, heterogeneous immunoassay, homogeneous immunoassay via the antigens – antibody interaction, chaperones in study interaction between protein and protein, screening for new target to understand the gene expression’s mechanisms and signal transduction for different binding interactions.7 The detection limit of SPR biosensor in a particular measurements is strongly depended on the size, concentration and binding characteristic of targets.8 Recently, SPR biosensor has been used to investigate the absorption and desorption of IgG to the sensing surface with modification of protein A,9 monitoring the effect of glucose, lactate and human IgG,10 self – assembled using anti-human ferritin monoclonal antibodies for specific binding of antigens,11 measuring the immobilization of PSA-ACT mAb and PSA-ATC complex on the PSA sensor surface,12 display detection of different concentration of fibrinogen.13 Addition to enhance the absorption of biomelecule or enzyme, the SPR sensing surface will be modified by thin polymer layer.14,15 Moreover, the covalent binding between antigen and antibody has also a powerful method for biosensors such as detection of metamphetamine, detection of low molecular weight domoic acid, medical diagnostics of human hepatitis B virus (hHBV), assay of the different poliovirus types.16-20 Another important field is study an immobilization of tTGas relating to the Ca2+ concentration, which is so important in human health.21 The SPR biosensors offers so sensitive technique, high selectivity and good regeneration in application.

Future expectations of SPR biosensor

Most of SPR biosensor based on prism with Au deposition on the sensor surface have been widely used with high resoution, multi-functionalization groups on the sensing surface, reusability and high stability. However, it is too expensive and abundant, leading difficulty in movement and opperation. Thus, focusing on finding and combination of different materials to generate new structure of sensor with high resolution and cost-effective is too specific important for future researches. In paricular, it will be focused on design and simulation the sensor’s properties by using the multilayer of different materials such as ZnO, TiO2, graphene to enhance the multilayer’s properties based on specific properties of each material for pratical fabrication. Moreover, the regeneration of the sensing surface is also new trend for reseasrch.


The applications of SPR biosensor used are never be limited due to rapid development of biosensor. Most of researches are now focused on an improvement of their sensitivity, detection limit and operating refractive index range. We have seen that the SPR biosensor is used for disease diagnosis and extending their application for heavy metal detection, gas detection in future. In addition, there are many challenges to develop the new structure of biosensors. However, SPR biosensor is still the most convenient device providing easy operation, fast and specific detection in real-time manner.



Conflict of interest

The author declares no conflict of interest.
