Experiment synthesis and characterization of acoustic instabilities in high intensity discharge

AMER L,1 HAMOUDA M,1 Jöerg Shwieger2

1Department of Material Sciences, University of Adrar, Algeria
2Department of Mechanical Engineering and Production, Heinrich Blasius Institute for physical, Germany

Correspondence: AMER L, Department of Material sciences, University of Adrar, Algeria

Received: December 22, 2020 | Published: February 25, 2021

Citation: AMER L, HAMOUDA M, Shwieger J. Experiment synthesis and characterization of acoustic instabilities in high intensity discharge. Int J Biosen Bioelectron. 2021;7(1):18-23. DOI: 10.15406/ijbsbe.2021.07.00206

Download PDF


High intensity discharge lamps comprise a gas encapsulated in a transparent vessel, in which a light emitting discharge arc is established. The lamp operation necessitates a driver that provides an energy saving and cost reduction potential when the frequency of the alternating current is tuned from the commonly used low frequency range to a higher frequency range. However, such an operation can result in low frequency luminous fluctuations, lamp extinction or even destruction. The excitation of acoustic resonances in the high frequency range is the reason for the instable behaviour; therefore a predictive model was established in order to give us at which frequencies light flicker can be expected. Moreover, we conducted an experimental study, which allows the electrical detection of frequency regions, in which the discharge arc behaves instable. Furthermore, an optical system is incorporated to record images of the discharge arc during stable and instable operating conditions. The results enable a considerably better understanding of the flicker phenomenon in HID lamps and facilitate the development of energy efficient drivers.

Keywords: arc tube, HID lamp, frequencies light flicker, electric potential drop, acoustic resonance, arc motion, pressure waves.


High-intensity discharge lamps include high-pressure sodium and high pressure mercury lamps. These light sources emit visible radiation by energy exchanges of excited atomic states in a discharge arc. HID lamps are characterised by a static pressure inside the lamp that exceeds the ambient pressure during steady state operation. The main constituent of the discharge arc distinguishes the sodium from the mercury lamp. Additionally, these lamps usually contain metal halides to improve the light quality. Metal halide lamps are further divided in to quartz metal halide and ceramic metal halide lamps dependent on the tube material that envelops the discharge arc. The sun like luminance, the compact size and the high colour quality of HID lamps will guarantee a market for these lamps in the future. Moreover, the supply of replacement lamps for existing lighting systems will maintain a worthwhile market. In the product life cycle concept, HID lamp systems evolve to the mature stage. This means that cost becomes the key focus of many development activities and that drivers for operating HID lamps are optimised to cheaper designs. Minimal driver costs and an increased efficiency can be achieved by operating the lamp at an AC with a frequency of approximately 300kHz, but in this frequency range acoustic resonances, that lead to arc flickering, are particularly distinctive. Movements of the discharge arc are caused by the excitation of standing pressure waves inside the arc tube that result from periodic heating when operated at an alternating current. Therefore, these discharge instabilities are also called acoustic instabilities. If the discharge arc is acoustically excited, depends on the pressure distribution of the acoustic eigenmode so that arc movements can not be detected at every acoustic eigenfrequency. A predictive model was established, translated into calculation program under the Matlab language through which we could determine the oscillations frequencies for the fundamental propagation modes. For a thorough understanding of the instabilities, accompanying experimental investigations have to be conducted. These investigations should be able to electrically and optically quantify the discharge arc at stable and instable operating conditions. Especially, changes during acoustic excitation of the arc tube content should be detected. The results of the experiments and simulations have to be discussed.

Physical modelling of acoustic resonance

The shape of the discharge arc in the HID lamp depends on many factors: Arc tube geometry, electrode distance, absolute pressure inside the arc tube, type and amount of metal halides, mounting position, input power, etc. These factors influence the arc constriction, the arc length, the temperature distribution, the acoustic eigenmodes and their corresponding frequencies as well as many other physical fields. To increase the light quality and the conversion efficiency from electric power to visible light, the lamp can be operated at higher halogen pressures. However, these results in constricted arcs that is more susceptible to acoustic instabilities. The proposed physical model of acoustic resonance, allows predicting excitation conditions of acoustic resonance and the arc form. This model is obtained when considering the discharge in the lamp as plasma in Local Thermodynamic equilibrium (LTE). Under these conditions all the plasma’s sizes are a temperature function often very complicated. A precise measurement carried out within the laboratory to obtain the geometrical profile of the plasma temperature is necessary for the determination of the acoustic resonance frequencies. We can completely model the behaviour of the discharge by using the conservation relations of the mass, momentum and energy, coupled with electric relations and those of the radiation. Considering the loss by friction due to the plasma viscosity insignificant, which means that we can omit the terms of amortization, which leads to the following equation, characterizing the propagation of the pressure waves in the plasma.

2 p t 2 C s 2 Δp=(γ1) N t MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaaO qaaKqzGeGaeyOaIyBcfa4aaWbaaOqabeaajugWaiaaikdaaaqcLbsa caWGWbaakeaajugibiabgkGi2kaadshajuaGdaahaaGcbeqaaKqzad GaaGOmaaaaaaqcLbsacqGHsislcaWGdbqcfa4aa0baaOqaaKqzadGa am4CaaGcbaqcLbmacaaIYaaaaKqzGeGaeuiLdqKaamiCaiabg2da9i aacIcacqaHZoWzcqGHsislcaaIXaGaaiykaKqbaoaalaaakeaajugi biabgkGi2kaad6eaaOqaaKqzGeGaeyOaIyRaamiDaaaaaaa@586F@ (1)

N= P ele U ray W th MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGob Gaeyypa0JaamiuaSWaaSbaaeaajugWaiaadwgacaWGSbGaamyzaaWc beaajugibiabgkHiTiaadwfalmaaBaaabaqcLbmacaWGYbGaamyyai aadMhaaSqabaqcLbsacqGHsislcaWGxbWcdaWgaaqaaKqzadGaamiD aiaadIgaaSqabaaaaa@4996@ (2)

C s = γ. R M .T M MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGdb qcfa4aaSbaaSqaaKqzadGaam4CaaWcbeaajugibiabg2da9Kqbaoaa kaaakeaajugibiabeo7aNjaac6cajuaGdaWcaaGcbaqcLbmacaWGsb qcfa4aaSbaaSqaaKqzGeGaamytaaWcbeaajugWaiaac6cacaWGubaa keaajugibiaad2eaaaaaleqaaaaa@485F@ (3)

The equation (1) is very complex and requires the knowledge of a great number of data and its solution is extremely difficult. However, if our reasoning is limited just to the prediction of frequencies where the acoustic resonances appear, we then can omit the term source which depends only on the plasma. So we will treat the propagation of pressure wave in a hot gas but not ionized. In this context certain terms of the model may be neglected and the equation is considerably simplified. After simplification, we gets:

2 p= 1 C s 2 (T) . 2 p t 2 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacqGHhi s0juaGdaahaaWcbeqaaKqzadGaaGOmaaaajugibiaadchacqGH9aqp juaGdaWcaaGcbaqcLbsacaaIXaaakeaajugibiaadoeajuaGdaqhaa WcbaqcLbmacaWGZbaaleaajugWaiaaikdaaaqcLbsacaGGOaGaamiv aiaacMcaaaGaaiOlaKqbaoaalaaakeaajugibiabgkGi2MqbaoaaCa aaleqabaqcLbmacaaIYaaaaKqzGeGaamiCaaGcbaqcLbsacqGHciIT jugWaiaadshajuaGdaahaaWcbeqaaKqzadGaaGOmaaaaaaaaaa@5667@ (4)

This simplified formulation, known as “Helmholtz equation” makes it possible to determine the acoustic resonance frequencies. If, initially we consider that the temperature and the speed of propagation of sound are constant. Under these conditions this equation can be analytically solved, in a cylinder of ray R and length L, by the variables separation method:

P(r,ϕ,z,t)= P A J n ( W r r C s )cos(nϕ)cos( W z Z C s ) e jωt MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGqb GaaiikaiaadkhacaGGSaGaeqy1dyMaaiilaiaadQhacaGGSaGaamiD aiaacMcacqGH9aqpcaWGqbqcfa4aaSbaaSqaaKqzadGaamyqaaWcbe aajugibiaadQeajuaGdaWgaaWcbaqcLbmacaWGUbaaleqaaKqbaoaa bmaakeaajuaGdaWcaaGcbaqcLbsacaWGxbWcdaWgaaqaaKqzadGaam OCaaWcbeaajugWaiaadkhaaOqaaKqzGeGaam4qaKqbaoaaBaaaleaa jugWaiaadohaaSqabaaaaaGccaGLOaGaayzkaaqcLbsaciGGJbGaai 4BaiaacohacaGGOaGaamOBaiabew9aMjaacMcaciGGJbGaai4Baiaa cohacaGGOaqcfa4aaSaaaOqaaKqzGeGaam4vaKqbaoaaBaaaleaaju gWaiaadQhaaSqabaqcLbsacaWGAbaakeaajugibiaadoeajuaGdaWg aaWcbaqcLbmacaWGZbaaleqaaaaajugibiaacMcacaWGLbqcfa4aaW baaSqabeaajugWaiabgkHiTiaadQgacqaHjpWDcaWG0baaaaaa@73C2@ (5)

ω nlm = ( a nm C s R ) 2 + ( πl C s L ) 2 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacqaHjp WDjuaGdaWgaaWcbaqcLbmacaWGUbGaamiBaiaad2gaaSqabaqcLbsa cqGH9aqpjuaGdaGcaaGcbaqcfa4aaeWaaOqaaKqbaoaalaaakeaaju gibiaadggajuaGdaWgaaWcbaqcLbmacaWGUbGaamyBaaWcbeaajugi biaadoeajuaGdaWgaaWcbaqcLbmacaWGZbaaleqaaaGcbaqcLbsaca WGsbaaaaGccaGLOaGaayzkaaqcfa4aaWbaaSqabeaajugWaiaaikda aaqcLbsacqGHRaWkjuaGdaqadaGcbaqcfa4aaSaaaOqaaKqzGeGaeq iWdaNaamiBaiaadoeajuaGdaWgaaWcbaqcLbmacaWGZbaaleqaaaGc baqcLbsacaWGmbaaaaGccaGLOaGaayzkaaqcfa4aaWbaaSqabeaaju gWaiaaikdaaaaaleqaaaaa@5F1D@ (6)

According to the equation (6), the acoustic resonance frequency depends then on the dimensions of the discharge tube (ray R and length L), and the celerity of the pressure propagation Cs which itself depends on the composition of gases and average temperature of the plasma. This means that the resonance frequency may vary with the ageing of the lamp because of the change of gas compositions, and with the temperature which represents the total power injected into the discharge. Consequently, because of the manufacture tolerance, we can have light differences in acoustic resonance frequencies for lamps of the same type and manufacturer. For the equation (5), terms (n,m,l) represent as well the spatial distribution of pressure in the discharge, by indicating ωn,m = ωr the transverse frequency of resonance according to (r,φ), by    ωl = ωz  the longitudinal frequency of resonance according z, and by ωn,m,l = ω the combined resonance frequency or global. The equation (5) enables us to distinguish the following terms:

P(r,ϕ,z,t)= P A Amplitude [ J n ( W r r C s ) ] termeradial [ cos(nϕ) ] termeAzimuthal [ cos( W z Z C s ) ] termeLongitudinal [ e jωt ] Propagation MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGqb GaaiikaiaadkhacaGGSaGaeqy1dyMaaiilaiaadQhacaGGSaGaamiD aiaacMcacqGH9aqpjuaGdaWfGaGcbaqcLbsacaWGqbWcdaWgaaqaaK qzadGaamyqaaWcbeaaaeqabaqcLbmacaWGbbGaamyBaiaadchacaWG SbGaamyAaiaadshacaWG1bGaamizaiaadwgaaaqcfa4aaCbiaOqaaK qbaoaadmaakeaajugibiaadQeajuaGdaWgaaWcbaqcLbsacaWGUbaa leqaaKqbaoaabmaakeaajuaGdaWcaaGcbaqcLbsacaWGxbWcdaWgaa qaaKqzadGaamOCaaWcbeaajugWaiaadkhaaOqaaKqzGeGaam4qaSWa aSbaaeaajugWaiaadohaaSqabaaaaaGccaGLOaGaayzkaaaacaGLBb GaayzxaaaaleqabaqcLbmacaWG0bGaamyzaiaadkhacaWGTbGaamyz aiaaykW7caWGYbGaamyyaiaadsgacaWGPbGaamyyaiaadYgaaaqcfa 4aaCbiaOqaaKqbaoaadmaakeaajugibiGacogacaGGVbGaai4Caiaa cIcacaWGUbGaeqy1dyMaaiykaaGccaGLBbGaayzxaaaaleqabaqcLb macaWG0bGaamyzaiaadkhacaWGTbGaamyzaiaaykW7caWGbbGaamOE aiaadMgacaWGTbGaamyDaiaadshacaWGObGaamyyaiaadYgaaaqcfa 4aaCbiaOqaaKqbaoaadmaakeaajugibiGacogacaGGVbGaai4Caiaa cIcajuaGdaWcaaGcbaqcLbsacaWGxbqcfa4aaSbaaSqaaKqzGeGaam OEaaWcbeaajugibiaadQfaaOqaaKqzGeGaam4qaKqbaoaaBaaaleaa jugibiaadohaaSqabaaaaKqzGeGaaiykaaGccaGLBbGaayzxaaaale qabaqcLbmacaWG0bGaamyzaiaadkhacaWGTbGaamyzaiaaykW7caWG mbGaam4Baiaad6gacaWGNbGaamyAaiaadshacaWG1bGaamizaiaadM gacaWGUbGaamyyaiaadYgaaaqcfa4aaCbiaOqaaKqbaoaadmaakeaa jugibiaadwgalmaaCaaabeqaaKqzadGaeyOeI0IaamOAaiabeM8a3j aadshaaaaakiaawUfacaGLDbaaaSqabeaajugWaiGaccfacaGGYbGa am4BaiaadchacaWGHbGaam4zaiaadggacaWG0bGaamyAaiaad+gaca WGUbaaaaaa@C4CB@ (7)

Experimental setup

The experimental setup was mainly used to determine the acoustic eigenfrequencies of the arc tube of the HID lamp. Additionally, the setup served to investigate the hysteresis effect. Optical measurement devices were implemented in this setup to detect the emitted light of the discharge arc during stable and unstable operation. Figure 1. schematically depicts the experimental setup that consists of the HID lamp itself, the equipment necessary to operate the lamp and different measurement devices. Furthermore, the manufacturer and the product name are presented. The HID lamp, a Philips MASTER Colour CDM-T Elite 35W/930, was operated at a square-wave voltage with a carrier frequency fc=400 Hz. The square wave signal was provided by an Agilent 33220.A function generator with rise and fall time of less than 13 ns and an over shoot of less than 2%. No instabilities of the discharge arc occurred at fc because the driving frequency was considerably smaller than the lowest acoustic eigenfrequency at approximately 42 kHz. The second function generator, a Wavetek Mode 29A, produced a sinusoidal voltage with a resolution of 0.1mHz that was used to excite discharge arc flicker. For this reason, the frequency of this signal is also called excitation Frequency fex.

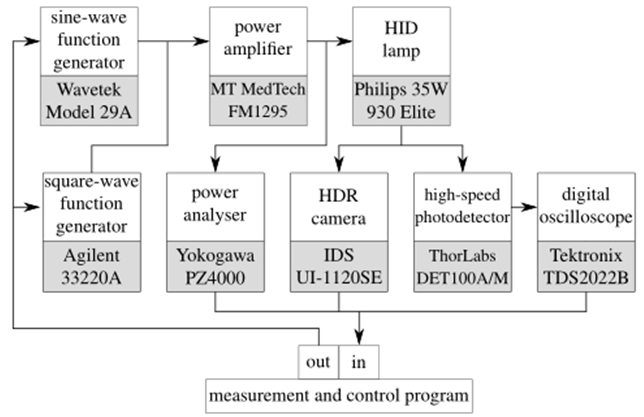

Figure 1 Experimental setup to characterise discharge arc flicker in HID lamps.

It was tuned to different frequencies in a certain high frequency range. The power amplifier, a MTMedTech FM 1295, regulated the amplitude of the voltage V(t) and the electric current I(t) so that the HID lamp was operated at its nominal power. The modulation depth α describes the ratio of the sinusoidal to the square wave voltage amplitude. The power can be derived from P(t)=V2(t)/Rplasma with the electric resistance of the plasma Rplasma. The power analyser, a Yokogawa PZ 4000, measured the following data : The electric current, the electric potential drop between the electrodes and the electric power. The high dynamic range (HDR) camera, a IDSUI-1120SE, enables direct observation of the discharge arc because it can resolve the high brightness differences between the arc and its surrounding. The CMOS chip of the camera is sensitive in the wave length range of 400 nm to 900 nm with the highest sensitivity at 710nm, has a resolution of 768×576 pixels and a high dynamic range of 120dB. The maximal refresh rate of the camera is 50 Hz. When the discharge arc flicker was investigated experimentally, both the camera and the high speed silicon photodetector, a DET100A/M from ThorLabs, were used. The photodiode with a rise time of 43ns converts the brightness fluctuations into an electric current. The spectral sensitivity is 400 nm to 1100nm with a peak wave length at 970nm. The photodiode was placed in a distance of 0.2m from the HID lamp to receive enough illumination and simultaneously to prevent saturation. The digital oscilloscope, a Tektronix TDS2022B, records the time dependent signal and converts it into the frequency domain by fast Fourier transform (FFT). A computer transmitted the values of the modulation depth and the excitation frequency to the function generators and records the camera and photodiode signals as well as the electric current, electric potential drop and electric power. To control the experimental setup, program code created with MATLAB was used. To determine the acoustic eigenfrequencies that lead to a flickering discharge arc, the lamp was initially operated at a modulation depth of 0% for at least ten minutes. The lamp reached a stationary state at this stable condition, which means that the temperature inside the arc tube, the voltage drop between the electrodes, their radiated light, do not change anymore. The constant electric potential drop between the electrodes without acoustic excitation is defined as the reference voltage Vref.

In case of the exemplary measurement in Figure 2, Vref is 90 V (fex=40.0 kHz, α=0%). The electric potential is proportional to the arc length because the passage of current through the plasma acts as an ohmic resistance. Therefore, arc flicker can directly be observed by measurement of the voltage drop. After the stationary state was reached, fex was set to a constant value near an acoustic eigenfrequency of the lamp and α was step wise increased every 10 s to excite acoustic waves. Meanwhile, the potential drop was measured every 0.5s, and the power was regulated to keep it at its nominal value. When the voltage fluctuated more than Vfluc=1.5V or when the voltage exceeded Vlim=Vref+5.0 V, the measurement was aborted to prevent lamp failure caused by exceedingly high arc tube temperature or by temperature oscillations of the arc tube. Immediately afterwards, α was set back to 0% and fex was increased to the next frequency step. Figure 2. displays both cases of measurement abortion. A voltage fluctuation of more than Vfluc occurs at fex=40.0 kHz and α=6%, and the voltage limit Vlim is exceeded at fex=40.5 kHz and α=10%. For the 35W lamp, the excitation frequency was generally increased from 35 kHz to 50 kHz in 500 Hz steps to excite the first instability at around 42kHz .The modulation depth was increased from 0% to 12% in 2% steps.

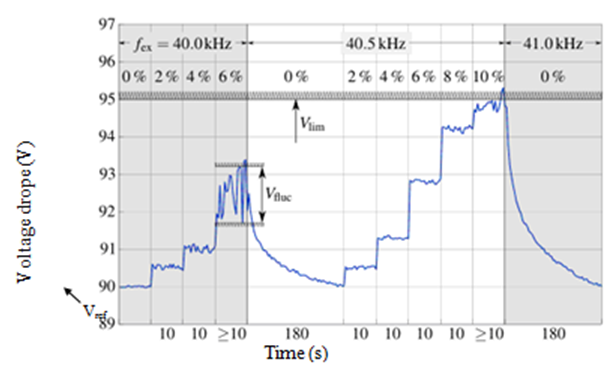

Figure 2 Exemplary behaviour of the voltage drop during determination of acoustic eigenfrequencies.

Simulation results

Table 1.

Standard lamp SHP 400W

standard lamp VMHP 400W with 70mg

R= 3,75e-3m.

R= 9,5e-3m

L= 10,7e-2m.

L= 8,2e-2m

Cs= 470,7m/s2

Cs= 491,71m/s2

Table 1 Lamps characteristics

SHP lamp

Figure 3- Figure 5.

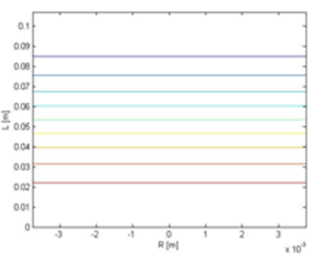

Figure 3 Longitudinal fundamental mode (0,0,1).

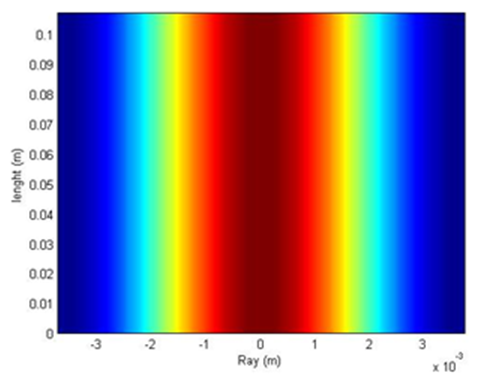

Figure 4 Radial fundamental mode (0,1,0).

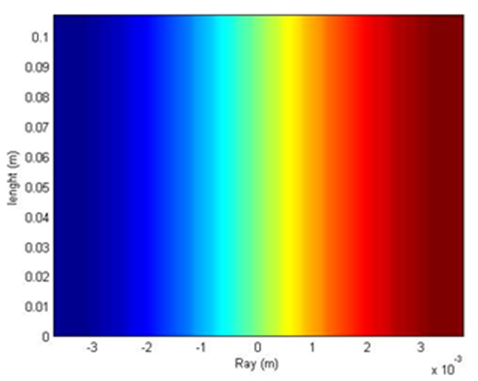

Figure 5 Azimuth fundamental mode (1,0,0).

VMHP results

Figure 6- Figure 8 & Table 2. According to the distribution of pressure in the arc and we note to the theory that the discharge endeavours to move through zones where the pressure is low. The arc takes the way which corresponds to the least losses.   For longitudinal mode Z axial (0,0,1) we can see clearly that the pressure begins to take important values starting from 0.045m for the HPS lamp whereas for the  HPMV lamp it starts from 0.035m. For radial longitudinal mode R axial (0,1,0), the higher pressures lies between -0,8.10-3m and     0,8.10-3m for HPS lamps type and between -2.10-3m and 2.10-3m for HPMV lamps type. The φ axial, azimuth mode (1,0,0) the pressure starts to get important values from 2,5.10-3m for HPS lamp while for the HPMV this value is equal to 5,8.10-3m.Concerning the two modes longitudinal Z-axial (0,0,1) and R-radial (0,1,0), we remark well that the probability to get an acoustic resonance effect is important in the case of HPMV lamps type than that of HPS ones, then it is reversed for the φ axial azimuth mode (1,0,0). In experiments this effect is translated as follow, the Acoustic resonance in longitudinal mode arises by a curved arc at the level of one of the discharge ends. In radial mode, the arc seems to segment successively to diffuse zones then narrow. Finally, the azimuth mode is an oscillation of the arc from one end to another.

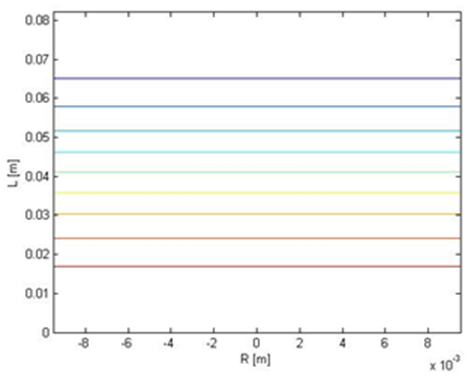

Figure 6 Longitudinal fundamental mode (0,0,1).

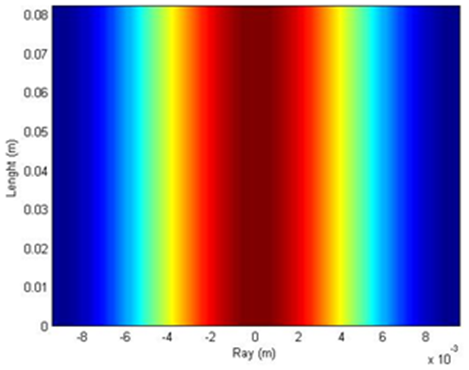

Figure 7 Radial fundamental mode (0,1,0).

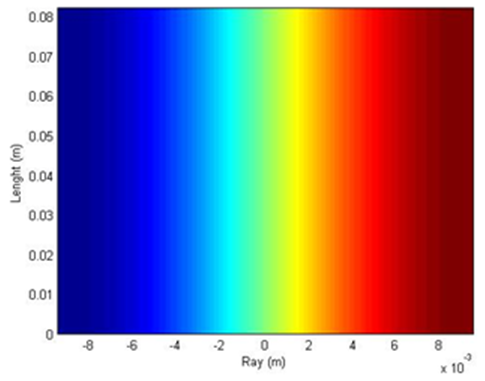

Figure 8 Azimuth fundamental mode (1,0,0).
For all graphs: high pressure
Null pressure
Low pressure

Lamp type




400 W

2.1995 kHz

76.5464 kHz

36.7819 kHz


2.9982 kHz

31.5644 kHz

15.1672 kHz

Table 2 Frequencies of the acoustic resonances

Experimental results

Figure 9 & Figure 10. Exemplary light intensity measurement of a horizontally operated HID lamp. The black line indicates the mean position of all light intensity values that are larger than 95% times the highest light intensity as a function of the y coordinate. The main results of the optical measurements are presented in Figure 10 The fluid flow bends the discharge arc upwards so that an arc deflection of 0.99mm at y=0mm occurs in the exemplary image shown on the figure. Additionally, this image illustrates the translucency of the tube wall: The image is not sharp, but blurred. As the arc tube consists of two welded half-shells, the weld seam refracts the light. Consequently, a lower intensity in the z-direction is measured that appears as a vertical stripe at y≈0mm. Figure 11 presents an overview of a wide frequency range of 20kHz to 200kHz, in which arc flicker in the investigated HID lamp occurs. The modulation depth in this experiment was varied from 0% to 10% in 1% steps. In the grey coloured area, no arc flicker was detected and, hence, the lamp could stably be operated. The maximum modulation depth was not reached at some excitation frequencies because the voltage drop exceeds one or even both termination criteria. These consist of the voltage fluctuation Vfluc≥1.5V measured at one operating point (specific excitation frequency fex and modulation depth α) and of a voltage limit of Vlim≥Vref+5.0V that exceeds the reference voltage measured at a modulation depth of 0%. Thus, the termination prevents operation at higher modulation depths at this excitation frequency to prevent lamp failures that are caused by pressure fluctuations or exceedingly high pressures inside the arc tube. With regard to the amplitude (modulation depth), the experimental results show an increasing loss with an increasing excitation frequency because the modulation depth necessary to excite flicker increases. We notice that up to 120 kHz a modulation depth of 4% is sufficient to excite flicker, but a higher modulation depth is necessary at frequencies beyond 120 kHz (Figure 12).

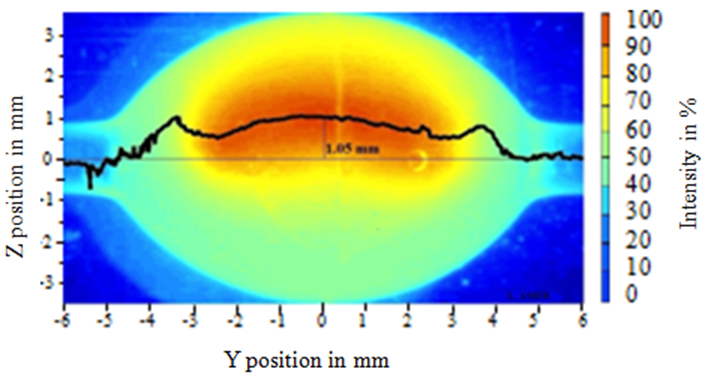

Figure 9 Experimental determination of arc deflection at unstable operating conditions.

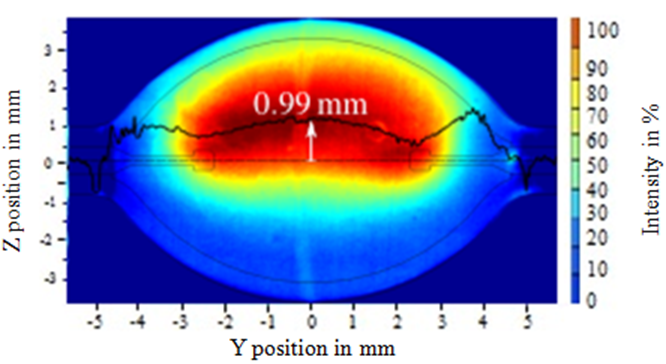

Figure 10 Experimental determination of arc deflection at stable operating conditions.

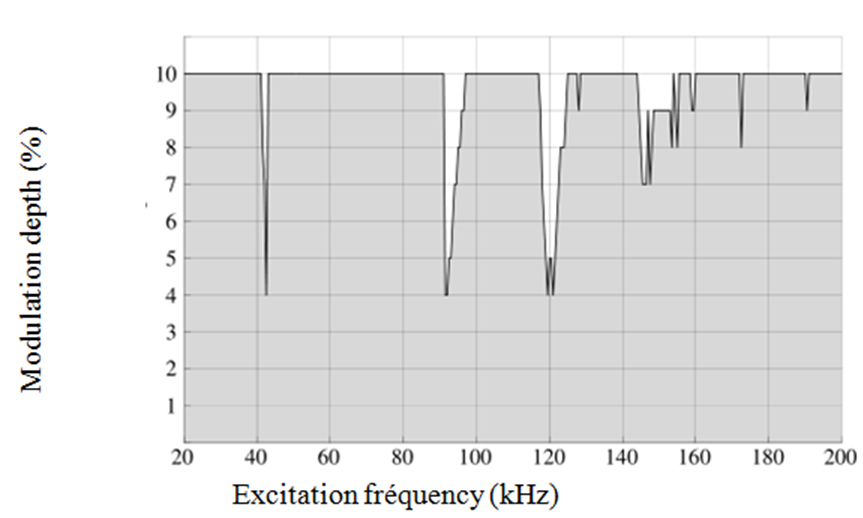

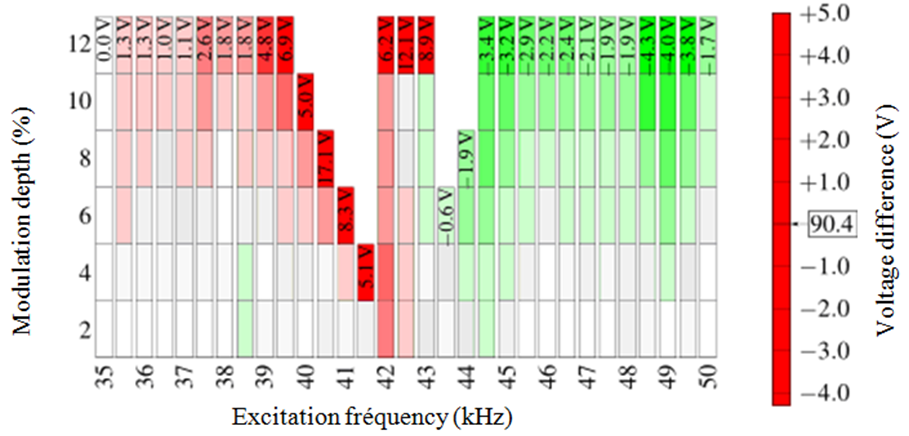

Figure 11 Experimental detection of acoustic instabilities over a wide frequency range.

Figure 12 Measurement of the AR at the lowest excitation frequency at which arc flicker occurred.

For a more detailed analysis, the acoustic resonance at the lowest frequency, that shows arc flicker, was chosen in order to reduce the probability of measuring a superposition of acoustic eigenmodes. The frequency region of these detailed measurements ranges from 35kHz to 50kHz in 500Hz steps, and the modulation depth was increased from 0% to 12% in 2% steps. Figure 10 shows the detection of the acoustic resonance of a certain lamp. In addition to the threshold value of the modulation depth for each excitation frequency, the corresponding result of the measured voltage drop for each operating point is shown. In the scale, the reference voltage Vref=90.4V is pointed out. Measured voltages that are higher than Vref are marked in red and operating points with a lower voltage are coloured green. The scale of the excess voltage is limited to 5.0V, which corresponds to Vlim. Additionally, the measured voltage at the last operating point for each excitation frequency is presented. A higher voltage is the result of an increasing arc length so that the arc deflection increases as well. In contrast to that, the green colour indicates operating points with a decreasing arc deflection (arc straightening). The intensity of the colour represents the strength of the voltage difference to Vref and, consequently, the strength of the deflection change. This was observed by eye and proved by measurements with the camera. In general, two different discharge arc behaviours can be observed in Figure 12 that is caused by different mechanisms. Up to fex=42.5 kHz, the voltage increases when increasing the modulation depth. At higher excitation frequencies, the voltage decreases. The strength of the voltage difference to Vref rises with increasing modulation depth because the share of the excitation part in relation to the stable part grows. The two local minima in the modulation depth are related to two different modes. The results of lamp highlight that the first minimum occurs at fex=41.5 kHz and the second minimum at fex=43.5 kHz. The voltage exceeds Vlim at fex= 41.5kHz, whereas a fluctuating voltage Vfluc of a slightly straightened arc was detected at fex= 43.5 kHz. At the three measured frequencies between these two minima, the experiment terminated at α=12%. The measured voltage at α=2% and fex= 42.0 kHz is conspicuous because it is considerably higher than voltages at the same modulation depth at other excitation frequencies. The measurements serve to identify the mean values as well as the standard deviations of the reach able modulation depths and the frequencies, at which the lowest modulation depth is attained. Qualitatively, the results coincide with those presented before hand; especially the results shown in Figure 12 Up to excitation frequencies, at which the lowest modulation depth occurs, the voltage increases with modulation depth. At higher excitation frequencies, arc straightening (decreasing voltage with increasing modulation depth), was detected. Quantitatively, the results differ from lamp to lamp of the same kind because geometry and gas composition tolerances occur in the manufacturing process.


The developed and verified simulation model facilitates the study of acoustic resonances that lead to light flicker in high intensity discharge lamps. The findings help to understand the underlying physical processes considerably better, which is crucial for an improvement of the lamp and driver design. The validated model enables development of new lamp systems that operate at stable conditions, possess an improved energy efficiency, are less bulky, are characterised by lower costs and have a reduced amount of mercury or even avoid this heavy metal. The simulation of instable discharge arc behaviour allows to design new electronic drivers that operate in the high frequency range and, therefore, have a significantly higher energy efficiency compared to state of the art lamps. Moreover, the model is helpful to identify acoustic eigenmodes that induce a fluid flow that causes arc straightening, which is equivalent to a stabilisation of the discharge arc and leads to a further increased energy efficiency. For further investigation of the acoustically induced streaming field in high intensity discharge lamps, some advancements are recommended. First, it would be beneficial to compare our results to additional experimental data. Especially, the velocity field inside the arc tube is of interest because it induces the arc flicker. Instead of an indirect detection of the fluid flow by voltage and light intensity measurements or by theoretical considerations, experimental results would be useful in benchmarking the simulation. The laser Doppler anemometry enables such measurements, but requires special lamp types with a transparent arc tube material and, therefore, necessitates a simulation model with a different geometry and adjusted transport coefficients.1–16



Conflicts of interest

The authors declare that there is no conflict of interest.
