Research Article Volume 5 Issue 5

Biomedical applications of Durio zibethinus extract mediated gold nanoparticles as antimicrobial, antioxidant and anticoagulant activity

Vinay S P,1 Udayabhanu ,2 Nagaraju G,2 Hemasekhar B,3 Chandrappa C P,3 Chandrasekhar N1

1Department of Chemistry, Shridevi Institute of Engineering and Technology, India
2Department of Biotechnology, Shridevi Institute of Engineering and Technology, India

Correspondence: Chandrasekhar N, Research and Development Center, Department of Chemistry, Shridevi Institute of Engineering and Technology, Tumakuru - 572106, Karnataka, India

Received: September 25, 2019 | Published: October 11, 2019

Citation: : Vinay SP, Udayabhanu, Nagaraju G, et al. Biomedical applications of Durio zibethinus extract mediated gold nanoparticles as antimicrobial, antioxidant and anticoagulant activity. Int J Biosen Bioelectron. 2019;5(4):150-155. DOI: 10.15406/ijbsbe.2019.05.00169

Download PDF


An eco-friendly and efficient method has been used for green synthesis of stable gold nanoparticles (Au NPs) using Durio zibethinus extract as a reducing and capping agent. The biologically produced nanoparticles were characterized by UV-Vis, XRD, SEM, EDAX and TEM analysis. The elemental composition of Au NPs was reported by EDAX spectral analysis. The bio-reduced Au NPs exhibited almost spherical. Increasing applications of NPs especially metallic nanoparticle plays an important role. Gold is one of the most useful metallic nanoparticles. Au NPs having unique physiochemical characteristics and wide usage in different field applications. Besides, antibacterial, antioxidant and anticoagulant properties of Au NPs were studied. It is proved that Au NPs synthesized using natural reducing agents (plant leaves, route, seeds, pulp, stem, etc.) are eco-friendly, inexpensive, have good anti-microbial activities against micro-organisms. This study established a synthesis of Au NPs using Durio zibethinus extract as a viable green route approach, with remarkable antimicrobial, antioxidant and anticoagulant activities. As far as we know, this is the first report of the use of Durio zibethinus extract to synthesize Au NPs.

Keywords: Durio zibethinus, gold nanoparticles, antimicrobial, antioxidant, anticoagulant


Nanotechnology is an innovative branch of science deals with the formation, processing, and applications of nanomaterials. Nanoscale metal oxide semiconductor materials have been widely used in research due to their distinctive properties.1 Efforts are being made to develop simple, nontoxic, biocompatible and eco-friendly nanomaterials through the green chemistry approach.2‒7 Different parts of plants are extensively exploited for the synthesis of various nanoparticles where the metal salt solution is mixed with plant extract with varying reaction conditions and stirred to reduce the metal, leading to nucleation and synthesis of respective metal nanoparticles.8‒10 Metal/Metal oxide nanoparticles Ag, Au, ZnO, MgO have good antibacterial activities. The study of the antioxidant property of nanoparticles has become one of the significant basic studies in pharmaceutical science and nanoscience.11‒14 An antioxidant is a compound that delays or prevents the oxidation of an oxidizible species. Oxidative stress was induced by ROS produced in the body, is one of the main factors of current slow killer diseases, that the population suffering from, like diabetes, cancer, cardiovascular neurological inflammatory viral diseases and digestive disorders.15 Durio zibethinus is the most common tree species in the genus Durio that are known as durian and has edible fruit also known as durian. Durio is exceptionally rich in polyphenols such as flavanol monomers and procyanidin oligomers. Besides phenolic compounds, other chemicals like methylxanthine and anthocyanins in Durio zibethinus might influence the anti-oxidant capacity.16 Polyphenols or phenolics have attracted the attention of researchers over the world because of their physical and biological functions, including antioxidant, anticarcinogenic, anti-allergic, antiatherogenic and antidiabetic assays. All these desirable biological potentials of the chemical components of Durio zibethinus motivated the current examination into its nano-biotechnological possible in green-chemistry. In this examination, we report for the first time the synthesis of Au NPs using Durio zibethinus seeds extract as a capping and reducing agents, as well as a demonstration of its anti-microbial, antioxidant and anti-coagulant assays.


Collection and processing and preparation of Durio zibethinus extract

Durio zibethinus seeds were extracted from fresh, methodically washed Durio fruits obtained from Bangalore Fruit market, Electronic City, Bengaluru, India. The Durio seeds were first washed into distilled water before air drying for 7 to 10 days at ambient temperature. They were later de-shelled and milled into powder with the aid of a mixer grinder (Figure 1). Durio seeds extract was obtained following the procedures of Vinay SP et al.17 and later the final clean dry extract which was stored at 4°C for further use.

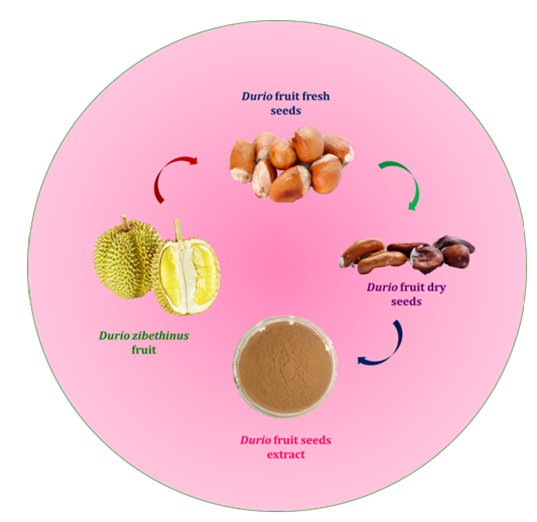

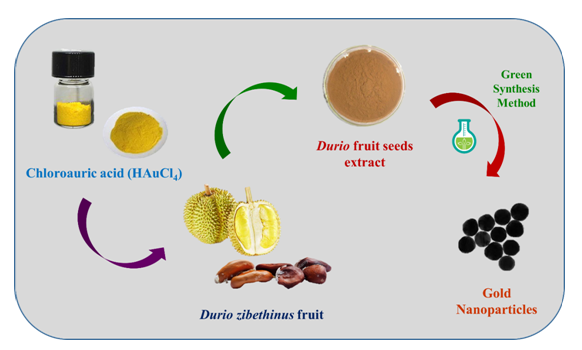

Figure 1 Schematic representation for the preparation of Durio zibethinus seeds extract for synthesis of Au NPs.

 Preparation of Au NPs

To synthesize Au NPs, 60mg of Durio zibethinus seeds extract was added to 90ml of 5mM Chloroauric acid (HAuCl4) at ambient temperature, stirred continuously for 1 h in magnetic stirrer to mix the metal precursor completely and kept for reflux with vigorous stirring at 97°C for 5 to 6h. The reaction mixture was allowed to under slow reduction into Au NPs for 24h to complete the bioreduction process (Figure 2). Further, the obtained solid material was purified by repeated centrifugation at 4000 rpm for 10min. Finally, the synthesized Au nanoparticles were dried in a hot air oven at 60°C 10 to 12h and stored in airtight vials.

Figure 2 Schematic representation for the synthesis of Au NPs.

Antibacterial assay

Antibacterial activity was screened against Gram -ve bacteria (P. desmolyticum) and Gram +ve bacteria (S. aureus) bacteria (NCIM- 5022) by disc diffusion method. Diverse concentrations of Au nanoparticles (1500 and 1000 µg/well) were used to assess the activity of the nanoparticles. Ciprofloxacin (5µg/50µL) was used standard and incubated these Petri plates at 37°C for 24h. These Petri plates the developed zone of inhibition of every disc was measured in millimeter.

Antioxidant activity

Antioxidant activity was carried out by 1,1-Diphenyle-2-picrylhydrazyl assay by the Brand Williams technique. DPPH is a stable free radical with purple color having an absorption maximum at 520nm. In the presence of an antioxidant which can donate an electron to DPPH radical for inhibiting the activity of DPPH molecule. This results in a change in absorbance at 520nm. The % inhibition was calculated by the equation IC50 value was determined by plotting the line at 50% inhibition (y-axis) to the concentration of the test sample (x-axis).

% Inhibition= Absorbance(control)-Absorbance(Test) Absorbance(control) x 100 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaacbaqcLbsaca WFLaaeaaaaaaaaa8qacaWFGcGaa8xsaiaa=5gacaWFObGaa8xAaiaa =jgacaWFPbGaa8hDaiaa=LgacaWFVbGaa8NBaiaa=1dajuaGdaWcaa GcbaqcLbsacaWFbbGaa8Nyaiaa=nhacaWFVbGaa8NCaiaa=jgacaWF HbGaa8NBaiaa=ngacaWFLbGaa8hkaiaa=ngacaWFVbGaa8NBaiaa=r hacaWFYbGaa83Baiaa=XgacaWFPaGaa8xlaiaa=feacaWFIbGaa83C aiaa=9gacaWFYbGaa8Nyaiaa=fgacaWFUbGaa83yaiaa=vgacaWFOa Gaa8hvaiaa=vgacaWFZbGaa8hDaiaa=LcaaOqaaKqzGeGaa8xqaiaa =jgacaWFZbGaa83Baiaa=jhacaWFIbGaa8xyaiaa=5gacaWFJbGaa8 xzaiaa=HcacaWFJbGaa83Baiaa=5gacaWF0bGaa8NCaiaa=9gacaWF SbGaa8xkaaaacaWF4bGccaGGGcqcLbsacaaIXaGaaGimaiaaicdaaa a@7948@ ...... (1)

Anticoagulant activity

The anticoagulant activity of Au NPs was investigated by mixing blood freely collected (goat and sheep blood) in meat stall near S.I.E.T college, donated (human blood) by a healthy volunteer (collected from S.I.E.T Medical college, Tumkur) with an equal volume of 170µg/ml of NPs. The control samples were set up using the EDTA solution. The reaction mixtures were held at ambient temperature (30±2°C) for 1h and then observed macroscopically on the slide, and microscopically for the formation of blood clots.

Results and discussion

XRD Study

Figure 3 Shows the XRD patterns of Au NPs. The XRD peak positions were consistent with the Au and sharp peaks of XRD indicate the crystalline structure. Intense peaks at 2θ=38°, 44°, 64° and 77° that could be indexed as (311), (220), (200) and (111) reflections, indicating the f.c.c. structure of Au nanoparticles.18 These are in good agreement with the standard JCPDS card No- 04-0784.

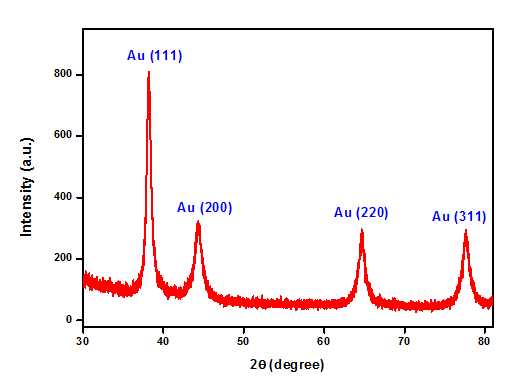

Figure 3 XRD spectrum of Au NPs.

UV-Vis spectroscopy

The study of absorption band with a peak shows in around 530-540nm discovered to SPR is exhibited. The gold nanoparticles absorption peak appeared the 538 nm this could be proved (Figure 4). The prepared gold nanoparticles had spherical morphology in nature.

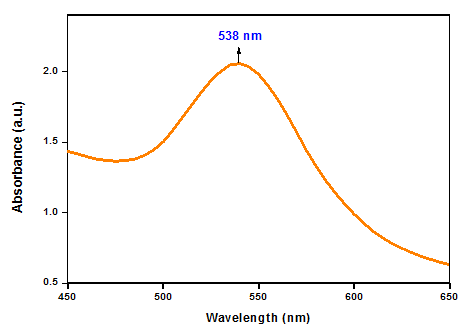

Figure 4 UV-Vis spectrum of Au NPs.

SEM and EDAX analysis

The SEM images of as-synthesized Au nanoparticles were shown in Figure 5A & 5B. The image reveals that Au NPs are uniform spherical like structures with agglomeration. The EDAX spectrum shows the presence of strong gold (Au) peaks indicating the purity of the synthesized material Figure 5C.19

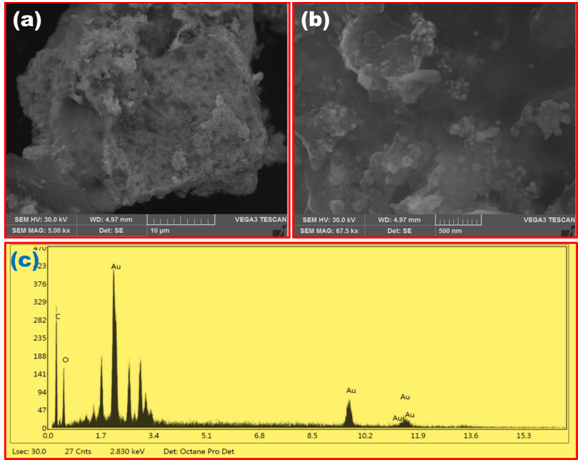

Figure 5 (A), (B) SEM images, (C) EDAX spectrum of Au NPs.

TEM analysis

The Au NPs were mostly spherical in shapes and ranged from 20-50nm with an average size of 35.71nm as shown in Figure 6.

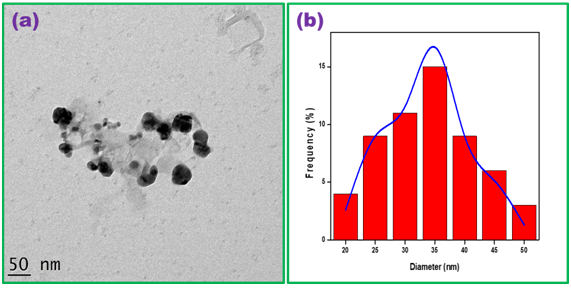

Figure 6 (A) TEM image, (B) Histogram spectrum of Au NPs.

Antibacterial activity

The anti-bacterial assay of Au nanoparticles was determined against human pathogenic bacteria comprising gram -ve bacteria (P. desmolyticum) and gram + ve bacteria (S. aureus), as shown in Figure 7. The dimensions of the zones of inhibition obtained with the pathogens are presented in Table 1.

Sl. No









Au NPs (1000 µg/mL)




Au NPs (1500 µg/mL)




Ciprofloxacin (5 µg/mL)



Values are the mean ± SE of inhibition zone in mm. NA Symbols represent no antibacterial activity was found in this work.

Table 1 Antibacterial activity of Au NPs against pathogenic bacteria

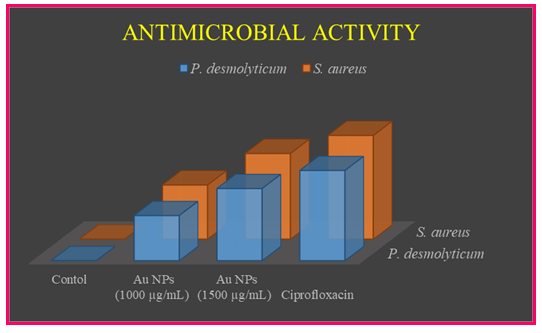

Figure 7 Bar diagram of inhibition zone of antibacterial activity of Au NPs.

Antioxidant activity

DPPH a stable free radical with a characteristic absorption at 517 to 520nm, was used to study the radical scavenging activity of Au NPs. The decrease in absorption is considered as a measure of the extent of radical scavenging. The percentage of inhibition or scavenging of free radicals was determined. The Au NPs were inhibiting the DPPH free radical scavenging activity with IC50 value of 370µg/mL (Figure 8).

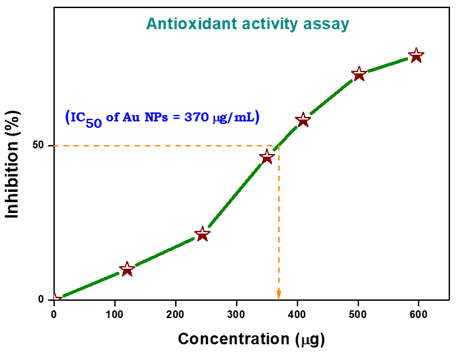

Figure 8 Percentage inhibition of DPPH radical.

Anticoagulant Assay

The Au nanoparticles prevented the coagulation of human (92.1 %), goat (87.5 %) and sheep (82.9 %) type of blood in vitro (Figures 911), and remained essentially the morphology of RBCs as obtained in the fresh blood and that which was collected in the EDTA coated bottles.20 The control samples treated with Durio zibethinus seeds extract and HAuCl4 solution failed to prevent the coagulation of blood. Additionally, a current study by Musibau et al.21 reported the upgrading of anticoagulant activities of Ag NPs bio-synthesized by the Cocoa bean extract. The increasing evidence suggests that MNPs may have a possible application in the control and management of blood coagulation disorders.

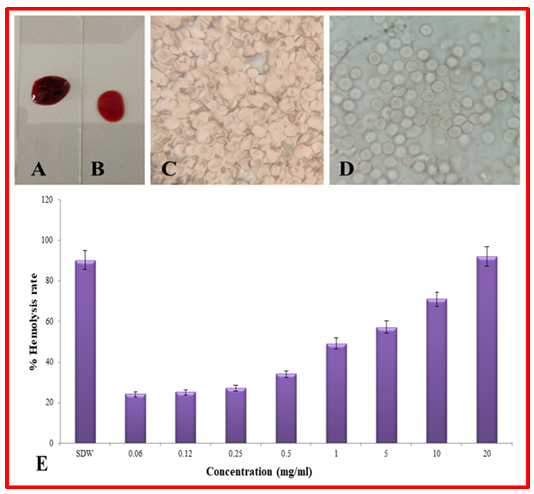

Figure 9 Au NPs stability and coagulant activity on Human blood. (A) Blood clot, (B) Blood treated with Au NPs, (C) Optical microscopy image of blood clot, (D) Optical microscopy image of blood treated with Au NPs, (E) Au NPs stability.

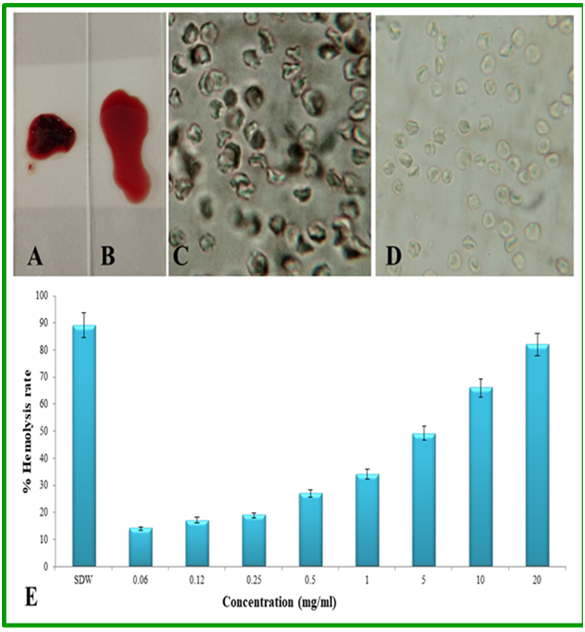

Figure 10 Au NPs stability and coagulant activity on Goat blood. (A) Blood clot, (B) Blood treated with Au NPs, (C) Optical microscopy image of blood clot, (D) Optical microscopy image of blood treated with Au NPs, (E) Au NPs stability.

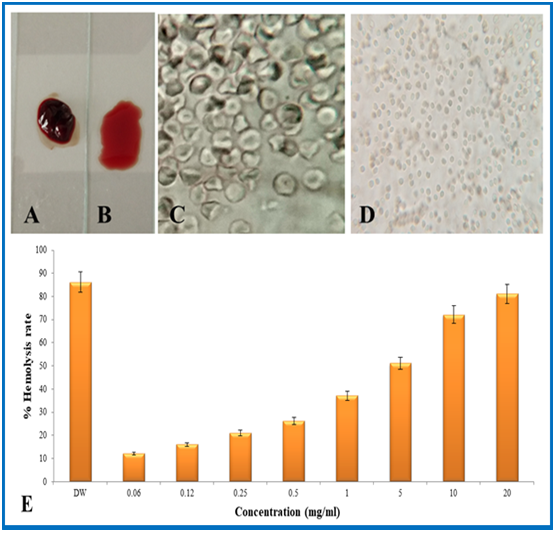

Figure 11 Au NPs stability and coagulant activity on Sheep blood. (A) Blood clot, (B) Blood treated with Au NPs, (C) Optical microscopy image of blood clot, (D) Optical microscopy image of blood treated with Au NPs, (E) Au NPs stability.


In the present work, the green synthesis method was employed to obtain Au NPs from the assistance of Durio zibethinus seeds extract as a reducing agent and capping agent. UV-Vis, XRD, SEM, EDAX and TEM techniques were utilized to characterize the as-synthesized nanoparticles. SEM and TEM images reveal that nanoparticles possess spherical. The average nanoparticles size was found to be 35nm. Au NPs exhibited important anti-bacterial assay against gram +ve and gram -ve bacterial strains. Au NPs exhibited outstanding antioxidant and anticoagulant activities. Overall, the green synthesized Au NPs will be useful in the biomedical and materials industries.


Udayabhanu thanks to CSIR, New Delhi, for Senior Research Fellowship (09/1204(0001)/2018-EMR-1). Dr. Chandrasekhar and Vinay thank Dr. M R Hulinaykar, Managing Trustee, Sri Shridevi Charitable Trust, and Shridevi Institute of Engineering and Technology for encouragement and support for research work. Dr. GN Thank DST Nanomission (SR/NM/NS1262/2013) for financial support.

Conflict of interest

The authors declare that they have no conflict of interest.
