EGFR, epidermal growth factor receptor; TKIs, tyrosine kinase inhibitors; PFS, progression-free survival

Lung adenocarcinoma patients whose tumors harbor activating mutations of the Epidermal Growth Factor Receptor (EGFR) gene can benefit from treatment with small-molecule EGFR tyrosine kinase inhibitors (TKIs) like gefitinib and erlotinib. In-frame deletions in exon 19 (usually 15 or 18bp) and the exon21 point mutation Leu858Arg account for approximately 90% of EGFR mutations.1 These specific types of mutations have been shown to confer increased sensitivity to TKI treatment in multiple studies, leading to higher response rates and longer progression-free survival (PFS) compared to standard chemotherapy.2–4 The clinical implications of EGFR TKI treatment for other very rare EGFR mutations are less clear. Since the frequency of these mutations is so low the sensitivity to TKI treatment cannot be tested in controlled trials and therefore there was a recent encouragement in the Journal of Thoracic Oncology to submit data concerning clinical response to TKI treatment on individual case basis.5 Here, we present a case of a novel EGFR exon21 point mutation combined with a common activating KRAS mutation, and two cases of rare EGFR exon19 deletions.

Case 1

A 57-year-old white male smoker (number of pack years unclear) with a history of peripheral vascular disease and alcohol abuse presented in September 2013 with stage IV (cT2aNoM1b) lung adenocarcinoma. There were pleural, osseous, and cerebellar metastases. EGFR/KRAS mutation analysis was performed by Sanger sequencing on a biopsy of the iliac bone. This revealed a novel EGFR exon 21 missense mutation c.2621G>A (p.Gly874Asp), combined with a KRAS exon 2 missense mutation c. 34G>T (p.Gly12Cys).

First-line chemotherapy with cisplatin/pemetrexed was started. There was disease progression after two rounds of chemotherapy and second-line treatment with gefitinib 250 mg/day was started. After two months there was progression of the brain metastases, for which whole brain radiotherapy was given, combined with palliative radiotherapy on the hip. TKI treatment was interrupted for one week and continued after the radiotherapy. Chest X-rays showed stable disease of the primary tumor (maximal response 10% tumor shrinkage). After 5 months there was extensive disease progression with an increase in size of the primary tumor and multiple liver metastases. The therapy was changed to best supportive care and the patient died a few days later.

Case 2

A 66-year-old white female without relevant medical history and without a history of smoking presented in June 2014 with a tumor in the left upper lobe. Clinical workup showed cT1bN2M1b cancer (with one liver metastasis and multiple bone metastases). A diagnosis of metastatic pulmonary adenocarcinoma was confirmed in a liver biopsy. The tumor cells were positive for CK7 and TTF-1. EGFR/KRAS mutation analysis was performed by high resolution melting analysis (HRM) followed by Sanger sequencing. In EGFR exon 19 a deletion of nucleotides 2236 through 2251 and insertion of one nucleotide (T) was detected (c.2236_2251delinsT). This gives rise to replacement of amino acids 746 through 751 (Glu-Leu-Arg-Glu-Ala-Thr) by a Serine residue (p.Glu746_Thr751delinsSer). KRAS codons 12, 13, and 61 were wild type.

A treatment with erlotinib 150 mg/day was started in July 2014 and imaging in September 2014 showed partial response (Figure 1). In October 2014 a new metastasis in the liver was detected, which was treated with stereotactic radiotherapy in November 2014. Since the other lesions were stable, treatment with erlotinib was continued until there was progression of the primary tumor and liver metastases in February 2015 (Figure 1).

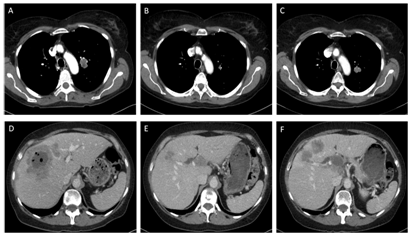

Figure 1 A-C Computed tomography images of the thorax of patient #2 showing an adenocarcinoma of the left hilar region of the lung before treatment with erlotinib (A), partial response after 3 months of erlotinib (B), and tumor progression after 7 months of erlotinib (C). D-F Computed tomography images of the liver of patient #2 showing an adenocarcinoma metastasis before treatment with erlotinib (D), partial response after 5 months of erlotinib (E), and tumor progression after 7 months of erlotinib (F).

Case 3

A 64-year-old white male with a history of heavy smoking until 2009 (90 pack years) and without other relevant medical history presented in May 2014 with a tumor in the right lower lobe. Clinical workup showed cT2aN2M1a metastatic cancer and the diagnosis of pulmonary adenocarcinoma was confirmed on a lung biopsy. The tumor cells were positive for CK7 and TTF-1. EGFR/KRAS mutation analysis was performed by HRM followed by Sanger sequencing. In EGFR exon 19 a deletion of nucleotides 2236 through 2253 and insertion of three nucleotides (ATT) was detected (c.2236_2253delinsATT). This gives rise to replacement of amino acids 746 through 751 (Glu-Leu-Arg-Glu-Ala-Thr) by an Isoleucine residue (p.Glu746_Thr751delinsIle). KRAS codons 12, 13, and 61 were wild type.

Treatment with gefitinib 250 mg/day was started in May 2014 together with talc pleurodesis and follow up imaging showed a partial response, still ongoing in November 2014. The most recent follow up in March 2015 showed stable disease and gefitinib treatment was continued.

EGFR mutation positive lung adenocarcinoma patients can benefit from TKI treatment, which not only leads to longer PFS compared to standard chemotherapy,^2-4 but also to improved quality of life.⁶ The relationship with these treatment outcomes, however, has only been firmly established for the most frequent types of EGFR mutations, while there is limited or no information concerning many rare mutations.

Here we describe two patients with lung adenocarcinomas harboring rare EGFR exon 19 deletion/insertion mutations, one of whom showed tumor progression after 3 months of erlotinib treatment, while the other patient has stable disease after 9 months of gefitinib treatment. The c.2236_2251delinsT mutation in patient #2 has been described once before, but this reported case was not treated with TKIs.⁷ The c.2236_2253delinsATT mutation in patient #3 has never been described at the DNA level, but six cases with the same mutation at the protein level (p.Glu746_Thr751delinsIle) have been described.^8-13 In three of these studies patients have been treated with TKIs. There is one case of a c.2235_2252delinsAAT mutation with partial response to TKI treatment (gefitinib or erlotinib not specified)¹³ and one case (not specified at the DNA level) with complete response to treatment with erlotinib.¹² In the third reported case (c.2236_2252delinsAT) it is unclear whether this patient was or was not treated with gefitinib, because the treatment is not specified per individual patient and not all patients in the study were treated with TKIs.¹⁰

EGFR and KRAS mutations are generally considered to be mutually exclusive,^14,15 although some reports of combined EGFR and KRAS mutations exist.^16-18 The association between activating mutations in codons 12 and 13 of KRAS and resistance to TKI treatment has been demonstrated in 2008.¹⁹ While combined EGFR and KRAS mutations are very rare, reports concerning TKI treatment of these patients are even rarer and the described response to treatment is variable, but at least in cases with an EGFR mutation that by itself is known to be responsive to TKIs, response has been described in patients with combined mutations.^16,18

In the case of patient #1, the EGFR mutation was novel and thus responsiveness to TKIs had not been reported. In this patient the primary tumor showed a short-lasting response (for a period of 5 months), but the brain metastases showed rapid progression (after 2 months already). This could be due to limited permeability of the blood brain barrier to TKIs²⁰ or to a difference in EGFR mutation status between tumor locations.^21,22 According to a publication by Jackman et al,²³ patients who experience progression of central nervous system lesions only should not be considered as having systemic acquired resistance to TKIs,²³ but the revised Response Evaluation Criteria in Solid Tumors (RECIST 1.1) do not make an exception for these cases when it comes to the definition of progressive disease. ²⁴

The three patients presented here show that the response to TKI treatment of tumors carrying rare EGFR mutations can be variable, as has also been reported by others .²⁵ Due to the very low frequency of rare EGFR mutations, it is not realistic that the response to TKI for these specific cases will be investigated using a randomized controlled trial. Instead we need to rely on reported case studies in the literature and entries in databases, such as the Catalogues of Somatic Mutations in Cancer (COSMIC) database.²⁶ For unknown or unreported mutational cases we can try to predict the response in silico by emerging bioinformatic approaches including functional predictive models such as Poly Phen²⁷ and SIFT,²⁸ but possibly better by models that predict specific 3D structures of EGFR mutant molecules and the effect on binding of gefitinib or erlotinib.^29,30

We retrospectively investigated the usefulness of this information for the three cases reported here (Table 1). For comparison, we also added the information regarding the well-known responsive Leu858Arg and resistant Thr790Met mutations. Unfortunately, for the novel EGFR mutation of patient #1 at codon 874 no data were yet available in the EGFR structural database.²⁹ For patient #2 the precise mutation was also not present in the database, but information regarding erlotinib binding efficiency was provided for a mutation that was closely related (p.Glu746_Thr751delinsSer). Based on the lower binding energy it was predicted to indicate a responsive mutation, similar to the Leu858Arg mutation. However, the patient only showed a limited partial response with a new liver metastasis within 2 months after starting with gefitinib treatment. As such, we believe that the binding energy data were not representative for the actual p.Glu747_Thr751delinsSer mutation in which the exon 19 deletion comprised one less amino acid. For patient #3 the observed mutation (p.Glu746_Thr751delinsIle) was present in the database with a relatively low binding energy (-42.2) indicating a mutant EGFR that is likely to respond to TKI . Indeed this patient showed stable disease for almost a year until the last follow-up in March 2015.

For the cases reported here it remained difficult to predict the response to TKI using in silico models and databases. However with the quickly developing field of bioinformatics and the great increase in available data of lung adenocarcinoma mutations this will likely improve in the future. For now we mostly need to rely on information in reported case studies and, importantly, on discussions between molecular biologists, pathologists, and clinicians to determine the best treatment strategy, including an active feedback from the clinic to the diagnostic department whether the patient responded to the selected treatment.

None.

The author declares no conflict of interest.

1.  Riely GJ, Politi KA, Miller VA. Update on epidermal growth factor receptor mutations in non-small cell lung cancer. Clin Cancer Res. 2006;12(24):7232–7241.
2.     Lynch TJ, Bell DW, Sordella R, et al. Activating mutations in the epidermal growth factor receptor underlying responsiveness of non-small-cell lung cancer to gefitinib. N Engl J Med. 2004;350(21):2129–2139.
3.     Rosell R, Carcereny E, Gervais R, et al. Erlotinib versus standard chemotherapy as first-line treatment for European patients with advanced EGFR mutation-positive non-small-cell lung cancer (EURTAC): a multicentre, open-label, randomised phase 3 trial. Lancet Oncol. 2012;13(3):239–246.
4.     Mitsudomi T, Morita S, Yatabe Y, et al. Gefitinib versus cisplatin plus docetaxel in patients with non-small-cell lung cancer harbouring mutations of the epidermal growth factor receptor (WJTOG3405): an open label, randomised phase 3 trial. Lancet Oncol. 2010;11(2):121–128.
5. Yatabe Y, Pao W, Jett JR. Encouragement to submit data of clinical response to EGFR-TKIs in patients with uncommon EGFR mutations. J Thorac Oncol. 2012;7(5):775–776.
6. Thongprasert S, Duffield E, Saijo N, et al. Health-related quality-of-life in a randomized phase III first-line study of gefitinib versus carboplatin/paclitaxel in clinically selected patients from Asia with advanced NSCLC (IPASS). J Thorac Oncol. 2011;6(11):1872–1880.
7.     Yoshida Y, Kokubu A, Suzuki K, et al. Molecular markers and changes of computed tomography appearance in lung adenocarcinoma with ground-glass opacity. Jpn J Clin Oncol. 2007;37(12):907–912.
8. Sonobe M, Manabe T, Wada H, et al. Mutations in the epidermal growth factor receptor gene are linked to smoking-independent, lung adenocarcinoma. Br J Cancer. 2005;93(3):355–363.
9. Murray S, Timotheadou E, Linardou H, et al. Mutations of the epidermal growth factor receptor tyrosine kinase domain and associations with clinicopathological features in non-small cell lung cancer patients. Lung Cancer. 2006;52(2):225–233.
10. Yamanaka S, Gu Z, Sato M, et al. siRNA targeting against EGFR, a promising candidate for a novel therapeutic application to lung adenocarcinoma. Pathobiology. 2008;75(1):2–8.
11. Simonetti S, Molina MA, Queralt C, et al. Detection of EGFR mutations with mutation-specific antibodies in stage IV non-small-cell lung cancer. J Transl Med. 2010;8:135.
12. Weber B, Sorensen BS, Knap MM, et al. Complete pathologic response in lung tumors in two patients with metastatic non-small cell lung cancer treated with erlotinib. J Thorac Oncol. 2011;6(11):1946–1949.
13.     Lee VH, Tin VP, Choy TS, et al. Association of exon 19 and 21 EGFR mutation patterns with treatment outcome after first-line tyrosine kinase inhibitor in metastatic non-small-cell lung cancer. J Thorac Oncol. 2013;8(9):1148–1155.
14.     Gao B, Sun Y, Zhang J, et al. Spectrum of LKB1, EGFR, and KRAS mutations in chinese lung adenocarcinomas. J Thorac Oncol. 2010;5(8):1130–1135.
15.     Marks JL, McLellan MD, Zakowski MF, et al. Mutational analysis of EGFR and related signaling pathway genes in lung adenocarcinomas identifies a novel somatic kinase domain mutation in FGFR4. PLoS One. 2007;2(5):e426.
16. Eberhard DA, Johnson BE, Amler LC, et al. Mutations in the epidermal growth factor receptor and in KRAS are predictive and prognostic indicators in patients with non-small-cell lung cancer treated with chemotherapy alone and in combination with erlotinib. J Clin Oncol. 2005;23(25):5900–5909.
17. Smits AJ, Kummer JA, Hinrichs JW, et al. EGFR and KRAS mutations in lung carcinomas in the Dutch population: increased EGFR mutation frequency in malignant pleural effusion of lung adenocarcinoma. Cell Oncol (Dordr). 2012;35(3):189–196.
18. Benesova L, Minarik M, Jancarikova D, et al. Multiplicity of EGFR and KRAS mutations in non-small cell lung cancer (NSCLC) patients treated with tyrosine kinase inhibitors. Anticancer Res. 2010;30(5):1667–1671.
19. Linardou H, Dahabreh IJ, Kanaloupiti D, et al. Assessment of somatic k-RAS mutations as a mechanism associated with resistance to EGFR-targeted agents: a systematic review and meta-analysis of studies in advanced non-small-cell lung cancer and metastatic colorectal cancer. Lancet Oncol. 2008;9(10):962–972.
20. Zhang J, Yu J, Sun X, et al. Epidermal growth factor receptor tyrosine kinase inhibitors in the treatment of central nerve system metastases from non-small cell lung cancer. Cancer Lett. 2014;351(1):6–12.
21. Gow CH, Chang YL, Hsu YC, et al. Comparison of epidermal growth factor receptor mutations between primary and corresponding metastatic tumors in tyrosine kinase inhibitor-naive non-small-cell lung cancer. Ann Oncol. 2009;20(4):696–702.
22. Schmid K, Oehl N, Wrba F, et al. EGFR/KRAS/BRAF mutations in primary lung adenocarcinomas and corresponding locoregional lymph node metastases. Clin Cancer Res. 2009;15(14):4554–4560.
23. Jackman D, Pao W, Riely GJ, et al. Clinical definition of acquired resistance to epidermal growth factor receptor tyrosine kinase inhibitors in non-small-cell lung cancer. J Clin Oncol. 2010;28(2):357–360.
24.     Eisenhauer EA, Therasse P, Bogaerts J, et al. New response evaluation criteria in solid tumours: revised RECIST guideline (version 1.1). Eur J Cancer. 2009;45(2):228–247.
25.     Yang JC, Sequist LV, Geater SL, et al. Clinical activity of afatinib in patients with advanced non-small-cell lung cancer harbouring uncommon EGFR mutations: a combined post-hoc analysis of LUX-Lung 2, LUX-Lung 3, and LUX-Lung 6. Lancet Oncol. 2015;16(7):830–838.
26. http: //cancer.sanger.ac.uk/cosmic
27. http: //genetics.bwh.harvard.edu/pph2/index.shtml
28. http://sift.jcvi.org/
29. Ma L, Wang DD, Huang Y, et al. EGFR Mutant Structural Database: computationally predicted 3D structures and the corresponding binding free energies with gefitinib and erlotinib. BMC Bioinformatics. 2015;16:85–94.
30. Wang DD, Zhou W, Yan H, et al. Personalized prediction of EGFR mutation-induced drug resistance in lung cancer. Sci Rep. 2013;3:2855–2863.
