Editorial Volume 1 Issue 1
RF-MEMS: a promising technology for future reconfigurable wireless systems
Mahesh Angira
Verify Captcha
Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.
Verify Captcha
Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.
Department of Electrical and Electronics Engineering, Bits Pilani, India
Correspondence: Mahesh Angira, Department of Electrical and Electronics Engineering, Bits Pilani-333031, India
Received: June 19, 2017 | Published: June 29, 2017
Citation: Angira M. RF-MEMS: a promising technology for future reconfigurable wireless systems. Electric Electron Tech Open Acc J. 2017;1(1):13-14. DOI: 10.15406/eetoaj.2017.01.00003
Editorial
In recent years, RF-MEMS have been identified as the most significant enabling technology in developing the reconfigurable wireless systems. New wireless standards are coming up which require replacement of bulky, expensive and off-chip passive RF components with RF-MEMS technology based devices having small size, high linearity, low power consumption and multi-band tunability.1,2 In general, the outstanding performance of the RF-MEMS is due to the air gap between the active elements and lossy substrate, use of high conductivity metals and integration compatibility with existing IC fabrication technologies. Figure 1 shows the schematic diagram of a multi-band wireless transceiver.3 The block diagram contains a good number of off-chip, High-Q components such as RF filters, including image rejection filters, tunable capacitors, High-Q inductors, resonators, tunable filters, oscillators, and switches for transmitter/receiver selection. Despite many years of research, RFIC technologies were not able to deliver the high performance and on chip solution for the above cited devices. RF-MEMS technology has paved the way for the development of these devices. In addition, RF-MEMS devices can be reconfigurable to the different wireless standards to be used and thus would be suitable for the multi-band operation.

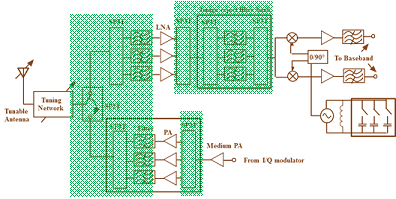

Figure 1 Block diagram of a multi-band wireless transceiver. The components in the colored blocks can be implemented through RF-MEMS Technology.
One of the most important components in any wireless transceiver is a switch. It consumes a significant part of the power budget. Switches are used to select the electrical signal, e.g. the incoming and the outgoing signal of an antenna, or to reconfigure a sub-system. Typical applications include the switching of filter banks, tuning of filters, switching of delay lines in phase-shifters, impedance matching, switch matrix and in reconfigurable antenna. RF MEMS SPST switches consume virtually zero dc power consumption and have excellent RF performance. RF-MEMS SPST also serves as the building block for SPDT and more complex SPNTs. The multi-band reconfigurable SPST, SPDT and SPNTs has been presented in the literature.4-7 Furthermore, reconfigurable phase shifters, true time delay lines for electronically steered antennas, High-Q variable inductors and capacitors, tunable filters have also been demonstrated through the RF-MEMS technology.1,3,8,9 In future, integration of RF-MEMS technology with solid state technology can lead to develop a high performance single chip reconfigurable wireless transceiver.
Acknowledgements
None.
Conflict of interest
The author declares no conflict of interest.
References
- Rebeiz GM. RF MEMS: theory, design, and technology. 1st edition. New York: John Wiley & Sons; 2004.
- Rangra K, Margesin B, Lorenzelli L, et al. Symmetric toggle switch-a new type of rf MEMS switch for telecommunication applications: Design and fabrication. Sensors and Actuators A: Physical. 2005;123:505–514.
- Entesari K. Development of High Performance 6-18 GHz Tunable/Switchable RF MEMS Filters and Their System Implications. PhD Thesis, University of Michigan, USA; 2006.
- Angira M, Sundaram GM, Rangra K. Performance improvement of a Reconfigurable Series-Shunt Switch via asymmetric structure based RF-MEMS capacitive switch. International Journal of Advances in Engineering Sciences and Applied Mathematics. 2015;7(4):198–203.
- Angira M, Rangra K. Performance improvement of RF-MEMS capacitive switch via asymmetric structure design. Microsystem Technologies. 2015;21(7):1447–1452.
- Angira M, Sundaram G, Rangra K. A Novel Approach for Low Insertion Loss, Multi-band, Capacitive Shunt RF-MEMS Switch. Wireless Personal Communications. 2015;83(3):2289–2301.
- Stehle A, Georgiev G, Ziegler V, et al. Broadband single-pole multithrow RF-MEMS switches for Ka-band. Proc Microwave Conference. 2009;1–4.
- Vorobyov A, Sauleau R, Fourn E, et al. MEMS based waveguide phase shifters for phased arrays in automotive radar applications. Proc European Conference on Antennas and Propagation. 2011;2087–2090.
- Van Caekenberghe K, Vaha-Heikkila T. An analog RF MEMS slotline true-time-delay phase shifter. IEEE Trans. 2008;2151–2160.
