Squamous cell carcinoma of the bladder. a comparison of pathological features and survival outcomes with transitional cell carcinoma of the bladder

Simon Robinson,1 Ailsa R Butler,2 Rajesh Midha,3 Haytham Sharif4

1Department of Urology Frimley Health Foundation Trust UK
2Nuffield Department of Primary Care Health Sciences, University of Oxford, Oxford, UK
3Department of Urology, Frimley Health Foundation Trust, UK
4Department of Pathology, Frimley Health Foundation Trust, UK

Correspondence: Simon Robinson, FRCS London, Department of Urology Frimley Health Foundation Trust UK

Received: August 04, 2021 | Published: January 17, 2022

Citation: Robinson S, Butler AR, Midha R, et al. Squamous cell carcinoma of the bladder. a comparison of pathological features and survival outcomes with transitional cell carcinoma of the bladder. Urol Nephrol Open Access J. 2022;10(1):1-4. DOI: 10.15406/unoaj.2022.10.00314

Download PDF

Abstract

Objective: To directly compare differences in outcomes and tumour pathology between transitional cell carcinoma of the bladder (TCC) and non-bilharzial squamous cell cancer (NBSCC) of the bladder following radial cystectomy.

Abbreviations

TCC, cell carcinoma of the bladder; NBSCC, non-bilharzial squamous cell cancer; PFM, progression free mortality; DSM, disease specific mortality; ACM, al cause mortality

Introduction

Bladder cancer is the most common cancer of the urinary tract1 mostly consisting of TCC. 2-5% are SCC hence less is known about this subtype. SCC is formed of two varieties, the most common worldwide is bilharzia related SCC and the lower incidence type of NBSCC2 which is more common in the west and the USA and forms the basis of this article. NBSCC is usually associated with long term catheter use and spinal cord injury in addition to smoking.3,4 They are generally diagnosed at an advanced stage 93% of cases,8 and this appears to be the reason why they are associated with a poor prognosis and an all cause mortality (ACM) of 7-50%3,5 37%6 48%7 2%.8 The grade is less important to prognosis and NBSCC is associated with a greater incidence of intermediate and low grade tumours. Lymph node status and vascular density also influence aggressiveness. Treatment has not been definitively ascertained.

It is treated with radical cystectomy as the gold standard. The use of other modalities such as radiotherapy, chemotherapy and immunotherapy have not been well established either alone or in combination.9

We show in our series that there are many unusual features of this tumour. We directly compare the two types of tumour and their outcomes following radical cystectomy.

Methods

A search of PubMed database was performed using search terms of radical cystectomy, squamous cell carcinoma bladder and outcomes. 28 references were sourced.

Study population was 258 patients who underwent radical cystectomy performed by one surgeon only and were followed over 18 years. Patient information was accessed from ICE (clinical information), IQutopia (operative information) and carestream radiology (staging). 230 had transitional cell cancer and 16 had squamous cell cancer on final histology.

A dedicated bladder pathologist reported the cases. Statistical analysis was calculated using Medcalc and Excel statistical packages. Kaplan Meier curves are generated and P values estimated for significant differences between the two cohorts. Patient demographics and tumour characteristics clinical, pathological and radiological are compared and statistical tests performed.

Tumour volume is rarely documented by pathologists despite being an important prognostic indicator. Usually on length and width of tumour are reported. In order to approximate the tumour depth dimension we proposed using half the width. Thus we approximated the volume using the ellipsoid formula of pi/2 x length x width and assuming depth to be 0.5 of width. The error introduced is not ideal but it is systematic and approximates the true volume and any significant differences will still be revealed regardless if they are under or overestimated.

Results & discussion

Table 1 Patient, tumour features and outcomes.



16 Squamous cell

230 Transition cell

P value fishers and t

Private

3

32

0.7

Male/female

11-May

185/45

0.03

Age

67

68

0.58

Neobladder

2

51

0.37

Grade High

8

213

0.0001

Intermediate

6

17

0.0021

Low

2

0

0.0045

Tumour volume cc

101

14

0.019

Positive surgical margins

6/16 (38%)

21/230 (9%)

0.0052

Localised/locally advanced

3/13 (19%)

140/90 (61%)

0.0006

CIS

6

105

0.45

Node positive patients

4

51

1

Number of nodes positive (total number of nodes)

13

128



Node harvest

214

2299



Node density

0.06

0.055

0.75

Extracapsular extension

2

22



Proportion of ECE

2/13 = 0.15

22/128 = 0.17

1

Prostate cancer

2/5 =0.4

83/185 = 0.45

0.69

Complications

4

59

1

Additional treatment (neo-adjuvant, adjuvant chemotherapy, radiotherapy)

2

44

0.76

Progression free survival at 5 years

0.63

0.76

0.046

Disease specific survival at 5 years

0.5

0.71

0.0037

All cause survival at 5 years

0.13

0.61

0.0001

Number of disease specific deaths

8 (50%)

80 (35%)

0.31

Number of all cause deaths

14 (88%)

113 (49%)

0.01

Table 1 Patient, tumour features and outcomes

Epidemiology

In the west NBSCC is the predominant subtype with a poor outcome.2 SCC is quoted as accounting for only 1% of bladder cancer in UK. Our series is composed of 6% NBSCC. Patients are usually diagnosed in the seventh decade with a slight male predominance.10 We have noted a number of differences between the two categories of SCC and TCC. Our series showed a predominance of women 69% with SCC which is contrary to most bladder cancer series with 19% TCC being women. Both cohorts are of a similar age 67-68 years old. NBSCC is associated with neurogenic bladder and chronic irritation from catheter use, BOO and urine stasis.3,11 Smoking is a well recognised risk factor for both TCC and SCC of the bladder. Bladder irritation, UTI and chronic inflammation all contribute to an environment generating cytokines and growth factors predisposing to cell proliferation, migration, angiogenesis and inhibition of apoptosis, in turn leading to squamous metaplasia, dysplasia and cancer.12,13,14 The relation with HPV is controversial and unclear.15

Clinical and pathological features

Haematuria is the most common presentation although storage symptoms can occur. Along with pelvic pain, back pain and hydronephrosis. SCC is an epithelial neoplasm showing squamous pearls, intercellular bridges and keratohyalin granules. Pure SCC does not contain urothelial elements.16

Cystoscopically the tumour is large and solitary with associated leukoplakia and can be anywhere within the bladder. They are rarely superficial (Ta/T1). T3 invasion into perivesical fat is the most common stage representing 60% of the cases.18,25 Our series had 81% locally advanced T3 and T4.

The SEER database also showed the grade to have significant amounts of intermediate and low grade tumours.25 This unusual feature was replicated with our experience showing 50% with non high grade SCC as opposed to only 7% with TCC. 8 cases were low (2 cases) or intermediate (6 cases) grade SCC.

SCC also has low rates of lymphovascular invasion and nodal metastasis only18%.26 There was no significant difference in node positivity or extracapsular extension of tumour within the nodes. There was no difference in the rates of carcinoma in situ between the two cohorts. Neither was there a significant difference in rates of coincidental prostate cancer, neo-bladder, complications or additional treatments.

Prognostic and survival outcomes

Prognosis is related to stage, grade, LVI, nodal involvement and insurance status.7,8,26,22 Stage 3 and 4 disease progression is more rapid than TCC. The SEER data shows both a worse all cause and disease specific mortality for SCC.27 Our findings strongly support the idea of worse outcomes with SCC at five years and indeed at longer follow up. Other studies have shown overall survival is equivalent according to a Canadian study.24 The cause appears to be the relatively massive size of the NBSCC. Our tumour mass is 101cc compared to a TCC mass of only 14cc. This very large volume eclipses all other types of tumour volumes.24,25 This in turn leads to an advanced stage with only 19% localised (T1/T2) to bladder in NBSCC compared with 61% localised in TCC. Similarly the positive surgical margin rate is 38% in NBSCC compared to only 9% in TCC.

The worse prognosis is due to the more advanced stage and the presence of positive margins which outweigh the protective effect of lower grade. Both long-term survivors in SCC cohort had high grade tumours. Interestingly, we do not see any greater lymph node involvement. These are the probable reasons for the poorer prognosis of NBSCC. 90% of mortality is related to local recurrence at either urethral or ureteric anastomosis. Distant metastasis is uncommon.2 Death is due to obstruction and renal failure.26 Molecular analysis may also contribute and Fibroblast growth factor 2 overexpression and cyclooxygenase 2 alterations are indeed associated with worse outcomes.15 There is little in the way of high quality level 1 prospective studies regarding treatment options. Radical cystectomy, lymphadenectomy and urinary diversion is the gold standard.2,18,27 A five year survival of 48% has been reported7 but subsequent analysis showed it to be lower. Far lower survival has been reported elsewhere.8 Most series report on bilharzial squamous cancer and studies solely reporting non bilharzial squamous cancer are in the minority.28

Tumour volume

The tumour presents as bulky locally advanced disease and is unsuitable for partial cystectomy. The tumour is very large and significantly larger with a mean volume of 101cc compared to 14cc with TCC and other histologies including sarcoma25 and smallcell cancer.24 It may be that we have underestimated or overestimated the tumour volume using our ellipsoid method, but the difference still remains and is extremely significant statistically and clinically. There was, however, no significant difference between tumour volume of high grade SCC (101cc) compared to medium and low grade SCC (111cc). Only 19% of SCC were localised (T1 or T2) compared to 61% for TCC. 81% of SCC were locally advanced (T3 or T4).

The worse prognosis is due to the greater stage and the presence of positive margins which outweigh the protective effect of lower grade. Both long-term survivors in SCC cohort had high grade tumours. 38% of SCC had positive surgical margins compared to only 9% of TCC. Interestingly, we do not see any greater lymph node involvement.

The effects of greater stage and positive margins translate to worse outcomes in all 3 parameters of progression free mortality, disease specific and all cause mortalities. We see an earlier tendency to progression (Graph 1 40% at 5 years local recurrence or distant metastasis) for SCC compared to only 24% for TCC. There is a higher disease specific mortality of 50% (Graph 2) for SCC compared to only 29% for TCC at 5 years. However, there is a far higher all cause mortality of 81% at 5 years (Graph 3) with SCC compared to 39% for TCC. Although the figures are given for 5 years of follow up, the patients were followed up for a total of 160 months or 13 years with no significant change beyond the 5 year period (Graph 4).

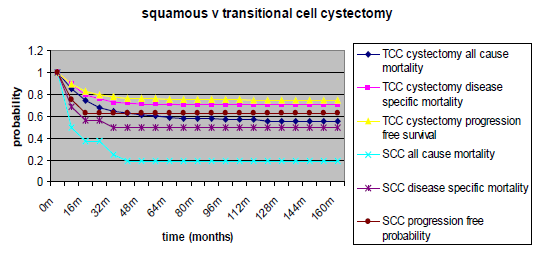

Graph 1

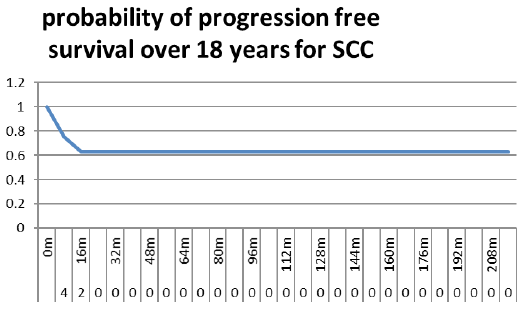

Graph 2

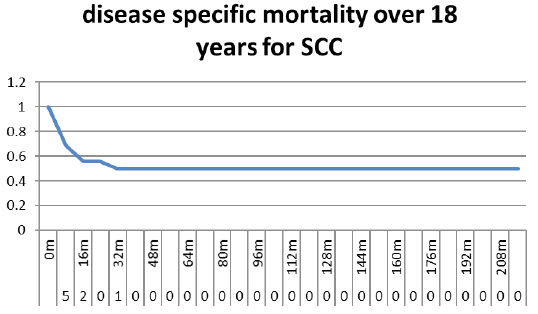

Graph 3

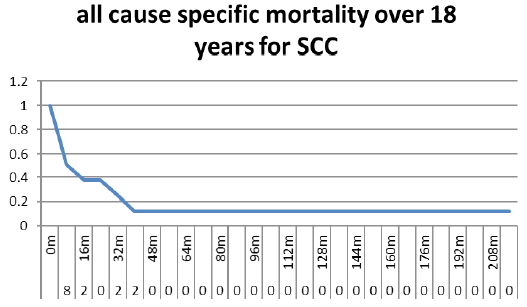

Graph 4

Prevention

Early detection is key and avoidance of chronic infection, long term catheters and smoking should be avoided if at all possible.

Criticisms

We did not look at LVI, infection history, cord injury. Tumour volume depth was approximated. However the same systematic error is maintained throughout, so the comparison remains pertinent. This study has a relatively small number of patients but the differences were extremely significant and therefore of some value.

Strengths

The same surgeon and pathologist were used throughout and this removes potential subjective biases. One geographical area eliminates national differences that may obfuscate. The use of tumour volume is highlighted as a useful parameter in prognosis and behaviour clinically. This has not been emphasised before and its inclusion is useful for prognosis, in addition the estimation of volume is acceptable even if only a length and width are given.

Conclusion

The patients with NBSCC have very large tumours that are significantly locally advanced with positive surgical margins. The tumour volumes are of a similar size amongst the range of grades in SCC. The SCC have a much greater proportion of low and moderate grade tumours. There is a greater progression free, disease specific and all cause mortality for SCC. Low and medium grade SCC does not confer a survival advantage, the effect of great volume, advanced stage and PSM being more powerful determinants of prognosis. It may be that advances in radiotherapy, neo-adjuvant and adjuvant chemotherapy along with immune treatments may improve prognosis.

Acknowledgments

None.

Conflicts of interest

The author declares there is no conflict of interest.

References

  1. Siegel RL, Miller KD, Jemal A. Cancer Statistics. CA: A cancer Journal of Clinicians. 2016;66(1):7–30.
  2. Abol-Enein H, Kava BR, Carmack AJ. Nonurothelial cancer of the bladder. Urology. 2007;69(1 Suppl):93–104.
  3. Shokeir AA. Squamous cell carcinoma of the bladder: pathology, diagnosis and treatment. BJU Int. 2004;93(2):216–220.
  4. Kalisvaart JF, Katsumi HK, Ronningen LD, et al. Bladder cancer in spinal cord injury patients. Spinal Cord. 2010;48(3):257–261.
  5. Manunta A, Vincendeau S, Kiriakou G, et al. Non-transitional cell bladder carcinomas. BJU Int. 2005;95(4):497–502.
  6. Faysal MH. Squamous cell carcinoma of the bladder. J Urol. 1981;126(5):598–599.
  7. Richie JP, Waisman J, Skinner DG, et al. Squamous carcinoma of the bladder: treatment by radical cystectomy. J Urol. 1976;115(6):670–672.
  8. Rundle JS, Hart AJ, McGeorge A, et al. Squamous cell carcinoma of bladder. A review of 114 patients. Br J Urol. 1982;54(5):522–526.
  9. Martin JW, Carballido EM, Ahmed A, et al. Squamous cell carcinoma of the urinary bladder: Systematic review of clinical characteristics and therapeutic approaches. Arab J Urol. 2016;14(3):183–191.
  10. Porter MP, Voigt LF, Penson DF, et al. Racial variation in the incidence of squamous cell carcinoma of the bladder in the United States. J Urol. 2002;168(5):1960–1963.
  11. Navon JD, Soliman H, Khonsari F, et al. Screening cystoscopy and survival of spinal cord injured patients with squamous cell cancer of the bladder. J Urol. 1997;157(6):2109–2111.
  12. Youssef R, Kapur P, Kabbani W, et al. Bilharzial vs non-bilharzial related bladder cancer: pathological characteristics and value of cyclooxygenase-2 expression. BJU Int. 2011;108(1):31–37.
  13. Rausch S, Lotan Y, Youssef RF. Squamous cell carcinogenesis and squamous cell carcinoma of the urinary bladder: a contemporary review with focus on nonbilharzial squamous cell carcinoma. Urol Oncol. 2014;32(1):32.e11–e16.
  14. Khan MS, Thornhill JA, Gaffney E, et al. Keratinising squamous metaplasia of the bladder: natural history and rationalization of management based on review of 54 years experience. Eur Urol. 2002;42(5):469–474.
  15. Shaker OG, Hammam OA, Wishahi MM. Is there a correlation between HPV and urinary bladder carcinoma? Biomed Pharmacother. 2013;67(3):183–191.
  16. Izard JP, Siemens DR, Mackillop WJ, et al. Outcomes of squamous histology in bladder cancer: a population-based study. Urol Oncol. 2015;33(10):425.e7–13.
  17. Lagwinski N, Thomas A, Stephenson AJ, et al. Squamous cell carcinoma of the bladder: a clinicopathologic analysis of 45 cases. Am J Surg Pathol. 2007;31(12):1777–1787.
  18. Abdollah F, Sun M, Jeldres C, et al. Survival after radical cystectomy of non-bilharzial squamous cell carcinoma vs urothelial carcinoma: a competing-risks analysis. BJU Int. 2012;109(4):564–569.
  19. Spradling K, Abol-Enein H, Mosbah A, et al. PD41-07 prognostic significance of lympho-vascular invasion in patients with squamous cell carcinoma in comparison to urothelial carcinoma of the bladder. Journal of Urology Bladder Cancer: Staging. 2015.
  20. Ghoneim MA, el-Mekresh MM, el-Baz MA, et al. Radical cystectomy for carcinoma of the bladder: critical evaluation of the results in 1,026 cases. J Urol. 1997;158(2):393–399.
  21. Ghoneim MA, Abdel-Latif M, el-Mekresh M, et al. Radical cystectomy for carcinoma of the bladder: 2,720 consecutive cases 5 years later. J Urol. 2008;180(1):121–127.
  22. Robinson S, Butler AR, Motiwala H. Private Health Insurance is a Favourable Prognostic Risk Factor in the Outcomes of Mortality Post Radical Cystectomy. ARC Journal of Nephrology. 2020;5(1):28–37.
  23. Scosyrev E, Noyes K, Feng C, et al. Sex and racial differences in bladder cancer presentation and mortality in the US. Cancer. 2009;115(1):68–74.
  24. Robinson S, Butler AR, Motiwala H. The Outcomes of Patients Undergoing Radical Cystectomy for Small Cell Bladder Cancer (SCBC): A Single Centre Experience. ARC Journal of Nephrology. 2019;4(1):1–6.
  25. Robinson SP, Farooq A, Laniado M, et al. The demographic features, clinical outcomes, prognosis and treatment options for patients with sarcomatoid carcinoma of the urinary bladder: a single centre experience. Int Braz J Urol. 2018;44(1):45–52.
  26. Kassouf W, Spiess PE, Siefker-Radtke A, et al. Outcome and patterns of recurrence of nonbilharzial pure squamous cell carcinoma of the bladder: a contemporary review of The University of Texas M D Anderson Cancer Center experience. 2007;110(4):764–769.
  27. Serretta V, Pomara G, Piazza F, et al. Pure squamous cell carcinoma of the bladder in western countries. Report on 19 consecutive cases. Eur Urol. 2000;37(1):85–89.
  28. Jeremy W Martin, Estrella M Carballido, Ahmed Ahmed, et al. Squamous cell carcinoma of the urinary bladder: Systematic review of clinical characteristics and therapeutic approaches. Arab J Urol. 2016;14(3):183–191.
