Bone health risk assessment in a clinical setting: an evaluation of a new screening tool for active populations

Nicola Keay,1 Gavin Francis,2 Karen Hind3

1Division of Medicine, University College London, United Kingdom
2Science4Peformance, United Kingdom
3Department of Sport and Exercise Sciences, Durham University, United Kingdom

Correspondence: Nicola Keay, Division of Medicine, University College London, United Kingdom

Received: October 29, 2022 | Published: November 10, 2022

Citation: Keay N, Francis G, Hind K. Bone health risk assessment in a clinical setting: an evaluation of a new screening tool for active populations. MOJ Sports Med. 2022;5(3):84-88. DOI: 10.15406/mojsm.2022.05.00125

Download PDF


Introduction: Risk factors for poor bone health are not restricted to older, sedentary populations for whom current screening is focused. Furthermore, access to dual X-ray absorptiometry scanning can be limited in clinical practice. The purpose of the current study was to develop a bone health-screening tool suitable for inclusion of both younger and active populations, combined with assessing bone health with radiofrequency echographic multi spectrometry technology (REMS).

Methodology: Participants (n=88) attending a physiotherapy clinic in the UK was recruited to the study: 71 women (mean age 41.5 SD 14.0 years); 17 men (mean age 40.2 SD 14.9 years). Participants completed an online bone health-screening questionnaire developed specifically for this study covering a range of lifestyle, physiological factors, combined with medical interview and received bone mineral density (BMD) measurement at the lumbar spine and femoral neck using REMS.

Results: Scoring of the bone health-screening questionnaire produced a distribution of bone health scores, with lower scores suggesting a higher risk for poor bone health. In women, scores ranged from -10 to +12, mean score 2.2 (SD 4.8). In men, scores ranged from 0 to 12, mean score 6.9 (SD 3.2). A positive correlation was observed between the bone health score derived from the questionnaire and lumbar spine and femoral neck BMD Z-scores (p<0.01).

Conclusions: This new and comprehensive bone health-screening questionnaire with interview was effective in identifying active individuals at risk of bone fragility, who might be missed by current screening methods. The use of REMS technology to measure bone health was feasible in the clinical setting.

Keywords: bone health, risk, screening, radiofrequency echographic multi spectrometry (REMS)


Deficits in skeletal health can arise as part of the ageing process, for example during and after menopause in women.1 Lifestyle factors can also contribute to impaired bone health, such as a lack of weight bearing exercise.2 Conversely, high exercise training loads can result in a low energy availability state and the clinical consequences of relative energy deficiency in sport (RED-S),3 which include adverse effects on bone health. Suboptimal bone health increases the risk of bone stress injuries in these exercisers, including stress fractures4 and complete fractures.5 These types of bone injuries have consequences in terms of morbidity and athletic performance, as well as mortality in the older population.1 Therefore, early identification of those with impaired bone health is crucial.

The Fracture Risk Assessment Tool FRAX® questionnaire is an effective tool for the identification of adults aged >40 years, at high risk of fragility fracture.6 In exercising populations, a validated screening questionnaire has been developed for male cyclists at risk of low bone density7 but there is currently no screening tool for the active, general population. Bone mineral density (BMD) is a marker of bone strength and is commonly measured using dual-energy X-ray absorptiometry (DXA) in accordance with the World Health Organisation (WHO) guidelines for the assessment of osteoporosis8 and can be combined with the clinical information collected in the FRAX® questionnaire. It has been suggested by the WHO that further areas of research are required to inform on risk prediction, including considering other risk factors and methods of assessing poor bone health.8 There is also a lack of screening tools for populations younger than 40 years and for active populations, who may be at risk of impaired bone health. Radiofrequency Echographic Multi Spectrometry (REMS)9 technology has recently been introduced for the assessment of bone strength in adults, and unlike DXA, does not involve ionising radiation, making it particularly useful for screening purposes. In clinical validation studies, REMS has been shown to have good level of accuracy and precision, in addition to significant agreement with DXA in a multicentre trial involving 1,914 females.10

From this trial, the REMS intra-operator precision, expressed as root mean-square coefficient of variation (RMS-CV) was 0.38% (95% confidence interval: 0.28–0.48%) for lumbar spine and 0.32% (0.24–0.40%) for femoral neck. The corresponding least significant change for the 95% confidence level, calculated via the ISCD precision calculator (available at, was 1.05% for lumbar spine and 0.88% for femoral neck.11 The objective of the current study was to explore the effectiveness of a new bone health-screening tool with clinical interview, developed for the identification of active individuals at risk of poor bone health. Together with evaluation of the practicality of REMS for bone strength assessment in this population, in the clinical setting.

Material and methods


This was a prospective study and participants (n=88) were recruited from clients attending a private physiotherapy clinic in Bath, United Kingdom. The physiotherapy clinic provides physiotherapy, strength and conditioning programmes and clinical input for a range of conditions, including those exercisers with suspected low energy availability. Invitation for participants was also disseminated through contacts in the vicinity such as university, sport clubs and healthcare providers referring to the physiotherapy practice. The inclusion criteria were males and females over the age of 20. Exclusion criteria were pregnancy, resulting in exclusion of one potential participant. No compensation was offered to participants. The study was approved by the university research ethics committee and all participants provided informed consent prior to taking part.

Bone health screening questionnaire

All participants completed the bone health questionnaire (supplementary file 1). The questionnaire was specifically designed to quantify an overall clinical assessment of bone health, taking into account recognised risk and mitigating factors for bone health from published evidence to date. This included the risk factors assessed in the FRAX® clinical assessment questionnaire12: body mass index (BMI), medical history (history of fractures, treatment with steroids, rheumatoid arthritis) and lifestyle factors (smoking, alcohol intake). In addition, our bone health-screening questionnaire included questions on exercise levels, dietary habits and indicators of sex steroid hormonal function. The detail included weekly skeletal loading and non-skeletal loading exercise levels; dietary habits, diagnosed eating disorders, relative energy deficit in sports (RED-S). In women, questions included current menstrual status and menstrual history; in men, average number of weekly morning erections to indicate testosterone levels.13 Subjective reports of sleep quality and fatigue/freshness, alongside bone injury history and fundamental medical background were also gathered. Clinical medical interview was conducted to verify and clarify any areas in the questionnaire. Participant responses were scored as shown in (supplementary file 2). This scoring system is similar to systems published for validated screening questionnaires elsewhere including FRAX® and clinical assessment tools for active females,14 exercising men3 and for exercising men and women.15

Bone strength assessment

Each participant received lumbar spine and hip BMD scans using REMS technology with an Echolight S machine (Echolight, Certification Mark MED31204, and Italy). For each scan, participants were positioned supine on a treatment couch. Initially the lumbar spine was scanned followed by the hip and ultrasound gel was distributed over the region to be scanned. A locating scan was performed to set optimal transducer focus and scan depth, in order to visualize the target bone interphase in the central part of the echographic field of view, immediately below the focus position. After this locating scan, an acquisition scan was performed for the diagnostic evaluation of the regions of interest. All scans were performed by a medical doctor and a research nurse who had both successfully completed the Echolight Clinical Course and attained practical experience in using the technology. Before each scanning session, a quality control check was performed, using the phantom provided by the manufacturer.

Statistical analysis

All data were assessed using the python programming language software Pandas version 1.0.3 on Zenodo and Stats models by Seabold, Skipper, and Josef Perktold. Data were interrogated for relationships between bone health score and BMD measured at the lumbar spine and femoral neck. Significance was assessed using a T-test, applied to the linear regression coefficient between continuous variables, and an F-test on the correlation coefficient, with a threshold p-value of 0.05.

Practicality evaluation

Clinical medical explanations were provided by the medical doctor for each participant verbally and in written form, together with printout of the scan charts. This included explanation of the charts and relating findings to information reported in the questionnaire and interview. From this discussed review, personalised lifestyle and medical educational based information was delivered. Any feedback from participants on the experience of the scan procedure and usefulness of information relating to the appointment was noted. For example, if the scan was a comfortable experience and whether the information provided was helpful in terms of informing and guiding any actionable, practical steps to take.


A total of 88 participants completed the bone health questionnaire and received lumbar spine and femoral neck BMD assessment by REMS. The participants comprised women n=71, mean age 41.5, SD 14.0 (range 20 to 71 years), mean BMI 21.7 SD 4.0, where 22 were postmenopausal; and men n=17, mean age 40.2, SD 14.9 (range 22 to 70 years); mean BMI 24.2 SD 3.7. Scoring of the bone health-screening questionnaire and interview produced a distribution of scores shown in Figure 1. Bone health scores for women ranged from - 10 to +12, with a mean of 2.2 (SD 4.8), and men’s scores ranged from 0 to 12 with a mean of 6.9 (SD 3.2). Where negative scores indicated potential risk to bone health and positive values indicated potential positive factors. Findings from REMS: 19 participants were found to have lumbar spine BMD Z-score <-1.0 which is the criteria for indication of bone health consequences in RED-S clinical assessment tool.15

Figure 1 Bone health scores calculated from screening questionnaire.

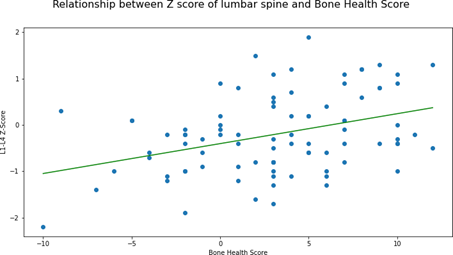

Figure 2 shows the relationship between bone health score and lumbar spine BMD Z- score for all participants. A positive correlation was observed between the bone health score derived from the questionnaire and lumbar spine BMD Z-score (r=0.14, p<0.01), indicating that higher bone health scores were associated with better lumbar spine BMD.

Figure 2 Graph of lumbar spine bone mineral density Z-score against bone health scores.

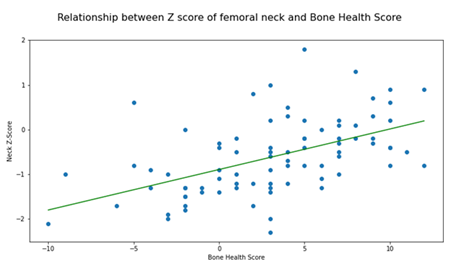

Figure 3 shows a similar association between bone health score and femoral neck BMD Z-score

Figure 3 Graph of femoral neck bone mineral density Z-score against bone health scores.

(r = 0.27, p<0.01). Practicality evaluation of this form of bone health assessment from participant feedback was favorable; in that the process of completing questionnaire and scan was efficient. Immediate explanation of results and sign posting was indicated as being helpful. Thirty minutes per participant was allocated for scanning and feedback of results, which was found to be practical, provided breaks after 6 successive participants were added. For the healthcare professionals with previous “hands on” clinical experience, scanning with the REMS device was technically relatively easy to master. As indicated in earlier clinical evaluation studies, operator training is important to reduce acquisition errors.10 From this study, which included young, active participants, it was noted that where low energy availability was suspected, an increased gas in the abdomen due to associated digestive issues, could sometimes make locating lumbar spine challenging.


In this study we have demonstrated the potential of a new bone health-screening questionnaire for the identification of active individuals at risk of low bone density. This new questionnaire is not restricted to those over 40 years, rather includes younger adults potentially at risk of suboptimal bone health and takes into account a range of lifestyle factors. REMS were found to be potentially useful scanning modality in the clinical setting.

The FRAX® clinical tool is a well-established questionnaire to assess the risk of fragility fracture (osteoporotic fracture). However, the focus of questions is on underlying medical conditions and the limited lifestyle factors of smoking and drinking alcohol that predispose to low BMD. Furthermore, this questionnaire is only applicable to those over 40 years of age.6 Although extra information can be added through results from DXA, this type of scan is not readily available or accessible for those under 40 years of age. Nevertheless, younger, active populations can also be at risk of impaired bone health, in particular exercisers, where low energy availability can arise unintentionally or intentionally.3

In the case of intentional low energy availability, this includes exercisers with eating behaviors on a spectrum that can range from disordered eating to a clinically diagnosed eating disorder.16 The risk of poor bone health could be missed from the FRAX® questionnaire, as those in low energy availability may not have an eating disorder meeting diagnostic criteria for a medical condition. Furthermore, there is evidence that BMI can still be within the normal range in a low energy availability state, explained at least partly, by a compensatory alteration in metabolic rate.17 Additionally, no negative lifestyle factors for bone health would be reported for these exercisers who are unlikely to drinking large amounts of alcohol or smoke. Although healthy lifestyle behaviors, including weight-bearing exercise are well recognised to have a beneficial osteogenic effect,18 high exercise training loading loads that are not matched by sufficient dietary intake, can lead to the adverse health and performance consequences of low energy availability, described in the clinical syndrome of RED-S.16 Significantly low energy availability can impact both male and female exercisers and bone stress injuries are a well-documented outcome.4 In terms of screening for low energy availability as a risk factor for poor bone health in athletes, the low energy availability female questionnaire (LEAF-Q) is a validated tool14 with emphasis on menstrual history and status. For men, application of a sport-specific energy availability questionnaire combined with clinical interview (SEAQ-I) proved effective in identifying those male cyclists at risk of the bone health consequences of RED-S.7 In the current questionnaire, a greater range of risk factors was considered. In particular, men were asked to respond to a question assessing testosterone levels through number of morning erections per week, as sex steroids in both male and females are validated indicators of low energy availability and the outcome of bone stress injuries in exercisers.4 In this way the bone health-screening questionnaire in this study can be administered to both men and women, employing validated scoring systems. The sample included significantly more female participants, possibly reflecting a greater interest and awareness of bone health issues amongst women.

Furthermore, there is evidence that poor bone health as a consequence of RED-S is not a condition that is limited to elite athletes competing in sport, or dancing professionally. Rather, this syndrome can occur in those participating in all types of physical activities, which do not involve competing in sport.19 For those who are exercise-dependent20 this is recognised as an indicator of disordered eating and hence low energy availability and poor bone health.3 This situation can potentially be more likely to occur during the lock down associated with pandemics, where exercisers, dancers and athletes might look to increase usual exercise training to alleviate stress levels.21

Promptly identifying exercisers at risk of poor bone health is crucial. This is demonstrated by the finding that bone deficits developed due to low energy availability may not be fully reversible, even once menstrual function is restored in female exercisers.22 Furthermore, the consequences of impaired peak bone mass accumulation due to high training loads from a young age23 might not be evident till later in life and it has been suggested that accumulation of peak bone mass is more significant than age of menopause, in the development of osteoporosis.24

The bone health-screening questionnaire developed and applied in this study has the potential to identify younger, active populations at risk of suboptimal bone health, who would not be identified by the FRAX® tool, or necessarily by questionnaires targeting high-level athletes. Once identified, preventative interventions can be put in place, which include lifestyle changes and pharmacological treatment, in selected cases, to prevent progression and in some cases improve bone health. Evidence for positive outcomes of these behavioral interventions are reported in studies of the older population25 and male cyclists.26 In terms of pharmacological interventions in younger active female populations, for those with functional hypothalamic amenorrhea, hormone replacement therapy, rather than the combined oral contraceptive pill, is bone protective.27 Therefore this bone health-screening questionnaire, applicable to all active age groups, provides a cost effective, practical clinical tool to identify those at risk of poor bone health, who would not be eligible or could be missed using current bone health screening questionnaires. Once identified as being at risk, bone health imaging and targeted preventative strategies could be implemented and changes in bone health monitored. A significant correlation was demonstrated between bone health score and lumbar spine BMD Z-score, a trabecular rich skeletal site and femoral neck BMD Z-score, as assessed by REMS technology. Although relatively new to the field, REMS shows promise for the diagnosis of impaired bone health and initial studies indicate potential for fracture prediction.28,29 Furthermore, as a non-ionising radiation approach to the assessment of bone health, REMS offers potential for longitudinal monitoring, particularly in younger populations.

Limitations and further work

Further studies will be required to validate the bone health-screening questionnaire and to assess its effectiveness of indicating bone health in terms of results from DXA and predicting fracture risk. Further investigation with active recruitment of more male participants would be informative as the current study attracted a larger number of female participants than male. Whilst REMS technology already shows great promise, DXA is ultimately the current “gold standard” for assessing BMD so further work is required to compare the methodologies in assessing bone health.


This study indicates that a comprehensive bone health-screening questionnaire, applicable to active men and women of all ages, is a practical and cost-effective clinical tool. REMS technology was found to be an accessible, feasible method of assessing bone health. Further assessment of both the questionnaire and REMS scanning, for example in combination with DXA and future fracture incidence, will be valuable in extending the ability to identify and monitor those in active populations at risk of suboptimal bone health.



Thank you to Bonosso Ltd, UK distributor of Echolight S.p.A, for providing loan of the Echolight scanner.

Data availability statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of interest

The author declares that there are no conflicts of interest.


  1. Reginster JY, Burlet N. Osteoporosis: A still increasing prevalence. Bone. 2006;38(2)1:4–9.
  2. Hind K, Hayes L, Basterfield L, et al. Objectively-measured sedentary time, habitual physical activity and bone strength in adults aged 62 years: the Newcastle Thousand Families Study. J Pub Health. 2019;42(2):325–332.
  3. Mountjoy M, Sundgot-Borgen J, Burke L, et al. IOC consensus statement on relative energy deficiency in sport (RED-S): 2018 update. Br J Sports Med. 2018;52(11):687–697.
  4. Heikura I, Uusitalo A, Stellingwerff T, et al. Low energy availability is difficult to assess but outcomes have large impact on bone injury rates in elite distance athletes. Int J Sport Nut Exer Meta. 2018;28(4):403–411.
  5. Keay N, Francis G, Hind K. Low energy availability assessed by a sport-specific questionnaire and clinical interview indicative of bone health, endocrine profile and cycling performance in competitive male cyclists. BMJ Op Sport Exer Med. 2018;4:e000424.
  6. Kanis JA, Johnell O, Oden A, et al. FRAX™ and the assessment of fracture probability in men and women from the UK. Osteoporosis Int. 2008;19:385–397.
  7. Keay N, Francis G, Hind K. Low energy availability assessed by a sport-specific questionnaire and clinical interview indicative of bone health, endocrine profile and cycling performance in competitive male cyclists. BMJ Open Sport and Exercise Medicine. 2018;4(1).
  8. Who scientific group on the assessment of osteoporosis at primary health care level. Summary Meeting Report Brussels Belgium. 2004;5–7.
  9. Diez-Perez A, Brandi M, Al-Daghri N. et al. Radiofrequency echographic multi-spectrometry for the in-vivo assessment of bone strength: state of the art outcomes of an expert consensus meeting organized by the European Society for Clinical and Economic Aspects of Osteoporosis, Osteoarthritis and Musculoskeletal Diseases(ESCEO). Aging Clin Exp Res. 2019;31:1375–1389.
  10. Di Paola M, Gatti D, Viapiana O, et al. Radiofrequency echographic multispectrometry compared with dual X-ray absorptiometry for osteoporosis diagnosis on lumbar spine and femoral neck. Osteoporosis Int. 2018;30:391–402.
  11. Diez Perez A, Brandi M, Al-Daghri N, et al. Radiofrequency echographic multi-spectrometry for the in-vivo assessment of bone strength: state of the art outcomes of an expert consensus meeting organized by the European Society for Clinical and Economic Aspects of Osteoporosis, Osteoarthritis and Musculoskeletal Diseases (ESCEO). Aging Clin Exper Res. 2019;31:1375–1389.
  12. Kanis JA. Fracture Risk Assessment Tool. University of Sheffield; 2008.
  13. Hackney AC, Constantini NW. Endocrinology of Physical Activity and Sport. 2020 Contemporary Endocrinology. Springer Nature; Switzerland.
  14. Melin A, Tornberg ÅB, Skouby S, et al. The LEAF questionnaire: A screening tool for the identification of female athletes at risk for the female athlete triad. Br J Sports Med. 2014;48(7):540–545.
  15. Mountjoy M, Sundgot Borgen J, Burke L, et al. Relative energy deficiency in sport (RED-S) clinical assessment tool (CAT). Br J Sports Med. 2015;49(7):421–423.
  16. Mountjoy M, Sundgot Borgen J, Burke L, et al. The IOC consensus statement: beyond the Female Athlete Triad--Relative Energy Deficiency in Sport (RED-S). Br J Sports Med. 2014;48:491–497.
  17. Loucks A, Heath E. Induction of low-T3 syndrome in exercising women occurs at a threshold of energy availability. Am J Phys. 1994;266(3):R817–R823.
  18. Turner H, Robling AG. Designing Exercise Regimens to Increase Bone Strength. Exer Sport Sci Rev. 2003;31(1):45–50.
  19. Relative Energy Deficiency in Sport (RED-S). British Association of Sport and Exercise Medicine.
  20. Plateau C, Arcelus J, Meyer C. Detecting Eating Psychopathology in Female Athletes by Asking About Exercise: Use of the Compulsive Exercise Test. Euro Eat Dis Rev. 2017;25(6):618–624.
  21. Hausenblas HA, Schreiber K, Smoliga JM. Addiction to exercise. BMJ. 2017;357:j1745.
  22. N Keay, I Fogelman, G Blake. Bone mineral density in professional female dancers. Br J Sports Med. 1997;31:143–147.
  23. Keay N. The modifiable factors affecting bone mineral accumulation in girls: the paradoxical effect of exercise on bone. Nutri Bulletin. 2000;25(3):219–222.
  24. Hernandez CJ, Beaupré GS, Carter DR. A theoretical analysis of the relative influences of peak BMD, age-related bone loss and menopause on the development of osteoporosis. Osteoporosis Int. 2003;14:843–847.
  25. Beck BR, Daly RM, Singh MAF, et al. Exercise and sports science Australia (ESSA) position statement on exercise prescription for the prevention and management of osteoporosis. J Sci Med Sport. 2017;20:438–445.
  26. Keay N, Francis G, Entwistle I, et al. Clinical evaluation of education relating to nutrition and skeletal loading in competitive male road cyclists at risk of relative energy deficiency in sports (RED-S): 6-month randomised controlled trial. BMJ Op Sport Exer Med. 2019;5(1).
  27. Ackerman K, Vibha S, Charumathi B, et al. Oestrogen replacement improves bone mineral density in oligo-amenorrhoeic athletes: a randomised clinical trial. Br J Sports Med. 2018;53(4):229–236.
  28. Antonio G, Pisani P, Conversano F, et al. Ultrasound Fragility Score: An innovative approach for the assessment of bone fragility. Measurement. 2017;101:236–242.
  29. Pisani P, Antonio G, Conversano F, et al. A quantitative ultrasound approach to estimate bone fragility: A first comparison with dual X-ray absorptiometry. Measurement. 2017;101:243–249.
