Submit manuscript...
MOJ
eISSN: 2374-6939

Orthopedics & Rheumatology

Research Article Volume 8 Issue 1

Non Surgical Disc Decompression & Clinical Efficacy

Noureddine Soual,1 Steve Gaudy2

1Physical medicine and rehabilitation, (Chief Therapist & Clinical Supervisor), Spinal Correction Center of Quebec, Canada
2Doctor in chiropractic, Spinal Correction Center of Quebec, Canada

Correspondence: Noureddine Soual, Chief Therapist & Clinical Supervisor, Spinal Correction Center of Quebec, Boulevard de la chaudiere, no 125. Quebec, G1X 4M8, Canada, Tel 1 418-446-8646

Received: March 24, 2017 | Published: April 20, 2017

Citation: Soual N (2017) Non Surgical Disc Decompression & Clinical Efficacy. MOJ Orthop Rheumatol 8(1): 00299. DOI: 10.15406/mojor.2017.08.00299

Download PDF

Keywords: Disc herniation; Lower back pain; Cervico-brachial neuralgia; Disc decompression

Introduction

Low back pain and neck pain are a public health problem in developed countries. Studies assessing the prevalence of this condition in the general population have led to different results. 85% of North American adults suffer from low back and neck pain at some point in their lives and more than 26 million Americans aged 20 to 64 have had frequent experience of back pain.

Excessive loads on the spine by changes in our lifestyle and long periods of sitting while driving or working in the office is a cause of premature degeneration of the intervertebral discs, and of repeated injuries to the annulus.

Low back pain is particularly widespread. It is the second most common reason to consult in medicine, the fifth most common cause of admission to hospitals, and the third most common cause for surgery.

Given the enormous cost, over 50 billion dollars is involved in this epidemic, in the United States alone. (Especially low back pain), the medical consensus based on evidence, recommended a new emerging model of care, described in this study [1].

According to Scott Boden, MD, director of the Emory Orthopedic and Spinal Center in Atlanta "A disease like lower back pain can cause a lot of variability in how health professionals" approach it.

The standard medical approach to back pain currently is prescribing analgesic, anti-inflammatory drugs, muscle relaxant and sometimes morphine derivatives. This is often not very effective. "Medical care for low back pain in the 20th century was catastrophic. Most approach did not solved the daily symptoms of lower back pain and may even have reinforced and exacerbated the problem," Gordon Waddell, MD, orthopedic surgeon and researcher of the spine [1].

Back surgery is a risky solution, expensive and of restricted indication. Non-surgical treatment is the preferred method for practitioners and patients. The traditional method of lumbar traction can actually reduce the bulging disc and relieve symptoms by reducing intradiscal pressure. However, the effects of the treatment vary widely because of different devices or equipment used [2].

Researchers around the world have studied and explored the therapeutic mechanism of spinal traction and updated processing devices.

Objectives

The purpose of this study is to explore the effect of the non-surgical Spine-Med Decompression system on cases of low back pain and neck pain and to determine the effectiveness of such approach.

Materials & Methods

This study is a pilot project in Quebec City, Canada. It is a retrospective cohort of a patient group with a single practice, this group is treated for back and / or neck pain. The patients received non-surgical spinal decompression treatment protocol 3 times per week for 4-8 weeks.

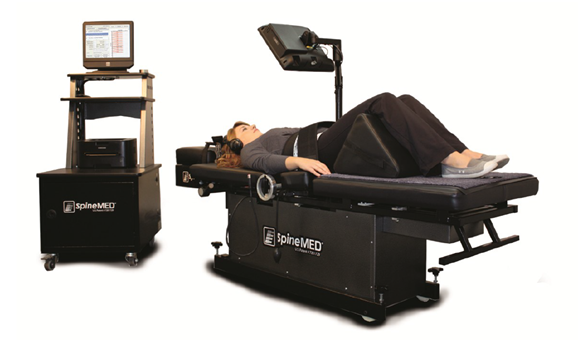

All treatments were undertaken using the decompression table Spine MED® (Universal Pain Technology) It is a patented design which represents the latest evolution of the non-surgical disc decompression technology.

The Spine MED® table uses a computerized system permitting targeted computer a sized pulling of the intervertebral discs; it is a proprietary design to provide an intermittent distraction for either of the lumbar or cervical spine.

All data were manually extracted from patient medical records (paper or computerized) and data reporting forms. Data were entered into a Microsoft database and analyzed using statistical software - JMP from SAS Institute.

Descriptive statistics were used to communicate clinical and other similar data. Patients undergo 2-3 clinical revaluation at different levels, namely (joint assessment, neuromuscular and functional assessment) performed by the Chiropractor and Chief Therapist. Each examination is preceded by a surface EMG of the spine. (The adaptations of the neuromuscular system and the electrical activity of the para-vertebral muscles can be verified).

Disc decompression protocol consists of a series of two phases on the disc per cycle; a maximum tension phase which last 60 sec., called high power, followed by a phase of releasing tension which last 30 sec., called low power. The treatment period last approximately 30 minutes. The tension in the high power phase is calculated in pounds (lb), which represents a quarter of the patient's weight minus 10 lbs. The low power phase is 1/2 of the maximum tension during high power.

This SpineMed table is able to make adjustments every 20 milliseconds. This capability to adjust almost instantly the right tensions is an essential difference that distinguishes this SpineMed decompression devices from other conventional traction systems. Pain was assessed using the visual analogue scale (VAS) from 0 to10, 10 being the most painful.

Results

From January 1st, 2014 to December 31st, 2014, we used the Spine-Med decompression table, a new patented device developed by the American Institute of Health and approved by Health Canada, to treat and monitor 121 patients with low back pain or neck pain. We observe the level of satisfaction in the short to medium term after completing the recommended decompression treatment.

Most patients who received lumbar decompression (90%) had a hernia or a degenerative disc disease at L4-L5 and / or L5-S1 (Figure 1).

Figure 1: lumbar disc lesions localization frequency.

On the other hand the majority of patients who received cervical decompression (80%) had a hernia or degenerative disc at C5-C6-C7 and D1 (Figure 2).

Figure 2: cervical localization Frequency disc lesions.

36% of patients had the confirmation of a herniated disc by MRI / CT scan, while 29% had confirmation of degenerative disc disease (detected by standard X-ray) (Figure 3).

Figure 3: Different disc lesions.

Disc degeneration is the most common lesion (44.62%). Facet arthrosis and spinal osteophytes are also seen quite often (11,57 %) (Figure 4).

Figure 4: Associated radiological lesion.

There is a very significant improvement in lowering pain with a VAS from 7 on day 1 to 3 on day 20 on average (statistically significant p <0.0001) (Figure 2 &Table 1).

lumbar disc injury

Nber et %

cervical disc injury

Nber et %

L4-L5 et L5-S1

37 (34.9%)

C5-C6

2 (10%)

L5-S1

50 (47.1%)

C5-C6-C7-D1

14 (70%)

L4-L5

8  (7.5%)

C4-C5 et C5-C6

3 (15%)

L3-L4 et L4-L5

9  (8.5%)

Other

1 (5%)

L2-L3 et L3-L4

2  (2%)

Lumbar

106

Cervical

20

Table 1: Statistical data on treaties levels:

N-B: There are 5 patients who have received, in the same period, a lumbar and a cervical decompression.

A very significant improvement in the level of patient satisfaction after the decompression protocol (Table 2).

Satisfied (81%)

Not satisfied (19%)

Very satisfied

satisfied

Moderately Satisfied

Not satisfied

46%

35%

15%

4%

Table 2:Statistical data on the degree of satisfaction.

The effectiveness is not age related. Patients older than 57 years (median) have a decrease in pain from 6.9 to 3.2 (p ˂ 0.0001) and patients younger than 57 years have a decrease in pain from 6.8 to 3.0 (p ˂ 0.0001) (Figure 6).

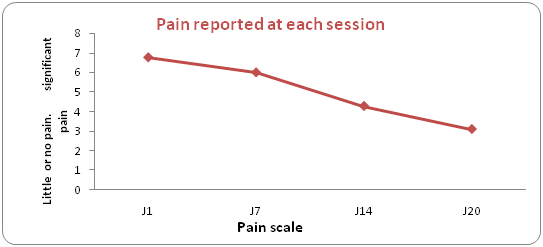

Figure 5: Pain level during the decompression protocol.
Figure 6: Effectiveness of treatment according to the patient's age.

There is also a similar effectiveness in decreasing pain between women (3.2 vs 7.3, p ˂ 0.0001) and men (3.0 vs 6.6, p ˂ 0.0001) (Figure 7).

Figure 7: Effectiveness of treatment according to the patient's gender.

No difference was found on the effectiveness of treatments based on the chronicity of the lesions (Figure 8).

Figure 8: Effectiveness of treatment depending on chronicity of the lesions.

Pain present more than 2 years (71.9%): 3.3 vs 7.0; p ˂ 0.0001. Pain present less than 2 years (28.1%): 2.6 vs 6.7; p ˂ 0.0001.

Whether the onset of injury was sudden or progressive (accident or chronic), has no influence on the results of the decompression: 40% of patients have had a sudden onset (accident, sprain), while 60% of patient consulted following a gradual onset of symptoms. Both type of onset did not influence the degree of patien tsatisfaction.

So the improvement of pain on a visual analog scale was not based on the difference between patients depending on the circumstances it occurred, with a (p˂0.0001) (Figure 9).

Figure 9: Degrees of satisfaction as the beginning.

A very significant improvement in the physical condition of the patients was noted in the last re-evaluation examination performed at the end of the decompression protocol (Table 3). NB: The improvement is based on the clinical condition (Lasegue, distance finger-floor muscle testing, deep tendon reflex sensitivity ... etc.), on endurance, fluidity, and the activities of daily living.

Satisfied (81%)

Not Satisfied (19%)

Very satisfied

satisfied

Moderately satisfied

Not satisfied

46%

35%

15%

4%

Table 3: Statistical data on the clinical improvement.

A good clinical improvement is justified by the reduced medication intake: 70% of patients under care had reduced significantly or stopped entirely their medication intake (Table 4).

Medication after Decompression

Medication Before

0

1

2

3

0

20.66% (25)

0

0

0

20.66% (25)

1

23.14%(28)

4.96%(6)

0

0

28.10% (34)

2

11.57%(14)

26.45%(32)

2.48%(3)

0

40.5% (49)

3

4.96%(6)

0.83%(1)

2.48%(3)

2.48%(3)

10.74% (13)

60.33% (73)

32.23% (39)

4.96% (6)

2.48%(3)

100%121

Table 4: Statistical data on drug intake before and after decompression treatments:
0: No medication.
1: Analgesics as necessary.
2: Analgesic NSAID + analgesic.
3: Derivatives morphine + NSAID + analgesic.

Whatever the type of spinal injuries, the satisfaction rate with spinal decompression was over 80% on average (Table 5).

Not satisfied

Moderately Satisfied

Satisfied

Very Satisfied

Total

No associated lesion

2.56%(1)

15.38%(6)

30.76%(12)

51.28%(20)

100%(39)

Degenerative disc disease (discarthrosis)

5.55%(3)

14.81%(8)

33.33%(18)

46.29%(25)

100%(54)

Facet arthrosis

7.14%(1)

7.14%(1)

28.57%(4)

57.14%(8)

100%(14)

Other injury (osteophytes)

0

21.42%(3)

57.14%(8)

21.42%(3)

100%(14)

Table 5: Spinal lesion and associated clinical satisfaction.

The clinical improvement of patients on all levels, articular, neuromuscular and functional level, was not influenced by the type of associated injury. 74% of all patients had satisfactory clinical improvement in degenerative disc disease cases and 85.71% of patients with facet arthrosis had satisfactory clinical improvement (Table 6).

Not Satisfactory

Moderately Satisfied

Satisfactory

Very Satisfactory

Total

No associated lesion

0

23.07%(9)

33.33%(13)

43.58%(17)

100%(39)

Degenerative disc disease (discarthrose)

3.70%(2)

22.22%(12)

40.74%(22)

33.33%(18)

100%(54)

facet arthrosis

7.14%(1)

7.14%(1)

35.71%(5)

50%(7)

100%(14)

Other injury (osteophytes)

0

28.57%(4)

57.14%(8)

14.28%(2)

100%(14)

Table 6: Type of spinal lesion and associated clinical improvement.

NB: In order to correlate the degree of patient satisfaction and clinical improvement observed during the various evaluation tests.

According to the statistical method of Pearson, r = 0.8469027 (There is 85% of the correlation between what the patient reports as improvement and the physical examination results).

Discussion

During this cohort study, we extracted data from 121 patients with low back pain and / or neck pain. An average reduction in pain from 7 to 3 on a scale from 1 to 10 was detected following non-surgical disc decompression treatment. These results are consistent with previous studies [2-4]. We are fully aware that the measurement of pain is subjective and is based primarily on the patient's perception. (Farrar et al, reported that an average intensity reduction of pain in at least 2 points represents a clinically significant change) [5]. Following our study. The average pain reduction was 4 points.

However, we have systematically studied the influence of the starting mode of the lesions of the spine on the therapeutic efficiency. It was revealed that whatever the mode of onset of the injury, either early, progressive or sudden, the pain on the visual analog scale went down from 7 to 3. The age of the lesion does not constitute an aggravating factor, and the level of pain went down 3.8 and 4.1 on the pain scale for both, recent lesions and older injuries.

When analyzing the influence of age and sex on the efficiency of non-surgical disc decompression, no correlation was found between age or sex and treatment success. Even the hypothesis that a population of younger patients may react differently to the treatment of non-surgical decompression as they normally have less disc degeneration, is false because according to our results, the efficiency is similar to older patients.

Pain decreased from 6.9 to 3.2 for patients older than 57, and 6.8 to 3 for those patients younger than 57 years old. ˂0.0001 p (Figure 2).

The fact that disc degeneration is the most common lesion, with 45 %, did not influence significantly the clinical improvement of patients. A large proportion of our patients (70%) with low back pain or neck pain were under a wide range of analgesics, (analgesics, NSAIDs, muscle relaxants and morphine derivatives). The significant reduction in drug consumption observed after the non-surgical disc decompression protocol (Suppressive effect), is the proof of the clinical efficiency of such approach.

In the end, the limitation of our study is the lack of a control group (placebo), due to the possibility of a spontaneous evolution [6-8]. However, the objective of our study is to demonstrate the clinical efficiency of non-surgical disc decompression which we did.

Conclusion

Obviously we observed a significant improvement in over 80% of our patients. This demonstrate improvement in the ability to conduct activities of daily living; significantly improving pain scores and a significant decrease in disability status and increase in functional status of patients. We have shown through this retrospective study, the clinical efficiency of non-surgical disc decompression. This study need to be followed by a randomized double blind clinical trial, and make the long-term monitoring of the clinical status of patients.

The paradox of low back pain and acute neck pain has received considerable attention lately for good reasons [3]. Different approaches and treatments abound among practitioners of different skill. Because of the huge costs involved in this epidemic, the consensus of medicine based on evidence, recommended a new emerging model of care which is non-surgical disc decompression [1]. A health problem like back pain can have a lot of variability in how it is approach by health professionals, according to Scott Boden (MD, director of the Emory Orthopedic and Spinal Center in Atlanta) [9]. "Many, if not most, primary care providers have little training on how to manage locomotor disorders ». The practitioner should open their mind to more than medical processes.

Indeed, low back pain, neck pain and lumbosciatica become a problem because the standard medical approach such as pain removal with: NSAIDs, pain relief, muscle relaxant, steroid injections, MRI explorations. TDM and disc surgery, was shown to be costly, risky and often ineffective according to Gordon Waddell MD, orthopedic surgeon and researcher of the spine "medical care has certainly not solved the daily symptoms of pain in the lower back and even perhaps reinforced and exacerbate the problem" [1].

Disc decompression is an effective and safe uncomplicated technique and is also non-invasive; it should be the first choice for the care of damaged discs as indicated. Overall, the study presented favorable results and reflects what practitioners and SpineMED® patients testify daily. The success rate of the disc decompression in this study, and the others that proceeded is especially notable compared to the risk factors involving surgical treatment in similar conditions (Street et al., 2012). The American Journal of Pain Management reported "good to excellent relief" in 86% of patients with a herniated disc, back pain and sciatica symptoms. Good to excellent result was also obtained in 75% of people with facet syndrome after a series of 20 disc decompression treatment [10]. According to Dr. Deyo chiropractic was a popular solution: "Chiropractic is the most common choice, and there is mounting evidence that spinal manipulation can indeed be a cure for the effective short-term pain for patients with back problems the past" [11].

  1. Finally, the elements optimizing the results of non-surgical disc decompression, according to our study and supported by the results of Blumke Z [12].
  2. Increase in the awareness of the patient`s pathology will help. Explaining the protocol of the therapy and reviewing the recommendation to follow after care will increase successful results.
  3. Use of the non-surgical disc decompression table Spine MED has proven its worth.
  4. Adequate fluid intake during the decompression protocol and even the following months.
  5. Custom Chiropractic Treatment Plan (Recent results suggest that chiropractic manipulation contribute to the regression of radiculopathy, herniated discs and degenerative disc disease) (Forbush 2011 Keeney 2013).
  6. Physical rehabilitation with a proper exercise program to maximize results and prevent relapse (muscle building and especially proprioceptive work) (Nelson 1999). In our clinical CCVQ three personalized exercise programs are introduced by our physical re-education therapist [13].

References

  1. Waddell G (1996) LBP: twentieth century conundrum of health care. Spine 21 (24): 2820-2825.
  2. Jingtai Sun, Hou Li ximi, Xiunan Piao Xing, Ji Gaoying (2014) Short Term Effect SpineMed decompression system for lumbar disc herniation, p. 1-11.
  3. JC Smith Evidence Based Care for Low Back Pain.
  4. William D, Grant EdD, Catherine E, Saxton BS (2011) Spinal Decompression: Measurement of Treatment Outcomes.
  5. Farrar JT, JP Young, L Lamoreaux, JL Werth RM, Poole PM (2001) Poole: clinical significance of changes in chronic pain intensity measured on a numerical scale rating of 11 points. Pain 94(2): 149-158.
  6. The Observatory of movement, intervertebral disc.
  7. Revel (2004) Sciatica and others lumbosacral radicular breads. EMC-Rheumatology, Orthopedics.
  8. Teplick JG, Haskin ME (1985) spontaneous regress of herniated nucleus pulposus. AJR Am J Roentgenol 145(2): 371-375.
  9. Boden S (2003) The new degenerative disease of the processing techniques of lumbar disc. Spine 28: 524-525.
  10. Health Source of Highland Park/Park Cities Chiro-Sport.
  11. Deyo RA, Weinstein JN (2011) Low Back Pain. N Engl J Med 2001 344 (5): 363-370.
  12. Blumke Z (2014) Davenport University - Michigan.
  13. MLu Yulai (2008) lumbar disc herniation (2nd edn), Beijing, Military Medical Publishing House of the People 8: 271-279.
