A case of erb-duchenne palsy in a man, aged 24

Osabutey CK

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

Department of Anatomy, Kwame Nkrumah University of Science and Technology, Ghana

Correspondence: Osabutey CK, Department of Anatomy, School of Medical Sciences, Kwame Nkrumah University of Science and Technology, Kumasi, Ashanti Region, Ghana, Tel +233245992850

Received: January 02, 2017 | Published: June 20, 2017

Citation: Osabutey CK. A case of erb-duchenne palsy in a man aged 24. MOJ Anat Physiol. 2017;3(6):184–186. DOI: 10.15406/mojap.2017.03.00116

Download PDF

Abstract

Erb's palsy or Erb-Duchenne palsy is a paralysis of the arm caused by traction injury to the upper trunk of the brachial plexus. It is commonly, but not exclusively, caused by dystocia, an abnormal or difficult childbirth or labour. It can occur if the infant's head and neck are pulled towards the side at the same time as the shoulders pass through the birth canal. Erb’s palsy in adults isf comparatively uncommon; it may follow trauma to the head and shoulder causing violently stretching of the nerves of the upper trunk of the brachial plexus. The anatomical basis of the clinical presentations has not been described in the literature, thus clinical diagnosis is difficult. In the current paper, case of Erb’s palsy in an adult is presented. It has been demonstrated that, suprascapular nerve (C5, 6), musculocutaneous nerve (C5, 6, 7) and axillary nerve (C5, 6) are the branches of the brachial plexus involved in Erb’s palsy. The skeletal muscles innervated by these nerves are severely affected compared to the cutaneous nerves that supply general sensation to the skin. The Erb’s palsy in adult is very uncommon, the knowledge of this anatomy of the clinical presentation is important in the diagnosis and proper management of the condition.

Keywords: erb's palsy, erb-duchenne palsy, dystocia, brachial plexus, upper trunk

Introduction

Erb's palsy or Erb-Duchenne palsy is a paralysis of the arm caused by injury to the upper trunk of the brachial plexus.¹ The brachial plexus comprising the ventral rami of spinal nerves (C5-T1). C5 and C6 join to form the upper trunk, C7 travels alone as the middle trunk, and C8-T1 joins as the lower trunk. Each trunk divides into anterior and posterior divisions to create the cords, which then subdivide further into branches that supply the muscles of the arm.^2,3

The most common cause of Erb’s palsy is dystocia, an abnormal or difficult childbirth or labour.^4‒6 It can occur if the infant's head and neck are pulled towards the side at the same time as the shoulders pass through the birth canal.⁷ The condition can also be caused by excessive pulling on the shoulders during a cephalic presentation, or by pressure on the raised arms during a breech delivery.⁸ Erb's palsy can also affect neonates with clavicular fracture unrelated to dystocia.⁹

Erb's palsy in an adult is extremely rare following trauma to the head and shoulder, which causes the nerves of the plexus to violently stretch, with the upper trunk of the brachial plexus sustaining the greatest injury.^10,11 Injury may also occur as a result of direct violence,^12,13 including gunshot wounds^14‒16and traction on the arm, or attempting to reduce shoulder joint dislocation.¹⁷ The level of damage to the constituent nerves is related to the severity of the paralysis.¹⁸

However, the anatomical basis of the clinical presentations has not been described in the literature. Clinical diagnosis is therefore difficult. In the current paper, case of Erb’s palsy in an adult is presented and the anatomical bases of the clinical presentations are discussed.

Case presentation

In the case presented here, a young man aged 24 was hit on the left shoulder by a falling tree branch about three months ago. He was seen during a routine out-patient consultation in Millennium Charity Hospital in Atwima Kwawuma District in Ashanti Region of Ghana. Immediately after the injury, he reported and got treated in several Health Centers and Hospitals without any improvement. His main complaints were inability to abduct the left shoulder, inability to flex the left elbow and numbness on the lateral aspect of the left forearm. Previous investigation revealed no fracture of the bones of the shoulder girdle. Following clinical examination, a written consent from both the patient and the father were sought before photographs were taken for presentation.

Discussion of the anatomy

Erb-Duchenne palsy presents as a lower motor syndrome associated with sensibility disturbance. The classical sign of Erb's palsy is showed in the photograph (Figure 1)-the arm to hang limply from the shoulder. This sign is the result of damage to the biceps muscle causing loss of power of flexion of the elbow.

The most commonly involved nerves are the suprascapular nerve, musculocutaneous nerve and the axillary nerve.^1,2Figure 2 is a drawing to illustrate the parts of the brachial plexus involved in Erb’s palsy.

Figure 1 Annotated photograph of a 24 years old man with Erb’s palsy about three month ago.

Note that in Figure 1a, the elbow fully extended and medially rotated due to weakness of the lateral rotators.

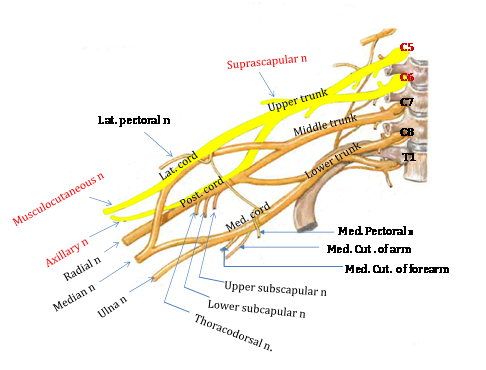

Figure 2 A drawing to illustrate the parts of the brachial plexus involved in Erb –Duchanne’s palsy. The affected nerves are indicated yellow: C5 and C6 roots, upper trunk.

Lat: Lateral; Med: Medial, Post: Posterior; n: Nerve

The suprascapular nerve (C5, 6) is a direct branch of the upper trunk. It supplies the supraspinatus and infraspinatus muscles. These muscles are part of the rotator cuff muscles that are lateral rotators of the arm. The patient’s arm is medially rotated because these muscles are paralyzed.

The musculocutaneous nerve (C5, 6, 7) is a branch of the lateral cord. It supplies muscular branches to all the muscles of the flexor compartment of the arm namely coracobrachialis, brachial is and biceps brachii and continues as lateral cutaneous nerve of the forearm innervating the skin overlying the lateral aspect of the forearm. These muscles are flexors of the forearm at the elbow; the biceps brachii is also a powerful supinator of the forearm. The patient’s elbow is extended and partly pronated because, these muscles are paralyzed; the triceps brachii and the pronators over activity is keeping the elbow in extension and pronation.

The axillary nerve (C5, 6) is a branch of the posterior cord. It supplies muscular branches to the deltoid and teres minor muscles and continues as the upper lateral cutaneous nerve of the arm innervating the skin overlying the deltoid muscle. The signs of Erb's Palsy in adult include loss of sensation in the arm and paralysis and atrophy of the deltoid, biceps, and brachialis muscles as has been described in obstetrical Erb’s palsy in babies.¹⁸ "The position of the limb, under such conditions, is characteristic: the arm hangs by the side and is rotated medially; the forearm is extended and pronated. The arm cannot be raised from the side; all power of flexion of the elbow is lost, as is also supination of the forearm" as it has been described in obstetrical Erb’s palsy in babies.¹⁸ The resulting biceps damage is the main cause of this classic physical position commonly called "waiter's tip."

Conclusion

In conclusion, knowledge of Erb’s palsy in an adult and the understanding of the current anatomy of the condition is important in the clinical diagnosis and proper management.
