Mini Review Volume 7 Issue 1
Previously at: Department of Molecular Cell Biology, The Weizmann Institute of Science, Rehovot 76100, Israel
Correspondence: Alex Sobko, 8762728, Ofakim, Israel, Previously at: The Department of Molecular Cell Biology, The Weizmann Institute of Science, Rehovot 76100, Israel
Received: November 23, 2022 | Published: December 5, 2022
Citation: Sobko A. Cell biologist’s perspective: frontiers in the development of PROTAC-HDAC degraders. J Stem Cell Res Ther. 2022;7(1):40-45 DOI: 10.15406/jsrt.2022.07.00155
This “Minireview and Perspective” article describes histone deacetylases (HDACs), as promising specific molecular targets to treat a variety of disease states by downregulating the expression of associated proteins with the use of a new generation of bioengineered compounds called protein targeting chimeras (PROTACs). We present the classification of HDACs, discuss their functions as key epigenetic regulators of gene expression, describe their roles in the biology of aging, describe histone- and nonhistone substrates of HDACs and their functions, and briefly introduce the concept of histone-modifying multiprotein complexes. Insight into the biological functions of specific HDACs comes from genetic knockout studies of individual genes encoding deacetylases. Initially discovered and newly developed HDAC inhibitors are powerful tools to investigate the functions of HDACs in cells and organs, that have also been successfully used in numerous preclinical and clinical studies, as promising drug candidates. We focus on the molecular and cellular mechanisms of their action, and introduce PROTACs, which are bivalent degrader molecules that have been recently developed to target HDACs. We then discuss recent studies focused on designing and testing several classes of selective and nonselective HDAC degraders in terms of their molecular and cellular mechanisms of action. Finally, we present open questions and new perspectives in developing the next generation of HDAC-degraders.
The human histone deacetylase (HDAC) family consists of 18 enzymes, 11 of which contain a divalent zinc cation in the catalytic site, and the remaining seven are sirtuins with NAD+-dependent activity. HDACs can be further classified into four classes: class I (HDAC 1, 2, 3, and 8), class IIa (HDAC 4, 5, 7, and 9), class IIb (HDAC 6 and 10), class IV (HDAC11), and class III (sirtuins).
HDACs deacetylate lysine residues in the N-termini of H3/H4 histones (e.g., H3K9ac, and H3K27ac). There is dynamic regulation of histone acetylation/deacetylation by histone deacetylases and histone acetyltransferases (HATs), which that counteract each other. HDACs function on the histones surrounding nucleosomes, and cause compact chromatin conformation. Compact chromatin is not accessible to RNA polymerase or, activators of gene expression, such as transcription factors and enhancers. Compaction of chromatin results in suppression of transcription of target genes.
In contrast to HDACs, HATs are recruited to activator complexes, and acetylate histones, leading to open chromatin conformation and activation of transcription by RNA polymerase (I/II).
HDACs and Epigenetics of Aging
HDACs function on heterochromatin, maintaining it in an inactive, inert state. NAD-activated deacetylase Sir2, the master regulator of longevity in yeast, deacetylates the N-termini of histones, leading to an inactive heterochromatin state and gene silencing. Loss of Sir2 shortens replicative lifespan, while overexpression and small molecule Sir2 activators extend lifespan.1
Studies in model organisms showed that caloric restriction and starvation are accompanied by increased HDAC activity. This suggests that in response to nutritional stress, global deacetylation may serve to protect cells and thereby influence aging processes.2,3 In yeast, starvation is mimicked by rapamycin (inhibitor of TORC1 complex) treatment that displaces RNA polymerase I (pol I) from rDNA loci, thus inhibiting transcription at those sites. rDNA silencing is facilitated by increased binding of the Rpd3-Sin3 HDAC complex —Rpd3(L),— and deacetylation of H4K5/K12 residues. These repressive chromatin effects of rapamycin serve to lower transcription of the protein synthesis apparatus, ultimately reducing growth.1
Epigenetic transgenerational effects of histone deacetylation are under active investigation. In females, the inactive X chromosome has underacetylated histones, while the other X chromosome is active, with many histones being acetylated. In males, the status of Y chromosome histone acetylation needs to be further clarified. Determining if HDAC inhibitors cause increased histone acetylation and activation of genes in the inactive X chromosome is of interest. The possible effects of HDAC inhibitors on gene expression on the male Y chromosome are also worth to study.
Certain HDACs function outside the nucleus, deacetylating nonhistone substrate proteins. For example, HDAC6 deacetylates the heat-shock protein HSP90 and components of the microtubule network, including α-tubulin and ß-tubulin.4,5
These activities of HDACs point to important functions of HDAC-regulated microtubules and cytoskeleton remodeling in cell division, cell migration and chaperone signaling (HSP90) during stress responses.
Histone acetylation was shown to be regulated by cell cycle progression,6 which could be a reciprocal interaction, because HDAC inhibitors activate tumor suppressor genes and cause cell cycle arrest.
Nonenzymatic functions of HDACs are not so well understood and may include functions in scaffolding large complexes. Thus, HDACs interact with numerous transcription factors and may regulate their activities.3 These nonenzymatic functions of HDACs can be investigated by HDAC degraders (see below), that do not affect HDAC activity, but downregulate HDAC protein levels.
Typically, canonical histone-modifying complexes consist of (1) targeting subunits that interact with DNA-binding proteins; (2) HATs or HDACs; and (3) effector subunits acting on chromatin.
Thus, an HDAC is recruited and becomes a component of the corepressor complex responsible for the repression of transcription. This corepressor complex consists of (1) a DNA binding subunit, (2) a corepressor, and (3) an HDAC.
Important examples of the components of HDAC-co-repressor complexes include: MyoD; Mad-Max heterodimer; SMRT; MeCP2 (mutated in Rett syndrome); and polycomb repressive complex II (“enhancer of zeste” EZH2, histone-binding protein, HDAC). An interesting example of gene regulation by HDACs in yeast is the regulation of the GAL1/10 system. This response involves the methylation of histones (H3K36me2me3) of target genes (GAL1 and, GAL10), leading to the recruitment of HDACs and histone deacetylation resulting in the activation of the expression of these genes.
The review article by Daniel Alencar Rodrigues, and colleagues,7 presents and discusses very important information on the translational significance of examining the phenotypes of mice bearing knockouts of individual HDAC genes. These data suggest that HDAC inhibitors should be developed and tested with caution and with their safety being rigorously tested, due to the important roles played by individual HDACs in embryonic and postnatal development. This information is very important for drug development because of the possible predicted teratogenic effects of HDAC inhibitors. It is possible that HDAC inhibitors targeting certain HDACs may need to be excluded from use in pregnant women and those who may become pregnant.
It is also important to consider immunomodulation, metabolism and other functions of individual HDAC genes in more detail. For example, knockout studies point to important potential targets of HDAC6 downregulation, such as targets in Alzheimer’s disease and other neurodegenerative diseases, inflammation and cancer metastasis, due to the nonhistone functions of HDAC6, such as its effects on cell migration via increased hyperacetylation of β-tubulin.4
Important insights into the functions of HDACs come from the use of HDAC inhibitors. In initial studies, two major compounds with HDAC inhibitory activity were discovered and tested: (1) trichostatin A (TSA), and (2) butyric acid. The application of inhibitors in yeast leads to accumulation of histone-acetylated nucleosomes, and activation of gene expression. They also cause acetylation of centromeric heterochromatin. The use of inhibitors may also cause epigenetic (possibly, transgenerational) effects, so that the acetylated state of histones is passed to the next generation of the cells, following cell division. To the best of my knowledge, the possible epigenetic transgenerational effects of HDAC inhibitors on human beings are unknown.
Molecular mechanism of action
All HDAC inhibitors are thought to function as histone acetylation/deacetylation-specific epigenetic regulators. They also affect nonhistone substrates of HDACs outside the nucleus (such as tubulins and heat shock proteins). It is also possible that HDAC-specific PROTACs affect the noncatalytic functions of HDACs, which are not well-understood. The therapeutic (epigenetic) mechanism of HDAC inhibitors is thought to be significantly enhanced when they are used in combination with demethylating agents, such as 5-aza-2-deoxycitidine (aza-citidine). This mechanism is based on the finding that HDACs are recruited to the proteins bound to methylated cytosines, so preventing both binding of the complex to the target genes and inhibiting HDAC activity is thought to enhance the effect of HDAC inhibitors on the expression of target genes.
Cellular mechanism of action
The cellular mechanism of action of HDACs is being actively investigated. The observed cellular effects include the arrest of cell differentiation, regulation of cell cycle progression, cellular senescence, and apoptosis. At the molecular level, it is accompanied by the accumulation of reactive oxygen species (ROS), activation of the DNA damage response (DDR), and disruption of chaperone signaling. It is thought that histone acetylation/deacetylation affects the expression of tumor-suppressor genes, and the activation of tumor-suppressor genes leads to cell cycle arrest and apoptosis.
HDACs participate in DNA repair, and their depletion by RNAi or specific inhibitors leads to increased ΥH2AX expression and heightened DDR. They modulate the response to therapy-induced genotoxic stress and therapy-induced senescence (TIS). Vorinostat, a panhistone deacetylase (HDAC) inhibitor, is a potential TIS agent that elicits DDR. Vorinostat alters the normal chromatin structure. HDAC inhibitors might be promising senolytic drug candidates with many possible applications.
Preclinical and clinical use of HDAC inhibitors
Several HDAC inhibitors have been approved for clinical use, and several new inhibitor candidates are currently in preclinical and clinical trials for numerous pathologies, such as cancers, immune disorders and neurological disorders. They may be involved in modulating inflammation, autoimmune disorders and asthma. As of 2020, the US Food and Drug Administration (FDA) had approved five HDAC inhibitors for the treatment of T-cell lymphomas, multiple myeloma, and acute myeloid leukemia.8 These compounds are also in trials for the treatment of solid cancers (prostate cancer, breast cancer, lung cancer, head and neck cancer, NSCLC, and HNSCC). The potential use of HDAC inhibitors in Alzheimer’s disease and other neurodegenerative diseases has been reviewed recently.9
There are nonselective pan-HDAC inhibitors and selective inhibitors (e.g., HDAC3-, HDAC4-, and HDAC6-selective). The pan-HDAC inhibitors vorinostat (suberanilohydroxamic acid, or SAHA) and dacinostat target the class I and IIb HDACs 1, 2, 3, 6, 8, and 10. TMP269 and NVS-HD1 target the class IIa HDACs 4, 5, 7, and 9.
The most important application of HDAC inhibitors is the treatment of cancers. Thus, vorinostat, romidepsin, and belinostat are used in cutaneous T-cell lymphoma (CTCL), peripheral T-cell lymphoma (PTL), and acute myeloid leukemia. Panobinostat is used for the treatment of multiple myeloma. HDAC inhibitors are also being tested in solid cancers (prostate cancer, lung cancer, and head and neck cancer). Global Aurora kinase inhibition (AMG900) in combination with HDAC inhibition resulted in the upregulation of senescence features in prostate cancer models.10 Panobinostat, was investigated for its potential to clear lung, cancer and head and neck cancer cells induced into senescence by cisplatin or paclitaxel in vitro. Chemotherapy-induced senescent tumor cells (NSCLC and HNSCC) were more vulnerable to the toxic effects of panobinostat in comparison to their proliferating counterparts.11 Interestingly, the senolytic activity of panobinostat was also linked to its effect on Bcl-xL expression levels.12
HDAC inhibitors are also tested or used in certain autoimmune diseases and asthma. It is also important to consider the effects of histone acetylation/deacetylation in immune responses to infection. The gram-negative bacterial endotoxin LPS, which causes inflammation and the release of inflammatory cytokines, such as TNF-alpha, increases the activities of HATs and suppresses the activities of HDACs, overall increasing histone acetylation and the activation of the genes responsible for the anti-inflammatory immune response. In contrast, steroids, such as glucocorticoids, act through HDACs (e.g., HDAC2) to suppress the expression of proinflammatory genes.
Preclinical trials of HDAC-specific senolytics are also being conducted. Modulators of therapy-induced senescence (agents that induce accelerated TIS) include: sodium butyrate (a class I and II HDAC inhibitor), trichostatin A (a class I and II HDAC inhibitor), Ms-275 (a class I HDAC inhibitor), vorinostat, or SAHA (a class I and II HDAC inhibitor), panobinostat, or Lbh589 (a class I and II HDAC inhibitor), 4-phenylbutyric acid (a class I and IIa HDAC inhibitor), valproic acid (a class I and IIa HDAC inhibitor).13
Combined treatment with an aurora kinase inhibitor and HDAC inhibitor, induced senescence in prostate cancer models. Lung and, head and neck cancer cells (NSCLCs and, HNSCCs) induced into senescence by cisplatin or paclitaxel, are cleared by panobinostat.12
In this review, we do not provide an initial or comprehensive introduction into bivalent protein targeting chimeras (PROTACs). These compounds have been recently reviewed in the leading journals. They are subject to the recent publications and presentations at recent conferences focused on targeted protein degradation with the participation of leading academic and industry labs worldwide.
Current PROTAC clinical trials focus on compounds targeting androgen receptors (to develop drugs against prostate cancer) and estrogen receptors (to develop drugs against breast cancer). Previously, bromodomain proteins (epigenetic readers targeting acetylated lysines) have been actively used to develop several PROTAC molecules.
Recent studies of HDAC-PROTACs test either individual molecules or libraries of compounds in single or multiple rounds of selection.
HDAC degraders recently developed include class I HDAC degraders, HDAC6 degraders, NAD+-activated SIRT degraders and nonselective HDAC degraders.
We would like to briefly mention several recent examples of newly developed HDAC degraders.
Class I HDAC degraders
An HDAC1-specific degrader based on the dTAG system was designed: degradation of a fusion protein between F36V FKBP-lLigand and an IMiD derivative.14,15
An HDAC3-specific degrader was reported by Xiao Y et al..16 A compound called XZ9002 is a PROTAC based on either CRBN or VHL, and it was tested with in breast cancer cell lines for HDAC3 degradation, histone acetylation, and cell proliferation. This compound may target breast cancer metastasis. Future work will examine the antimetastatic effects of XZ9002 in cellular and animal models.
HDAC6 degraders
In 2018, Yang K et al.17 published one of the first original reports of the development of an HDAC6 degrader. Relatively nonselective HDAC inhibitors were used in cell-based assays to select for more HDAC6-specific compounds. For instance, one such compound “compound 18” increased acetylation of histone H3. HDAC6 inhibitors might modulate the acetylation of nonhistone proteins, such as tubulin and HSP90. Future studies will focus on how HDAC6-PROTACs affect the acetylation of these nonhistone proteins and their cellular functions.
The initial work of that group was followed up by testing the library of CRBN ligands in cell-based (target-engagement) binding assays with the read-out for HDAC6 degradation (Western blot and mass spectrometry).18 The advantage of the system is that it is based on the analysis of endogenous target substrate proteins.
In 2019, Wu H et al.19 also reported a selective HDAC6 degrader (Nexturostat-CRBN), targeting histones and cytoplasmic substrates of HDAC6 (tubulin and HSP90) that can be candidates for the treatment of multiple myeloma.
Tim Keuler and colleagues recently reported a new generation of HDAC6 degraders with optimized chemical design.20
PROTACs targeting NAD+-dependent histone deacetylases
In 2018, Schiedel M et al.21 developed SIRT2-specific compounds with so-called “SirReals”, - derivatives of thalidamide, that recruit CRBN E3 ligase and tested their activities in HeLa cells.
Nonselective HDAC degraders
A landmark study was recently published by Fischer lab.22 reporting a chemo-proteomics platform to test a panhistone deacetylase (HDAC) degrader library. They carefully examined and discussed all important factors for developing new HDAC degraders and proposed a molecular mechanism to account for the TPD of multiprotein (repressor) HDAC-containing complexes.
An interesting new approach applied to pan-HDAC inhibitors was developed by Friedman Ohana et al.23 They developed a “Photo-affinity tag” system, in which the photo-affinity tag binds the target protein. This binding was interfered by the use of a pan-HDAC inhibitor in the protein-inhibitor interaction (binding) assay. The photoaffinity tag binds the target protein upon cell treatment followed by UV photocrosslinking, lysis, capture/enrichment/release with Halo-Tag beads, and chemical cleavage. BRET was used as a read-out assay.
Preventing histone methylation is thought to affect “a code of histone modifications” and enhance the effects of HDAC inhibition. There is a new generation of patented histone-modifier “non-E3 ligase”-based bifunctional degraders recruiting the ubiquitin receptor, which targets the substrate for degradation by the proteasome. One example of this new type of histone modifier is the “DOT1L” degrader recently patented by DFCI and specific for histone (H3K79me1me2me3) methyltransferase. It is a bifunctional “non-E3 ligase”-based degrader that links the DOT1L binder and RA190 binder of ubiquitin receptor RPN13, targeting DOT1L to degradation by the proteasome (discussed by “Ciulli lab TPD Journal Club”, School of Life Sciences, University of Dundee, UK).28
Considering the molecular mechanism of TPD by HDAC degraders, they have been shown to bind and target either free HDAC proteins or HDAC-containing multiprotein complexes. Thus, “collateral” degradation of other proteins within HDAC-containing complexes has been demonstrated. This may lead to the loss of chromatin repressive complexes. Xiong et al.,22 proposed two possible mechanisms to account for the effect of degraders on collateral degradation:
The cellular effects of HDAC PROTACs are being actively investigated. They might include: target cell-, tissue-, and organ-specific effects, cell differentiation arrest, and reciprocal regulation of cell cycle progression, cellular senescence, and apoptosis. At the molecular level, HDAC-PROTACs may affect the accumulation of reactive oxygen species (ROS) and the DNA damage response (DDR), and disrupt chaperone signaling. It is thought that histone acetylation/deacetylation regulates the expression of tumor-suppressor genes. The activation of tumor-suppressor genes leads to cell cycle arrest and apoptosis. It is important to mention modulation of DNA repair, ΥH2AX expression, and DDR. They might modulate the cellular response to therapy-induced genotoxic stress and therapy-induced senescence (TIS). Based on their mechanism of action, HDAC-PROTACs are promising drug candidates with many possible applications (for diseases, in which HDAC inhibitors have been shown to be effective).
HDAC-PROTACs are designed based on
The key criteria for developing HDAC-PROTACs include
Typically, several assays have been employed to test degrader activity: (A) measuring levels of target proteins by Western blot (band intensity, “isoform-specific shift”), fluorescent reporter-based assays, quantitative proteomics (measuring HDAC protein half-life, and the global effects at the proteome level); (B) HDAC ubiquitination assays; and (C) HDAC enzymatic activity assays (in vivo and in vitro) – for example, fluorescence activity assays sensitive to trypsin cleavage, measuring the inhibitory effect of the compound on HDAC activity. It is important to include appropriate controls in these assays: inactive E3 ligase (no effect on TPD); proteasome inhibitor(s) (negative effect on TPD); and specific effective HDAC inhibitors (the control for HDAC activity).
It is also important to examine the effects of HDAC degradation on the expression of other proteins -, including significantly upregulated and downregulated proteins identified in chemoproteomics experiments.
Another possible effect that can be tested is phenotype rescue (ex. age-dependent regulation of the expression of certain proteins) by the deletion (or downregulation) of specific HDACs (see, for example, the chapter on HDAC knockouts).
Recently, new methods have been developed to study HDAC-PROTACs, such as global activity-based protein profiling (ABPP) (Cravatt group, Scripps Research Institute, La Jolla, CA.) This functional proteomics “in-gel” platform is based on the use of “active site”-directed probes in whole-proteome profiling and competitive assays with candidate degrader molecules. Such probes label active enzymes (for example, specific PTMs) but not inactive, inhibitor-bound enzymes. Therefore, competitive ABPP can be used for the discovery of selective inhibitors of enzymatic activity, including HDACs.
The steps of ABPP include:
ABPP is being tested with HDAC-specific probes in competitive assays. Treatment can be performed with the library of the candidate molecules-, inhibitors/PROTACs (treated versus nontreated), followed by “in-gel” analysis. Typically, this kind of assay is applicable to in vitro cancer cell models, in vivo cancer animal models, and primary tumor specimens. There is also a tag-free version of ABPP applicable to live cells and animals, i.e., active in vivo.24-26
Each degrader molecule has to be tested for:
The following effects were examined: specific scaffolds; E3 ligase activity (including ligase-inactive control); and linker chemistry (varying the length of the linker, attachment sites, etc.). These testing criteria were thoroughly discussed in the recent article by Xiong et al.22
One potential future direction of research on HDAC degraders is to select them based on the expression of the native E3 ligase in the target organ/tissue, to enable a cell-type specific TPD for more focused therapeutic effects. In principle, it is possible to use the data of the protein atlas, cancer atlas and other databases of protein expression to select E3 ligase candidates that are sufficiently expressed in the target organ/tissue.
Although nearly all compounds work through the ubiquitin-proteasomal pathway (sensitive to proteasome inhibitors), there is also a new generation of patented histone-modifier “non-E3 ligase”-based bifunctional degraders that recruiting the ubiquitin receptors (such as RPN13), to target the substrate to the for degradation by the proteasome (discussed by “Ciulli lab TPD Journal Club”, School of Life Sciences, University of Dundee, UK).28
Delivery of the therapeutic compound to the target tissue/organ and permeability of the cell membranes to a given compound are very important factors that influence their therapeutic value. This topic has been discussed in recent articles.
- Does particular degrader target HDACs only in the nucleus or also in other cell compartments (see for example, Zhang X et al.24
Due to the mechanism of action of HDACs, it is also worth mentioning PROTACs targeting other (non-HDAC) histone modifying enzymes, such as DOT1L, a degrader, mentioned above. The therapeutic (epigenetic) mechanism of HDAC inhibitors is thought to be significantly enhanced by use in combination with demethylating agents, such as 5-aza-2-deoxycitidine (aza-citidine). This mechanism is based on the finding that HDACs are recruited to the proteins bound to methylated cytosines, so preventing both binding of the complex to the target genes and inhibiting HDAC activity is thought to enhance the effect of HDAC inhibitors on the expression of target genes.
Since HDAC inhibitors have been successfully combined with aurora kinase inhibitors and other chemotherapeutic drugs that induce cellular senescence, in future trials, it will be possible to combine these compounds with HDAC-targeting PROTACs.
Recently, the novel generation of PROTAC compounds targeting plasma membrane integral proteins, based on the use of the plasma membrane-bound E3 ligase-coupled antibodies was reported.27 This promising strategy needs to be further elaborated and optimized to target cytosolic and nuclear HDAC degraders.29-40
The author is grateful to the reviewers for their critical review of the manuscript.
Author declares there is no conflict of interest.

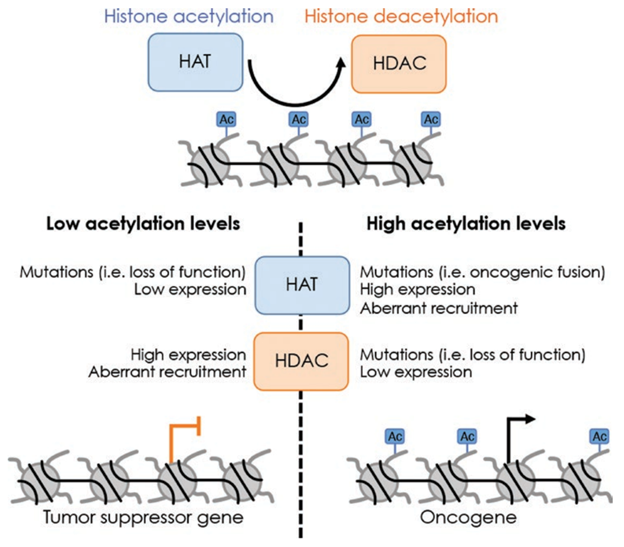

Figure 1 Alterations of HATs and HDACs in cancers (Borrowed from: “Introduction to Epigenetics”.35
Alterations in the acetylation/deacetylation balance can influence the expression of tumor suppressor genes and oncogenes, favoring the tumorigenic process. High expression or the abnormal recruitment of HDACs or the reduced expression or activity of HATs can lead to the repression of tumor suppressor genes. In contrast, mutation or low expression of HDACs or high expression, oncogenic fusion, or aberrant recruitment of HATs can lead to the activation of oncogenes.
Figure 2 Illustration of the concept of epigenetics. Author with his daughters in Southern California in 2002.
Photo of the author (Alex Sobko) wearing a sombrero hat, with two of his daughters during the celebrations of the Jewish holiday of Purim at Soille San Diego Hebrew Day School in 2002.
