Background and objectives: There is considerable disagreement in the literature regarding the nature of differences underlying subgroups of blood group A. The purpose of this study is to further investigate possible qualitative and quantitative variations between A₁ and A₂

Materials and methods: Erythrocytes from type A blood donors were tested for hemagglutination with A and B monoclonal antibodies and the A₁ lectin, Dolichos biflorus. A₂ subgroup was assigned to those A erythrocytes that did not react with Dolichos biflorus but did react strongly with A antibody. Once A₁ and A₂ cells were thus identified, variation in A antigen expression was assessed by flow cytometry and western blot.

Results: Flow cytometry revealed that A₂ cells express less A antigen than A₁ cells, but the extent of the difference was less than expected and decreased as the dilution of the A antibody increased. However, when A₁ and A₂ erythrocytes were studied by western blot, A₁ erythrocytes yielded dramatic protein bands, which A₂ erythrocytes failed to demonstrate.

Conclusion: Only A₁ erythrocytes expressed antigen identified by western blot. This dramatic qualitative difference between A₁ and A₂ cells seems to be more substantial than the small quantitative differences detected by flow cytometry.

Keywords: Blood groups; Immuno hematology; RBC antigens and antibodies; Flow cytometry

The major blood group antigens A and B are sugars that are expressed on red blood cells, on organ endothelia, and in the body fluids of most individuals.^1–3 The biological significance of blood group in nature is unknown, although the distribution of blood groups throughout the world may be explained in part by susceptibility to various diseases.^4–5 Blood group is a major consideration in transfusion medicine and organ transplantation because ABO incompatible transfusions and allografts may precipitate catastrophic hemolysis or graft thrombosis resulting in patient death.^6–8

Blood group A is defined by the presence of the sugar n-acetyl galactosamine (and the absence of galactose) on the terminal galactose of glycolipid and glycoprotein structures attached to the erythrocyte surface.⁹ Approximately 41.7% of individuals of European descent are blood group A.¹⁰ Almost 80% of European-descended blood group A individuals are subcategorized as A₁, which is defined by hemagglutination with the lectin of Dolichos biflorus. In contrast, approximately 22% of blood group A individuals of European ancestry are subgroup A₂, making the A₂ subgroup the second most common A subgroup (after A₁).¹⁰ It is important to note that other ethnicities have different blood group distributions; for example, the A2 subtype is rare (<1%) in Japan.¹¹ Other than A₁ and A₂, the remaining A subgroups, such as A₃, A_x, A_int, and A_m (to name a few) are relatively rare and are usually detected via a weak or mixed field hemagglutination with A antibody.⁹ Approximately 75-95% of blood group antigen determinants are bound to protein backbone structures, with the remaining antigen expressed on lipid backbones.^9,12

The nature of the mechanism underlying the difference between A₁ and A₂ erythrocytes has been a controversy for decades, with the literature divided among studies promoting a qualitative mechanism,^13–18 studies demonstrating a quantitative mechanism,^19–22 or studies advocating for both qualitative and quantitative differences.²³ It has been prominently reported that group A₂ erythrocytes express approximately 75% less A antigen on their surface relative to A₁ erythrocytes.^20–22 However, because A₂ erythrocytes are believed to express a relatively large number of A antigen sites (~250,000 antigen sites per cell),²⁰ it may be that anti-A₁ is formed for a reason other than the A1 antigen being recognized as “foreign”. An alternative hypothesis is that a qualitative difference in the structure of some A antigen expressing proteins or lipids may underlie the immunology of A₁ antibody production. Such a qualitative difference may also explain the reduced immunogenicity of A₂ solid organ allografts relative to A₁ in the context of ABO incompatible transplantation.

In order to further investigate the existence of qualitative and quantitative differences in A antigen expression, we determined expression of A antigen on A₁ and A₂ erythrocytes via several methodologies: flow cytometry and western blot.

Erythrocytes

Erythrocytes were obtained with IRB approval from tubing segments from 87 blood group A red blood cell donor units in inventory at the Vanderbilt University Medical Center Blood Bank. All donors segments were tested via hemagglutination using commercially available A and B antibodies (Immucor, Norcross, GA) to confirm their blood grouping as group A. Each segment was also tested with Dolichos biflorus, the A₁ lectin, to help to determine A₁ versus non-A₁ subgroup (Immucor, Norcross, GA). Donors were not pre-selected for A₁ or A₂ subgroup.

Serial dilution hemagglutination (tube) assay

A₁ and A₂ cells were identified based on hemagglutination (or lack thereof) with Dolichos biflorus and strong hemagglutination reactions with monoclonal A antibody (Immucor, Norcross, GA). To test for subtle differences in antigen expression between A₁ and A₂ cells, serial dilutions of A antibody (Immucor, Norcross, GA) were prepared with buffered PBS as the diluent. One drop of 2% erythrocyte suspension in buffered PBS was added to 2 drops of diluted antibody in a 10mm diameter glass test tube. The suspensions were centrifuged immediately for 20 seconds at 3480rpm in a serologic centrifuge (BD Biosciences, Franklin Lakes, NJ) at room temperature and then assessed for hemagglutination.

Flow cytometry

Red cells from A₁ and A₂ donor segments identified from hemagglutination testing (above) were washed three times in flow cytometry buffer. The washed cells were counted in a hemocytometer (Hausser Scientific, Horsham, PA). A volume corresponding to 5x10⁶ erythrocytes from each donor was suspended in 100mcL of flow cytometry staining buffer and incubated at 4°C for 30 minutes with A antibody (Immucor, Norcross, GA) diluted 1:20, 1:40, 1:80 or 1:160 in PBS. The A antibody was subsequently removed with 3 sequential washing and centrifugation cycles (at 3,000xg for 3 minutes at 4°C). The washed cells were re-suspended in approximately 100mcL of flow cytometry staining buffer and incubated with 30mcg of R-Phycoerythrin-conjugated mouse antibody (Jackson Immuno Research Laboratories, West Grove, PA) at 4°C for 30 minutes in the dark. After incubation, the cells were washed 3 times in flow cytometry staining buffer and then analyzed on an LSR II flow cytometer (BD Biosciences, San Diego, CA). Histograms were constructed using FlowJo software (Treestar, Ashland, OR).

Sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) western blot

A₁ and A₂ erythrocytes (as determined above) were washed in PBS and lysed with five consecutive centrifugation (at 5,000xg for 5 minutes) re-suspension cycles in a hypotonic solution of 5mM NaPO₄ supplemented with protease inhibitors (Roche, Indianapolis, IN). The resulting pearly white erythrocyte “ghosts” were washed a final time in PBS and solubilized in RIPA buffer. The protein concentration from each donor was determined by the bicinchoninic acid assay (Pierce Protein Research Products, Rockford, IL). After quantification, equal quantities of protein (either 10mcg or 20mcg) from each donor were loaded into a 12% polyacrylamide gel. After electrophoresis for 2 hours at 110V, the gel was transferred for approximately 16 hours onto a nitrocellulose membrane at 4°C at 30V. Next, the nitrocellulose membranes were blocked with 5% milk in TBS-T and probed for A antigen using a 1:1000 dilution of monoclonal A antibody (Immucor, Norcross, GA) for 2 hours at room temperature. After washing the membrane for 30 minutes in TBS-T, it was incubated with a horseradish peroxidase conjugated secondary mouse antibody (Southern Biotech, Birmingham AL) at room temperature for 1hour. After washing, the membranes were treated with horseradish peroxidase chemiluminescent substrate (Millipore, Billerica MA) and exposed to film in the dark for 5 to 25 minutes. The membranes were subsequently washed gently until the A antigen signal was removed. The membranes were then probed for beta actin (Sigma, St. Louis, MO) for 2 hours at room temperature, washed, probed with secondary mouse antibody for one hour (Southern Biotech, Birmingham, AL) and re-exposed.

Statistics

Unpaired t-tests were performed to compare the mean fluorescence intensity (MFI) of A₁ versus A₂ red blood cells. Two tailed p values were calculated and any p value <0.05 was considered statistically significant. Analysis was performed using GraphPad Prism version 7 (Graphpad Software Inc, La Jolla, CA).

Hemagglutination (tube) assay

All cells, regardless of their reaction with Dolichos Biflorus, reacted strongly with no mixed field agglutination with A antibody. In general, the monoclonal antibody agglutinated all cells at 4+ strength until it was diluted 1:16 or greater. At dilutions greater than 1:16, both A₁ and A₂ cells experienced a gradual decline in hemagglutination strength until all group A cells were negative at the 1:1024 dilution (Table 1). Thus, all of the non-A₁ cells used in our study were classified as subgroup A_2.

Flow cytometry

We found that A₂ erythrocytes express slightly less A antigen than A₁ erythrocytes by flow cytometry, but the extent of the difference was dependent on the concentration of A antibody used in the assay (Figure 1). The difference between A₁ and A₂ cells was most apparent at the 1:20 dilution (mean A1 MFI=717; mean A₂ MFI=445; p=0.0418), and tapered off until it was very slight at best at a dilution of 1:160 (mean A₁ MFI=185; mean A₂ MFI=187; p=0.8832). Results are summarized in Table 2.

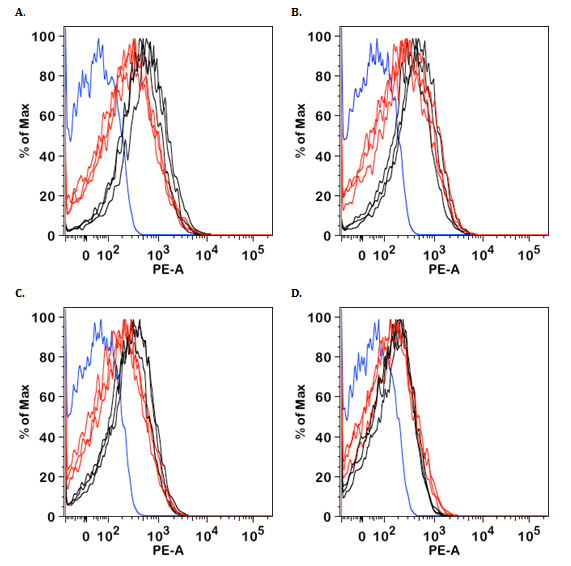

Figure 1 Flow cytometry with monoclonal A antibody shows small differences between A₁ and A₂ erythrocytes that fade as more dilute A antibody is used. Black lines: A₁ cells. Red lines: A₂ cells. Blue lines: negative control cells (secondary antibody only). A) 1:20 dilution of A antibody; B) 1:40 dilution of A antibody; C) 1:80 dilution of A antibody; D) 1:160 dilution of A antibody. Data shown from 6 donors (3 A₁ and 3 A₂) analyzed together.

Sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) western blot

All A₁ donors tested generated a wide range of protein bands approximately 37-75kD in size, but A₂ donors did not generate any protein bands (Figure 2; results representative of all donors tested). All group A cells, regardless of subgroup, expressed the housekeeping gene beta. When commercially available, known A₂ reagent cells were subjected to western blot, the results were indistinguishable from the tested A₂ donor erythrocytes (Figure 2A, second lane from right).

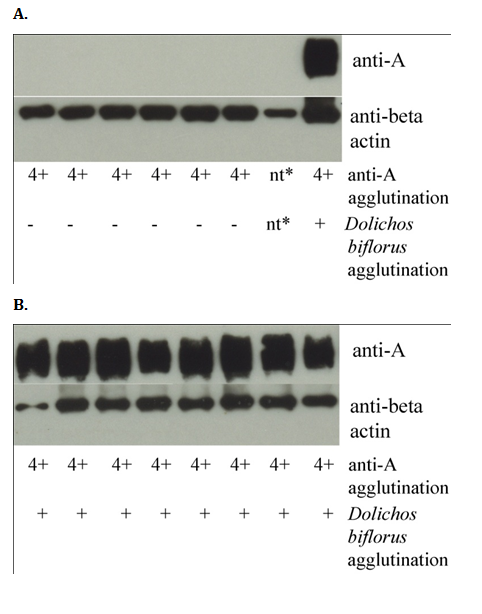

Figure 2 Western blots of erythrocyte membranes probed for A antigen and beta actin. A) A minority of solubilized group A erythrocyte membranes do not yield protein bands when probed with A antibody (middle lane). Cells from these donors did not react with Dolichos biflorus but reacted strongly with A antibody by tube hemagglutination, indicating that they are A₂ cells. In contrast, the housekeeping gene beta actin was strongly expressed in all donors. A single A₁ donor was run as a positive control in the far right lane. Commercially available A₂ reagent cells (second lane from right) were indistinguishable from the donor A₂ erythrocytes. B) In contrast, multiple A₁ donors yield protein bands when probed with antibody to blood group A antigen (all lanes).

*Not tested; lane loaded with commercially produced reagent A₂ cells.

All three of the laboratory modalities that we used to assay for A antigen expression utilized the same commercially produced monoclonal blood group A antibody.²⁴ This antibody is approved by the United States Food and Drug Administration as a blood grouping reagent and is used routinely in our blood bank for clinical specimens.²⁴

Although flow cytometry did detect differences between A₁ and A₂ erythrocytes, the extent of the differences detected was smaller than what we expected based on the literature (~75% reduction in A₂ compared to A₁).^20–22 Interestingly, as the A antibody was diluted, the difference between A₁ and A₂ cells became harder to determine (Figure 2). We interpret these results to mean that the differences in the quantity of A antigen expressed on A₁ versus A₂ cells may be smaller than expected based on previous reports in the literature.^20–22

Western blot is a highly sensitive laboratory technique used to detect and quantify proteins. It is rarely employed in clinical settings, although it is used occasionally to provide highly specific, highly sensitive test results (e.g., historically as a confirmation of HIV infection after a positive ELISA).²⁵ If the difference between A₁ and A₂ cells was primarily quantitative, the western blot of A₂ cells would be expected to show a fainter, but identifiable bands, compared to A₁ cells. These weaker bands could be taken as evidence of a slow A₂ transferase that was biochemically active on all of the same structures as the A₁ transferase but was unable to add A determinants as efficiently. However, the complete absence of protein bands on analysis of A₂ cells is not consistent with a quantitative difference; rather, it is consistent with a qualitative difference in the structures underlying A antigen determinants on A₁ versus A₂ cells. Specifically, these results suggest that proteins expressing A antigen on A₁ cells do not express A antigen on A₂ cells. The presence of beta actin in both A₁ and A₂ cells serves an internal control that protein was loaded in all experiments. Although we did also detect minor quantitative differences by flow cytometry, the stark contrast between A₁ and A₂ cells assayed by western blot suggests that a key difference between A₁ and A₂ cells is qualitative, with discernible but minor differences in A antigen expression as a secondary finding.

Our finding that the difference between A₁ and A₂ cells may be largely qualitative contradicts a number of studies in the literature that report far greater quantitative differences than the present study.^20–22 The most widely cited^{9,17,18,21,26} study to present evidence of extensive quantitative differences - while extremely elegant and ahead of its time - was published in 1967 and has some important shortcomings.²⁰ Briefly, the study utilized a ²⁵I labeled A antibody that was generated from 2 rabbits injected with human A₁ erythrocytes. After purification and radioactive labeling, the A antibody was exposed to formalin-fixed erythrocytes of various known group A subgroups. The number of antigen sites per cell (approximately 1million for subgroup A₁ and 250,000 for subgroup A₂) was estimated based on serum absorption. However, we hypothesize that the rabbits injected with human A₁ erythrocytes may have produced a relatively greater amount of A₁ antibody and less A antibody, which would also explain these findings. It is interesting to note that the first A antibody generated from a hybrid myeloma cell line also showed higher avidity for A₁ cells than for A₂ cells, but subsequent hybridoma formulations react equally with A₁ and A₂ cells.²⁷. These findings suggest that a falsely depressed determination of A₂ cell antigen sites can be calculated using an antibody with reduced A₂ selectivity (such as an A₁ antibody).

We are certainly not the first group to hypothesize that important qualitative differences distinguish A subgroups. However, previous reports have focused on differences in glycolipids carrying A antigen determinants, rather than proteins. Briefly, thirty years ago, Fujii et al.¹⁵ showed that A₂ erythrocytes are missing a major glycolipid carrier of A antigen that is found on A₁ erythrocytes.¹⁵ Five years later, an unrelated group identified a novel glycolipid, known as type 3 chain A, that was believed to express A antigen exclusively by A₁ erythrocytes.¹⁴ This same group later established that the A₂ transferase was far less efficient at converting type 3 or type 4 (globo-H) H structures to type 3 or type 4 A structures relative to the A₁ transferase.¹⁸ A more recent study elegantly repeated some of the early investigations using many of the same antibodies.¹⁷ However, this study found that type 3 glycolipids do express A antigen on A₂ erythrocytes, while confirming that type 4 glycolipids carry A antigen determinants on A₁ but not A₂ cells.¹⁷ In contrast to previous studies, the present study is the first of which we are aware that identifies proteins detected by western blot that expresses A antigen on A₁ erythrocytes but not A₂ erythrocytes. It is interesting to note that glycolipids are only estimated to underlie 4-20% of all A antigen determinants, with protein backbones constituting the remaining 75-95%.^9,12 In addition, the type 4 chain A glycolipids - which were confirmed by the most recent major study in the literature as the likely lipid “A₁ substance” -¹⁷ are very minor contributors to the total glycolipid makeup of erythrocytes.²⁸ This may indicate that a qualitative difference in protein structures expressing A antigen, as reported in the present study, may be especially immunogenic, and possibly more likely to be the antigen responsible for the generation of A₁ antibody than a rare lipid based antigen as reported previously. Further research is needed to achieve additional clarity on this subject, however.

The concept that there are substantial differences in H expression between A₁ and A₂ cells is based on a fundamental pillar of erythrocyte biochemistry: that A and B determinants are generated by the addition of n-acetyl galactosamine or galactose to pre-existing H antigen structures. Assuming that erythrocytes have a finite number of H structures regardless of their grouping (except in rare instances, such as type O Bombay), a more active transferase implies a greater number of A determinants and fewer remaining H antigen sites. Thus, if one assumes that A₂ cells express 75% less A antigen than A₁ cells, they must also express substantially more H antigen than A₁ cells. However, because we report only relatively small difference in A antigen expression overall between A₁ and A₂ cells, we would expect only a proportional (and also very small) difference in H antigen sites.

We did not employ molecular tests to differentiate A₁ and A₂ cells for this study. This is because we were able to establish A₁ and A₂ cells with confidence using monoclonal antibodies and the A₁ lectin. In addition, reagent grade A₂ cells that we purchased from Immucor provided identical results on western blot as serologically defined A₂ cells (Figure 2A, second lane from right). Previous studies comparing A₁ and A₂ cells have been published based on serological classification of A₁ and A₂.¹⁷

In conclusion, we tested erythrocytes from 87 group A donor segments. All eighty-seven reacted strongly on forward screening with A antibody and sixty-four agglutinated with Dolichos biflorus, indicating that 26.4% of our group A donor population is A₂. This is similar to the 22% of total group A individuals of European ancestry that are estimated to be A₂ in the medical literature.¹⁰ We report that the A₁ cells in our cohort express a slightly greater number of total A antigen sites as compared to A₂ cells, but the extent of this difference is less striking than the qualitative difference in structures expressing A antigen that we identified by western blot. We believe that further study of this finding could yield important details about blood group antigen immunogenicity, with implications for the fields of transfusion as well as transplantation.

Only A1 erythrocytes expressed protein antigens as identified by western blot. This dramatic qualitative difference between A₁ and A₂ cells seems to be more substantial than the small quantitative differences detected by flow cytometry. These data suggest that A₂ erythrocytes lack certain A antigen-modified glycoproteins and likely harbor mainly glycolipids containing the A antigen.

The authors gratefully acknowledge Shelia Garrett, SBB, Mary S. Johnson, SBB, and Deborah L. Sturdivant, SBB of the Vanderbilt University Medical Center Blood Bank and Justine Liepkalns of Emory University for their generous technical assistance and grant # R01GM11830001.

EAG designed the experiments, performed the experiments and wrote the paper. PPY designed the experiments and wrote the paper.

This research was supported in part by Vanderbilt University Medical Center CTSA Grant # UL1 RR024975-01 from NCRR/NIH (to EAG and PPY) and a Clinical and Translational Enhancement Award from the Vanderbilt University Department of Pathology, Microbiology and Immunology (to EAG and PPY).

The author declares no conflict of interest.
