The study of migrations can give us the key for determining changes in avian communities during global events such as El Niño Southern Oscillation (ENSO) phenomenon. For this reason, changes in bird migration patterns were addressed through non-parametric analysis of variance and temporal and beta diversity correlations during an ENSO event at Barra Norte Beach (BN) in Tuxpan, Ver., Mexico. The diversity of birds change from 53 species before the anomalies to 66 during the ENSO event, this gradient of change occurred to the diversity of migratory birds (from 21 to 32). These results may be an evidence that the high impact ENSO anomalies can modify bird migration patterns, which is supported by differences in medians richness (especially in migratory birds) as well as by positive and significant values in correlations in beta and alpha diversity. Finally, we conclude that the migratory route of Gulf of Mexico can serve as an alternative for the migration of birds during events such as ENSO phenomenon.

Keywords: birds, diversity, migration, ENSO, Mexico

On the planet, it is estimated that more than 5,000 species of animals make periodic movements of different magnitudes as part of their daily activities.¹ Movement from one place to another allows adjustment to changing environmental conditions, and for that reason the daily movements of many animals take place within a single habitat (i.e., local migration). On the other hand, there are periodic movements that allow many species to adjust to the spatial and temporal heterogeneity of the environment, not as an immediate and opportunistic response, but as an adaptive phenomenon, called regional migration, that occur through natural routes where the ideal conditions are present,^1,2 or failing that, species may change route or as well as their range of distribution, depending on changes in the environment.³

In the last two decades, one of the taxonomic groups where the phenomenon of migration has been studied with greater emphasis is that of birds.^2,4 So far, 340 bird species are recognized in North America that breed north of the Tropic of Cancer and winter south of it.⁵ Four major migratory routes have been identified in America:² 1) that of the Atlantic Ocean (used by few species that fly over the Atlantic from Nova Scotia and eastern Canada to South America), 2) that of the Atlantic coast (used by species that migrate across the Gulf of Mexico from Florida and the southeastern United States to Mexico and the West Indies), 3) that of the Gulf of Mexico (used by species that cross the Gulf of Mexico or its coastal areas, 4) the western or Pacific route (where birds from the western United States and Canada migrate using the Pacific slope coasts as corridors, or, the Western Sierra Madre, Sierra Madre del Sur and the Transmexican Neovolcanic Axis).² Each of these routes is of vital importance in the migration of birds to their resting and breeding sites; recent studies that address the inventory of avifauna in northern Veracruz where it crosses the migratory route of the Gulf of Mexico, account for it.^6,7 For example, in the riparian environments of Tuxpan, Veracruz, 56.3% of avifauna are migratory birds,⁷ while for the neighboring Lobos-Tuxpan Reef System 89% are migratory birds.⁶ Likewise, 102 new records have been documented for both localities, of which 31% are migratory birds (winter visitors and passerby). This information is indicative of the great importance of migratory routes, however; the flow of species could be reduced as the population decline of many groups of migratory birds (e.g. chipes, musketeers, hummingbirds) has been documented for various reasons (e.g. habitat loss, pollution).⁴ This situation could be accentuated by extreme cyclical events such as “El Niño-Southern Oscillation” (ENSO). According to Herzog et al.,⁸ this type of cyclical oscillations can modify or displace the climatic niche of species (i.e., ranges and migration), especially when they are very intense. The aim of this work is to study the effect of one of the most intense ENSOs (period 2015-2016) on the distribution of migratory birds, using alpha and temporal beta diversity. With this study it was expected to find a relationship between the ENSO effect and the temporal beta in a coastal locality of the migratory route of the Gulf of Mexico.

The city of Tuxpan, Veracruz, borders to the east with the Gulf of Mexico and is characterized by a strip of coastline divided into two sectors (north and south) as an effect of the mouth of the river Tuxpan. In the northern portion highlights the beach Barra Norte (BN) with an extension of 4.86 km and serves as a gateway for migratory birds to enter the various coastal ecosystems.⁷ The BN beach is geographically located between the 21°0'42.77" N and 97°19'41.74" W and between 20°58'23.28"N and 97°18'17.17" W.

The ENSO effect 2015-2016 on the distribution of avian fauna was evaluated by means of alpha and temporal beta diversity in two wintering periods: October 2014-May 2015 and October 2015-May 2016. Howell & Web⁹ propose that the winter season consists of a period of eight months, which includes the migration that occurs towards the tropics and the tropics towards the temperate environments of North America. During 72 days of sampling, a total of 234 transects and approximately 195 hours of sampling were performed. On each sampled day three systematic linear transects were made along the BN coastline, each transect was 1 km long and 600 m wide according to the proposal of Velarde et al.;¹⁰ the transects were performed walking in the mornings from 07:00 am to 11:00 am.

The observation of bird species was done with the help of binoculars (Vortex). Field guides by Preston,¹¹ Howell & Webb,⁹ Petracci et al.,¹² and Peterson & Chalif¹³ were used to identify some species. Each recorded species was photographed with various photographic equipment: Nikon Coolpix P100 21x, Nikon D3300 75-300 mm and Nikon Coolpix P900 83x. To establish if the sampling effort was adequate, a species accumulation curve was performed through the Clench model and the Simplex & Quasi-Newton geometric function;³ the evaluation of the model was established through the determination coefficient r². The matrix of presence and absence of the species was randomized 100 times in EtimateS v 7.5.2 software¹⁴ and later the observed values were taken to STATISTICA v7 software¹⁵ where the model was made as described by Jiménez & Hortal.³

The seasonality of registered birds was established according to Howell & Webb⁹ criteria: reproductive resident, non-breeding resident, summer residents, winter visitor and passerby; the latter two groups make up the regional migratory birds. The degree of species replacement over time was determined through Moreno & Halfter¹⁶ proposal by using the complementarity index ($C_t$ ) of Colwell & Coddington¹⁷ and a modification of the beta diversity index (β) by Whittaker.¹⁸ The way to measure the degree of differentiation in the composition between species listed, and the percentage of exclusive species in a list was calculated through equation 1:
$C_t=\frac{S_j+S_k-2V_{jk}}{S_j+S_k-V_{jk}} x 100$ (Eq. 1)

where $S_j$ and $S_k$ are the number of species in the list k and j respectively, and $V_{jk}$ is the number of species in common between both lists, in such a way that

$C_t=\frac{exclusive species from a list}{combined richness } x 100$ (Eq. 2)

Whittaker temporal diversity index (${\beta }_{tW}$ ) was obtained by dividing the total number of species in a temporary species set ($\text{Σ}{\propto }_t$) by the average diversity (${\propto }_t$) of the list (equation 3).

${\beta }_{tW}= \frac{\text{Σ}{\propto }_t}{average {\propto }_t }$(Eq. 3)

The index ${\beta }_{tW}$ was evaluated at two levels (within months and between months), while complementarity was evaluated at a single level (Figure 1).

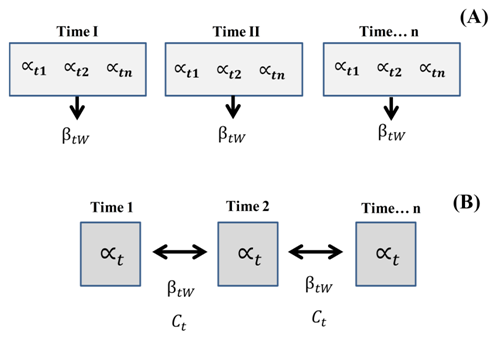

Figure 1 (A) Proposal to measure ${\beta }_{tW}$ diversity within temporal sampling unit, where each t represents a subunit of the temporal sample (e.g. day), and (B) proposed by Moreno & Halfter (2001) to measure the ${\beta }_{tW}$diversity between habitats (here, temporary units). Α, alpha diversity; t, subunit of the temporal sample (n); ${\beta }_{tW}$, temporary beta of a unit of time; Ct, temporal complementarity.

Finally, to establish whether the diversity ${\propto }_t$, the mean of${\propto }_t$ (referred here as ${\propto }_{tp}$),and the values of $C_t$ are related within and between the two winter seasons, Spearman correlations were carried out, while non-parametric variance analyses were used to detect differences. Both analyses were carried out with InfoStat software.¹⁹

74 species of birds were recorded, of which 25 are new records for the northern coastline of Tuxpan, nine for northern Veracruz and three for the coastal plain of the Gulf of Mexico (Eudocimus ruber, Larus glaucocescens y Streptoprocne semicollaris) (Table 1). The Clench model suggests that the expected richness could increase to 81 species, so 91% of the richness has been recorded (Figure 2).

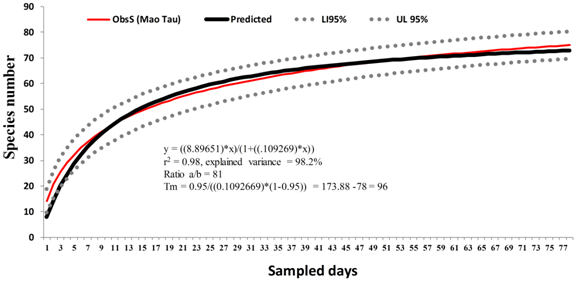

Figure 2 Cumulative curve of species observed and expected for the Barra Norte of Tuxpan, Veracruz.
ObsS, observed species; Ll, lower limit; UP, upper limit.

Of the registered birds, 47.3% are considered resident (32 spp. are reproductive, two non-breeding and one is summer resident), while 52.7% are migratory (22 spp. are winter visitors and 17 passersby). The importance of the seasonality of these groups increased during ENSO year, where the number of passersby species increased from 9 to 14 species (Riparia riparia, Hirundo rustica, Egretta rufescens, Eudocimus ruber, Megaceryle alcyon, Streptoprocne semicollaris, Zenaida macroura, Pluvialis dominica, Larus delawarensis, L. glaucescens Leucophaeus pipixcan, Sterna hirundo, S. forsteri, Chlidonias niger), while the number of winter visitors increased from 12 to 17 species (Oxyura jamaicensis, Athya americana, Falco peregrinus, F. femoralis, Plegadis chihi, Phalacrocorax auritus, Calidris minutilla, C. alba, C. mauri, Charadrius semipalmatus, C. alexandrinus, C. vociferus, P. squatarola, Fulica americana, L. californicus, L. argentatus, Hydroprogne caspia).

Regarding the values of ${\propto }_t$ , ${\propto }_{tp}$ and ${\beta }_{tW}$, increases were observed as ENSO progressed and developed (Figure 3), reflected in the specific richness with an increase from 53 to 66 species. Nine species did not occur during ENSO (Tyrannus forficatus, Pelecanus erythrorhynchos, Dendrocygna autumnalis, Platalea ajaja, Numenius americanus, C. fuscicollis, C. wilsonia, Rissa tridactyla, Vireo philadelphicus,), while 22 were exclusive to the ENSO event (O. jamaicensis, A. americana, Bubulcus ibis, E. ruber, M. alcyon, F. femoralis, P. auritus, Columbina inca, C. alba, C. mauri, C. semipalmatus, C. alexandrinus, C. vociferus, P. squatarola, P. dominica, F. americana, Ruporornis magnirostris, S. semicollaris, Z. macroura, L. glaucescens, S. forsteri, C. niger).

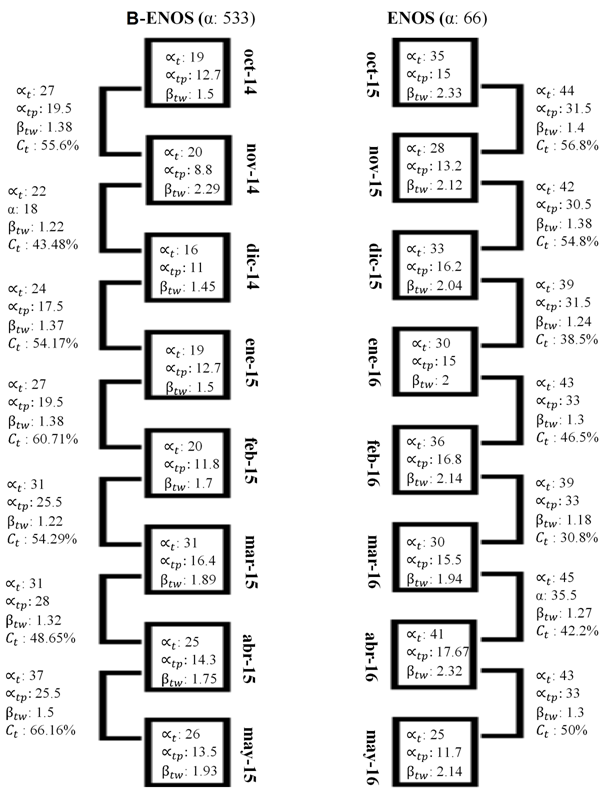

Figure 3 Values of ${\propto }_t$, ${\propto }_{tp}$, ${\beta }_{tW}$and $C_t$within and between the months that compose the winner season before and during the ENSO. B-ENOS: before el niño oscillation south and ENOS: el niño oscillation south.

The increase in diversity changes is corroborated by the analysis of non-parametric variance. On the scale within months the values of ${\propto }_t$, ${\propto }_{tp}$ and ${\beta }_{tW}$are different before and during ENSO, while the scale between months only detects differences in the values of ${\propto }_t$ and ${\propto }_{tp}$(Table 2).

In general, ${\beta }_{tW}$ positively and significantly correlates with ${\propto }_t$ and $C_t$ within and between months (Table 3); which indicates that as the effect of the ENSO increases, so does the number of species, as well as the degree of species replacement.

Finally, the correlation analysis shows that ${\beta }_{tW}$ is a dependent scale, so the correlative results vary when analyzed within and between units of time. ${\beta }_{tW}$ correlates positively and significantly with the alpha diversity before ENSO year, while during the ENSO it correlates with the $C_t$ in the analysis within months (Table 4).

The position of Mexico between two biogeographic regions (Neartic and Neotropical), and the complex orography have enabled the existence of a large number of environments, where forests such as the high perennifolia and the low deciduous concentrate the highest percentage values of the avian diversity of Mexico (29 and 24% respectively). In contrast, freshwater lakes (6.7%), coastal waters (5.4%) and pelagic waters (3.3%) have low richness values.²⁰ This pattern explains that the registered diversity only represents 10.3% of the 717 registered species for the state of Veracruz.²¹ Despite this, the 74 species surveyed exceed the average values reported by Navarro-Singuenza et al.,²⁰ for several sandy (45 spp.) and rocky (14 spp.) beaches, as well as for brackish marshes (45 spp.), coastal waters (57 spp.) and pelagic waters (35 spp.) in Mexico. This high ("anomalous") diversity may be the result of natural fluctuations in local and regional bird migration patterns, or it may indicate a maladjustment caused by the ENSO effect studied.

When comparing the richness recorded with that reported for the northern coastline of Tuxpan⁷ 25 new records are added, so that the listing of this environment increases to 81 species. On the other hand, and through the review of existing literature ^6,7,10,22 and specialized websites^23‒25 nine records are provided for the northern region of Veracruz, of which Eudocimus ruber, Larus glaucocescens and Streptoprocne semicollaris had not been recorded until now for the biogeographic province of the Gulf of Mexico.²⁶ Registration of these species may be considered rare for the region, e.g. E. ruber is commonly distributed in northern South America, however, sightings have been reported in Guatemala as well as in southern Florida.²⁵ It is therefore likely that the sightings of these organisms are errant movements or, failing that, extensions of their ecological niche as a result of climate change.^8,27,28

Of the registered birds, 47.3% are considered resident (32 spp. are reproductive, two non-breeding and one summer resident), while migratory birds make up 52.7% (22 spp. winter visitors and 17 passerby). The largest migratory component recorded in this study was similar to that reported by Argüelles et al.,^6,7 for the coastal environments of Tuxpan (e.g. reefs, river, lagoon, estuaries), which allows us to assume that the region fulfills its function as part of the migration route of the Gulf of Mexico. However, the previous record of avifauna for the northern coastline of Tuxpan mentioned by Argüelles et al.,⁷ shows that the proportion of resident birds is higher (55.4%) than that of migratory birds (44.6%), which could be indicative of an increase in the migration process during the study period.

In relation to the values of ${\propto }_t$,${\propto }_{tp}$ and${\beta }_{tW}$_, Figure 3 denotes the increase of these values as the ENSO phenomenon advances in the scale within months, while in the second temporal scale this is not observed in the values of ${\beta }_{tW}$ . The analysis of variance confirms that the median values of ${\propto }_t$, ${\propto }_{tp}$ and ${\beta }_{tW}$ are higher after the ENSO event on both scales, with the exception of the ${\beta }_{tW}$ on the scale between months. The correlation analysis shows ${\beta }_{tW}$ correlates positively and significantly with the alpha before ENSO event, while during ENSO within months correlates with $C_t$, indicating that as the effect of ENSO increases so does the number of species, as well as the degree of species replacement increases. Also, these results indicate that the ${\beta }_{tW}$ is a dependent scale, so the correlative results vary when analyzed within and between time units. Studies carried out at the spatial scale level suggest that β diversity is a dependent scale, and that it increases at finer scales,^29‒31 as in the present study where the increase is observed on the scale within months.

Studies such as Pearson & Dawson,²⁷ which analyzes existing information on the impacts of climate change on species distribution, show that these changes have a profound influence on the range of expansion and contraction of their distribution. Research carried out in the Mexican Pacific determines that the population density of seagulls, their reproductive success and the number of chicks are affected during ENSO events.^32,33 When the ENSO event is of low magnitude, breeding seabirds tend to increase the number of chicks as a survival strategy, whereas when those events are very strong, reproductive and breeding success decrease;³² as a result, some species such as Thalasseus elegans have chosen to expand their range of distribution to areas where they can potentially reproduce.³⁴ Thus, the modification of the climatic niche of species,⁸ as well as the lack of food provision^32,33 during a high impact ENSO could contribute to migratory species tending to change routes towards those with greater affinity, which could be happening in the Gulf of Mexico. The latter is supported by the differences in medians and the significant correlations detected in this study.

Finally, on the Gulf of Mexico side there are large information gaps in avian fauna (e.g. population ecology, reproductive strategies, food), especially when addressing the effect of an ENSO event, despite this the present document lays the groundwork that strong ENSO phenomena could modify the migratory strategies of birds by changing the migratory route

The 74 bird species recorded represent 10.3% of the 717 species recorded for the state of Veracruz. The richness specifies increase as the ENSO developed, especially in migratory birds (from 21 to 32 species). At the beginning of this document, it was suggested that through the analysis of alpha and temporary beta diversity, patterns of change in migratory routes could be evidenced; without discarding patterns of natural fluctuations of the birds, the differences detected by the analysis of variance and the positive and significant correlations suggest an increase in bird richness as the ENSO event develops. In this way, the migratory route of the Gulf of Mexico would tend to be optimal as a migratory corridor when the climate of other migratory routes is modified.

To the financing granted through the project “Bases para el Análisis y Síntesis de los Sistemas Costeros Veracruzanos”, by the Red para el Análisis y Síntesis de la Zona Costera Veracruzana del Golfo de México (RASZCOV).

Authors declare that there is no conflict of interest.
