Effect of acid etching and aging on bond strength of a universal adhesive on dental enamel

Barbara Vincenzi, Mariana Macedo Ribas, Vera Lucia Schmitt, Fabiana Scarparo Naufel, Kevelin Poliana Palma Rigo Thiesen, Maria Daniela Basso de Souza

School of Dentistry, State University of Western Paraná (UNIOESTE), Brazil

Correspondence: Maria Daniela Basso de Souza, School of Dentistry, State University of Western Paraná (UNIOESTE), Cascavel, PR, University Street, 2069 University Garden - ZIP Code 85819-110 - Cascavel –PR, Brazil

Received: October 17, 2019 | Published: October 23, 2019

Citation: Vincenzi B, Ribas MM, Schmitt VL, et al. Effect of acid etching and aging on bond strength of a universal adhesive on dental enamel. J Dent Health Oral Disord Ther. 2019;10(5):299-303. DOI: 10.15406/jdhodt.2019.10.00502

Download PDF

Abstract

Mild self-etch one-step multi-mode universal adhesive shows a less favorable adhesion to enamel that is why enamel pre-etching with phosphoric acid gel is the way to achieve the best bonding. This paper evaluated the effect of enamel etching and sample aging of a universal adhesive system on microtensile bond strength (µTBS). Eleven human third molars were sectioned in half to obtain 22 proximal enamel surfaces. They were planned, polished and randomly assigned (subdivided samples) into 4 groups (n=11) according to the treatment (etched [Et], non-etched [no-Et]), and storage time (immediate [I] or after 12 months aging [12m]): EtI, Et12m, no-EtI, no-Et12m. The etched specimens were conditioned with 37% phosphoric acid gel and for bonding, Scothbond Universal Adhesive [SBU] was used according to the manufacturer’s instructions. Non-etched groups only received SBU. Next, a composite resin block (Filtek Z100, 3M ESPE) was incrementally built up. After storage in deionized water for 24 hours, the specimens were sectioned into beams (1.0±0.2 mm area) and subjected to µTBS at a crosshead speed of 0.5mm/sec. Data were submitted to two-criteria ANOVA (p <0.01) followed by the Tukey´s post-test (p<0.05). Fractured surfaces were analyzed for failure mode by digital optical microscopy (magnification of 100%) and categorized according to the remaining structure, which were expressed as percentage for each group. Enamel etching increased µTBS values after immediate traction. After 12 months, µTBS values decreased significantly, with no statistical difference between the Et and no-Et groups. Phosphoric acid etching of enamel increased the immediate bond strength, which was significantly reduced after 12-months aging.

Keywords: acid etching, dental, dental enamel, dentin-bonding agents

Abbreviations

µTBS, microtensile bond strength; SBU, scothbond universal adhesive; SEUA, self-etch one-step multi-mode universal adhesive; AD, adhesive in enamel; HEMA, 2-hydroxyethyl methacrylate

Introduction

The best bonding to enamel is achieved by selective etching of enamel margins [SE] (with phosphoric acid gel) prior the application of self-etch one-step multi-mode universal adhesive [SEUA].1‒11 When using the self-etch approach, the adhesion depends on the material formulation. Particularly for mild SEUA (e.g. Scotchbond Universal Adhesive (SBU)), systematic reviews showed a less favorable adhesion to enamel.12,13 In this line, despite the relevance to predict clinical outcomes,14‒16 few in vitro studies about SBU have addressed microtensile bond strength [µTBS] to enamel under the influence of SE.2,5, 6 Besides, the effect of storage water thermocycling time should be also highlighted. Reduced µTBS values were observed when human enamel blocks underwent storage for 24-hour,2 maybe a short time for accurate measures failures. Longer time (12-month) studies (which should be encouraged in order to predict the clinical effectiveness of adhesives),17 do not definitively aver that question.6,11

In addition, study designs done up to 2015 were criticized in a systematic review and meta-analysis13 in respect of enamel evaluation. Medium risk of bias (for at least one of these: blinding of the examiner, description of coefficient of variation, sample size calculation) and or high heterogeneity was detected.2‒4

Thus, to add free bias risk evidences, the present study evaluated the effect of prior acid etching of enamel and longer time aging on microtensile bond strength of Scotchbond Universal Adhesive. The null hypothesis was that

  1. The Acid etching of enamel
  2. Aging did not affect the bond strength.

Material and methods

The present study was approved by the Research Ethics Committee of the State University of Western Paraná (UNIOESTE) (CAAE 48197115.3.0000.0107). Eleven extracted unerupted third human molars were collected, cleaned and stored in a 0.1% thymol solution under refrigeration before the experiment. Next, the roots were removed.

Sample calculation

Sample size was calculated in terms of a minimum detectable difference in a mean BS (Mpa) of 0.62 (30 human teeth, 8 per group), using the same adhesive system with and without enamel acid etching.2 However, for predicting eventual losses, 11 samples (10 stick each, on average) were included.

Specimen preparation

The crown from each tooth was sectioned in the bucal-lingual direction using a 4 "x 0.012" x 0.5 "diamond cutting disc (Erios Equipamentos Ltda - EPP, São Paulo, Brazil) mounted in a precision saw (Labcut 1010, Erios Equipamentos Ltda - EPP, São Paulo-SP, Brazil) at low speed to obtain 2 samples (22 in total). The enamel proximal surface of the fragments was planned and polished with sequential silicon carbide abrasive papers under water cooling until the 2000-grit2 (Figure 1). The samples were randomly assigned into 2 groups (n=11) according to the enamel treatment: etched (Et) and non-etched (no-Et). The procedure was performed with 37% phosphoric acid gel (Condac 37; FGM, Joinville, Brazil) for 15s, rinsed and gently air dried. For the bonding procedure, SBU was actively applied with a microbrush (20s), air dried (5s) and light cured for 10 s using a Valo Curing Light with power density of 1000 mW/cm2 (Ultradent Products, INC., South Jordan, USA). The no-Et groups received only the adhesive system. Next, a composite resin block (Filtek Z100, 3M ESPE, St Paul, MN, USA) was incrementally built up to a thickness of approx. 4mm. The compositions and manufactures of the materials are shown in Table 1.

Materials, manufacture

Composition

Scotchbond Universal Adhesive, 3M ESPE, St Paul, MN, USA

Adhesive: 10-MDP, phosphate monomer, dimetacrylate
resins, 2-hydroxyethyl methacrylate (HEMA), methacrylate-modified polyalkenoic acid copolymer, filler, ethanol, water, initiators, silane

Z100, 3M ESPE, St Paul, MN, USA

Silane treated ceramic,
Triethylene glycol dimethacrylate (TEGDMA),
Bisphenol A diglycidyl A ether dimethacrylate (BISGMA),
2-Benzotriazolyl-4-methylpphenol

Condac 37/ FGM, Joinville, SC, Brazil

Phosphoric acid at 37%, thickener, pigment and deionized water.

Table 1 Composition and manufactures of used materials

Microtensile bond strength (µTBS)

After 24 hours of storage in deionized water (37°C), the samples were longitudinally sectioned in both the ‘x’ and ‘y’ directions across the adhesive interface using a low-speed diamond saw in a precision sectioning machine to obtain sticks (1.0mm±0.2mm2; 10 per sample on average) (Figure 1). As pre-testing failures, there were/was 0 de-bonded specimens during the sectioning process. The sticks were randomly subdivided into 2 groups (n=11) according to the storage time: immediate (I) or after 12-month. As aging failures, there were/was 0 de-bonded specimens during the aging process. At the end, four groups (n=11) were determined: EtI, Et12m, no-EtI, no-Et12m. The µTBS test was done by operator who did not prepared specimens. Each stick was attached to a testing jig with cyanocrylate adhesive (Super Bonder Gel, Loctite, Henkel Ltda, São Paulo-SP, Brazil) and subjected to tension in a universal testing machine (Emic-Instron, São José dos Pinhais-PR, Brazil) at a crosshead speed of 0.5mm/sec. The results of µTBS values were expressed in MPa. Statistical analysis was performed using the SigmaPlot 12.0 software (Systat Software Inc., San Jose, California, USA) at a significance level of 5% considering the etching and aging procedures as variation factors. The mean µTBS values among the specimens within each group were used for the statistical analysis. The variable passed normality and homogeneity tests (Shapiro-Wilk/Kolmogorov-Smirnov) and was submitted to two-way ANOVA (p<0.01) followed by the Tukey´s post-hoc test. The fractured surfaces of the sticks were then submitted to a failure mode analysis by digital optical microscopy (Dino-Lite) (magnification 2x) and categorized according to the predominant remaining structure: adhesive in enamel (AD); cohesive in enamel (CE); cohesive in resin (CR); or mixed: failure between adhesive/resin [M-AR] or among adhesive/resin/enamel [M-ARE]). Failure modes were expressed as percentage for each group.

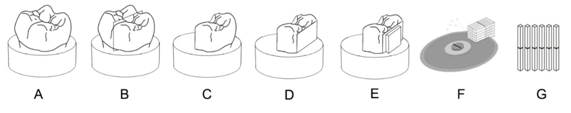

Figure 1 Schematic representation of the preparation of the specimens for the microtensile test. From a healthy tooth (A), sections were made in the VL direction (B, C). A flat enamel surface (D) was obtained, for which the restoration of composite resin was carried out according to the experimental groups (E). After serial cuts (F), specimens were shaped like a toothpick (G).

Results

The mean values of µTBS are shown in Table 2. The highest µTBS value was observed for the EtI group (52.68±13.85), followed by the no-EtI (37.24±16.91), no-Et12m (20.28±3.85) and Et12m (19.28±5.27) groups. There was an influence of time (F=57.224, p <0.001) and treatment (F=4.797, p=0.034) factors with significant interaction between them (p=0.02). The enamel acid etching promoted a significant increase of µTBS values when sticks were submitted to immediate traction testing. However, after aging for 12 months, the µTBS value decreased significantly, with no statistical difference between the etched and non-etched groups.



Treatment

Et

no-Et



Time

Immediate

52.68 (13.85) Aa

37.24 (16.91) Ba

12-months

19,.28 (5.27) Ab

20.08 (3.85) Ab

Table 2 Bond strength values (MPa) of etched and non-etched enamel (Et and no-Et, respectively) obtained by traction test immediately or after 12 months aging
Mean (dp), n= 11. Superscript capital letters indicate significant difference between the means by line. Superscript lower-case letters indicate significant difference between the means by column. Two-way ANOVA and Tukey’s test (p<0.05).

The AD, M-AR (the more prevalent one) and CR were the identified failure modes, whose distributions are shown in Figure 2. For the no-EtI group, the M-AR failure had the highest percentage followed by the AD, whereas the 12m aging (no-Et12m group) promoted reduction in the percentage of M-AR (51%) and an increase in AD (49%) failures. For the EtI group, the M-AR showed the highest percentage followed by the C-RC (37%), and AD (6.5%) failures. The 12-month aging (Et12m group) reduced the percentage of C-RC (6.7%) and increased the M-AR (58.3%) and AD (35%) failures. Representative images of each failure mode are shown in Figure 3.

Figure 2 Failure modes.

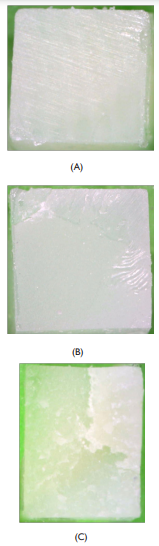

Figure 3 Representative images of the failure modes. (A) adhesive, (B) mixed and (C) cohesive.

Discussion

The present study focused on the question: would pre-etching of enamel and aging decrease the adhesion durability when using SBU? To meet this goal, the guidance for the µTBS tests was strictly carried out (specimen preparation, optimal polymerization, storage and thermocycling). To reduce the regional and tooth variability, 10 sticks per tooth (central region) were used.18 The overall results reject the both null hypothesis: the bond strength was increased by etching and reduced by 12-month aging.

SBU used in a self-etch approach is a challenging task to achieve composite resins restorations with satisfactory clinical aspect (e.g. marginal discoloration) and good retention rates. The lower µTBS value of no-Et groups (than that of Et-groups) suggests SE approach was better than the self-etch one (for immediately test), showed by the almost 2-fold M-AR (63%) failure compared to the AD (37%) one (12-month aging increased it to 51%). Although no other image analysis except digital optical microscopy was made, we presume the SBU acidic profile produced a shallower etch-pits and disfavored the micromechanical interlocking (by resin tags penetration),1,5,19,20 even with the outer enamel surface removal (more mineralized) by planning/polishing.

The adhesive formulation could also explain the lower bond strength observed in the no-Et groups. It is known that micromorphology of etched enamel depends on its aggressiveness which is directly related to acidity,21 observed by ultra morphology analysis too.14 So, the lower pH (acidic) the more enamel demineralization.17 In this line, SBU (mild, pH≈2) was probably weak to promote a stronger hybrid layer on enamel by the penetration of adhesive resins into porous enamel, compared to that of phosphoric acid etching.

The interplay among 10-MDP, 2-hydroxyethyl methacrylate (HEMA) and Vitrebond copolymer (VCP) (a polyalkenoic acid copolymer) might explain the lower bond strength for no-Et groups as well the reduction in Et12m group. In fact, enamel bond strength of MDP-based all-in-one adhesives strongly contributes to the demineralization efficacy by the incorporation of MDP.15 This last, by chemical reaction to Ca (released upon the partial Hap dissolution), forms a better and water-stable enamel-adhesive interface (consisted of nano-layered 10-MDP-Ca salt structures) which favor the adhesive stability bond strength.19,22 However, HEMA containing adhesives shows a slower production rate of that salt in the enamel (compared with the HEMA-free).15 On the other hand, VCP (also chemical bonds to Ca of Hap)22,23 competes with the other two. Altogether, we presume those nano-layered structures were compromised,12,15,16 impairing the resistance to biodegradation and longevity of the bond strength,12, 24 mainly after 12-month aging. The bond strength dropped 54% and 36.5% for no-Et and Et groups, respectively. As any aging process may lower the long-term bonding effectiveness,6,11,17 we assume 12-month aging was probably enough to damage the stability and dissolution rate of the nano-layered 10-MDP-Ca, increasing interfacial leakage and compromising the adhesive interface.23,19 However, it is a supposition because we did not assess neither micro-leakage nor nano-leakage.

In respect of SE, the comparison between the Et and no-Et groups clearly shows that 37% phosphoric acid gel significantly increased the µTBS values (for immediately tested specimens).2,3,8,11,12 However, while Et12month group µTBS values was 2.7 times lower compared to that immediately aged, other study reported about 1.5 times lower.6 This difference may be due to the methodological variation (phosphoric acid gel concentration, stick size, crosshead speed). So, we presume deep etch-pits on enamel produced by SE favored monomers infiltration, improved the micromechanical interlocking (by resin tags penetration) and created a strong stable hybrid layer on enamel prisms.12 That interface enamel-adhesive quality might have been responsible to enhance bond strength1,5,19,21 and the lower frequency of AD failures illustrates it. The cohesive (C-RC) failure shows the µTBS values were high enough for composite resin to be lost instead of the adhesive.6Thus, the adhesive layer might have been quite different from that of self-etching approach, given the etching pattern ranging from absent to moderate in the last case.25 It should be highlighted the present results can only be applied to another SEUA with the same formulation because bond strength to enamel can vary according to brands and compositions.6,21

Conclusion

Phosphoric acid etching of enamel increased the immediate bond strength, which was significantly reduced after 12-months of aging when using Scothbond Universal Adhesive.
