Research Article Volume 5 Issue 4

Utilization of Punica granatum peel as an eco-friendly biosorbent for the removal of methylene blue dye from aqueous solution

Abu Nasar, Sadiar Shakoor

Department of Applied Chemistry, Aligarh Muslim University, India

Correspondence: Abu Nasar, Department of Applied Chemistry, Faculty of Engineering and Technology, Aligarh Muslim University, Aligarh-202 002, India, Tel 9415842475, Fax 91 0571 2700528

Received: June 13, 2018 | Published: August 7, 2018

Citation: Shakoor S, Nasar A. Utilization of Punica granatum peel as an eco-friendly biosorbent for the removal of methylene blue dye from aqueous solution. J Appl Biotechnol Bioeng. 2018;5(4):242-249. DOI: 10.15406/jabb.2018.05.00145

Download PDF

Abstract

Punica granatumpeels (PGP) have successfully been employed as a natural non-conventional low-cost adsorbent for the removal of methylene blue (MB) dye from aqueous solution. Fourier Transform Infra-Red analysis was performed to identify the functional groups present in PGP. Surface morphology of PGP before and after adsorption with MB was studied by analyzing micrograph images of Scanning Electron Microscopy (SEM). The equilibrium and kinetic data were analyzed in the light of different available isotherm and kinetic models. It has been observed that the MB removal by PGP obeys the Temkin adsorption model and pseudo-second-order kinetics. The study has also been extended for the desorption studies of MB from PGP adsorbent. The diluted HCl has been observed to be a most efficient desorbing agent.

Keywords: punica granatumpeels, adsorption, isotherm modeling, kinetics, methylene blue, thermodynamics, desorption, DDDW

Introduction

Water pollution has become a serious hazard to the environment these days. With the rapid growth of industrialization in the past few decades, the release of effluents into the water bodies has increased tremendously. The occurrence of varieties of pollutants such as heavy metals, dyes, pesticides, etc. continuously deteriorates the quality of water and become serious threats to the human health.1‒6 One of the major sources of water contamination worldwide is the textile industries introducing dyes into water bodies. Further, dyes have become indispensable tools for a variety of industries such as food, paint, paper and pulp, ceramics, cosmetics, glass, medicine, rubber, printing ink, leather, textiles, etc. to color their products. In most cases, the presence of an even minute quantity of dye is clearly visible affecting aesthetic nature, thereby, reducing transparency and solubility of gases in water bodies. Photosynthetic activity of the aquatic flora is severely affected due to low penetration of light. Fauna is also extremely affected by the presence of dyes and the extent of damage depends on the concentration of dye as well as on the span of exposure. Also, synthetic dyes and their breakdown products such as benzidine, naphthalene, etc. are toxic, carcinogenic and mutagenic and have deteriorating effects on living organisms. Thus, the removal of dyes from the industrial effluents before it is discharged in the freshwater systems has become a challenge for us.

A wide variety of techniques such as electrodialysis, photocatalysis, ozonation, coagulation-flocculation, nanofiltration membranes, reverse osmosis, colloidal manganese dioxide oxidation, combined photo-Fenton and biological oxidation, etc. have been developed for the treatment of contaminated water containing pollutants such as dyes, heavy metals, pesticides and other organic impurities.7‒15 Out of these methods, adsorption has been observed to be the most attractive one because this method is easy, effective, eco-friendly and economical for the decontamination of dye-loaded effluents. However, all these techniques have their own merits and demerits. Among them, adsorption technique is considered to be preferable due to a number of factors such as initial cost, ease of operation, flexibility and simplicity of design, insensitivity to toxic pollutants and lower interference from diurnal variations. In fact, adsorption is economically efficient and environmentally benign technique. The economic feasibility of adsorption depends upon the choice of the adsorbent. Activated carbon has been most widely used as a conventional adsorbent because of its large surface area (up to 3000m2g-1), high porosity and high adsorbent capacity for a variety of pollutants.16,17 But, the high cost of production of activated carbons reduces its economic feasibility. Also, activated carbon become exhausted after first use and has to be reactivated which in turn result in 10–15% loss of the adsorbent. Thus, the search for efficient and low-cost adsorbents has increased tremendously in the recent years. A literature survey showed that researchers have developed and used a wide variety of low-cost adsorbents for the removal of dyes. Some notable examples are almond shells,18 Citrus limetta peel,19 cottonseed hull,20 Cucumis sativus peel,21 egg shells,22 eucalyptus bark,23 Indian rosewood sawdust,24 neem leaf powder,25  mango seed,26 orange peel,27‒29 peanut hull,30 pomelo peel,31,32 Psidium guajava leaf,33 shaddock peel,34 Terminalia arjuna sawdust,35 Tectona grandis sawdust,36 wheat bran,37 etc.

Punica granatum is a deciduous shrub belonging to family Punicaceae. It is a native from Iran to the Himalayas in northern India and has been cultivated since ancient times throughout the Mediterranean region of Asia, Africa, and Europe. This fruit, locally known as pomegranate (anaar), is juicy and refreshing with a sub-acid pleasant taste. The fruit juice can be used in soups, jellies, ice creams, cakes, other sweet dishes, etc. The fruit has achieved preferred choice due to its delicious taste and high content of many nutrients such as dietary fiber, iron, potassium, vitamins C and K, etc. It has been used in natural and holistic medicines to treat throat infection, cough, urinary infections, digestive disorders, skin disorders and arthritis. The peels of Punica granatum fruit are usually discarded as waste which could be better used as an adsorbent for the purification of water in the water treatment process. In the present work, the efficacy of Punica granatum peel (PGP) as a non-conventional low-cost adsorbent for the removal of methylene blue (MB) dye from aqueous solution has been investigated.

Experimental

Solutions and reagents

Analytical grade reagents– sodium hydroxide (CDH, India), potassium nitrate (CDH, India), hydrochloric acid (Merck, Germany), sodium chloride (CDH, India) and acetic acid (SD Fine, India) were used in the present work. De-ionized doubly distilled water (DDDW) was used to prepare the solutions throughout the investigation.

Methylene blue (MB) dye, obtained from Loba-Chemie, India was used as adsorbate without further purification.  A stock solution of MB dye (1000mg L-1) prepared by dissolving accurately weighed quantity of MB in DDDW was used to prepare the solution of desired concentration as and when required.

Preparation and characterization of adsorbent

PGP, collected from local fruit vendors, was washed several times with DDDW to remove dust particles and other impurities present on its surface. The peels were then dried in sunlight for 5 days until they become crispy. Thereafter, the sun-dried peels were kept in an oven at about 95°C for 24h to remove any possible moisture. The dried peels were then crushed into fine powder in a mixer grinder and sieved through 80 BSS mesh. The powder mass was finally washed with DDDW until the complete removal of color and turbidity. This washed adsorbent was dried in an air oven at 90°C for 48 h. The dried mass was crushed again and screened through a set of sieves to get different sized fractions, viz., 80–150, 150–200 and >200BSS which were stored in airtight containers.

The adsorbent was characterized using FTIR spectrometer to investigate the functional groups present in it. The morphological characteristics of PGP and MB-loaded PGP were observed using Scanning Electron Microscopy (SEM) (JOEL, JSM6510LV, Japan).

Equilibrium experiments

Batch adsorption experiments were carried out in 100mL conical flasks of borosilicate glass at room temperature. The equilibrium experiments were conducted to estimate the efficacy of PGP as an adsorbent for the removal of MB from the artificially contaminated water. A fixed amount of PGP adsorbent (0.2g) was added to 25mL of MB solutions with varying initial concentrations ranging from 25mg L-1 to 250mg L-1. The samples were agitated in a rotary shaker at 25°C for 4h and then filtered. The residual concentration of MB in the filtrate was determined spectrophotometrically by using UV-VIS spectrophotometer at a pre-calibrated wavelength of 665 nm. The adsorption capacity (qe) i.e. amount of dye adsorbed per unit mass of the adsorbent (mg g-1) was calculated by using the following equation:

q e = C 0 - C e m V MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaGqaaKqzGeGaa8 xCaKqbaoaaBaaajeaibaqcLbmacaWFLbaaleqaaKqzGeGaa8xpaKqb aoaalaaakeaajugibiaa=neajuaGdaWgaaqcbasaaKqzadGaa8hmaa Wcbeaajugibiaa=1cacaWFdbqcfa4aaSbaaKqaGeaajugWaiaa=vga aSqabaaakeaajugibiaa=1gaaaGaa8Nvaaaa@47D0@ (1)

Where Co and Ce are the initial and equilibrium concentrations of MB, V is the volume (L) of MB dye solution taken and m is the mass (g) of PGP adsorbent.

The removal efficiency (%R) of dye was calculated using the equation:

%R= C 0 C C 0 ×100 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaqGLaGaaeOuaiabg2da9Kqbaoaalaaak8aabaqcLbsapeGa ae4qaKqba+aadaWgaaqcbasaaKqzadWdbiaabcdaaSWdaeqaaKqzGe WdbiabgkHiTiaaboeajuaGpaWaaSbaaKqaGeaajugWa8qacaqGLbGa aeiOaaWcpaqabaaakeaajugib8qacaqGdbqcfa4damaaBaaajeaiba qcLbmapeGaaeimaaWcpaqabaaaaKqzGeWdbiabgEna0kaaigdacaaI WaGaaGimaaaa@4E11@ (2)

The effect of various parameters such as adsorbent dosage, contact time, particle size, pH and temperature were studied in a similar manner and were optimized to obtain the maximum removal of MB dye. Point of zero charge (pHpzc) of the adsorbent was determined using solid addition method.38 A series of 45mL solutions of 0.1N KNO3 were taken in 100mL conical flask and pH values were adjusted in the range of 2–12. The pH values of the solutions were adjusted using 0.1N HCl and 0.1N NaOH. After that the volume of the solution was made up to 50mL by adding the same solution. Pre-weighed samples of PGP (0.1g) were added to each flask and the solutions were agitated for 48h and final pHs (pHf) of the solutions were determined using a pH meter. The point at which the line in the ∆pH (i.e. pHf – pHi) vs pHi graph cross the x-axis gives the value of pHpzc.

Isotherm modeling

Langmuir, Freundlich and Temkin isotherm models were employed in the present study for analyzing the equilibrium data obtained. Langmuir adsorption isotherm model is based on the assumption that the surface of the adsorbent is uniform (all the sites are equivalent) with a finite number of adsorption sites. Only monolayer adsorption takes place and once the site is occupied, no further adsorption can take place on that site resulting in the saturation of the adsorbent surface.39 The linearized mathematical form of this model can be expressed as:40

1 q e = 1 K L C e q m + 1 q m MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbacbaaaaaaa aapeWaaSaaaOWdaeaajugib8qacaaIXaaak8aabaqcLbsapeGaaeyC aKqba+aadaWgaaqcbasaaKqzadWdbiaabwgaaSWdaeqaaaaajugib8 qacqGH9aqpjuaGdaWcaaGcpaqaaKqzGeWdbiaaigdaaOWdaeaajugi b8qacaqGlbqcfa4damaaBaaajeaibaqcLbmapeGaaeitaaWcpaqaba qcLbsapeGaae4qaKqba+aadaWgaaqcbasaaKqzadWdbiaabwgaaSWd aeqaaKqzGeWdbiaabghajuaGpaWaaSbaaKqaGeaajugWa8qacaqGTb aal8aabeaaaaqcLbsapeGaey4kaSscfa4aaSaaaOWdaeaajugib8qa caaIXaaak8aabaqcLbsapeGaaeyCaKqba+aadaWgaaqcbasaaKqzad Wdbiaab2gaaSWdaeqaaaaaaaa@56FA@ (3)

where, qe (mg g-1) is the adsorption capacity of the adsorbent, KL (L mg-1) is the Langmuir constant related to the adsorption energy, qm (mg g-1) is the maximum adsorption capacity and Ce is the concentration of adsorbate at equilibrium.

Freundlich adsorption isotherm is an empirical equation which assumes the surface of the adsorbent to be heterogeneous.41 This isotherm in its linear form is expressed as:

ln q e =ln K F + 1 n ln C e MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qaciGGSbGaaiOBaiaabghajuaGpaWaaSbaaKqaGeaajugWa8qa caqGLbaal8aabeaajugib8qacqGH9aqpciGGSbGaaiOBaiaabUeaju aGpaWaaSbaaKqaGeaajugWa8qacaqGgbaal8aabeaajugib8qacqGH RaWkjuaGdaWcaaGcpaqaaKqzGeWdbiaaigdaaOWdaeaajugib8qaca qGUbaaaiGacYgacaGGUbGaae4qaKqba+aadaWgaaqcbasaaKqzadWd biaabwgaaSWdaeqaaaaa@4F08@ (4)

where, KF is the Freundlich constant representing the adsorption capacity at equilibrium and n indicates the intensity of adsorption.

The Temkin isotherm model,42 based on the assumption that the heat of adsorption decreases linearly with the coverage because of the adsorbate-adsorbent interactions, can be expressed in the following linear form.

q e = B ln K T  + B ln C e MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaqGXbqcfa4damaaBaaajeaibaqcLbmapeGaaeyzaaWcpaqa baqcLbsapeGaeyypa0JaaeOqaiaabckacaqGSbGaaeOBaiaabckaca qGlbqcfa4damaaBaaajeaibaqcLbmapeGaaeivaaWcpaqabaqcLbsa peGaaeiOaiabgUcaRiaabkeacaqGGcGaaeiBaiaab6gacaqGGcGaae 4qaKqba+aadaWgaaqcbasaaKqzadWdbiaabwgaaSWdaeqaaaaa@50A8@ (5)

where, B= RT/b. B is the Temkin constant representing the heat of adsorption (J mol-1), KT  is the equilibrium binding constant (L g-1), b is Temkin isotherm constant, R is gas constant (8.314J K-1 mol-1) and T is temperature (K). The values of B and KT can be calculated from the slope and intercept of qe versus ln Ce plot.

Kinetic studies

To study the kinetics of the adsorption of MB onto PGP, 0.2g of PGP was added to 25mL for time periods ranging from 5–240min. The change in concentration of MB with time was observed spectrophotometrically by the same procedure as in batch adsorption studies. The amount of dye adsorbed was calculated using an equation similar to Eq. (1) where qe and Ce are replaced by qt and Ct respectively, where ‘t’ represents the respective values at any time. To explain the mechanism of adsorption, the kinetic data were analyzed in the light of pseudo-first order, pseudo-second order, intraparticle diffusion, and Elovich models. The mathematical form of pseudo-first order,43 pseudo-second order,44,45 intraparticle diffusion46 and Elovich47 models are expressed as:

ln( q e q t )=ln q e k 1 t MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qaciGGSbGaaiOBaKqbaoaabmaak8aabaqcLbsapeGaaeyCaKqb a+aadaWgaaqcbasaaKqzadWdbiaabwgaaSWdaeqaaKqzGeWdbiabgk HiTiaabghajuaGpaWaaSbaaKqaGeaajugWa8qacaqG0baal8aabeaa aOWdbiaawIcacaGLPaaajugibiabg2da9iGacYgacaGGUbGaaeyCaK qba+aadaWgaaqcbasaaKqzadWdbiaabwgaaSWdaeqaaKqzGeWdbiab gkHiTiaabUgajuaGpaWaaSbaaKqaGeaajugWa8qacaaIXaaal8aabe aajugib8qacaqG0baaaa@53DB@ (6)

t q e = 1 k 2 q e 2 + t q e MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbacbaaaaaaa aapeWaaSaaaOWdaeaajugib8qacaqG0baak8aabaqcLbsapeGaaeyC aKqba+aadaWgaaqcKfay=haajugWa8qacaqGLbaal8aabeaaaaqcLb sapeGaeyypa0tcfa4aaSaaaOWdaeaajugib8qacaaIXaaak8aabaqc LbsapeGaae4AaKqba+aadaWgaaqcKfay=haajugWa8qacaaIYaaal8 aabeaajugib8qacaqGXbqcfa4aa0baaKqbGeaajugWaiaadwgaaKqb GeaajugWaiaaikdaaaaaaKqzGeGaey4kaSscfa4aaSaaaOWdaeaaju gib8qacaqG0baak8aabaqcLbsapeGaaeyCaKqba+aadaWgaaqcbasa aKqzadWdbiaabwgaaSWdaeqaaaaaaaa@57FE@ (7)

q t = K id t 1/2 +C MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaqGXbqcfa4damaaBaaajeaibaqcLbmapeGaaeiDaaWcpaqa baqcLbsapeGaeyypa0Jaae4saKqba+aadaWgaaqcbasaaKqzadWdbi aabMgacaqGKbaal8aabeaajugib8qacaqG0bqcfa4damaaCaaaleqa jeaibaqcLbmapeGaaGymaiaac+cacaaIYaaaaKqzGeGaey4kaSIaae 4qaaaa@4975@ (8)

q t = 1 β ln( αβ )+ 1 β lnt MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaqGXbqcfa4damaaBaaajeaibaqcLbmapeGaaeiDaaWcpaqa baqcLbsapeGaeyypa0tcfa4aaSaaaOWdaeaajugib8qacaaIXaaak8 aabaqcLbsapeGaaeOSdaaaciGGSbGaaiOBaKqbaoaabmaak8aabaqc LbsapeGaaeySdiaabk7aaOGaayjkaiaawMcaaKqzGeGaey4kaSscfa 4aaSaaaOWdaeaajugib8qacaaIXaaak8aabaqcLbsapeGaaeOSdaaa ciGGSbGaaiOBaiaabshaaaa@4FE5@ (9)

where, k1 is the rate constant (min-1) of pseudo-first order reaction, k2 is pseudo-second-order rate constant (g mg-1 min-1), Kid is intraparticle diffusion rate constant (mg g-1 min-1/2), C is the thickness of the boundary layer, α is the initial rate of adsorption (mg g-1 min-1) and β is related to surface coverage (g mg-1), qt is the adsorption capacity (mg g-1) at time t and qe is the adsorption capacity (mg g-1) at equilibrium.

Thermodynamic studies

To explain the thermodynamic behavior of MB adsorption onto PGP adsorbent, 0.2g of PGP was added to 25mL 100mg/L of MB and agitated in a temperature-controlled water-bath shaker at 293, 303, 313 and 323K for 1h. The samples were filtered and the extent of adsorption was estimated spectrophotometrically. Enthalpy change (∆H°), entropy change (∆S°) and Gibbs free energy change (∆G°) were calculated using the following equations:

ΔG°=RTln K C MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqqHuoarcaqGhbGaeyiSaaRaeyypa0JaeyOeI0IaaeOuaiaa bsfaciGGSbGaaiOBaiaabUeajuaGpaWaaSbaaKqaGeaajugWa8qaca qGdbaal8aabeaaaaa@440E@ (10)

ln K =  ΔH° RT =  ΔS° R =  ΔG° RT MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qaciGGSbGaaiOBaiaabUeajuaGpaWaaSbaaKqaGeaajugWa8qa caqGdbGaaeiOaaWcpaqabaqcLbsapeGaeyypa0JaaeiOaKqbaoaala aak8aabaqcLbsapeGaeuiLdqKaaeisaiabgclaWcGcpaqaaKqzGeWd biaabkfacaqGubaaaiabg2da9iaabckajuaGdaWcaaGcpaqaaKqzGe Wdbiabfs5aejaabofacqGHWcaSaOWdaeaajugib8qacaqGsbaaaiab g2da9iaabckajuaGdaWcaaGcpaqaaKqzGeWdbiabfs5aejaabEeacq GHWcaSaOWdaeaajugib8qacaqGsbGaaeivaaaaaaa@5B48@ (11)

where, R is gas constant, KC is equilibrium constant and T is the temperature in the thermodynamic scale.

Desorption studies

The adsorption is associated with a secondary task which involves the regeneration of adsorbent and recovery of adsorbent. MB-loaded PGP was mildly washed with DDDW to remove any unadsorbed dye present and dried in an air oven at 30°C until completely dry. Desorption of MB-loaded PGP was studied with 0.1N HCl (strong acid), 0.1N NaOH (strong base), 0.1N NaCl (neutral salt), 0.1N CH3COOH (weak acid) and DDDW. 0.2g of the MB-loaded PGP was added to 25mL each of the desorbing reagents and was left for 4h. The amount of dye desorbed was determined spectrophotometrically at 665nm. Desorption percentage was calculated using the following equation:

% Desorption=  m d m a ×100 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaqGLaGaaeiOaiaabseacaqGLbGaae4Caiaab+gacaqGYbGa aeiCaiaabshacaqGPbGaae4Baiaab6gacqGH9aqpcaqGGcqcfa4aaS aaaOWdaeaajugib8qacaqGTbqcfa4damaaBaaajeaibaqcLbmapeGa aeizaaWcpaqabaaakeaajugib8qacaqGTbqcfa4damaaBaaajeaiba qcLbmapeGaaeyyaaWcpaqabaaaaKqzGeWdbiabgEna0kaaigdacaaI WaGaaGimaaaa@52E3@ (12)

where, ma and md are the amounts of MB dye adsorbed and desorbed, respectively.

Results and discussion

SEM and FTIR analyses

SEM micrographs of PGP and MB-loaded PGP shown respectively in Figure 1 indicate that surface of unadsorbed PGP is uneven, porous with large circular fissures and clefts resulting in an amorphous assembly. After adsorption, the irregularities and pores on the surface of PGP are occupied by the MB dye up to a considerable extent (Figure 1B).

  • A                                                            B

    Figure 1 SEM micrographs (× 5000) of PGP (A) before adsorption (B) after adsorption with MB dye.

FTIR spectra of PGP and MB-loaded PGP are shown in Figure 2. The strong peak at 3434cm-1 represents O–H stretching vibration of alcohols (broadness of peak indicates H-bonding) whereas the peaks at 2916cm-1 and 2840cm-1 indicates the asymmetric and symmetric stretching vibration of aliphatic –CH3 or –CH2 groups. The peaks at 1728cm-1 and 1624cm-1 are attributed to C=O stretching vibration of the carbonyl group (may be aldehyde or ester) and symmetric stretching vibration of the C=C bond, respectively. The peaks in the range 1500-1300cm-1 (i.e. 1434cm-1 and 1392cm-1) specifies H–C–H bending vibration of the methyl group. The peak at 1234cm-1 signifies the C–O stretching vibration supporting the existence of carboxyl/alcohol/ether/ester functional groups in the adsorbent. The presence of aliphatic fluoro compounds is established by the peak at 1012cm-1 in the FTIR spectrum of PGP.  The peaks in the ranges 915-850cm-1 (867cm-1) and 790-650cm-1 (658cm-1) might be due to the –C–H bending vibration of the alkene. On comparing the spectra of the two samples i.e. PGP and MB-loaded PGP, a slight shifting in the peaks from 3434cm-1 to 3446cm-1, 1624cm-1 to 1636cm-1 and 1234cm-1 to 1260cm-1 along with the reduction of peak intensities was observed in MB-loaded PGP. This indicates the participation of the respective groups (alcoholic/carboxyl/ether/ester/alkene) in the adsorption of MB onto PGP. Being a small atomic size and high electronegativity the N atom present in MB dye have the potential to form the H bond with OH group present in PGP. The adsorption of MB on PGP may also occur presumably due to the formation of H bond.

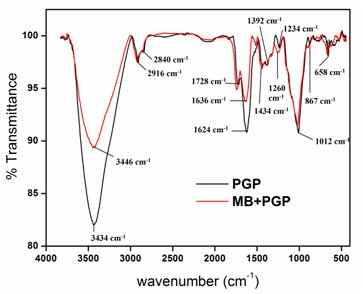

Figure 2 FTIR spectra of PGP and MB-loaded PGP.

Effect of contact time

The variation of adsorption capacity (qe) with time for the adsorption of MB onto PGP is shown in Figure 3. It is apparent from the figure that the removal efficiency first rises rapidly in the early stage (0–30min), gradually slows down after 30min and lastly becomes constant after 180min. The rapid increase in adsorption in the initial stage is due to the accessibility of a large number of active sites on the peripheral surface of the adsorbent on which MB molecules get adsorbed through boundary layer adsorption.48 As the time is increased, the surface of the adsorbent gets saturated progressively with MB molecules. In the later stage, MB molecules get diffused into the pores of PGP which slows down the process of adsorption. Finally, when all the sites are occupied with dye molecules, the remaining dye molecules form aggregates at higher contact time.49 Thus, the equilibrium time for the MB-PGP system was judiciously taken to be 3h. It is also concluded from Figure 3 that the adsorption capacity increases with the increase in the concentration of MB from 25mg L-1 to 250mg L-1. A linear relationship between qe and Ce has been obtained with R2=0.9999 and represented by the following equation:

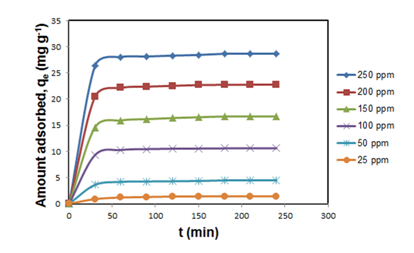

Figure 3 Effect of contact time on adsorption capacity for the adsorption of MB onto PGP adsorbent.

q e =0.1215  C e 1.5842 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaqGXbqcfa4damaaBaaajeaibaqcLbmapeGaaeyzaaWcpaqa baqcLbsapeGaeyypa0JaaGimaiaac6cacaaIXaGaaGOmaiaaigdaca aI1aGaaeiOaiaaboeajuaGpaWaaSbaaKqaGeaajugWa8qacaqGLbaa l8aabeaajugib8qacqGHsislcaaIXaGaaiOlaiaaiwdacaaI4aGaaG inaiaaikdacaaMc8oaaa@4D49@ (13)

Effect of adsorbent dosage

The effect of adsorbent dosage on the adsorption of MB was studied for different quantities of PGP (0.2–11g L-1). The results are presented in Figure 4. It can be clearly seen from the figure that the removal efficiency increases from 37.2% to 76.5% with the increase in PGP dosage from 0.1 to 8g L-1. Subsequently, there is no major change in the removal efficiency with a further increase in adsorbent dosage. The optimum adsorbent dosage for MB-PGP system was found to be 8g L-1. The increase in adsorption of MB with the increase in adsorbent dosage is due to the availability of a large number of active sites and large surface area.

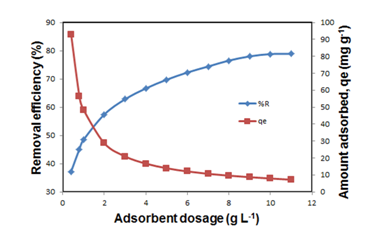

Figure 4 Effect of PGP dosage on the adsorption capacity and removal efficiency.

Conversely, the reverse trend was observed in case of variation of adsorption capacity with adsorbent dosage. This behavior might be due to the saturation of the adsorption sites because of particulate interactions such as aggregation which results in a decrease in the overall surface area of the adsorbent.19

Effect of particle size

The effect of particle size of the adsorbent on MB adsorption is shown in Figure 5. It can be clearly seen from the figure that the removal efficiency increases from 84.1% to 92.7% in decreasing the particle size from 80–150 BSS to >200BSS. The reason for this behavior might be the increase in the surface area of the adsorbent and availability of a large number of active sites for adsorption. But, due to the handling difficulties accompanying smaller particle size, particles in the range of 80–150BSS were selected for the MB-PGP adsorption studies.

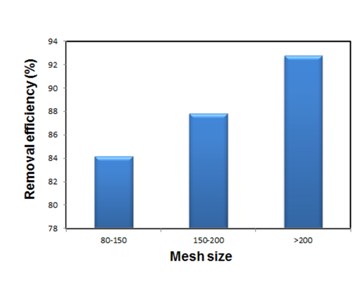

Figure 5 Effect of particle size on MB adsorption with PGP.

Effect of pH

pH is an important factor which affects the process of adsorption. Figure 6 shows the effect of pH on the adsorption of MB by PGP at 100mg L-1 initial MB concentration. It can be seen from the figure that the adsorption of MB is 54.9% at pH value 2. The removal efficiency increased with the increase in the solution pH and reached up to 83.5% at pH=7. However, there is no further increase in the removal efficiency above the pH value of 7. At low pH values, the surface of the adsorbent becomes positively charge by the absorption of H+ ions leading to repulsion between cationic MB and positively charged adsorbent. Also, there is competition between H+ and MB molecules for the active sites on PGP. Similar observations were reported in the literature for MB-wheat shell50 and MB-yellow passion fruit peel51 adsorbate-adsorbent systems.

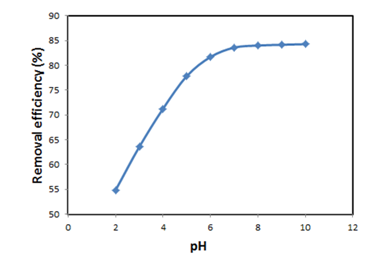

Figure 6 Effect of pH on the removal of MB by PGP.

The effect of pH of the solution on the adsorption of MB can also be clarified using the information of the point of zero charge (pHpzc). The point of zero charge for the MB-PGP system was found to be 5.73 (Figure 7). For pH<pHpzc, the surface of the PGP adsorbent acquire positive charge whereas at pH>pHpzc, the surface acquires a negative charge. As MB is a cationic dye and the surface of PGP should be negatively charged for adsorption to occur, the pH of the solution should >5.73. Consequently, an optimum pH=7 is selected for the adsorption study.

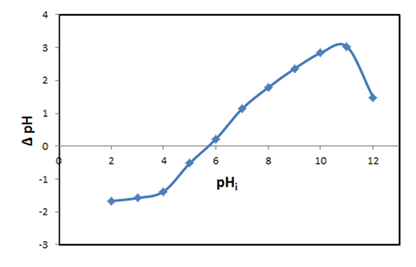

Figure 7 Point of zero charge for PGP adsorbent.

Equilibrium studies

In the present study, the equilibrium data were analyzed in the light of well-established isotherms, namely, Langmuir, Freundlich and Temkin isotherm models. The Langmuir adsorption isotherm model does not fit the experimental data and is inadequate to be used in this case. The linear plot of ln Ce vs. qe (Figure 8) clearly shows that the adsorption obeys Temkin isotherm model. The value of the coefficient of correlation (R2=0.9872) obtained from Temkin isotherm model shows that this model offers a better fit to the experimental data. According to the Temkin adsorption isotherm model, there is a high probability that the active sites on the surface of the unmodified natural adsorbent might be energetically non-equivalent. The more energetic active sites of the adsorbent are occupied first in the process of adsorption.52

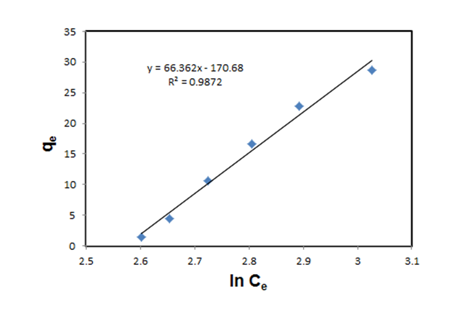

Figure 8 Temkin adsorption isotherm for MB-PGP system at 298K.

Kinetic studies

For understanding the kinetics of MB-PGP system, the kinetic data was analyzed in the light of pseudo-first order, pseudo-second order, Elovich and intraparticle diffusion models. The values of the various constants for the various kinetic models and their respective correlation coefficients are presented in Table 1. This table clearly tells that the pseudo-second-order kinetic model (Figure 9) fits the experimental data with an excellent R2 value of 0.9998.

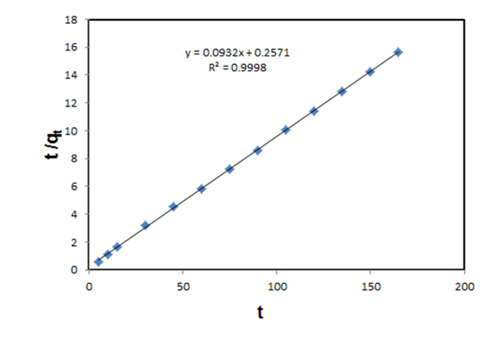

Figure 9 Pseudo-second order kinetic model for the adsorption of MB onto PGP (100mg L-1)

Kinetic models

Values

Pseudo-first order

k1

0.0273

qe, exp

10.5929

qe,cal

2.2042

R2

0.9768

Pseudo-second order

k2

0.0337

qe, exp

10.5929

qe, cal

10.7296

R2

0.9998

Intraparticle diffusion

Kid

0.1904

C

8.4204

R2

0.9124

Elovich

α

1.179 Х 105

β

1.6157

R2

0.9528

Table 1 Kinetic study for the adsorption of MB onto PGPP adsorbent (Reaction conditions: Co= 100mg L-1, Adsorbent dose = 8g L-1, Temperature = 298K, pH = 7)

Pseudo-first order kinetic model is not obeyed as the data does not fall on the straight line. The values of qe,cal and qe,exp show marked differences and the value of the correlation coefficient is comparatively low. Thus, the pseudo-first order kinetic model is inapt for this system. For the pseudo-second-order kinetic model, the values of theoretical qe value (qe,cal) and experimental qe value (qe,exp) are very close to each other. Also, the value of the correlation coefficient is found to be close to 1 (R2 = 0.9998). The plot of intraparticle diffusion model did not pass through origin signifying that intraparticle diffusion is not the only rate-limiting step and some other mechanism is involved in the MB adsorption process. The value of the correlation coefficient for this model is quite absurd (0.9124). For the Elovich model, the value of the coefficient of correlation is 0.9528. The values of α and β are given in Table 1.

By comparing the R2 values for the various models, it is concluded that the best fit kinetic model for the adsorption of MB onto PGP is pseudo-second-order model (R2= 0.9998).

Adsorption thermodynamics

The results of the thermodynamic studies indicated that the removal efficiency increases with the increase of temperature ranging from 293K to 323K. Thermodynamic parameters such as enthalpy change (∆H°), entropy change (∆S°) and Gibbs free energy change (∆G°) were calculated for MB-PGP system (Table 2). This table clearly indicates that the process is endothermic and associated with the enhancement of entropy.

Temperature (K)

 ∆G0 (kJ mol-1)

width="162"

H0  (kJ mol-1)

S0  (J K-1 mol-1)

293

̶  1.74

31.29

113.13

303

̶  2.96

313

̶  4.54

323

̶  4.95





Table 2 Thermodynamic parameters for the adsorption of MB onto PGP (Reaction conditions: Co= 100mg L-1, Adsorbent dose= 8g L-1, t= 3 h, pH= 7)

A negative value of ∆G° signifies that the adsorption process is feasible and spontaneous within the temperature range selected in the present investigation. The values of ∆H° and ∆S° determined from the slope and intercept of ln kc versus 1/T plot (Figure 10). A positive value of ∆H° shows that the reaction is endothermic in nature. The positive value of ∆S° indicates the increase in the randomness at the adsorbate/solution interface during MB adsorption.53 The increase in entropy might be due to increase in translational energy of the dye molecules. The increase in entropy has also been reported in the literature for the adsorption of MB onto fallen leaves of Platanus,54 illitic clay mineral,53 Citrus limetta peel,19  wheat shells,50 etc.

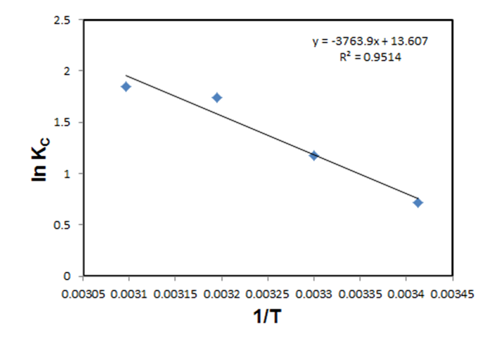

Figure 10 Effect of temperature on the adsorption of MB onto PGP.

Desorption

The study of the desorption process helps to understand the mechanism of adsorption and also the possibility of retrieval of adsorbate as well as an adsorbent. The treatment process will become economically advantageous, if the adsorbent could be regenerated successfully. Desorption of MB-loaded PGP was studied in five desorbing reagents and the percentage of desorption for each of them is given in Table 3.

Desorbing reagent

% desorption

0.1 M HCl

30.16

0.1 M CH3COOH

21.9

0.1 M NaOH

5.45

0.1 M NaCl

20.09

DDDW

5.14

Table 3 Desorption of MB from MB-loaded PGP in different media

It was found that the highest desorption takes place in 0.1N HCl (30.16%) followed by 0.1N CH3COOH (21.91%) and least desorption is found in DDDW (5.14%). Thus, it was inferred that HCl is the most appropriate desorbing reagent which enabled reusability of PGP making the overall process more economical.

Conclusion

In the present study, the effectiveness of PGP for the adsorptive removal of MB was in the batch method investigated. Batch adsorption studies reveal that the adsorption of MB onto PGP is affected by various parameters such as contact time, pH, adsorbent dosage, the particle size of adsorbent and temperature. The optimum pH was found to be 7 which is verified by the point of zero charge experiment (pHpzc= 5.73). The adsorption of MB onto PGP is best described by Temkin adsorption isotherm model. Thermodynamic studies revealed that the adsorption of MB onto PGP is feasible, spontaneous and endothermic accompanied by an increase in entropy. Regeneration of the used PGP was successfully achieved in 0.1N HCl.

Thus, it was concluded that PGP, which is a waste material and is readily available, can be used for the removal of dyes from contaminated water.

Acknowledgments

The authors are grateful to the Chairman, Department of Applied Chemistry, Faculty of Engineering and Technology, Aligarh Muslim University for providing necessary laboratory facilities.

Conflict of interest

The author declares that there is no conflict of interest.
