Simple potential bioanalysis micro reactor fabricated by vertically-aligned multi-walled carbon nanotubes (MWCNTS)

Kelvii Wei Guo, Hon Yuen Tam

Department of Mechanical and Biomedical Engineering, City University of Hong Kong, Hong Kong

Correspondence: Kelvii Wei Guo, Department of Mechanical and Biomedical Engineering, City University of Hong Kong, 83 Tat Chee Avenue, Kowloon Tong, Kowloon, Hong Kong

Received: October 18, 2016 | Published: May 22, 2017

Citation: Guo KW, TAM H. Simple potential bioanalysis micro reactor fabricated by vertically-aligned multi-walled carbon nanotubes (MWCNTS). J Appl Biotechnol Bioeng. 2017;3(2):305-308. DOI: 10.15406/jabb.2017.03.00061

Download PDF

Abstract

A simple Microreactor was fabricated by vertically-aligned multi-walled carbon nanotubes (MWCNTs) on the mc-Si substrate. MWCNTs were synthesized by home-made equipment aided with chemical vapor deposition (CVD). The wettability of the surfaces of Microreactor with the synthesized MWCNTs, Au coating and plasma irradiation were investigated, respectively. Results show that the initial surface with the MWCNTs film behaves as a super-hydrophobic surface. However, it changes to a super-hydrophilic surface after coated with Au or irradiated by plasma. It shows that Microreactor with treated MWCNTs film can be used as potential applications for bioanalysis.

Keywords: bioanalysis microreactor, wettability, hydrophobic, hydrophilic, plasma, x-ray lithography

Abbreviations

MWCNTs, multi-walled carbon nanotubes; CVD, chemical vapor deposition; LOC, lab-on-a-chip; μTAS, micro-total analysis systems; SEM, scanning electron microscopy; TEM, transmission electron microscopy; ECR, electron cyclotron resonance;

Introduction

Nanomaterials are playing the more and more important role in electronic, biological, chemical and medical applications. In particular, carbon nanotubes (CNTs) have been attracting significant attention because of their unique characteristics.1 CNT electrodes and CNT-based reactors have been applied as electrodes in fuel cells2,3 and reaction fields in biosensors.4,5 etc. The development of lab-on-a-chip (LOC) devices, a term for “micro-total analysis systems (µTAS)”, for biochemical analyses has seen explosive growth over the past decade.6-8 LOC devices are now widely used in biology and biotechnology,9 DNA and proteins analysis,10,11 high throughput screening12 and chemical reactions.13 Various bio-substances are often analyzed by detecting the immune reaction between antigens in a sample solution or antibodies immobilized on micro channel surfaces using fluorescence detection and the surface Plasmon resonance method. In such applications, detection depends significantly on the contact surface. The design and creation of surfaces that have high surface per volume is currently one of the important issues in LOC and µTAS. Aim to develop a new simple Microreactor for bioanalysis, the high density vertically-aligned MWCNTs were synthesized by home-made equipment aided with the chemical vapor deposition (CVD) and studied by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). Also, the wettability of the MWCNTs was investigated after Au coating and plasma irradiation by electron cyclotron resonance (ECR) for potential bioanalysis applications.

Concept of fabricated 3D surface by vertically-aligned MWCNTs for micro reactor based μTAS

Since CNTs have high-aspect ratios, in micro total analysis systems (μTAS), they can form a much wider reaction field on the surface, which is useful for biological applications.14 The micro reactors in these systems have been proposed to be micro channels or micro wells based on the droplets. All of these systems have surfaces with a very high surface-to-volume ratio. From this point-of-view, a reactor with MWCNTs can improve existing Microreactor capabilities obviously. In order to achieve a high quality μTAS reactor, synthesis of MWCNTs with a high density is required. Figure 1 shows the concept of a Microreactor with MWCNTs. The relevant proposed method is to locate primary antibodies on the CNTs surface. Thus, primary antibodies are located in three dimensions. Furthermore, the representative size (L in the Figure 1) will be changed (cf. Figure 1A & 1B). In a traditional Microreactor, L is the depth or width of a micro channel or a micro well. However, L in the new reactor becomes the length between vertically aligned CNTs if the reaction field height is coincident with the CNT length. Consequently, the basic diffusion can be expressed as, where D is the diffusion coefficient and t is the diffusion time. By decreasing the value of L, t decreases as well. When the primary antibodies are located in three dimensions, appropriate decreases in the size will lead to higher sensitivities and reaction speed. It is well known that etching-based processes are used for the fabrication of μm~nm size structures. The advantage of etching is that it can be used to fabricate structures with high accuracy. However, it is difficult for etching to make under several nanometers just like CNTs. UV and X-ray lithography can make structures or patterns within 100 nm, but these methods are expensive. On the other hand, synthesis of CNTs currently can be achieved easily at low cost. In this research, MWCNTs are synthesized only by the catalyst pre-deposited by CVD and ethanol with the home-made equipment. Furthermore, CNTs unique structures such as high aspect ratios and densities cannot be fabricated by etching techniques. Therefore, the new Microreactor with CNTs proposed in this work will have a promising potential application in μTAS for bioanalysis.

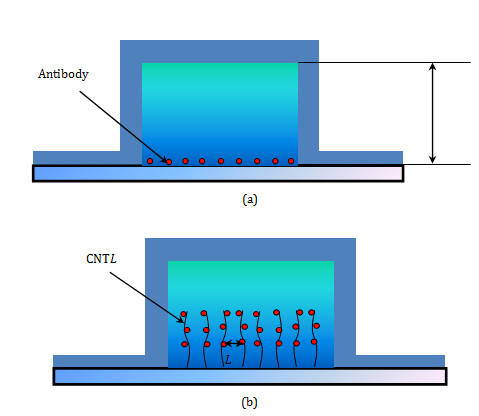

Figure 1 Concept of a Microreactor based μTAS with CNTs.

  1. Traditional Bioanalysis Microreactor
  2. New Bioanalysis Microreactor

Experimental procedure

Catalyst coated for synthesizing vertically-aligned MWCNTs

The catalyst (Fe) was deposited on the substrate (mc-Si) by electron cyclotron resonance (ECR) and the related deposition parameters are listed in Table 1.

Parameters

Substrate

Si (100)

Catalyst

Fe/Al

Irradiation time

60, 150, 300, 600 s

Accelerated voltage

2,500 V

Ion current density

12.0 mA/cm2

Gas

Ar

Gas flow rate

0.6 SCCM

Vacuum

1.5×10-4 Pa

Table 1 ECR processing parameters for Fe deposition

MWCNTs synthesis

For vertically-aligned MWCNTs synthesis, the schematic diagram of the home-made equipment is shown in Figure 2. The size of vacuum chamber and the heater is Φ100×150 mm and 50×30 mm respectively. The electrical resistance is taken as the heating resource. The maximum temperature can be reached to 1680°C. Ethanol in a ceramic container is located under the heater and the specimen deposited with the catalyst is placed on the heater in the vacuum chamber. A DC power supplier is applied to heat the specimens in the vacuum (1×10-2 Pa) under 38~40 A.

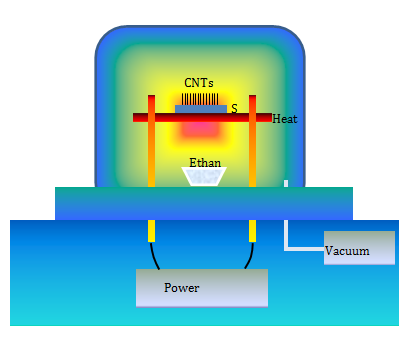

Figure 2 Schematic diagram of home-made equipment for MWCNTs.

Raman spectroscopy analysis

The characteristics of the vertically aligned MWCNTs synthesized were evaluated by Raman spectroscopy analysis. Table 2 shows the conditions of the Raman spectroscopy analysis. Generally, typical Raman shifts (cm-1) of CNTs include the G-band, the D-band and RBM, where the peak of the G-band is at about 1590 cm-1.and the D-band is 1350 cm-1. The CNTs is evaluated on the basis of the ratio between the G-band and the D-band.

Conditions

Laser wavelength

532 nm

Laser power

30 mW × 0.5%

Irradiation spot

5μm

Integration times

30

Table 2 Conditions for Raman spectroscopy analysis

Microreactor fabrication with CNTs

Figure 3 shows the fabrication procedure for the Microreactor with MWCNTs, where unit reactor is machined by dice cutting after the catalyst deposition. Table 3 shows the corresponding parameters of dice cutting and Microreactor.

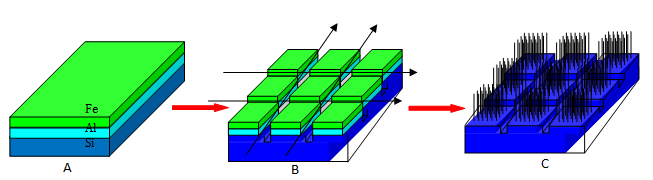

Figure 3 Miroreactor fabrication with MWCNTs.

  1. Catalyst deposition.
  2. Dicing patterns for microreactor.
  3. Microreactor with MWCNTs.

Parameters

Size of Micro reactor unit

100µm × 100μm

Gap among reactors

35µm

Cutting speed

0.5mm/s

Cutting depth

50μm

Table 3 Parameters of dice cutting and Microreactor

Result and discussion

Morphology of synthesized vertically-aligned MWCNTs

The synthesized vertically-aligned MWCNTs are shown in Figure 4. It shows that the general growth direction was normal to the surface. They appeared wiggly due to CNTs tightly packed during growth. The TEM image of one typical CNT is shown in Figure 5. The image reveals that they were definitely multi-walled nanotubes. The diameter was about 3~5 nm. Also, the lengths of the CNTs were estimated to be 10~35 µm. Moreover, the morphology of the relevant Microreactor is shown in Figure 6.

Figure 4 SEM image of synthesized vertically-aligned MWCNTs.

Figure 5 TEM image of a CNT.

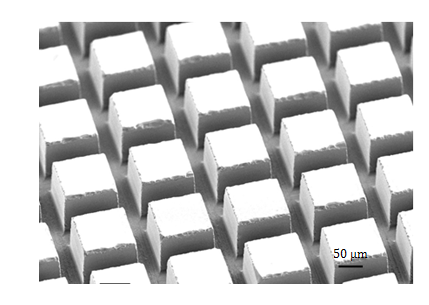

Figure 6 Microreactor with vertically-aligned MWCNTs.

Result of raman spectroscopy analysis

The result of Raman spectroscopy analysis of the synthesized vertically-aligned MWCNTs is shown in Figure 7. It elucidates that the peak of D-band was higher than that of G-band and the ratio of IG/ID was about 0.75, which indicates that many CNTs were disordered. As the media in the Microreactor, the disordered MWCNTs will be inclined to catch the antibody more easily. Therefore, the Microreactor with such MWCNTs must be more effective for the practical applications than that of the traditional reactors.

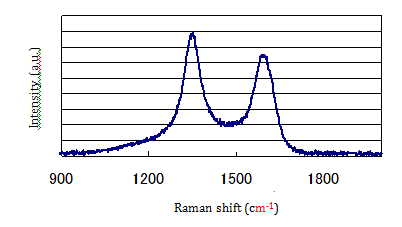

Figure 7 Raman spectra of synthesized MWCNTs.

Wettability of the vertically-aligned MWCNTs

The wettability of surface of Microreactor with MWCNTs was investigated by the droplet of pure water and the volume of the droplets was 1μl. Result shows that the contact angle on the vertically-aligned CNTs film was 146.6° resulted in super-hydrophobic as shown in Figure 8A and the related schematic diagram is shown in Figure 8B. For changing the wettability, the Au coating and plasma irradiation were carried out with the plasma irradiation time of 5 min and ion current of 6.5 mA. Figure 9 shows the contact angles of the vertically-aligned MWCNTs surface coated with Au and irradiated with the plasma, respectively. Results show that the processed surface changed to a super-hydrophilic surface after Au coating and plasma irradiation. More attractively, the contact angle on the CNTs film irradiated by plasma was close to 00 as shown in Figure 9C and its corresponding schematic diagram is shown in Figure 9D. However, the contact angle of the vertically-aligned MWCNTs surface with Au coating (Figure 9A & 9B) was higher than that of surface with plasma irradiation which indicates the droplet cannot be infiltrated into CNTs completely with Au coating on the surface resulted in the successive application failure.

Figure 8 Wettability of the vertically-aligned MWCNTs.

Figure 9 Wettability of the vertically-aligned MWCNTs film with Au coating and plasma irradiation.

Conclusion

The simple Microreactor potential for bioanalysis was successfully fabricated with MWCNTs. Results show that the initial synthesized surface with the MWCNTs film behaves as a super-hydrophobic surface. After coating with Au or irradiating by plasma it changes to a super-hydrophilic surface. Moreover, the effect of plasma treatment on the wettability changed from super-hydrophobic to super-hydrophilic is definitely superior to that of Au coating. It indicates that Microreactor with surface treated MWCNTs can be more in favor of the potential applications for bioanalysis.
