Controlled protein hydrolysis with immobilized alkaline endo-protease

Odaneth AA, Vaze RG, Lali AM

DBT-ICT-Centre for Energy Biosciences, India

Correspondence: Annmmma A Odaneth, Assistant Professor in Biochemistry, DBT-ICT Centre for Energy Biosciences, Institute of Chemical Technology, Nathalal Parikh Marg, Mumbai-400 019, Mahrashtra, India, Tel 91-22-33612312, Fax 91-22-24145614

Received: October 27, 2016 | Published: February 23, 2017

Citation: Vaze RG, Odaneth AA, Lali AM. Controlled protein hydrolysis with immobilized alkaline endo-protease. J Appl Biotechnol Bioeng. 2017;2(2):66-76. DOI: 10.15406/jabb.2017.02.00028

Download PDF


Enzymatic hydrolysis is used to enhance the functional properties of proteins; the modified proteins exhibit improved solubility, lower hydrophobicity and viscosity; but high cost and lower stability of proteases pose problems in their commercial use. In current work, different endo-proteases were screened for proteolytic activity and 89L (alkaline protease) was selected based on higher specific activity. Glutaraldehyde coupling was used for immobilization with CR20 resin as support matrix; various parameters such as glutaraldehyde concentration (1%), activation time (16hrs), enzyme loading (4mg/ml of resin) and coupling time (2hrs) were optimized for maximum immobilization efficiency. Immobilized preparation exhibited high catalytic activity i.e. 9260 Casein Digesting Units per ml with improved operational and storage stability. Soy proteins, whey proteins, bovine serum albumin (BSA) were subjected to controlled protein hydrolysis using immobilized 89L. Hydrolysis reaction with BSA revealed substrate concentration is inversely proportional to degree of hydrolysis. Gel permeation chromatography analysis of BSA and soy protein hydrolysates depicted formation of peptides in the range of 1-10kDa and <1kDa. MS analysis confirmed presence of smaller peptides with molecular weight around 1kDa. Optimum hydrolysis of soy proteins was obtained in batch mode with 1:10 enzyme to substrate ratio at 50°C in 200 min with 16% degree of hydrolysis. Packed bed column hydrolysis produced homogeneous hydrolysates for 15 cycles without any loss of enzymatic activity. Thus, protein hydrolysis reaction can be customised using immobilized 89L to obtain peptides with desired molecular weight distribution.

Keywords: alkaline protease, glutaraldehyde, hydrolysis, peptides, soy protein, hydrophobicity, endo-proteases


CDU, casein digesting units; TNBS, 2,6,6-trinitrobenzenesulfonic acid; TCA, trichloro acetic acid; GPC, gel permeation chromatography; BSA, bovine serum albumin; SPI, soy protein isolate; MS, mass spectrometer


Protein modification or texturing is necessary since, during extraction process, proteins are exposed to various harsh conditions like acid/alkali treatment, elevated temperature and pressure which hampers their quality under severe conditions proteins may lose their functionality. Physiological properties of proteins depict their behaviour and performance in food systems and thus render functionality to protein.1 Hence protein conditioning is necessary in order to improve functional value of processed proteins. Proteins could be modified chemically, enzymatically or using heat treatments.1 Wang Wei et al.2 studied collagen hydrolysis with thermal and enzymatic treatment, enzymatic cleavage gave reproducible yield, protein content and peptide profile, while in thermal process, protein digestion was difficult to control which cause variation in peptide profiles.2 Use of chemical modifications for proteins, like acetylation or succinylation cause change in net charge on protein surface to improve solubility, but alteration in native amino acids results in poor digestibility.1 Thus utilization of proteases for improving protein functionality remains as suitable and sustainable method of choice.3

Functional properties of modified proteins are influenced by molecular weights of peptides present in hydrolysates,4 which necessitates controlled protein hydrolysis in order to obtain peptides with specified functionality.5 Pintado ME et al.6 reported, manipulation of protein digestion with protease provides route for production of growth supportive peptides from whole whey proteins which reduce addition of expensive nutrients to growth medium. These hydrolysed proteins also prevent precipitation and improve thermal sensitivity of product.6 On the other hand, Wang G et al.3 demonstrated use of controlled enzymatic hydrolysis of egg yolk protein which improved solubility, foaming and emulsification capacity of proteins.3 Soy proteins are traditionally known for their high nutritional value, which include major soy proteins Glycinin, β-conglycinin, albumins, enzymes and protease inhibitors.7 However, soy protein isolates are generally associated with presence of soy allergens, bitter taste, indigestibility due to protease inhibitors etc. which necessitates their modification. Extensive proteolysis can form bitter tasting peptides which reduce the acceptability of product,8 thus tailoring enzymatic hydrolysis in essential step in production of high quality hydrolysates. Various reports are available which signifies role of enzymatic hydrolysis on improving functional properties of soy proteins.9-15 Along with soy proteins, whey derived proteins are also popular among food proteins owing to their health benefits. Enzymatic hydrolysis have been employed for modifying whey proteins in order to enhance their bioactivity.6,16,17

However, use of soluble enzyme on commercial scale increases cost of entire process and requires prolonged time for obtaining higher degree of hydrolysis.18 Additionally, recovery of protease from reaction mixture is difficult19 as substrates (proteins), products (mixture of peptides & some proteins) and enzyme itself (protease) possess similar physical properties. Thus, attempts were made to use ultra filtration membranes which retain protease on its surface with simultaneous removal of hydrolysed peptides from permeate stream allowing continuous production of hydrolysates. Such membrane reactors have been employed for hydrolysis of various protein substrates soy proteins,20 casein,21 haemoglobin22 and whey proteins.23 Though, application of membrane reactors have some disadvantages like thermal and shear stress deactivation of enzyme, reduced enzymatic activity due to enzyme leakage through membrane and fouling on membrane surface. Also, proteases are susceptible to self-cleavage termed as autolysis24 which is not observed in case of other enzymes like cellulases, lipases, laccases etc. In order to overcome these drawbacks of employing soluble proteases, alternatively these proteases can be immobilized on solid supports and used for production of protein hydrolysates. Proteolytic reactions can be regulated easily by using immobilized enzymes which help in improving stability, repetitive use and ease of separating product thereby controlling hydrolysis and preventing contamination of end-product with proteases.25-27 Various immobilization techniques namely physical adsorption, covalent binding, entrapment, cross-linking and encapsulations are conventionally used for enzyme immobilization.26,28

Out of all available methods, covalent immobilization has several advantages such as, higher retention of catalytic activity, lower leaching and enhanced stability in reaction media. Glutaraldehyde coupling is a simple, robust immobilization method which enhances enzyme stability.29 Glutaraldehyde is easily available at cheaper rates it reacts rapidly with amino groups to form thermally and chemically stable complexes.30 Researchers have reported suitability of glutaraldehyde coupling for different types of proteases.30-34 Random glutaraldehyde activation followed by protease coupling may lead to low or multiple binding which adversely affects protease activity. Hence, current work was focused on systematic study of various parameters, to obtain maximal proteolytic activity after immobilization. Immobilized serine protease was further utilized for controlled hydrolysis of proteins; correlation between residence time and its control on degree of hydrolysis was determined. The efficiency of immobilized protease was analyzed for continuous production of protein hydrolysate in packed bed column.

Materials and methods


Different endo-proteases (6L, 7L, 15L, 26L and 89L) were obtained from Genencor (Sweden) and were used as received. Folin & ciocalteu’s reagent, trichloro acetic acid, sodium bicarbonate was obtained from Himedia Ltd. Synthetic resin Diaion CR20 was a gift from SRL (Italy). Glutaraldehyde solution (25% w/w) was purchased from SD fine chemicals Ltd (Mumbai, India). Bradford reagent and 2,6,6-trinitrobenzenesulfonic acid (TNBS) were procured from BioRad (USA) and Sigma Aldrich respectively. Soy protein isolate and whey protein concentrate were prepared by in-house method; bovine serum albumin, casein ( Hammarsten for biochemistry) were obtained from SRL. TRIS base, sodium phosphate (mono basic and dibasic) was purchased from HiMedia Ltd. All other chemicals used for experiments were of analytical grade.

Analytical methods

Estimation of protein content: Protein content of the samples was determined by Bradford’s method.35 0.8 ml of diluted sample solution was mixed with 0.2 ml of Bradford’s reagent. The mixture was incubated for 5 min at room temperature and absorbance was measured at 595 nm on UV-spectrophotometer (Shimadzu UV 2100, Japan).

Protease activity assay: Activity of protease is estimated by its ability to hydrolyse a standard protein, thus for non-specific proteases casein digestion assay is used to measure hydrolytic activity.36 Casein solution (2% w/v) was prepared in phosphate buffer (50mM, pH 8.0). This solution was contacted with diluted soluble proteases or immobilized protease in 1:4 ratio. Hydrolysis reaction was carried out at 50°C for 10 min which was then terminated by addition of 20% TCA solution (1:1 ratio). The mixture was centrifuged at 10000rpm for 5min. 2 ml of supernatant was neutralized with 0.5M Na2CO3, incubated at room temperature for 10 min. 1X Folin & ciocalteu’s (0.5ml) was added after incubation, kept in dark conditions for 30 min for colour development. Standard graph was plotted against different concentrations of standard Tyrosine (80-6000µM) with absorbance at 660 nm. Colorimetric estimation was carried out at 660 nm using UV-spectrophotometer. Protease activity is calculated by Eq. 1.

A= mM Tyrosine released*V*D t*E MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGWj0Jf9crFfpeea0xh9v8qiW7rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaqGbbGaeyypa0ZaaSaaa8aabaWdbiaab2gacaqGnbGaaeiO aiaabsfacaqG5bGaaeOCaiaab+gacaqGZbGaaeyAaiaab6gacaqGLb GaaeiOaiaabkhacaqGLbGaaeiBaiaabwgacaqGHbGaae4Caiaabwga caqGKbGaaeOkaiaabAfacaqGQaGaaeiraaWdaeaapeGaaeiDaiaabQ cacaqGfbaaaaaa@530C@ (Eq. 1)

A= Protease activity, expressed as casein digesting units per minute per ml
V= reaction volume (casein + enzyme), ml
D= dilution factor for enzyme; t = reaction time, min
E= amount of enzyme, ml

Degree of hydrolysis: Degree of hydrolysis of protein substrate was analysed using protocol given by Adler-Nissen, with some modifications.37 Hydrolysed sample was diluted to 0.5mg/ml protein content with 1% SDS (w/v) solution. 15µl diluted sample was transferred to microtiter plate to which 45µl phosphate buffer (0.21M, pH 8.2) was added. Further, 0.05% TNBS (v/v) solution was prepared in deionized water and 45µl was added in each well. Microtiter plate was covered with aluminium foil, incubated at 50°C for 60 min. Reaction was terminated by addition of 90µl 0.1N HCl and colour intensity was determined using multiscan spectrum (Thermo scientific) at 340 nm. Standard graph was plotted against different concentrations of standard Tyrosine (200-2000µM) with absorbance at 340 nm. Degree of hydrolysis was estimated by Eq. 2 & 3.

h= mM Tyrosine released*V Amount of protein ( µg ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGWj0Jf9crFfpeea0xh9v8qiW7rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaqGObGaeyypa0ZaaSaaa8aabaWdbiaab2gacaqGnbGaaeiO aiaabsfacaqG5bGaaeOCaiaab+gacaqGZbGaaeyAaiaab6gacaqGLb GaaeiOaiaabkhacaqGLbGaaeiBaiaabwgacaqGHbGaae4Caiaabwga caqGKbGaaeOkaiaabAfaa8aabaWdbiaabgeacaqGTbGaae4Baiaabw hacaqGUbGaaeiDaiaabckacaqGVbGaaeOzaiaabckacaqGWbGaaeOC aiaab+gacaqG0bGaaeyzaiaabMgacaqGUbGaaeiOamaabmaapaqaa8 qacaqG1cGaae4zaaGaayjkaiaawMcaaaaaaaa@647D@ (Eq. 2)

DH=h/htot*100 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGWj0Jf9crFfpeea0xh9v8qiW7rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaaeirai aabIeacaqG9aGaaeiAaiaab+cacaqGObqcfaKaaeiDaiaab+gacaqG 0bqcfaOaaeOkaiaabgdacaqGWaGaaeimaaaa@43F2@ (Eq. 3)

DH= degree of hydrolysis, %
V= volume of hydrolysed protein, µl
h= number of equivalents of peptide bonds hydrolysed, meq/g of protein
htot = total amount of peptide bonds.

Gel permeation chromatography: Molecular weight of peptides and proteins was analyzed by using gel permeation chromatography. A column Agilent BIOSEC-3 (pore size 150A°) was used for determining peptide distribution in protein hydrolysate. Mobile phase consisted of phosphate buffer (150nM, pH 7.0) which was filtered and degassed prior to use. All samples were diluted to 1mg/ml protein concentration and filtered through 0.2μ filter. 20μl of sample was eluted with phosphate buffer (isocratic mode) at flow rate of 0.5 ml/min and 30°C column temperature. Elution profile was determined at 215nm with UV detector. Column was calibrated using BioRad protein marker kit, a calibration curve was plotted with log (molecular weight) vs elution volume and used for determining molecular weight of peptides.

MS analysis: Soy protein hydrolysate was characterized with Nano-chip (ProteinID chip-43, 300A, C18-43mm column) and MS 6520 (Accurate mass QTOF-LC/MS, Agilent Technologies) i.e. using high resolution methodology. Sample was dissolved in 0.1% formic acid in MS grade water; cleaned up using C-18 based purification and subsequent elution. Gradient mobile phase was used composed of 0.1% formic acid in water (A) and 0.1% formic acid in 90% ACN (B) with run time of 60mins at 0.3µl/min flow rate. MS data was analysed with spectrum mill’ software (Agilent technologies).

Experimental methods

Screening of endo-proteases: Different endo-proteases were tested for their hydrolytic activity using casein digestion assay. All enzymes 6L, 7L, 15L, 26L and 89L were diluted using deionized water and analysed for protein content using Bradford’s assay; further their protein content and respective proteolytic activities were compared in order to determine efficient protease. Stability of 89L was determined in presence of Tris buffer (50mM, pH 9.0) after 2 hrs incubation at 25°C; final protease activity was analysed using casein assay and compared with initial activity to determine loss of hydrolytic activity in 2 hrs. Further, half-life of soluble 89L was determined by incubating enzyme solution under laboratory conditions (at 25°C) and corresponding loss in activity was analysed by casein assay.

Immobilization of 89L: Diaion CR20 was washed in methanol followed by equilibration in phosphate buffer and degassing; this cationic resin was activated with glutaraldehyde solution. A modified protocol with 2% v/v glutaraldehyde, was used for activation of CR20 and mixed with diluted enzyme solution at room temperature.38 After immobilization, buffer washes were given to release unbound enzyme; further immobilized enzyme was assessed for hydrolytic activity by casein assay.

Optimization of immobilized parameters: Equilibrated CR20 resin was activated with glutaraldehyde solution for different time periods (4-20 hrs) to determine optimum activation time period for maximum enzyme adsorption. After determining activation time, optimization of glutaraldehyde concentration (0.25-2% v/v) was carried out at 25°C, using phosphate buffer (50mM, pH 7) with resin to solution ratio of 1:2. Further binding capacity of activated resin was determined at optimized glutaraldehyde concentration with enzyme loading in the range of 0.5-30mg per ml of resin. Enzyme loading was optimized in the range of 0.5-4mg/ml of resin at 1:1 immobilization ratio (volume of enzyme solution to mass of resin) and optimum coupling time was determined (0.5-6 hrs) at 25°C to obtain immobilized preparation with highest hydrolytic activity.

Characterization and stability studies: Immobilized 89L was analyzed for its catalytic activity in pH range 6.5 to 11; (phosphate buffer, Tris buffer and carbonate buffer, 50 mM) and temperature 30-70°C, which was compared with activity profile of soluble 89L to understand enhancement in tolerance of enzyme after immobilization. Similarly, immobilized 89L was studied for its storage and operational stability. Storage stability was determined by estimating hydrolytic activity of enzyme intermittently during prolonged cold storage at 4°C in Tris buffer. On the other hand, operational stability was analyzed by hydrolysis of bovine serum albumin (25mg/ml) in Tris buffer (50 mM, pH 9) at 2ml/min feed rate in jacketed column (50°C) packed with 10 ml of immobilized enzyme.

Hydrolysis of proteins with immobilized 89L: Soy proteins, whey protein concentrate and BSA were hydrolyzed in batch mode using immobilized 89L. All proteins were hydrolyzed with mixing immobilized 89L in 1:10 ratio (m/v) at 50°C in shaker (180 rpm) for 6 hrs. Samples were analyzed for degree of hydrolysis with TNBS assay

Peptide profiling of protein hydrolysates: Initial hydrolysis study was carried out with single pure protein substrate i.e. BSA using immobilized 89L. Different concentrations of BSA 1-150mg/ml prepared in Tris buffer (50 mM, pH 9) were tested for protein digestion with enzyme substrate ratio of 1: 10 (m/v) at 50°C for 200min. Use of single protein substrate was suitable to check change in pattern of hydrolysis during course of reaction progress. TNBS assay was used to determine degree of hydrolysis. After establishing proteolytic pattern for single protein substrate, immobilized protease was utilized to hydrolyze natural proteins i.e. soy protein isolate which comprised of mixture of proteins. Soy proteins were dissolved in Tris buffer (50 mM, pH 9) at concentration of 1-50mg/ml concentration and subjected to hydrolysis with 1:10 m/v enzyme substrate ratio at 50°C for 200min. Further, samples of BSA and soy protein hydrolysates varying in degree of hydrolysis, were analyzed using Gel Permeation Chromatography for distribution of peptides. The GPC profiles were used to study formation of low molecular weight peptides with respect to degree of hydrolysis which could be advantageous in determining optimum parameters for protein hydrolysis to yield peptides with desired molecular weights.

Effect of enzyme substrate ratio on protein hydrolysis: Soy protein hydrolysis was studied at different enzyme substrate (E-S) ratio in batch mode, 25mg/ml of protein solution was subjected to various enzyme loading namely 1:2, 1:5 and 1:10 m/v. Proteolysis was carried out at 50°C for 6hrs, change in degree of hydrolysis was determined after specific time intervals and compared to evaluate effect of enzyme loading on progress of reaction.

Packed bed column hydrolysis: Immobilized 89L was packed in jacketed column (with 1cm ID), soy protein solution (25mg/ml) prepared in Tris buffer (50 mM, pH 9) was fed from bottom of the column, hydrolysis was carried out at varied residence time and degree of hydrolysis was determined with TNBS assay. Temperature of column was maintained at 50°C with water bath. Degree of hydrolysis was monitored for 15 column volumes to confirm uniformity of hydrolysis after each cycle using TNBS assay.

Result and discussion

Screening of commercial endo-proteases

Endo-proteases are able to cleave polypeptide chain internally to produce peptide fragments of varying molecular size, unlike exo-proteases which cut at polypeptide ends to release amino acids as major products.8 Proteases fall into different categories like acidic, alkaline and neutral (based on optimum working pH). In case of endo-proteases; their cleavage site and hydrolytic activity are key factors which govern peptide formation,39 higher hydrolytic activity is preferred as it improves peptide yield. Commercial endo-proteases 6L,7L, 15L, 26L and 89L were analysed for their protein content at different pH conditions; herein we report comparative activity of these protease at pH 9 (Figure 1). Since most of the proteins are soluble under alkaline conditions, use of alkaline protease proves to be desirable option. Under alkaline condition(pH 8 at 50°C); 6L, 7L and 89L exhibited catalytic activity while 15L and 26L were active at acidic pH range. 6L, 7L and 89L had specific activity of 30137, 13319 and 33514 CDU/mg of protein respectively. 89L was selected for controlled protein hydrolysis, based on its higher hydrolytic activity. Generally, protein hydrolysis process have reaction time about 5-6 hrs and soluble proteases tend to have lower shelf life due to their autocatalytic activity.25,28 Therefore, in spite of higher catalytic activity, stability of protease in a reaction medium governs its usability for hydrolysate production and determination of protease stability becomes necessary prior to its use in peptide generation.

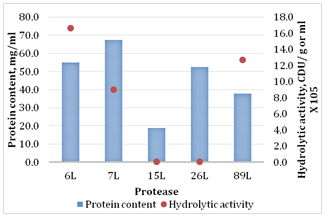

Figure 1 Screening of endo-proteases.

Study was carried out to check stability of soluble 89L at different concentrations (0.5-4mg/ml) at pH 9. It was observed that, low protease concentrations showed slight loss in hydrolytic activity while steep increase in loss of hydrolytic activity was seen at high concentrations after 2 hrs; that can be attributed to increased autolytic behaviour of protease (Figure 2). Proteases like 89L i.e. subtilisin reported to have shorter shelf life about 86 mins40 and are more prone to autolysis. Therefore, change in proteolytic activity for current protease preparation was analyzed for 10 hrs in presence of buffer under laboratory condition (25°C). Rapid loss in activity was observed and half of soluble 89L was found to be 90 min; this study demonstrated unstable nature of soluble 89L (Figure 3). Thus, improving stability of protease with implementation of immobilization techniques becomes necessary prior to its usage for hydrolysate/peptide production.28,29 Previously, protease immobilization studies have been carried out using glutaraldehyde which showed increased operational and storage stability as compared to its soluble form.49 Hence, glutaraldehyde coupling was selected for increasing stability of 89L.

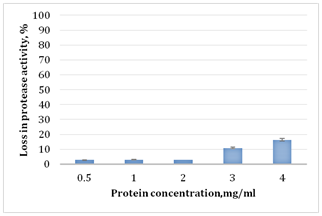

Figure 2 Stability of soluble 89L in buffer.

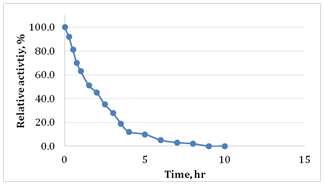

Figure 3 Half-life of soluble 89L.

Immobilization of 89L

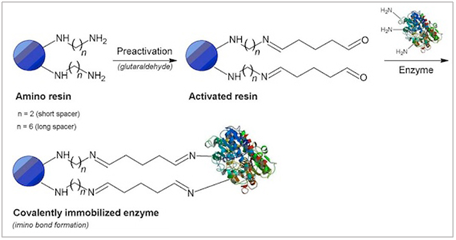

Resin activation for glutaraldehyde coupling: Glutaraldehyde is a bifunctional reagent which irreversibly binds to amine groups and can act as anchoring molecule between two entities (Figure 4). For immobilization, initially support matrix with free amine groups is coated with glutaraldehyde which is then combined with enzyme.29 In earlier work, immobilization of protease was optimized at 2% (v/v) glutaraldehyde concentration, 4mg/ml enzyme loading and 4hrs of coupling time. This preparation had hydrolytic activity of 1397 CDU/ml which was stable for 20 days49 thus glutaraldehyde coupling was found to be suitable for protease stabilization. Therefore, optimization studies were carried out for current protease preparation. It is necessary to activate all side chains of support resin which increases surface area for enzyme binding to obtain high immobilization efficiency.30 The CR20 resin was activated with 2% glutaraldehyde solution with 1:1 immobilization ratio at 25°C for 4-20 hrs before contacting with enzyme. It was observed that highest enzyme binding (59%) was obtained after 16hrs activation with 1800 CDU/mg of protein specific activity. Hence, activation time of 16 hrs was used for further experiments; these results coincide with the experiments carried out to immobilize procerain B which required 20 hrs of activation time.33

Figure 4 Optimization of glutaraldehyde concentration for resin activation.

Variation of glutaraldehyde concentration for activation: Along with binding efficiency of enzyme to support matrix, its hydrolytic activity after immobilization is an important parameter. Glutaraldehyde concentration which is used for activation would influence both enzyme binding and activity. At low glutaraldehyde concentration, all amine groups of support matrix remain un-utilized; while high glutaraldehyde concentrations lead to multi point attachment of enzyme. Suitable glutaraldehyde concentration varies with protease being used 1% for mungbean thiol protease,32 5% for acylase41 while 2% for papain.42 Hence, there is need to determine suitable glutaraldehyde concentration, where, higher hydrolytic activity is obtained with minimal enzyme load. Different glutaraldehyde concentrations ranging from 0.25-2% w/v were tested for immobilization of 89L; resin activation was carried out in phosphate buffer (50 mM, pH 7) with immobilization ratio of 1:1, enzyme loading 4mg/ml of resin at 25°C for 16 hrs. It was observed that, enzyme binding increased linearly with glutaraldehyde concentration, but proteolytic activity of immobilized preparation showed initial increase followed by a slight decrease at higher concentrations (Figure 5), similar trend was observed when acylase was immobilized at various glutaraldehyde concentrations.41 At 1% glutaraldehyde concentration, highest proteolytic activity was observed without compromising enzyme binding. The immobilized preparation showed 6429CDU/ml hydrolytic activity with specific activity of 3257 CDU/mg of protein.

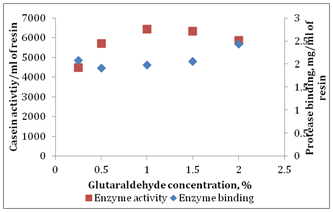

Figure 5 Optimization of glutaraldehyde concentration for resin activation.

Binding capacity of activated CR20 for 89L: Prior to enzyme loading optimization, there is need to assess maximum binding capacity of activated resin at 1% glutaraldehyde concentration. Study of enzyme binding at different concentrations helps to understand its binding pattern.43 Similarly, binding capacity of activated CR20 was determined in the range of 0.5-30 mg enzyme load per ml of resin (Figure 6). Plot of 1/c (concentration) vs 1/q* (bound enzyme) gave maximum binding capacity of 6mg/ml for 89L on activated CR20 resin. However, maximum binding capacity dose not correlate with highest catalytic activity after immobilization, which can be attributed to multilayer enzyme binding or crowding of enzyme molecules. Hence, effect of enzyme loading needs to be studied with respect to catalytic activity post-immobilization.

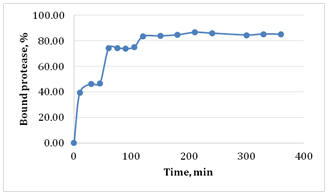

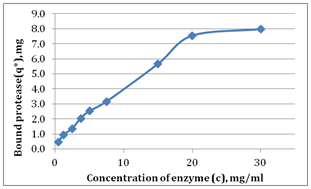

Figure 6 Enzyme binding to activated CR20.

Effect of enzyme loading: Enzyme concentrations (0.5-4 mg/ml) were used for immobilization study with 1% glutaraldehyde activated CR20. Figure 7 shows that, immobilized enzyme activity increased linearly with initial enzyme load; 4 mg/ml of 89L loading gave highest immobilized activity of 9260 CDU/ml with specific activity being 3825CDU/mg of protein. Immobilized preparation obtained by optimized protocol was further evaluated for improved pH, temperature tolerance with storage and operational stability. After optimizing enzyme concentration, study was carried out to estimate minimal time required for coupling of activated resin and enzyme solution. As glutaraldehyde is a bifunctional reagent, its prolonged exposure may cause cross-linking of enzyme molecules instead of binding to support matrix.30 Immobilization of 89L (4mg/ml) on activated CR20 was performed for 6hrs, aliquots were analysed for protein content to determine rate of enzyme binding on resin. Enzyme immobilization exhibited gradual increase in stepwise manner with rapid biding during 30-45 mins. Figure 8 shows minimum time required for immobilization of 89L is 120 min i.e. 2 hrs; beyond which there is no significant improvement in protein binding.

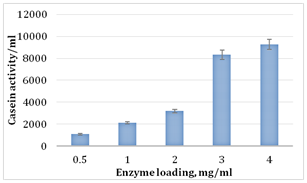

Figure 7 Optimization of enzyme loading.
Figure 8 Determination of coupling time for immobilization.

Characterization of immobilized protease

Optimum pH and temperature: Casein digesting activity of immobilized preparation was analyzed at varying pH (6.5-11) and temperatures (30-70°C) to determine optimum working conditions for 89L after immobilization. Figure 9 & 10 show pH and temperature profiles of immobilized 89L compared with soluble 89L. Both profiles indicate improved tolerance of 89L towards pH and temperature conditions after immobilization. Soluble 89L had optimum activity at pH 9 while immobilized preparation could hydrolyze proteins in range of 9-10 pH. Immobilized serine protease was found to tolerate temperature range of 50-70°C but soluble counterpart exhibited rapid loss in activity beyond 50°C.

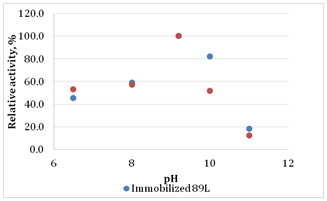

Figure 9 Optimum pH for soluble and immobilized protease.

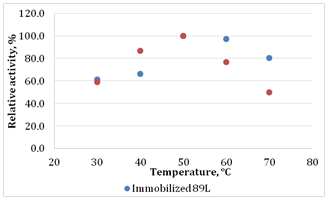

Figure 10 Optimum temperature for soluble and immobilized protease.

Stability studies: Operational stability of immobilized preparation was estimated by determining its hydrolytic activity in a packed bed column after each cycle. It was observed that immobilized serine protease gave constant degree of hydrolysis of substrate (bovine serum albumin solution) at 50°C for 10 cycles beyond which there was slight decrease in enzymatic activity. Immobilized and soluble 89L were stored in cold conditions, during this period their activity profiles were recorded for 10 days at specific time intervals. Results indicated that the immobilized preparation was stable up to 2 days with 60-70% retained activity at 4°C. Singh et al. reported loss of 50% proteolytic activity of immobilized procerain after 10th cycle,33 bacterial protease immobilized on calcium alginate beads retained 65% activity after 2 days.44 Thus, immobilized 89L showed good storage stability and can be repeatedly utilized for controlled protein hydrolysis.

Hydrolysis of proteins with immobilized 89L

Initial study was carried out to check efficiency of immobilized 89L towards hydrolysis of different types of proteins. Soy protein isolate, whey protein concentrate, bovine serum albumin were hydrolysed in batch mode by immobilized 89L. Enzyme and substrate solutions prepared in Tris buffer (50 mM, pH 9) were mixed in 1: 10 (v/v) ratio and hydrolysis was carried out at 50°C in shaker (180 rpm) for 6 hrs. Rapid increase in hydrolysis was observed during initial 2 hrs beyond which reaction progressed at much slower rate. The hydrolysis profiles showed that soy proteins being high in molecular weight undergo lesser hydrolysis as compared to whey proteins and bovine serum albumin which are smaller in size (Figure 11). Soy proteins also contain trace amount of protease inhibitors which may also cause low protein hydrolysis.45 These results were comparable to the soy protein hydrolysis carried out by flavouzyme which obtained 15% DH after 6 hrs.14 Alcalase immobilized on magnetic nano particles hydrolysed soy proteins up to 18% DH.46

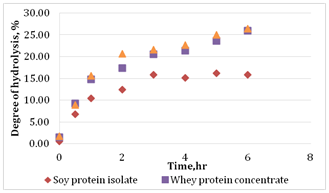

Figure 11 Hydrolysis of proteins with immobilized 89L.

Peptide profiling of protein hydrolysates: Studies were carried out to understand action of serine protease; whether it favours generation of high or low molecular weight peptides and correlating degree of hydrolysis with peptide molecular weights produced thereof. Bovine serum albumin was used as substrate; different concentrations ranging from1-150 mg/ml dissolved in Tris buffer (50 mM, pH 9) were hydrolysed with enzyme substrate ratio of 1: 10 (m/v) at 50°C for 200 min. Proteolysis rate was higher at lower substrate concentrations while extent of hydrolysis declined at high concentrations due to saturation of enzyme preparation (Figure 12). Gel permeation chromatography analysis of BSA hydrolysates with varying DH% confirmed formation of low molecular weight peptides (less than 10 kDa; typically below 1 kDa) after 3hrs incubation (Table 1). Substrate was initially hydrolysed into larger peptide fragments that were gradually converted to smaller peptides with progress of reaction time. Similar experiments were carried out with soy protein isolate. The substrate concentration used for hydrolysis was 1-50 mg/ml. The degree of hydrolysis was not linear with respect to substrate loading. As soy protein isolate is comprised of proteins like glycinin, conglycinin, lipoxygenase etc. each protein is hydrolysed to different extent and combined effect of this individual protein hydrolysis is not observed as overall increase in degree of hydrolysis (Figure 13). However conversion of all these proteins into short peptides was confirmed with gel permeation chromatography analysis.

MW (kDa)

% Distribution of peptides







65 to 67







50 to 65






20 to 50


10 to 20




1 to 10












Degree of hydrolysis, %






Table 1 Peptide distribution in BSA hydrolysates.

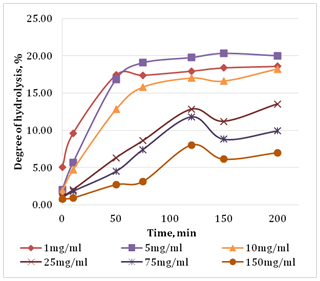

Figure 12 BSA hydrolysis at different substrate concentrations.

Hydrolysates aliquoted at different time intervals exhibited varied degree of hydrolysis which was correlated with formation of small molecular weight peptides using gel permeation chromatography. Variation in contact time reflected change in extent of protein hydrolysis; larger polypeptides ≥200 kDa were converted into short peptides 10-25kDa (12%) and ≤1 kDa (81%) after 5 hrs incubation (Table 2). These results suggested tailoring of protein hydrolysis can be achieved by controlling contact time between protease and substrates. Controlled protein hydrolysis is also reported for whole whey proteins with trypsin that produced peptides in the range of 7.5-8kDa and 4-4.5kDa; whereas fungal protease yielded peptides with molecular weight of 7-7.5kDa depending upon enzyme specificity.6 It can be observed that, there is linear correlation between degree of hydrolysis and formation of smaller peptides with progress of reaction. Use of immobilized protease offer an advantage in separating the hydrolysed peptide solution and enzyme; thereby regulating extent of hydrolysis of protein substrate. Thus, specific molecular weight peptides with defined bioactivity can be produced easily by employing immobilized protease. Optimized substrate concentration and reaction time greatly helps in obtaining peptides with desired molecular weight.

MW (kDa)

% Distribution of peptides











75 to 200







50 to 75



25 to 50





10 to 25







1 to 10












Degree of hydrolysis, %






Table 2 Peptide distribution in soy protein hydrolysates.

Effect of enzyme substrate ratio on protein hydrolysis: Enzyme substrate ratio also contributes to overall hydrolysis of proteins. Hence soy protein hydrolysis reaction was studied under different E-S ratios (1:10, 1:5 and 1:2m/v) in batch mode where mass transfer is not limiting the progress of reaction. Figure 14 depicts that hydrolysis of proteins was directly proportional to E-S ratio i.e. higher E-S 1:10 m/v showed highest hydrolysis up to 14% DH. After understanding the catalytic action of immobilized protease, batch mode of hydrolysis was selected for production of soy protein hydrolysate containing low molecular weight peptides. Optimum conditions; E-S ratio of 1:10 v/v, 25mg/ml SPI concentration and batch mode hydrolysis at 50°C for 5hrs produced protein hydrolysate with degree of hydrolysis 14.5%. GPC analysis revealed abundance of low molecular weight peptides (<1 kDa) in hydrolysate. However batch operation is longer process and necessitates development of continuous process for protein hydrolysis.

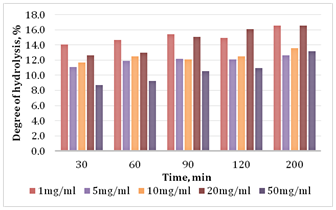

Figure 13 Soy protein hydrolysis at different substrate concentrations.

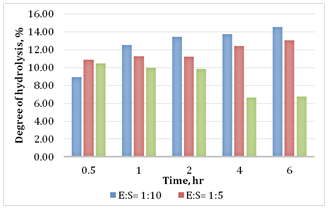

Figure 14 Effect of E-S ratio on soy protein hydrolysis.

Packed bed column for continuous hydrolysate production: Continuous protein hydrolysis process can be developed using packed bed column, immobilized serine endo-protease was packed in jacketed column. Hydrolysis of SPI was carried out by continuous supply of feed solution and recovering protein hydrolysate from other end of column (Figure 15). Continuous production of protein hydrolysate was possible with use of packed bed column, as reported by Ge SJ et al.18 for production of whey protein hydrolysate18 and BSA hydrolysis by immobilized acid protease.47 The experimental setup produced homogeneous protein hydrolysate (with same degree of hydrolysate) for 10-15 cycles without affecting catalytic activity of protease. Soy protein hydrolysis was studied at substrate concentration 25mg/ml at 50°C with respect to residence time (2-120 min) by varying feed flow rates in packed bed column (Figure 16), results obtained in column hydrolysis were comparable to batch mode with same enzyme load. Thus immobilized preparation can be utilized in continuous protein hydrolysis.

Figure 15 Packed bed column hydrolysis of proteins with immobilized 89L.

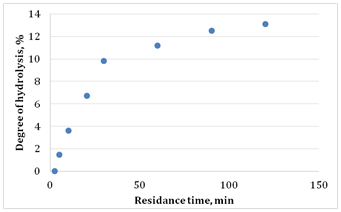

Figure 16 Effect of residence on soy protein hydrolysis.

Mass spectrometry analysis for soy protein hydrolysate: High resolution mass spectrometry analysis was carried out to confirm presence of low molecular weight peptides in soy protein hydrolysate. This approach involves identification of peptides with proteomic database searching based on peptide masses obtained from digested proteins and helps in recognising parent proteins.48 Sample was eluted in gradient mode with 0.1% formic acid (A) and 90% ACN with 0.1% formic acid; starting with 5% B, 15% B in 3 min, 35% B in 40 min, 60% B in 50 min and 95% B in 55min followed by column wash for 10 min at 0.3µl/min flow rate. MS data analysis using spectrum mill software confirmed presence of peptides with molecular weight about ≤1 kDa and chain length of 10-23 amino acid residues. Total 15 identified peptides are listed in Table 3. These peptides were derived from glycinin, conglycinin, lipoxygenases, trypsin inhibitor etc. Future work involves detailed analysis of soy protein hydrolysates with respect to its peptide profiling.

Sr. no.

Peptide sequence

Peptide weight (kDa)

Parent protein


Accession number




Seed linoleate 9S-lipoxygenase-3






Seed linoleate 13S-lipoxygenase-1












Seed linoleate 9S-lipoxygenase-2






Seed linoleate 9S-lipoxygenase-3






Seed linoleate 13S-lipoxygenase-1






Trypsin inhibitor A






Sucrose binding protein












Glycinin G1






Glycinin G1



























Table 3 Peptides present in soy protein hydrolysate.


Glutaraldehyde coupling was found to be suitable for immobilizing serine endo protease 89L. Glutaraldehyde concentration, enzyme loading was found to influence proteolytic activity of immobilized 89L; systematic optimization studies lead to enhancement of specific activity up to 9260 CDU/mg of protein. Immobilized 89L showed higher tolerance to pH and temperature conditions in comparison to soluble enzyme with improved storage and operational stability. For controlled protein hydrolysis; substrate concentration, enzyme loading and reaction time are key parameters which determine fate of hydrolysis reaction. The enzymatic hydrolysis with immobilized protease generated peptides with molecular weight in the range of 1-10 kDa and <1 kDa after 5 hrs of hydrolysis. Formation of this low molecular weight peptide was proportional to progress of reaction, which was confirmed by analysing protein hydrolysates using gel permeation chromatography. Therefore controlled exposure of protease with substrate/s yields differential hydrolysis patterns thereby generating different types of peptides at various time periods. Establishing correlation between DH and molecular weight of peptide has helped in designing process parameters to obtain peptides with desired molecular weights and functional properties. Mass spectrometry analysis confirmed presence of low molecular weight peptides in soy protein hydrolysates that would be further utilized as cell growth stimulators.


This study was supported by the Department of Biotechnology, Ministry of India and Institute of Chemical Technology, Mumbai. We wish to express our gratitude to the DBT-ICT-Centre for Energy Biosciences for financial support.

Conflict of interest

The author declares no conflict of interest.
