The design and implementation of Multi Agent System (MAS) has gained more attention over the last 10 years due to the advance of artificial intelligence, wireless sensor network and microelectronic devices for the Internet of Things (IoT). IoT has ceased to be a novelty, becoming a reality in people's daily lives, since wearable devices and smartphones have become a daily basis tool for a large part of the population. The level of resolution and detection of problems have become a bottleneck for such technologies, which the human error is not more admissible. Since heterogeneity and autonomy are desirable characteristics in IoT systems, especially when such systems are aimed at monitoring the health of their user, MAS is highly required. This research provides a systematic review on the use of MAS in biomedical engineering, focusing on interactions in healthcare environments, architecture and inter-agent communication.

Keywords: intelligent agents, artificial intelligence, internet of things, biomedical engineering, healthcare

With the rise and development of technology, it is necessary to improve the way that data is collected and treated, aiming to better the intelligence in the process and also helping in the formatting, treatment and decision making regarding the collected information. Distributed Artificial Intelligence (DAI) is the system class that allows for various processes called agents to interact, distributing themselves logically or spatially, being autonomous and smart; it is also the intersection between Distributed Computing and Artificial Intelligence (AI).¹ From an architectural point of view, intelligent agents (IAg) are entities composed of a unique identifier and three main components: code, data and status, in addition to having a life cycle associated with their state of execution.^1,2 In a Multi Agent System (MAS), it is possible to delegate different tasks to different agents, where a larger problem is divided into small sub problems, and each agent produces an output in accordance with its mission (task), where, later, all outputs are joined and converted into the final answer to the total problem.^1–4 In addition, agents can interact with each other and share common data in order to increase the speed of problem resolution. As for the characteristics, a given IAg can be classified according to the system architecture (Open or Closed Code), the knowledge representation, its mobility (Static and Mobile Agents), its intelligence mechanisms (AI, ontology, etc.), the interaction/communication (basic, passive, active and interlocutor), the system’s complexity, scalability and security, and privacy.^2–4

Static (or stationary) agents can only be executed on the machine they were started on, and cannot perform tasks remotely, even though they have the ability to interact with remote agents.^1,5 Mobile agents are those which can migrate from one device to another, taking data and status with them, being able to perform tasks locally and remotely. Mobile agents can migrate between MAS hosts to use their resources locally.^1,5 The scalability of a MAS can be defined by the number of agents, amount of communication, number of tasks and amount of resources that can be increased or reduced in execution time without affecting the system.^2,6 Knowledge representation in a MAS is different from other computer systems, since they have reasoning mechanisms and autonomous distributed interactions, not only dealing with static information, but also dynamic.^1,3,4,6 Communication between agents of a MAS (inter-agent) takes place through the use of pre-defined protocols or programming languages.^1,2 IAgs are heterogeneous, distributed and autonomous models, which can be easily compared and mapped in the health care domain, since this domain has many distinct pathologies and care strategies, in addition to the heterogeneity of patients, also allowing for the creation of personalized models of care.^1,2,6 The use of MAS in the context of health can assist in a quick and intelligent way the decision making in a certain case, optimizing the patient care process, if necessary.^3–6 Since the components of a healthcare system and the ones involved in it can be considered agents, and that the interaction between parts of the system and between systems is also possible, both in solving a problem and in assisting in decision-making,^6,7 the use of MAS in Biomedical Engineering (BE) becomes attractive. Some solutions have been proposed by the academic community, such as fall detection,⁷ Home Care of bedridden and/or elderly patients^7–10 and continuous monitoring of vital signs for later use by the physician.^8,11 The objective of this research is to investigate practical cases of intelligent agents and MAS applications in biomedical engineering, focusing on the interactions in healthcare environments and the how they operate regarding the data architecture used and the inter-agent communication.

Literature searches were carried out regarding DAI, IAg and MAS applied in Biomedical Engineering. The study was based on scientific works published in these expertise areas. A big search was performed in the ACM,12 IEEE13 and Science Direct databases.14 Some of them were made using filters such as publication date and keywords while others, only the keywords (Table 1). The first six publications that appeared as the first search results were selected. These address the use of MAS and the collection of vital signal data from a particular group of volunteers. These surveys cover a period from 2008 to 2020 and the keyword used was "health monitoring" multi-agent system.

As a result by the literature review, it was narrow down the main characteristics of those researches, as shown in Tables 2 & Tables 3. As for the purpose of the studies’ proposals, some suggest an architectural model for the further development of a solution for monitoring health using MAS Design and Development) MADIP,⁸ MASRHMS,⁹ MBES¹⁵ and MEMMHCS¹¹ while others suggest the solution already implemented (System) such as MADIP⁸ and DDMmS.¹⁰ With regard to the target population, there are those researches that focus especially on the elderly public MADIP⁸ and DDMmS¹⁰ and the bedridden one MADIP,⁸ MADRHMS,⁹ while others are recommended to the general public MBES¹⁵ and MEMMHCS.¹¹ Most studies have one or more devices, which measure different parameters from the volunteer (Operation). Some of these devices are used for remote patient care MADIP,⁸ MASRHMS,⁹ DDMmS,¹⁰ and MEMMHCS¹¹while others are used for hospital care using hospital-specific devices MADIP⁸ and MBES.¹⁵ It was noticed that the technology used by most publications is wearable, such as: MADIP,⁸ MASRHMS,⁹ MBES¹⁵ and DDMmS.¹⁰ Others include the use of smartphone and other mobile devices: MADIP⁸ and MEMMHCS,¹¹ and there are still those that mix the use of all the aforementioned technology: MADIP.⁸

Systems architecture

As for the architectures, the following parameters were selected from the literature review and are summarized in Tables 4 & Tables 5. It is important to be emphasized that the proposals were validated through a simulation environment. The proposals based on JADE, MADIP,⁸ MASRHMS⁹ and DDMmS¹⁰ used the framework environment itself to carry out their simulations. The proposal that used Aglets, MADIP,⁸ simulated its environment on the Tahiti server, provided by the platform itself. The remaining proposals created their own simulation environment.^11,15 Intelligent agents can be classified according to their mobility. That way, a MAS can contain static agents^8,12 or mobile ones,⁸ according to the system need. Inter-agent communication may or not follow a pre-established protocol or language. Some of the most used protocols and languages in this communication are the: KIF, KQML,⁸ FIPA-ACL^9,10 and XML. When no protocol or language is used, it is called Free Format.^6,11 In the case of the study MBES,¹⁵ it makes the use of network protocols for the exchange of messages between MAS agents. In order to facilitate the development of a MAS, several frameworks, platforms and libraries can be used,² such as: Aglets, Cougaar, Fipa-OS, JADE, JATLITE, OAA and Zeus.¹⁶ The studies reviewed only used three of these as encountered in Aglets,⁸ JADE^8–10 and OAA.^11,15

Implementation

In order to maintain the integrity of the data being handled and the MAS integrity, it was noticed that privacy and security mechanisms and policies are required. Some researches made use of mechanisms already included in the MAS^7–10 platforms/frameworks/libraries, while others did not mention it.^11,15 There are several programming languages that can be used for the implementation of intelligent agents and MAS,^3,4 each containing its own paradigm as shown in Table 6. In order to make the final decision and send the response to the customer (i.e, the one who can be an intelligent agent), it was noticed in this overview that another MAS or a system user is often used by coordination and consensus (Distributed Analysis).^2,6 In some studies, the role of the leader is assigned to a specific agent, such as the Diagnostic Agent in MADIP⁸ and Decision Support Agent in MEMMHCS.¹¹ In some other studies, the use of Datamining algorithms is explored, with the objective of optimizing the leader agent decision MASRHMS⁹ and MEMMHCS,¹¹ while in the proposal MBES¹⁵ the MAS decision can be replaced by a user manual input.

As a resume, Figure 1 shows the comparison of data collection technologies with the different aspects mentioned. It can be observed that some of the studies reviewed have more than one parameter, therefore, these are counted as a publication in all of the items of which they are a part of. It can also be observed that Wearable technology was the most used one, followed by Smartphones, which leads us to believe that the concern with remote care and the use of technologies combined with Internet of Things have been growing in the academia. Regard to the technology and its implementation, most of these type of studies uses Distributed Analysis as a decision mechanism. This is due to the fact that the distributed analysis is part of the distributed artificial intelligence, whose analysis can provide fault tolerance, higher security for the system and reliability for the decision maker. Looking at the architecture characteristic, static agents predominate as the type of agents used in MAS, while the most used MAS development platform is JADE. It is important to mention that the JADE platform is a framework for implementing static smart agents and supports agent mobility, then it has been one of the most updated MAS platforms with the largest community participation.

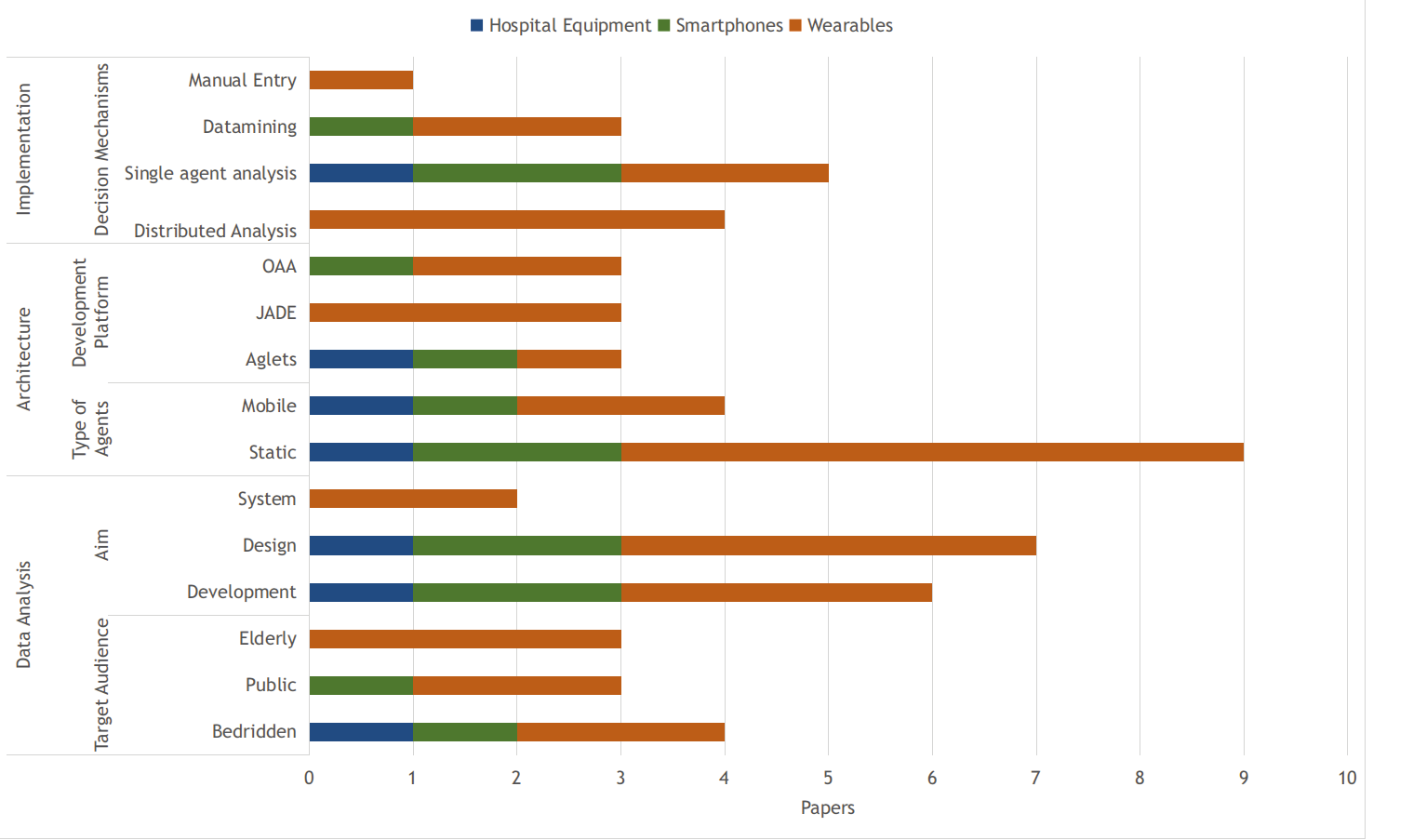

Figure 1 Comparison of the data collection technologies in terms of data analysis, architecture and implementation.

Medical care application using MAS and Wearable are the main targets if the objective is to obtain a good Data Analysis. It was found a few number of researches which present a ready solution type of the implementing system. We believe that this is due to the fact that implementing a system takes much longer and requires a lot of knowledge in programming languages and software engineering, in addition to the fact that its implementation is necessary to validate any proposal for this kind. Most of the studies focused more on presenting solutions using Smartphones. Only one article considered the use of Medical Equipment, thus it seems that there is lack of study in this area. Since hospital equipment cannot be excluded from a patient's life, whether being monitored or not, this absence might result for the increasing number of advanced remote monitoring systems and, at the same time, for the obsolescence of hospital equipment. It was found many different types of aspects and its respective objectives at each research paper, as shown in Figure 2. Some of the studies reviewed have more than one parameter, therefore, these are counted as a publication in all of the items of which they are a part of it. It can be observed that the Design occupies the largest share of studies followed by the Development, which might be the fact that the proposal of a system architecture is much less expensive and demands less time than implementing a system. The proposals for Systems already implemented take the smallest slice of it, showing a deficit for such solutions. The implementation of a system requires not only its conception, but a high knowledge in software engineering, frameworks and programming languages, and much more time for its final implementation. In terms of programming languages, JAVA is the most used one due to its facility as a programming language and because the JADE platform is designed in JAVA.

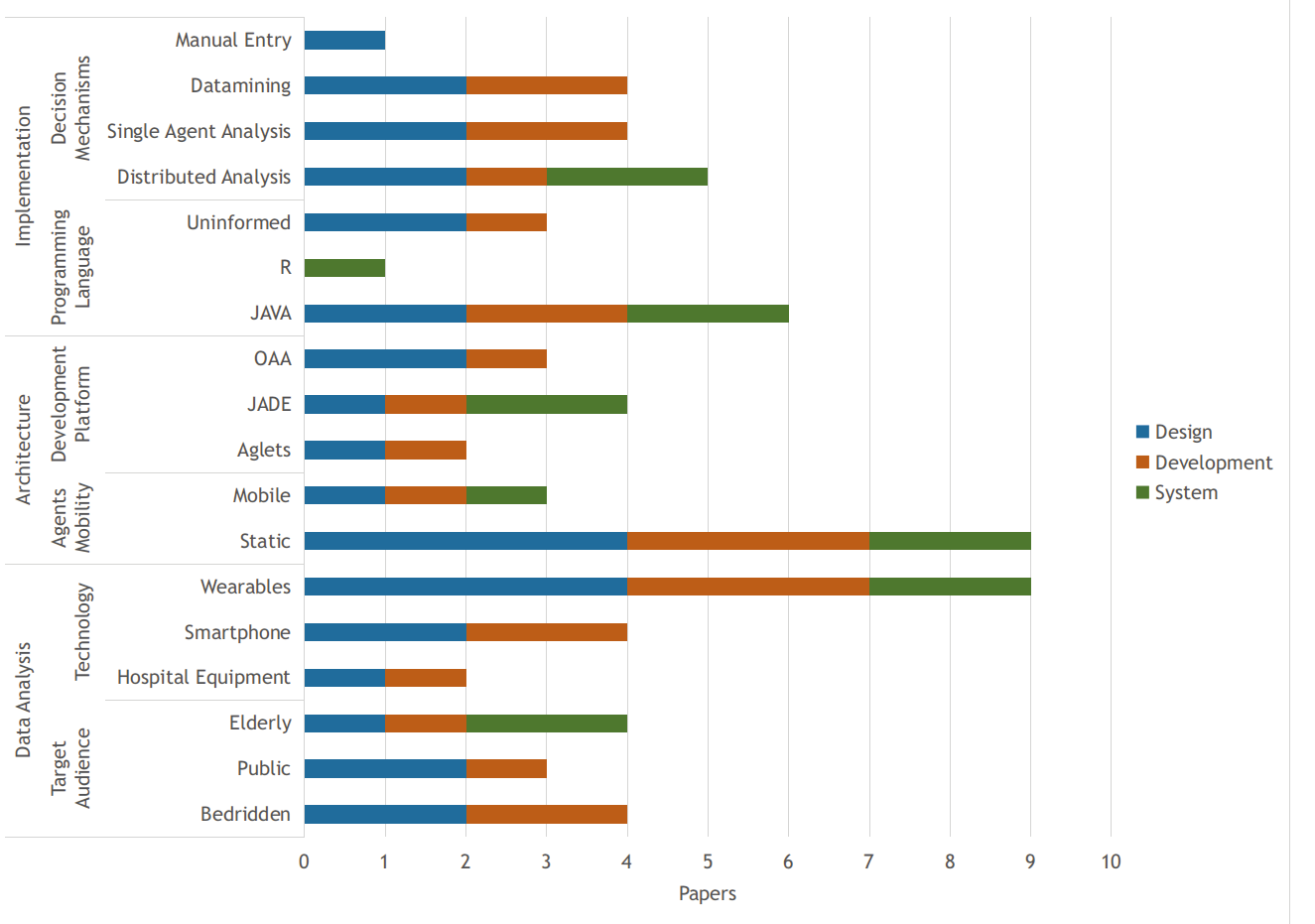

Figure 2 Comparison of the objectives regarding data analysis, architecture and implementation.

If we consider the Development Platforms for Design, OAA occupies the largest share, followed by the JADE platform and the Aglets library. Since future implementations in a system might take place, thus leaving the platform open is highly recommended due to the fact that novel frameworks may appear to be better than the current ones. It was also noticed that JADE is the most used implementation tool for a healthcare system, because it is considered to be the most updated agent framework and to have an easy communication channel to the project developer. In terms of the mobility of MAS agents, static agents are the majority for both Design and Development, since the need for implementation of mobile agents in a system requires a careful study when building the system setup. The last depends on the machine infrastructure and permissions of the network. As showed in Figure 1, Wearable technology is the most used one for both Design and Development, followed by Smartphones. Due to the increasing number of worldwide population needing hospitals and clinics, specially the elderly one, bedridden patients and the general public are the most researched target population in the Design objective, while the elderly one is studied the most in regards to the System objective.

This research presented a systematic review on intelligent agents and MAS in biomedical engineering. Due to the short time for this research due to the COVID-19 Pandemic, only six studies were selected from the databases described in the methodology. The keyword that presented the most consistent result for the purpose of this review was "health monitoring" multi-agent system.The other ones used in the search often returned many publications. There are a large number of studies using MAS in healthcare with different purposes other than those desired for this review, such as coordinating ambulances,¹⁷ interaction between hospitals¹⁸ and the optimization of hospital data.^19–23 It is also worth mentioning that some keywords returned results not only for the full keyword but for part of it, such as Multi Agent²⁴ and Health.²⁵ It was observed that most of the proposals that address the topic were found in the IEEE database, while the ACM one presented just few search results that trully report the use of intelligent agents and MAS in biomedical engineering.

It can be concluded taht there was a deficit in researches which might be used as ready-to-use system. Most of the proposals aim to contribute merely to the design and further developments. In addition, it was also noticed that only one contribution was concerned with the implementation or extension of MAS for its use in medical equipment together with wearables and smartphones. It must be pointed out the fact that there is a lack of a complete data set and parameters in most of the studies reviewed here, either not mentioning the programming language used nor the type of privacy and security policy. This lack of information may raise doubts whether the proposed MAS is really safe and how far the work would be heterogeneous or not. The more the technical characteristisc are describeb in a rearche paper the better will be the output of such literature review and, consequently, more clear specific issues will be presented in order to improve and guide wordwide technologies in the healthcare comummity.²⁶
