Type 1 diabetes results from autoimmune destruction of insulin-producing β cells in the pancreas. Genetic and environmental factors act together to precipitate the disease. The excess mortality associated with the complications of type 1 diabetes and the increasing incidence of childhood type 1 diabetes emphasize the importance of therapeutic strategies to prevent this chronic disorder. In the past 20 years, multiple clinical trials have attempted to find prevention approaches for type 1 diabetes in children before its occurrence (primary prevention), during the initial stage of autoimmune development (secondary prevention), or even after diagnosis of diabetes (tertiary prevention).

Keywords: type 1 diabetes prevention, β-cell function, Immunomodulators, immunotherapy, antigen-specific vaccines, monoclonal antibodies

T1DM, type 1 diabetes mellitus; GAD, glutamic acid decarboxylase; IA-2, insulinoma-associated protein 2; Znt8, zinc transporter; BCG, bacille calmette–guerin; IL-1, Interleukin-1

The main stages in the development of type 1 diabetes and prevention approaches are summarized in Figure 1.

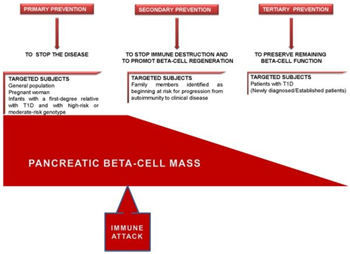

Figure 1 Stages of the development of type 1 diabetes and prevention opportunities at each stage.

Elimination of the environmental trigger(s) responsible for this epidemic would be the most efficient approach to primary prevention .After initiation of islet autoimmunity; most patients have a long preclinical period that offers opportunity for secondary prevention —halting progression to clinical diabetes. Restoration of insulin secretion after diagnosis of diabetes constitutes the tertiary prevention. I can summarize the current approaches to prevent type 1 diabetes with these measures:³

1. Avoidance of environmental triggers of islet autoimmunity such as cow's milk or gluten, as well as supplementation with nutrients for which deficiency presumably promotes islet autoimmunity, e.g. n-3 fatty acids or vitamin D.
2. Antigen-specific “vaccination” using islet auto antigens, e.g., intact insulin, altered insulin or proinsulin peptides, GAD65.
3. Non–antigen-specific systemic therapies that range from mild modulation with oral nicotinamide or BCG vaccination^3,6 to immuno suppression and cellular therapies.
4. Stimulation of β-cell regeneration in conjunction with suppression of apoptosis that is increased in islet autoimmunity to overcome the relapsing-remitting course of pre-diabetes.
5. Metabolic modifications, such as weight loss, increased physical activity, and β-cell rest.^4-6

Primary prevention of T1DM

The target population for primary prevention trials is young children who carry high-risk HLA-DR, DQ genotypes, especially in children of first-degree relatives. Ongoing primary prevention trials include largely low-risk dietary modifications: elimination of cow's milk⁷ or gluten⁸ and supplementation of diet with n-3 fatty acids⁹ or vitamin D.¹⁰

Role of cow's milk

The cow's milk hypothesis is being tested by the Trial to Reduce type 1 diabetes in the Genetically at Risk (TRIGR).⁷ This randomized, double-masked trial is evaluating the effect of hydrolyzed infant formula, where protein fragments are too small to stimulate the immune system, compared with cow's milk–based formula. Eligible to participate were newborns who had a first-degree relative with type 1 diabetes and one of the high-risk HLA-DQ genotypes. The recruitment of 2,160 children from 77 centers in 15 countries was completed at the end of 2006. All participant mothers received the recommendation to breast-feed for at least the first 6 months of life. If a mother was unable to exclusively breast-feed before the baby was 8 months of age, her child was randomly assigned to either a formula of extensively hydrolyzed protein (Nutramigen) or a formula based on non hydrolyzed cow's milk (Enfamil) containing a small amount of Nutramigen (for masking purpose). The main end point of the trial is development of diabetes by the age of 10 years.⁷

Role of gluten

BABY DIET study is evaluating the effect of delaying exposure to gluten until the age of 1 year.⁸

Role of docosahexaenoic acid

The study of Norris et al has enrolled pregnant women in their 3rd trimester expecting high-risk babies based on family history and newborn first-degree relatives with high-risk HLA-DR,D Q genotypes. It has proved that dietary intake of omega-3 fatty acids by pregnant women and newborn babies before 6 months of age could be associated with reduced risk of type 1 diabetes in children at increased genetic risk.⁹The Trial Net Nutritional Intervention to prevent type 1 diabetes (NIP) is a pilot study that enrolled pregnant women in their 3rd trimester expecting high-risk babies based on family history and newborn babies as in Norris’ study.¹¹

Role of vitamin D

Vitamin D supplementation in early childhood has attracted attention as a possible primary preventive measure.¹² However, this interest has been mitigated by potential nephrotoxicity of vitamin D. At least one phase I clinical trial is testing the feasibility of this approach.¹⁰

Secondary prevention of T1DM

Approximately 1 in 20 first-degree relatives and 1 in 300 people without type 1 diabetes in the immediate family have multiple islet auto antibodies. Most young individuals with multiple islet autoantibody positivity progress to diabetes in 5–10 years; however, the rate of progression decreases with age. Four large secondary prevention trials have found no effect on the rate of progression to clinical type 1 diabetes for insulin administered parenterally,¹³ orally,¹⁴ or intranasally,¹⁵ as well as for oral nicotinamide.¹⁶ Two large randomized double-masked secondary prevention trials using oral and intranasal insulin are still underway.^17,18 In the DPT-1 trial of oral insulin, the median duration of follow-up was 4.3 years; 97 subjects developed T1D – 44 in the oral insulin group and 53 in the placebo group, as summarized in figure 2.

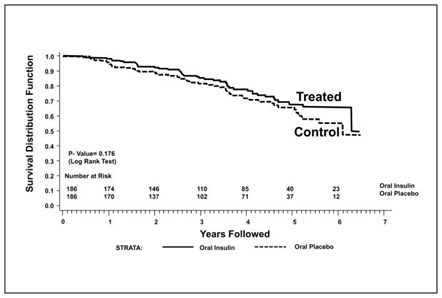

Figure 2 Life-table depicting time to diagnosis of type 1 diabetes in the DPT-1 oral insulin trial.

This observation led to a second oral insulin trial, conducted by the Type 1 Diabetes Trial Net consortium. The study is enrolling first-degree relative’s age 1-45 years and second-degree relative’s age 1-20 years (the relative with diabetes must have been diagnosed before the age of 40 years and started on insulin within the 1st year of diagnosis). Eligible subjects must be positive for insulin auto antibodies on two samples within a 6-month period and meet additional criteria for other islet auto antibodies.¹⁹ Thus far, the secondary prevention trials have failed to prevent or delay the onset of diabetes. In the near future, we will likely see a resurgence of other secondary prevention trials translating the most successful findings from tertiary prevention trials in patients with established type 1 diabetes.

Tertiary prevention of T1DM

In the past several years, trials in patients with newly diagnosed type 1 diabetes became the main focus of the research community, as it is easier to recruit participants after diagnosis of diabetes. The goal of tertiary prevention is preservation of remaining islet β-cells to induce and prolong (partial) remission. Actually a spontaneous temporary remission from insulin dependency may occur in up to 27% of patients, soon after diagnosis, and may be related to β-cell rest caused by insulin treatment.²⁰ A realistic outcome of tertiary prevention trials is prolongation of residual insulin secretion, rather than complete reversal of diabetes.

Antigen-specific vaccines

In the past several years, perhaps the most exciting development in the area of tolerance induction has been apparent efficacy of Diamyd vaccine based on the whole recombinant human GAD65 (rhGAD65) molecule suspended in alum. Clinical trials in late-onset autoimmune diabetes in adults (LADA) and adolescents with newly diagnosed type 1 diabetes.^21,22 have suggested benefit.

Diamyd showed some promise of efficacy in Phase 2 clinical testing but then failed to meet its primary efficacy endpoint (preservation of beta cell function) in a follow on Phase 3 study [23]. DiAPREV-IT, an investigator-initiated Phase II study of Diamyd in 50 children at risk of T1D is ongoing with results expected in 2015 [24]. The Diabetes Vaccine Development Centre is funding a long running study in Melbourne, Australia of nasal insulin for T1D prevention in autoantibody positive first-degree relatives, but with slow recruitment the study may never reach its recruitment target.²⁵

Interleukin-1β (IL-1β), a pro-inflammatory cytokine produced by β-cells or macrophages, represents a potential therapeutic target in diabetes. Anti-IL-1β antibody alone or combined with GAD65 vaccine could reverse diabetes development in a virus-induced mouse model. Given alone, anti-IL-1β had no effect on diabetes, while GAD65 plasmid resulted in 33% disease reversal after a 5-week observation. Despite unsuccessful clinical trials using anti-IL-1β mono therapy, promise for treatment of type 1 diabetic patients with IL-1β blockade combined with antigen-specific vaccines is still available.²⁶

Systemic immuno modulators

Numerous non–antigen-specific immuno modulators have been tried in newly diagnosed patients. In early 2007, an excellent review by Staeva-Vieira, Peakman, and von Herrath²⁷ summarized previously completed interventions, now largely of historical value. Some interventions, e.g., cyclosporine A, azathioprine, and anti-thymocyte globulin (ATG) plus prednisolone, had unattractive side effects, including weakening of immunity to infections, renal and pancreatic toxicity, and potential long-term risk of malignancies.

Cyclosporine A was efficacious in prolonging insulin production; however, the treatment had to be continued for at least 6–12 months to show benefit, and the effect was lost when the drug was discontinued. In addition, the patients would progress to insulin dependency within 3 years, even if treatment was continued and C-peptide secretion was maintained. Nevertheless, cyclosporine trials provided a proof of principle that immuno supression can slow the destruction of the β-cells, even if it cannot stop it.²⁸

Azathioprine is an immunosuppressive drug that inhibits or prevents T-cell responses to antigen. In this old double-blind study of 46 patients treated with azathioprine and glucocorticoids, insulin could be discontinued in 10 of 20 treated patients, as compared with 2 of 20 patients in the placebo group. Endogenous insulin secretion (measured as the plasma C-peptide response to a liquid meal) also improved. However, only three treated patients remained in remission at one year.²⁹

A phase I clinical trial has confirmed that the use of a BCG vaccine to raise levels of an immune system modulator can cause the death of autoimmune cells targeting the insulin-secreting cells of the pancreas and temporarily restore insulin secretion in human patients with type 1 diabetes. Results of the study led by Denise Faustman are being published in the open-access journal PLoS ONE, and a larger Phase II trial is currently underway.³⁰

Immunotherapy with Monoclonal antibodies

Immunotherapy trials in recent-onset type 1 diabetes had mixed results, with some therapies—anti-CD3 monoclonal antibodies targeting T cells, anti-CD20 monoclonal antibodies targeting B cells³¹ —showing promise, with at least transient improvement in β-cell function compared with randomized control groups.

Teplizumab

This monoclonal anti-CD3 antibody has received a lot of attention, and it is considered the most extensively studied immunological approach to T1D. A short course of anti-CD3 (six to fourteen days) early in the course of the disease has the potential to profoundly alter the course of the disease for many years. When used in adequate doses anti-CD3 consistently has been shown to preserve C-peptide.^32,33 In the current issue, Herold et al.,³² report the results of the Autoimmunity-Blocking Antibody for Tolerance in Recently Diagnosed Type 1 Diabetes (AbATE) trial which has demonstrated that in responders the mean preservation of C-peptide continues at baseline levels for 2 years.³⁴

Protégé trial, a randomized double-blind, parallel placebo-controlled two year study of three intravenous teplizumab dosing regimens, administered daily for 14 days at baseline and again after 26 weeks, in new-onset type 1 diabetes. Of 516 randomized patients, 513 were treated, and 462 completed 2 years of follow-up. Teplizumab (14-day full-dose) reduced the loss of C-peptide at 2 years versus placebo. Exogenous insulin needs tended to be reduced versus placebo. No new safety or tolerability issues were observed during the second year.³⁵

Rituximab

Rituximab is a monoclonal antibody that targets the CD20 receptor unique to B-cells inhibiting its function, thus reducing presentation of auto antigen to T-cells and theoretically secondarily preventing B-cell expansion and islet autoantibody production. This medication is approved for the treatment of non-Hodgkin's lymphoma and has shown success in treatment of patients with rheumatoid arthritis. Trial Net has completed a phase II trial including 4 weekly injections of rituximab, and the results were presented at the American Diabetes Association's Scientific Sessions in June 2009. Newly diagnosed patients with type 1 diabetes (age 8–40 years) treated with rituximab had higher C-peptide after a mixed meal and lower A1C and insulin doses compared with the placebo group.³¹

Immuno suppression with MMF

Mycophenolate mofetil (MMF, Cellcept) inhibits proliferation of both T- and B-lymphocytes. In a multicenter randomized trial, 126 patients with type 1 diabetes for less than three months were randomly assigned to MMF, MMF plus daclizumab (an anti-IL-2 receptor monoclonal antibody that selectively binds the IL-2 receptor, inhibiting IL-2 mediated T-lymphocyte proliferation) or placebo. After two years, there was no significant difference in the mean area under the curve for C-peptide levels during a mixed-meal tolerance test. Thus, neither MMF alone or in combination with daclizumab slowed progression of beta-cell destruction in recently diagnosed type 1 diabetes.^36,37

Metabolic control and β-cell rest

Weight loss and increased physical activity can neutralize the powerful effect of insulin resistance on progression to type1 diabetes.⁴ Meticulous blood glucose control after diabetes onset resulting in β-cell rest is also believed to help preserve residual insulin secretion⁵ and the Trial Net Metabolic Control Trial is about to test this hypothesis.⁶

Genetic and environmental factors that determine the relapsing-remitting course of β-cell destruction, culminating in full insulin dependence, are being discovered. In the long run, primary prevention of islet autoimmunity will likely be the optimal approach to the prevention of type 1 diabetes, especially in high-risk groups, such as first-degree relatives. However, environmental triggers of islet autoimmunity need to be better defined. If a primary prevention is not feasible in the general population, mass screening for islet auto antibodies and secondary prevention may be the next option. As patients develop autoimmunity, β-cell function declines and so does the potential therapeutic benefit of intervention. Tertiary prevention trials of type 1 diabetes in children seem to be more promising, as it is easier to recruit participants after diagnosis of diabetes. But using antibody agents is still relatively nonspecific and potentially toxic to some trial participants. Type 1 diabetes prevention research is expanding at an unprecedented rate, and prevention opportunities will have a bright future protecting our lovely children from this progressive epidemic.

None.

The author declares there is no conflict of interest.

1. Rewers M, Norris J, Kretowski A. Epidemiology of type 1 diabetes mellitus. In Type 1Diabetes Cellular, Molecular & Clinical Immunology. In: Eisenbarth GS (Ed.) 2009.
2. Vehik K, Hamman RF, Lezotte D, et al. Increasing incidence of type 1 diabetes in 0- to 17-year-old Colorado youth. Diabetes Care. 2007;30(3): 503–509.
3. Rewers M, Gottlieb P. Immunotherapy for the Prevention and Treatment of Type 1 Diabetes: human trials and a look into the future. Diabetes Care. 2009;32(10):1769–1782.
4. Xu P, Cuthbertson D, Greenbaum C, et al. Role of insulin resistance in predicting progression to type 1 diabetes. Diabetes Care. 2007;30(9):2314–2320.
5. Brown RJ, Rother KI. Effects of beta-cell rest on beta-cell function: a review of clinical and preclinical data. Pediatr Diabetes. 2008;9(3 Pt 2):14–22.
6. Eunice Kennedy Shriver NICHD. Effect of metabolic control at onset of diabetes on progression of type 1 diabetes [clinical trial registry] 2009.
7. TRIGR Study Group. Study design of the Trial to Reduce IDDM in the Genetically at Risk (TRIGR). Pediatr Diabetes. 2007;8(3): 117–137.
8. Schmid S, Buuck D, Knopff A, et al. BABYDIET, a feasibility study to prevent the appearance of islet autoantibodies in relatives of patients with type 1 diabetes by delaying exposure to gluten. 2004;47(6):1130–1131.
9. Norris JM, Yin X, Lamb MM, et al. Omega-3 polyunsaturated fatty acid intake and islet autoimmunity in children at increased risk for type 1 diabetes. JAMA. 2007;298(12):1420–1428.
10. Canadian Diabetes Association. Feasibility study of 2000 IU per day of vitamin D for the primary prevention of type 1 diabetes [clinical trial registry], 2009.
11. The Nutritional Intervention to Prevent Type 1 Diabetes (NIP) Pilot Study [clinical trial registry]. 2009.
12. Wasserfall C, Atkinson MA. Taking a daily vitamin to prevent type 1 diabetes? 2009;58(1):24–25
13. Effects of insulin in relatives of patients with type 1 diabetes mellitus. N Engl J Med. 2012;346(22):1685–1691.
14. Skyler JS, Krischer JP, Wolfsdorf J, et al. Effects of oral insulin in relatives of patients with type 1 diabetes: the Diabetes Prevention Trial–Type 1. Diabetes Care. 20050;28(5):1068–1076.
15. Nanto-Salonen K, Kupila A, Simell S, et al. Nasal insulin to prevent type 1 diabetes in children with HLA genotypes and autoantibodies conferring increased risk of disease: a double-blind, randomised controlled trial. 2008;372(9651):1746–1755.
16. Gale EA, Bingley PJ, Emmett CL, et al. European Nicotinamide Diabetes Intervention Trial (ENDIT): a randomised controlled trial of intervention before the onset of type 1 diabetes. 2004;363(9413):925–931.
17. Oral insulin for prevention of diabetes in relatives at risk for type 1 diabetes mellitus [clinical trial registry]. 2009.
18. Melbourne Health. Trial of intranasal insulin in children and young adults at risk of type 1 diabetes [clinical trial registry]. 2009.
19. Type 1 Diabetes TrialNet Oral Insulin Study.
20. Martin S, Pawlowski B, Greulich B, et al. Natural course of remission in IDDM during 1st yr after diagnosis. Diabetes Care. 1992;15(1):66–74.
21. Bekris LM, Jensen RA, Lagerquist E, et al. GAD65 autoantibody epitopes in adult patients with latent autoimmune diabetes following GAD65 vaccination. Diabet Med. 2007;24(5):521–526.
22. Agardh CD, Lynch KF, Palmer M, et al. GAD65 vaccination: 5 years of follow-up in a randomised dose-escalating study in adult-onset autoimmune diabetes. 2009;52(7):1363–1368.
23. Ludvigsson J. GAD-alum (Diamyd)--a new concept for preservation of residual insulin secretion. Expert Opin Biol Ther. 2010;10(5): 787–799.
24. DIAPREV-IT study of diabetes therapy Diamyd® receives further funding and will continue despite disappointing Phase III trial results. 2011;3(8):923–924.
25. Lernmark A, Larsson HE. Immune therapy in type 1 diabetes mellitus. Nat Rev Endocrinol. 2013;9(2):92–103.
26. Pagni PP, Bresson D, Rodriguez-Calvo T, et al. Combination therapy with an anti-IL-1β antibody and GAD65 DNA vaccine can reverse recent-onset diabetes in the RIP-GP mouse model. 2014;63(6):2015–2025.
27. Staeva-Vieira T, Peakman M, Von Herrath M. Translational mini-review series on type 1 diabetes: immune-based therapeutic approaches for type 1 diabetes. Clin Exp Immunol. 2007;148(1):17–31.
28. Bougneres PF, Landais P, Boisson C, et al. Limited duration of remission of insulin dependency in children with recent overt type I diabetes treated with low-dose cyclosporin. 1990;39(10):1264–1272.
29. Silverstein J, Maclaren N, Riley W, et al. Immunosuppression with azathioprine and prednisone in recent-onset insulin-dependent diabetes mellitus. N Engl J Med. 1988;319(10):599–604.
30. Faustman DL, Wang L, Okubo Y, et al. Proof-of-Concept, Randomized, Controlled Clinical Trial of Bacillus-Calmette-Guerin BCG for Treatment of Long-Term Type 1 Diabetes. PLoS One. 2012;7(8):e41756.
31. Pescovitz MD, Greenbaum CJ, Krause-Steinrauf H, et al. Rituximab, B-lymphocyte depletion, and preservation of beta-cell function. N Engl J Med. 2009;361(22):2143–2152.
32. Herold KC, Gitelman SE, Willi SM, et al. Teplizumab treatment may improve C-peptide responses in participants with type 1 diabetes after the new-onset period: a randomized controlled trial. Diabetologia. 2013;56(2):391–400.
33. Skyler JS. The Compelling Case for Anti-CD3 in Type 1 Diabetes. 2013;62(11):3656–3657.
34. Herold KC, Gitelman SE, Ehlers MR, et al. Teplizumab (anti-CD3 mAb) treatment preserves C-peptide responses in patients with new-onset type 1 diabetes in a randomized controlled trial: metabolic and immunologic features at baseline identify a subgroup of responders. Diabetes. 2013;62(11):3766–3774.
35. Hagopian W, Ferry RJ, Sherry N, et al. Teplizumab preserves C-peptide in recent-onset type 1 diabetes: two-year results from the randomized, placebo-controlled Protégé trial. 2013;62(11):3901–3908.
36. Gottlieb PA, Quinlan S, Krause-Steinrauf H, et al. Failure to preserve beta-cell function with mycophenolate mofetil and daclizumab combined therapy in patients with new-onset type 1 diabetes. Diabetes Care. 2010;33(4):826–832.
37. Petrovsky N. Unconventional Vaccines: Progress and Challenges. J Vaccines Vaccin. 2013;4:186.
