Research Article Volume 10 Issue 4
^{1}College of Business, Economics, Applied Statistics and International Business, New Mexico State University, USA
^{2}Interdisciplinary Graduate School of Engineering Sciences, Kyushu University, Japan
^{3}Department of Mathematics, Bangladesh University of Engineering and Technology, Bangladesh
Correspondence: Atiqur Chowdhury, College of Business, Economics, Applied Statistics and International Business, New Mexico State University, USA
Received: September 16, 2021  Published: November 3, 2021
Citation: Chowdhury A, Kabir KMA, Tanimoto J. How quarantine and social distancing policy can suppress the outbreak of novel coronavirus in developing or under poverty level countries: a mathematical and statistical analysis. Biom Biostat Int J. 2021;10(4):145152. DOI: 10.15406/bbij.2021.10.00341
In this paper, we develop a novel theoretical model named “Social distancing SEIQR model” to control the spread of infection by combining both quarantine and social distancing explicitly based on the real cases that observed where medical equipment and others resources are limited. COVID19 is a transmissible viral disease that has rapidly stroke around the world and is currently a major thread for the developing countries. The basic reproduction number of infectious disease dynamics model is very effective tools as a threshold quantity in the epidemiology context. To validate our model, a linear regression polynomial fit analysis has been studied and fitted our simulated data with the original data. A high percentile values established our model to analyze the future situation for Bangladesh with strong confidence. For that, we have analyzed the basic reproduction number mathematically and statistically, then discuss our findings and shown our model is an outstanding model to make a decision which situation is good for developing country like Bangladesh or under poverty level countries to stop the COVID19 coronavirus from spreading.
Keywords: novel coronavirus, mathematical model, basic reproduction number, next generation matrix, transmissibility
Novel coronavirus was named as SARSCoV2 is a transmissible viral disease that has rapidly stroke around the world^{14} and is currently a major thread for developing and under poverty level countries by the World Bank and WHO’s prediction. A country like Bangladesh where population density is much higher is in high risk of increasing the reproduction level of this coronavirus much faster than other developed countries like the U.S.A, China, Japan, Canada, Germany, United Kingdom etc.^{5,6} Without inventing vaccination or the proper treatment, how we control a faster infectious disease like SARSCoV2 or COVID19 is one of the most admitted questions with which our developed civilization faces right now. At the same time, some policies termed as “isolation”, “quarantine”, “lockdown” and “social distancing” would give a stunning direction to control the epidemic outbreak.
Merging those ideas, theoretical epidemic model and analyses that give some shed of light of infectious diseases to control the risk of infection and transmission gets public attention. Therefore, the SEIQR epidemic model is deliberated to study the novel coronavirus by introducing the social distancing parameter as a case study of Bangladesh, to date, no study has been conducted.
The compartment model with mean field approximation is considered that is the most prevailing analytical aspects to understand the societybased complex epidemic dynamics. The simplest epidemic model that is denoted by SI model^{7} where S hold to present the susceptible individuals and I for infected people, whereas, the extended idea is designed as SIS epidemic model^{8} to represent the infected individual becomes susceptible again. Furthermore, SIR model:^{8} susceptible (S), infected (I) and recovered (R) is analyzed to explain and predict the demanding amount of vaccination, medical assistance and facilities during the epidemic period by many researchers. Correspondingly, the SEIR model^{911 }(susceptibleexposedinfectedrecovered) and SEIQR model (susceptibleexposedinfectedquarantinerecovered) model^{12 }are exhibited the extended of SIR model for various diseases and situations that explained the preinfection exposed state and the post quarantine policy.
Aside from those models, many researchers investigated epidemic model by introducing metapopulation, vaccination, information spreading and treatment.^{1318} Recently, Chen et al.^{19} explained about BatsHostsReservoir based mathematical model for novel coronavirus that does not concerned about any provisions to suppress the pandemic. Additionally, the area of such various studies has been extended by many investigators to incorporate exposed and quarantine provisions to protecting minimize the risk of infection.^{2025} In this paper, we develop a novel theoretical model named “Social distancing SEIQR model” to control from spreading the COVID19 coronavirus by combining both quarantine and social distancing cases explicitly based on the real cases that observed in Bangladesh.
The paper is organized as follows. First, we introduce a method and model in detail. This is followed by estimating parameters and analyzing the reproduction number. Then, we investigate the proposed model through numerical and statistical analytical simulation. Finally, the concluding notes include some restriction and further discussion of our findings are provided.
Method
We introduce a modified infectious disease dynamics model (SEIR model) by introducing the quarantine (Q) and social distancing situation for the purpose of modeling and preventing from spreading the COVID19 coronavirus.
To formulate the model into the modified SEIR model we assumed no animal to human transmission has been introduced in Bangladesh. Our assumption is based on the situation that COVID19 coronavirus brought into Bangladesh from abroad. No one is sure from whom it is spreading in Bangladesh. As of now, according to Institute of Epidemiology, Disease Control and Research (IEDCR)^{6} there are 48 peoples of Bangladesh are found COVID19 coronavirus positive where six suspected persons has been died. They claimed among those 48 positive cases there are 32 persons traveled to Bangladesh from different countries where major portion of these peoples either traveled in Europe or China from Bangladesh or they were reside in Europe for a long time. So, it is our major concern to heed on inoutboard travel passengers in Bangladesh in this paper. Then we will take into account what could happened if all those people were home quarantined but somehow they have connected with other peoples surrounding to him/her. What could happened if some has been finished their 14– days quarantined period but he/she might still carrying COVID19 virus that is asymptomatic in his/her body, and he/she has been contacted with someone during these days. Finally, we will analyzed all these scenario mathematically and statistically.
Model and Data Source
The modified SEIR including quarantine (Q) situation was posted to medRxiv on 17 February, 2020.^{23} We assumed that the virus transmitted among the travelers who was either traveled recently in abroad from Bangladesh or who is a temporarily or permanently resident in Europe or MiddleEast, and then transmitted to the Bangladeshi citizen who is closely contacted person with them. People exposed to the either governmental assigned quarantined center or in home quarantine places got the risks of the infection (Figure 1).

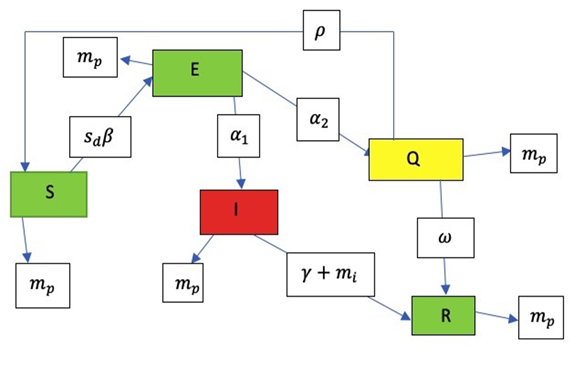

Figure 1 Flowchart of the modified SEIR dynamics for COVID19 coronavirus in developing countries including quarantine (Q) and social distancing situation.
Parameter estimation: We named this model SEIQR social distancing model. The transmissibility of the COVID19 based on this model was based on the following assumptions or facts:
$\begin{array}{ll}\delta \hfill & =\frac{1}{30}\times \left[\frac{90}{100}\times 7+\frac{10}{100}\times 23\right]\hfill \\ {s}_{d}\hfill & =\frac{1}{30}\times \left[\frac{75}{100}\times 23\right]\hfill \end{array}$ (1)
Based on all assumption above, the mathematical model is the following:
$\begin{array}{l}\frac{dS\left(t\right)}{dt}=\Lambda \xe2\text{\u02c6\u2019}{s}_{d}\beta S\left(t\right)(\left(I\left(t\right)+kQ\left(t\right)\right)+\rho Q\left(t\right)\xe2\text{\u02c6\u2019}{m}_{p}S\left(t\right)\frac{dE\left(t\right)}{dt}={s}_{d}\beta S\left(t\right)(\left(I\left(t\right)+kQ\left(t\right)\right)\\ \xe2\text{\u02c6\u2019}({\alpha}_{1}+{\alpha}_{2})E\left(t\right)\xe2\text{\u02c6\u2019}{m}_{p}E\left(t\right)\frac{dI\left(t\right)}{dt}={\alpha}_{1}E\left(t\right)\xe2\text{\u02c6\u2019}\left(\delta +\gamma +{m}_{i}\right)I\left(t\right)\xe2\text{\u02c6\u2019}{m}_{p}I\left(t\right)\frac{dQ\left(t\right)}{dt}=\\ \delta I\left(t\right)+{\alpha}_{2}E\left(t\right)\xe2\text{\u02c6\u2019}\left(t\right)\xe2\text{\u02c6\u2019}\rho Q\left(t\right)\xe2\text{\u02c6\u2019}{m}_{p}Q\left(t\right)\frac{dR\left(t\right)}{dt}=\omega Q\left(t\right)+\left(\gamma +{m}_{i}\right)I\left(t\right)\xe2\text{\u02c6\u2019}{m}_{p}R\left(t\right)\end{array}$ (2)
Where,
$\left(N,{m}_{p},\Lambda ,{s}_{d},{\alpha}_{1},{\alpha}_{2},\rho ,\omega ,\delta ,\gamma ,{m}_{i},k\right)\ge 0$
Basic reproduction number, $R0$ :
In this study, we used the ${R}_{0}$ to assess the transmissibility of the COVID19. Commonly, ${R}_{0}$ was defined as the expected number of secondary infections that result from introducing a single infected individual into an otherwise susceptible population.^{1921} If ${R}_{0}<1$ , the outbreak will occur. If ${R}_{0}>1$ , the outbreak will toward an end. In this study, ${R}_{0}$ was deduced from the equation 2 model by the next generation matrix approach.^{22}
Based on the equations of our model, we can get the disease free equilibrium point as: $\left(\frac{\Lambda}{{m}_{p}},0,0,0,0\right)$
$F=\left[\begin{array}{lll}0\hfill & \frac{{s}_{d}\beta \Lambda}{{m}_{p}}\hfill & \frac{{s}_{d}\beta \Lambda k}{{m}_{p}}\hfill \\ 0\hfill & 0\hfill & 0\hfill \\ 0\hfill & 0\hfill & 0\hfill \end{array}\right]$ (3)
$\begin{array}{ll}V\hfill & =\left[\begin{array}{lll}{\alpha}_{1}+{\alpha}_{2}+{m}_{p}\hfill & 0\hfill & 0\hfill \\ {\alpha}_{1}\hfill & \delta +\gamma +{m}_{i}+{m}_{p}\hfill & 0\hfill \\ {\alpha}_{2}\hfill & \delta \hfill & \rho +\omega +{m}_{p}\hfill \end{array}\right]\hfill \end{array}$ (4)
$\begin{array}{ll}{V}^{1}\hfill & =\left[\begin{array}{lll}\frac{1}{\left({\alpha}_{1}+{\alpha}_{2}+{m}_{p}\right)}\hfill & 0\hfill & 0\hfill \\ A\hfill & \frac{1}{\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)}\hfill & 0\hfill \\ B\hfill & C\hfill & \frac{1}{\left(\rho +\omega +{m}_{p}\right)}\hfill \end{array}\right]\hfill \end{array}$ (5)
where,
$\begin{array}{ll}A\hfill & =\frac{{\alpha}_{1}}{\left({\alpha}_{1}+{\alpha}_{2}+{m}_{p}\right)\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)}\hfill \\ B\hfill & =\frac{{\alpha}_{1}\delta +\left(\delta +\gamma +{m}_{i}+{m}_{p}\right){\alpha}_{2}}{\left({\alpha}_{1}+{\alpha}_{2}+{m}_{p}\right)\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}\hfill \\ C\hfill & =\frac{\delta}{\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}\hfill \end{array}$ (6)
$\begin{array}{ll}F{V}^{1}\hfill & =\left[\begin{array}{lll}D\hfill & E\hfill & F\hfill \\ 0\hfill & 0\hfill & 0\hfill \\ 0\hfill & 0\hfill & 0\hfill \end{array}\right]\hfill \end{array}$ (7)
where,
$\begin{array}{l}D=0.9!\frac{{s}_{d}\beta \Lambda \left(\left(k{\alpha}_{2}+{\alpha}_{1}\right){m}_{p}+\left(k\delta +\omega +\rho \right){\alpha}_{1}+k{\alpha}_{2}\left(\delta +\gamma 1+{m}_{i}\right)\right)}{{m}_{p}\left({\alpha}_{1}+{\alpha}_{2}+{m}_{p}\right)\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}\\ E=\frac{{s}_{d}\beta \Lambda \left(k\delta +\omega +\rho +{m}_{p}\right)}{{m}_{p}\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}\\ F=\frac{{s}_{d}\beta \Lambda \left(k\delta +\omega +\rho +{m}_{p}\right)}{{m}_{p}\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}\end{array}$ (8)
Using matrix 7 we can find the basic reproduction number ${R}_{0}$ which is the spectral radius $\left({\rho}^{\text{*}}\right)$ of the next generation matrix $F{V}^{1}$ . Thus,
$\begin{array}{ll}{R}_{0}\hfill & ={\rho}^{\text{*}}\left(F{V}^{1}\right)\hfill \\ \hfill & =0.9!\frac{{s}_{d}\beta \Lambda \left(\left(k{\alpha}_{2}+{\alpha}_{1}\right){m}_{p}+\left(k\delta +\omega +\rho \right){\alpha}_{1}+k{\alpha}_{2}\left(\delta +\gamma 1+{m}_{i}\right)\right)}{{m}_{p}\left({\alpha}_{1}+{\alpha}_{2}+{m}_{p}\right)\left(\delta +\gamma +{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}\hfill \end{array}$ (9)
Using $\Lambda ={m}_{p}\times N$ in equation 9 and solve for $\beta $ , we can estimate transmissibility rate as follows:
$\begin{array}{ll}\beta \hfill & =0.9!\frac{{R}_{0}\left({\alpha}_{1}+{\alpha}_{2}+{m}_{p}\right)\left(\delta +\gamma 1+{m}_{i}+{m}_{p}\right)\left(\rho +\omega +{m}_{p}\right)}{N\left(\delta k{\alpha}_{1}+\delta k{\alpha}_{2}+\gamma 1k{\alpha}_{2}+k{\alpha}_{2}{m}_{i}+k{\alpha}_{2}{m}_{p}+\omega {\alpha}_{1}+\rho {\alpha}_{1}+{\alpha}_{1}{m}_{p}\right){s}_{d}}\hfill \end{array}$ (10)
Based on the parameter estimation as described before, first we have studied the original data for COVID19 positive cases from March 7, 2020 to March 28, 2020. Between these days, the IEDCR’B has tested people and found 48 people have COVID19 positive. So, we initially assume the transmissibility rate $\beta =\frac{\frac{48}{1024\text{*}N}}{22}$ . As of now, Bangladesh didn’t lockdown the country. So, we have assumed ${L}_{D}=0$ and ${L}_{FD}=22$ . We assume, people didn’t become cautious yet. Hence, we assume, ${n}_{Q}=10$ , ${n}_{Q}^{\text{*}}=90$ . Also, since the country didn’t put any pressure to move around freely, we assume there are 95% population of Bangladesh are making social interaction with in various places, i.e, ${n}_{d}=95$ . With these assumptions, we fit our simulated result with the real data.^{6} A linear regression polynomial fit results with $\left({R}^{2}=0.9320\right)$ , with adjusted $\left({R}^{2}=0.9250\right)$ (Figure 2) showed that our model fitted well to the reported COVID19 cases data for Bangladesh. Now, using all the assumptions and the equation 9, we have estimated the value of the basic reproduction number , that means, we may say, within these $22$ days COVID19 coronavirus is already an outbreak in Bangladesh.

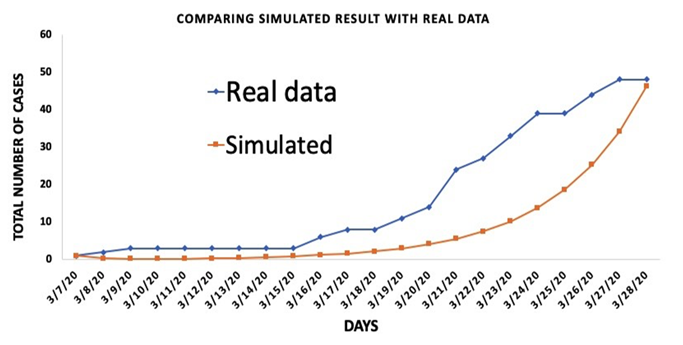

Figure 2 Simulated result compared with real data5 March 7,2020 to March 28, 2020. A linear regression polynomial fit curve used for the simulated data with R2=0.932.
Based on this result, next we will discuss how to stabilize the situation by taking some strategies for 30 days and protect the nation from spreading this virus.
Parameter
Description
Values
$N$ `
Total population of Bangladesh
$163443435$
${m}_{p}$
Death rate
$0.00588$
${m}_{i}$
Mortality rate of the infected people
$\frac{1}{100}$
$y$
Rate of infected people become recovered
$\frac{80}{100}$
$\Lambda $
Birth rate of Bangladesh
${m}_{p}\times N$
$\beta $
Transmissibility rate
$\text{Vary}$
${\alpha}_{1}$
Latent incubation rate to be infective
$\frac{1}{7}$
${\alpha}_{2}$
Latent incubation rate to be quarantined
${\alpha}_{1}$
$\rho $
Rate of recovered people become susceptive
$\frac{1}{14}$
$\omega $
Rate of quarantined people become recovered or dead
$\text{Vary}$
$\delta $
Rate of infected people become quarantined
$\frac{1}{{L}_{D}+{L}_{FD}}\times \left[\frac{{n}_{Q}}{100}\times {L}_{D}+\frac{{n}_{Q}^{\text{*}}}{100}\times {L}_{FD}\right]$
${n}_{Q}$
Number of quarantined people out of 100
$\text{Vary}$
${n}_{Q}^{\text{*}}$
Number of nonquarantine dpeople out of 100
${n}_{Q}^{\text{*}}=100{n}_{Q}$
${L}_{D}$
Number of Lockdown days in Bangladesh
$\text{Vary}$
${L}_{FD}$
Number of Lockdown free days in Bangladesh
$\text{Vary}$
${n}_{d}$
Number of people making social interaction out of 100
$\text{Vary}$
${s}_{d}$
Social distancing parameter
$\frac{1}{{L}_{D}+{L}_{FD}}\times \left[\frac{{n}_{d}}{100}\times {L}_{FD}\right]$
$k$
The multiple of the transmissibility of $Q\left(t\right)$ to that of $I\left(t\right)$
${[0,1]}^{0}$
Table 1 Definition of those parameters in the SEIQ R social distancing model
Description
Parameter
Values
Prediction

No lockdown
$\delta $
0.9



${s}_{d}$
0.95



$\beta $
8.67X10^{09}
5.93
Outbreak
One week lockdown
$\delta $
0.6387



${s}_{d}$
0.621
3.77
Outbreak
Two weeks lockdown
$\beta $
8.69X10^{09}



${s}_{d}$
0.357
2.12
Outbreak

$\beta $
8.66X10^{09}


Three weeks lockdown
$\delta $
0.508



${s}_{d}$
0.16
0.945
Stable

$\beta $
8.71X10^{09}


Table 2 Prediction regarding lockdown situation
We are going to discuss how a developing countries in Asia or under poverty level countries in Africa can take best strategies in a $30$ days time frame to face this COVID19 coronavirus. Figure 2 is showing that, there is a high chance for the COVID19 coronavirus can spread in the high number of people in Bangladesh around in mid April, 2020. So far, people already became cautious. But, still the country has many other concern to face this COVID19 coronavirus in many levels. Suppose, there is no lockdown at any place in Bangladesh, that is assume,${L}_{D}=0$ and ${L}_{FD}=30$ now. Since, people have a chance to go out and make social interaction freely, we assume 90% peoples of Bangladesh will make social interaction with each other, where 10% people are self cautious and kept themself at home quarantine. Also suppose, $\omega =10\text{\%}$ , the inboard passenger sent to the quarantine center and presumably they all removed from the quarantined center. From this situation, when a country has limited medical resources to test the vast amount of people of the country’s populations and provide intensive medical treatment, any thirdworld country can follow three well guidance provided by WHO, which are:
CaseI) Take administrative action (i.e: Applying lockdown the country)
CaseII) People’s of Bangladesh can take responsibility by themself (i.e: ensuring to maintain social distance rule by the WHO guidance)
CaseIII) Ensuring the nation to stay at home (i.e: ensure peoples to keep themself either at home quarantine or governmental quarantine center)
We will show, some mathematical and statistical results that can be a direction for a thirdworld country to reduce the infectious number of people.

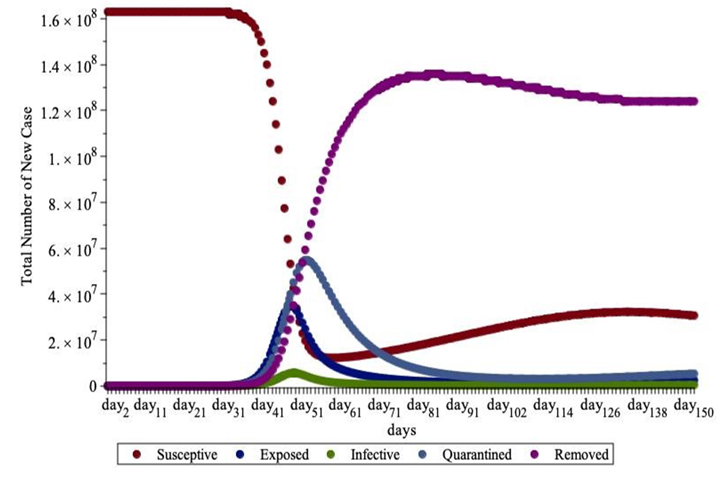

Figure 3 Based on our model we are predicting there is a chance thatCOVID19 coronavirus will be it’s pick time to spread throughout the country after 40−days from March 7, 2020 in Bangladesh.
First, we will discuss, what administrative authority of a lower economic based country may consider to do for preventing COVID19 coronavirus from spreading across the country. A long days lockdown can cost huge for any country, so assume a developing can’t effort economically by making lockdown the country for more than a month. However, to make situation under control, they can try to make lockdown the country from one week to three weeks. So, we now assume ${n}_{Q}=10+2.5\times {L}_{D}$ , and ${n}_{d}=952.5\times {L}_{FD}$ . The basic reproduction number ${R}_{0}=5.72$ when the entire country is not lockdown yet. So that, they can think to consider to make lockdown the country for one week. Figure 4 and Table 3 shows that, seven days lockdown is not sufficient to control spreading the virus. But, as we found it may needs at least three weeks lockdown to reduce the reproduction of this COVID19 in Bangladesh and protect the nation from affecting.
Description
parameter
values
${R}_{0}$
Prediction

${s}_{d}$
0.50
3.13
outbreak

${s}_{d}$
0.40
2.50
outbreak
Zero days lockdown
${s}_{d}$
0.30
1.87
outbreak

${s}_{d}$
0.20
1.27
outbreak

${s}_{d}$
0.10
0.623
Stable
Table 3 Prediction regarding maintaining social distancing by isolating the people across the country
Also, a Pearson’s correlation was run to determine the relationship between five cases (zero days, one, two, three, and complete thirty days lockdown situation) between each other. There was a very strong, positive correlation on the infective numbers between one, two, three weeks lockdown situation and complete lockdown situation. Figure 4
The Pearson’s correlation result shows that when there is a limited resources to control an outbreak, then at least three weeks lockdown the country could be a good strategy to reduce the number infection.

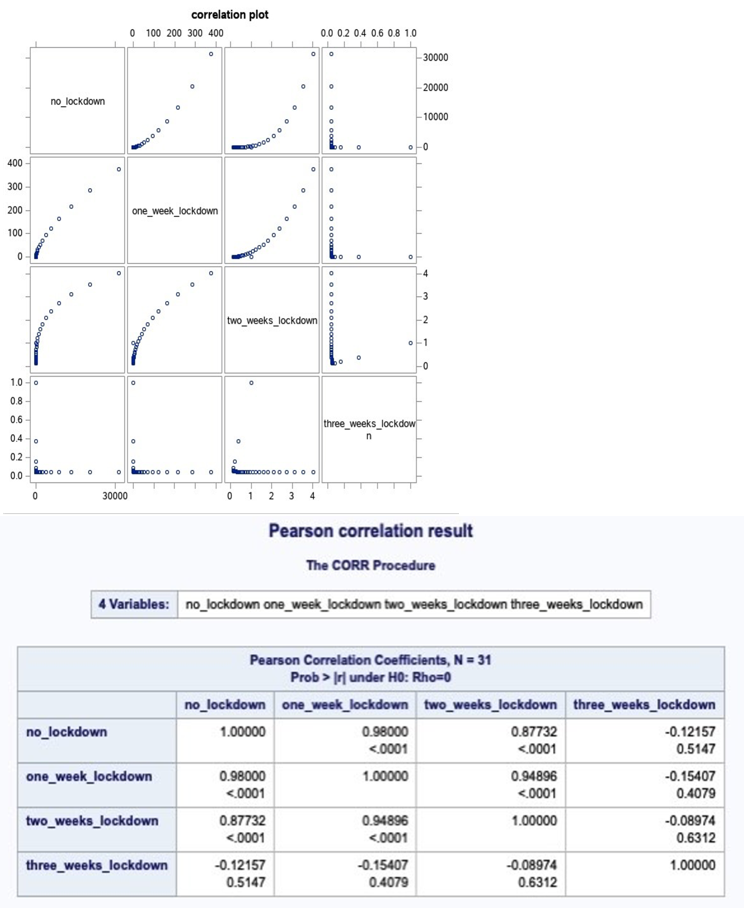

Figure 4 The Pearson’s correlation result for lockdown situation in Bangladesh. Results shows that, at zero days lockdown (Lockdown0)versus one week lockdown (lockdown7) situation has very strong positive correlation with p−value 0.0001. That means, if the infected number of people increases for one week lockdown, in one week lockdown situation number of infected people will increase too. But, we can also see there is a negative correlation between zero days lockdown situation and three weeks lockdown situation with high p−value, that means statistically there no significance evidence that if the number of infected people increases during the zero days lockdown time, a three weeks lockdown will also have chance to increase the number of infected persons.
But, for a developing country like Bangladesh, three weeks lockdown could put the country in the economic hardship. Especially when a country has $5millions$ of people who earned less than $\text{\$}2$ perday. From this viewpoint, now we focused on decreasing the rate of social distancing parameter ${s}_{d}$ . We have run our model by setting this parameter values from 0.50 to 0.10 with an interval of 0.10. That means, we are thinking during the lockdown free situation, Bangladeshi people will make social gathering on an average of 50% people at the beginning. Table5 shows that, when an average of $50\text{\%}$ peoples are making social interaction can create a massive outbreak situation for the country. On the other hand, when number of percentile of people in Bangladesh when make social interaction on an average of $\le 10\text{\%}$ can reduce outbreak of this COVID19 in Bangladesh.
Description
Recovery rate of quarantined people
${R}_{0}$
Prediction

10% people
2.47
outbreak
Zero
20% people
1.70
outbreak
days
30% people
1.35
outbreak
lockdown
40% people
1.14
outbreak

50% people
1.00
outbreak

60% people
0.905
stable
Table 4 Prediction regarding quarantined people become recovered person
Several authors suggests, when an epidemical disease become pandemic and especially when there is no vaccination is useful, then it is highly suggestive that sent people to the home quarantine. Researchers suggests that, using this procedure a country can increase the recovery rate.^{2022 }We assume Bangladesh can also follow this procedure to protect the nation from this virus. Suppose now, there are 50% probability that home quarantined peoples has become susceptive and 35% population of Bangladesh was in quarantined, and 75% peoples were making social interactions at the beginning. That is we assumes ${n}_{Q}=35$ , ${n}_{d}=75$ and $k=0.5$ . From this point we have used our model to find ${R}_{0}$ by varying the parameter $\omega $ . We have started from 10% to 60% by considering entire country is not locked officially, but the people took responsibility and made themself isolated or kept themself as a home quarantined person. Our modelling simulation shows that, it changes the result impressively. Table6 shows that, at this time if 60% or higher people of Bangladesh kept themself at home, then COVID19 coronavirus will become week to reproduce the virus in the human to human body.

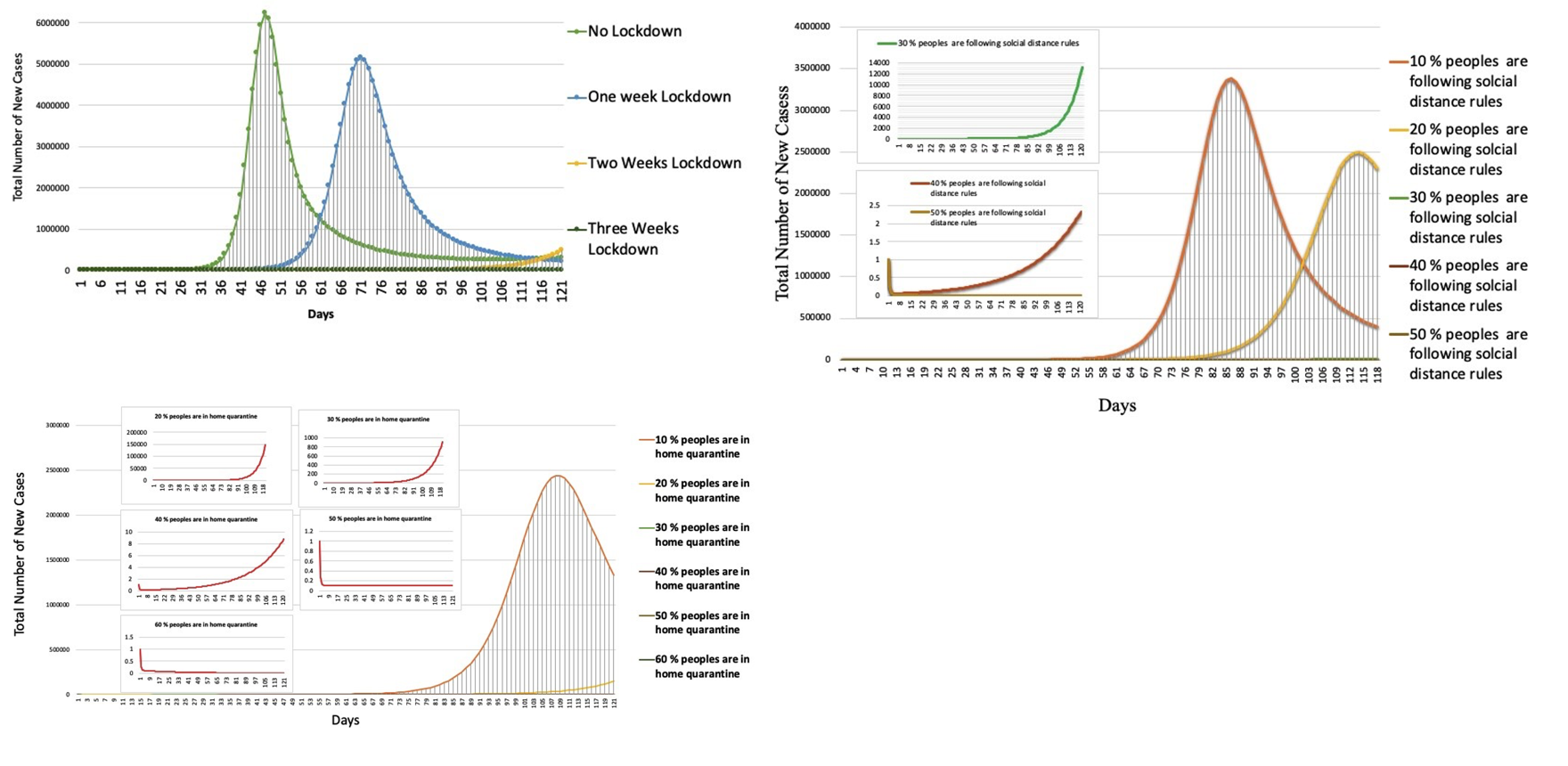

Figure 5 (top) Based on our model showing the result for CaseI. (middle) showing the result for CaseII, and (bottom) showing the result for CaseIII.

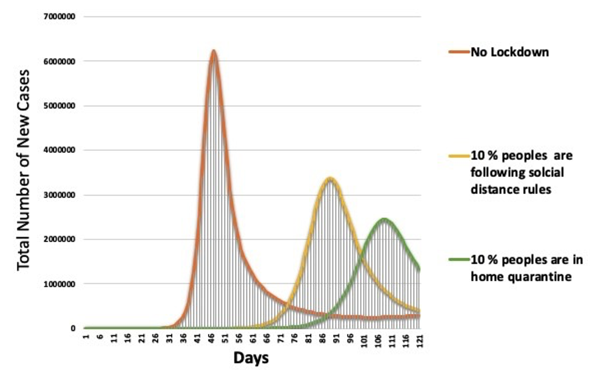

Figure 6 Comparison between all three cases, these figures indicates that among those three cases staying home can provide better result to protect people from infections from the Coronavirus.
A mathematical model is useful to find basic reproduction number, ${R}_{0}$ . Our main goal to decrease the value of ${R}_{0}$ using our mathematical model. From the equation 7 we can see, apart from some important parameters $\left(\omega ,{s}_{d},\delta \right)$ , there are other parameters also plays important rule to decrease the ${R}_{0}$ value. Such as, increasing incubation period may decrease the infective people, which can decrease the basic reproduction number as well.
Since based on our model, ${R}_{0}$ depends one many parameters. That needs more real data to predict more accurately. When we are researching for the case of Bangladesh, we haven’t find some important parameter values, such as, we don’t know what is the probability ($k$ in our model) that quarantined people become susceptive. So, we assumed it is 50%. But, it can be 0% or can be 100%. At this time, we don’t know what is the mean period of time that we can say perfectly in how many days or hours quarantined people is becoming susceptive. So, we have assumed it is on an average of seven days $\left({\rho}_{1}=\frac{1}{7}\right)$ . But, real situation can be much worse or much better. And this situation is same for finding community transmission rate from recovered people to get susceptive again. That is finding the value of ${\rho}_{2}$ .
We have developed our model based on the thinking of what should do when an outbreak occur in a developing country or a country that is under poverty level by the World Bank’s country designations. Cause, usually to face an outbreak is costly due to provide medical facility to the nation. For our data source, we have picked a developing country namely Bangladesh, which is a second largest densely populated country as well. Our modelling basic reproduction number, ${R}_{0}$ of COVID19 coronavirus shows that, currently there is a serious concern of outbreaking situation in Bangladesh to spread this novel coronavirus in huge number of population. Bangladesh has limited resources to face this outbreak. At this time, a well strategy can control faster from spreading the virus and protect the nation. We have found, a three weeks lockdown can decrease the reproduction number of this novel coronavirus from now on (figure7(top)). We also shown, for a developing country like Bangladesh, mass peoples are also responsible to reduce this virus by following the WHO guidance and following social distance (see figure7(middle)). Also, we have found people can take the responsibility to make their home as a quarantine place that could decrease spreading the virus rapidly (see figure7 (bottom)).
This study was partially supported by GrantinAid for Scientific Research from JSPS, Japan, KAKENHI (Grant No. JP 19KK0262) awarded to Professor Tanimoto.
The authors declare that they have no conflict of interest.
