A study was carried out to assess the species diversity of arbuscular mycorrhizal (AM) fungi in different salinity zones of Bhitarkanika mangroves of Orissa, India. Sixteen sites of Bhitarkanika mangrove areas were surveyed for the collection of roots and soil samples. Seedlings of mangrove species were tested for AM colonization through root clearing and staining technique. Soil samples were treated separately for the mineral analysis through wet oxidation techniques and spore multiplication by pot culture methods. Wet sieving and decantation technique was followed for the isolation of AM spores from soil. AM spores were identified on the basis of morphological characteristics by following the INVAM manual. The physio-chemical analysis of soil indicated its deficiency in phosphorus which decreases (9.47Kg/ha) with increase in salinity. The genus Glomus is most dominant and has presence across all saline zones. A total of 45 AM species belonging to five genera namely, Glomus, Acaulospora, Gigaspora, Scutellospora and Enterophospora were recorded from three salinity zones of Bhitarkanika mangrove ecosystem. The soils of lower salinity contained maximum number of AM species (21nos.) than the high salinity zones (9 nos.). The decreased number of AM species in high salinity may be due to low phosphorus content and lack of suitable host plant also. Among eighteen mangrove species from different salinity zones analyzed for mycorrhizal colonization in their root system, Sonneratia apetala, Heritiera fomes, Excoecaria agallocha, Derris heterophylla, Bruguiera gynmorrhiza, Avicennia officinalis, Aglaia cucullata, and Aegiceras corniculatum were found to be mycorrhizal. This is first report on diversity of AM species in different salinity zones of Bhitarkanika mangroves of Orissa, India.

Keywords: Arbuscular mycorrhiza; Mangroves; Salinity; Bhitarkanika

Mangrove creates habitats for diverse floral and faunal communities including numerous mangrove dependent micro organisms.¹ The interaction between various organisms and higher species in mangrove ecosystem has been subject of investigation and drawn interests on account of atypical habitat in which the biotic elements of the unique habitat compete and/or compliments to survive and grow. The role and functions of Arbuscular mycorrhizal fungi (AMF) in relation to assimilation and translocation of soil nutrients in wetland^2,3 have received increased attention over last decade. Past works have reported that AM fungi predominate soils with high salinity or alkalinity and low nutrient.^4,5 Their adaptability for such difficult and extreme habitat is believed to help the colonized host plants in establishing in different conditions.

Although AMF require oxygen to thrive and assumed to be of little relevance in aquatic anaerobic conditions, recent studies proves that AMF survive and colonize many halophytes.⁶ The association of AM fungi with mangrove has also been reported from Pichavaram forest and the ganges river estuary and recently from China.^7-9 The objective of this study is to analyze the diversity of AM fungi in Bhitarkanika mangrove ecosystem of Odisha, India.

Bhitarkanika mangrove forests situated on the east coast of Orissa (20°4’ - 20°8’ N; 86° 45’ - 87° 50’ E) is India ‘s second largest mangrove ecosystem (627 sq km.) both in terms of area, species diversity and distribution. The area is inundated with high tide and low tides twice a day at an interval of 12 hours, the tidal amplitude ranging from 2-3.5 m upstream to 3.5-6 m near the river mouths. Sixteen sites of Bhitarkanika mangrove areas were surveyed during the late winter season for the collection of roots and soil samples of all accessible species in each site.

Seedlings were uprooted together with some soil adhering to the roots. Samples were brought to laboratory and roots were separated from the adhering soil, washed gently under the tap water and fixed in FAA (Formalin-acetic acid-alcohol) for analysis of AM colonization. Root adhering or rhizosphere soil of each individual was air dried at room temperature, sieved and divided and. used for pot culture multiplication in order to multiply the spores existing in respective soil samples.

Estimation of AM fungi colonization

AM infection in roots was assessed by root clearing and staining technique.¹⁰ Root samples were cleared with 10% KOH and autoclaved for 15-20 minutes at 15 p/i; the autoclaved root samples were treated with 6N HCl for 5 minutes. The cleared roots were then stained with 0.05% cotton blue and mounted in polyvinyl alcohol lactoglycerol (PVLG) and observed for % colonization.

Determination of soil characteristics

Soil pH, salinity, electrical conductivity, available Nitrogen, Phosphorus, Potassium, dissolved oxygen and total dissolved solids were measured through portable water analyser and following the methods of Tandon.¹¹

Characterization and identification of AM fungi

As density of AM spores in mangrove soil was very low, soil samples from different locations/sites were first inoculated in sterilized sorlite- soil mix under pot culture with Cenchrus cilliaris in order to multiply the existing AM spores (if any). Wet sieving and decanting method was followed to isolate the AM spores from the soil.¹² About 100 g of representative soil samples of each location (in triplicate) was suspended in sufficient quantity of water and stirred thoroughly. The resulting soil suspension was sieved through meshes of sizes 400, 300, 200, and 100 um and placed one below the other in the same order. The residues, after sieving, were filtered (Whatman no. 1) and examined under stereomicroscope for spore (Meiji, Japan). The soil salinity was measured by portable soil water analyzer (Sanco make). Diagnostic slides with spores / sporocarps were prepared using polyvinyl alcohol lacto glycerol as mountant. AM spores were analyzed for their morphological characteristics like shape, size, stalk, wall layers. Identification of AM fungi was done using relevant INVAM guidelines.¹³

The physio – chemical characteristics of the soils of different salinity zones indicated that the soils were neither totally acidic nor alkaline having distinct salinity gradient. Soil texture analysis indicated that, mangrove soils were mostly a clayey in nature. The soil was deficient in phosphorus content, which decreases with increase in salinity level (Table 1). It was found enriched in Organic Content. Total dissolved solid was more or less similar in mangrove soils of different salinity whereas the salinity level did not influence soil pH.

Eighteen mangrove species (representing 1 fern, 2 shrubs, 1 climber, 1 succulent, 1 herb and 12 trees) of different salinity zones were analyzed for mycorrhizal colonization in their root system. The percentage colonization of AM fungi in the roots differed among species, having no distinct trend in AM colonization across salinity zones. Figure 1 represents the status of AMF in infected mangrove species. The mycorrhizal colonization ranged from 18.51 % to 73.33 %. The highest percentage observed in case of Agalaia cuculata (73.33 %) a rare species found in low salinity zone followed by Heritiera fomes (52.74 %) and Sonneratia apetala (47.91 %) (Figure 2). The lowest AM colonization was found in case of Agiceras corniculatum. Species such as Kandelia candel, Sonneratia casualaris, Rhizophora mucronata, Tamarix troupii, Acanthus ilicifolius, Postulaca quadrifida, Sesuvium portulacastrum and Xylocarpus granatum did not demonstrate AM colonization in their roots systems. Arbuscular mycorrhizal invasion containing vesicles and arbuscules within plant roots was seen in species such as Sonneratia apetala, Derris heterophyla, Agalaia cuculata and Heritiera fomes (Table 2 & Figure 2).

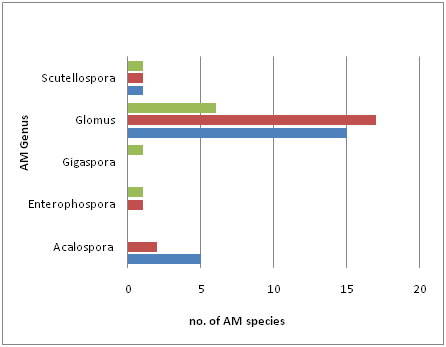

Figure 1 AM species distribution in different salinity zones (no. of species).

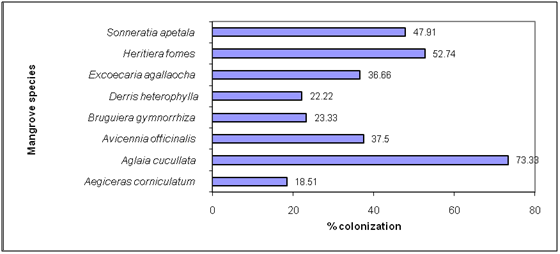

Figure 2 Mycorrhizal colonization in the root system of different plant species (%).

Diversity of AMF

A total of 45 AM fungal species representing five genera, including 6 species of Acaulopsora, 2 of Entrophospora, 1 of Gigaspora, 32 of Glomus and 3 of Scutellospora, were isolated from mangrove soils of different salinity zones. Out of these, 21 species occur in low and medium salinity zones and only 9 species’ in high salinity area (Figure 3). The genus Glomus is most dominant and diverse and Glomus and Scutellospora have presence across all saline zone. Acaulospora did not occur at high salinity level. Six species of Glomus were found in areas of high saline inundation (Figure 4). Most of Acaulospora species occurs in low salinity except A. delicata that preferred a higher salinity. We isolated single species of Gigspora and Enterophospora from high salinity zone. However, E. colombiana was present in muddy soil of medium salinity zone.

Figure 3 Distribution of Glomus species in different salinity zones.

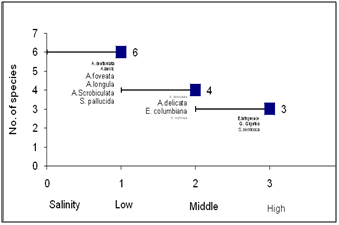

Figure 4 Distribution of AM species in different salinity zones.

The study exhibited rich diversity of arbuscular mycorrhizal fungi in mangrove soil and species richness, with reference to salinity zones and physiochemical properties of soil. Occurrence of arbuscular mycorrhizal fungi in saline soils were earlier considered negligible or minimal.¹⁴ However, recent studies have established the ubiquitous behavior of AM fungi in saline and coastal soils. Our study makes further invades on the subject by listing mycorrhization of Aegiceras corniculatum, Agalaia cucullata, Avicennia officinalis, Bruguiera gymnorrhiza, Derris heterophylla, Excoecaria agallocha, Heritiera fomes, Sonneratia apetala. Occurrence of mycorrhizal colonization in these mangrove plants strengthen the significance of AMF association in wet land ecosystem.^15,16 Agalaia cuculata, Excoecaria agallocha and Avicennia officinalis, Ageceras corniculatum, Bruigiera gynmorrhiza, Heritiera fomes were reported as mycorrhizal in Bhitarkanika mangroves, and thus the present study confirms the earlier reports on mangroves forests of different sea coasts of India.^2,3,8

In contrast to previous findings, Rhizophora mucronata was found to be non-mycorrhizal in high saline zone of Bhitarkanika mangroves. It may be due to the differences in salinity level, as most of the mangrove species having mycorrhizal association, occupied in low salinity areas. The species Bruigiera gymnorrhiza and Derris heterophyla, obtained from medium salinity, was also observed as mycorrhizal, but with low percentage of colonization, as compared to others. We did not find any AM infection in Kandelia candel, Rhizophora mucronata and Xylocarpus granatum collected from high salinity zone. However, these species cannot be considered as nonmycorrhizal as earlier studies reported them as mycorrhizal from mangrove soils of different conductivity⁹ and medium range of salinity.

This study confirmed occurrence of AM spores in muddy soils of mangroves¹⁷ Glomus was the most dominant AM found in low salinity area, similar to the coastal saline soils of west coast of India.^2,3 Occurrence of Glomus intraradices and G. geosporum in high salinity zones indicate possible fungal adaptation to salt tolerance.

Absence of Sclerocystis from Bhitarkaniaka mangrove commonly found in Sunderban mangrove ecosystem and western coast of India indicated complex interaction of edaphic agroclimatic factor determining growth of AM fungi from typical to a micro environment.¹⁸ Among 45 species reported in the study, 15 species are found in coastal dunes of the India. The incidence of E. infrequence, G. gignatea, G. ambisporum, G. candida and G. pallidum in only high salinity can be attributed to their salt tolerant trait.

The support received from CSIR, Govt. of India vide the research project no. 38(1191)/08/EMRII, is gratefully acknowledged. Authors are also thankful to Dr. U.C. Basak, Scientist, Regional Plant Resource Centre,Bhubaneswar for helping in mangrove plant identification.

The author declares no conflict of interest.

1. Maria FA, David N, Sara FW, et al. Sedimentation within and among mangrove forests along a gradient of geomorphological settings. Estuarine, coastal and shelf science. 2010;86(1):21–30.
2. Beena KR, Arun AB, Raviraja NSA, et al. Association of arbuscular mycorrhizal fungi with plants of coastal sand dunes of west coast of India. Tropical Ecology. 2001;42(2):213–222.
3. Karthikeyan K, Selvaraj T. Diversity of Arbuscular mycorrhizal fungi on the coastal saline soils of the west coast of Kerala, Southern India. World Journal of Agricultural Sciences. 2009;5(S):803–809.
4. Carvalho LM, Carreia PM, Loucao M. Arbuscular mycorrhizal fungal propagules in a salt marsh. Mycorrhiza. 2004;14(3):165–170.
5. Evelin H, Kapoor R, Giri B. Arbuscular mycorrhizal fungi in alleviation of salt stress:a review. Annals of Botany. 2009;104(7):1263–1280.
6. Mathur N, Singh J , Bohra S, et al. Arbuscular mycorrhizal status of Medicinal halophytes in saline areas of Indian Thar Desert. International Journal of Soil Science. 2007;2(2):119–127.
7. Gupta N, Basak UC, Das P. Arbuscular mycorrhizal association of mangroves in saline and non saline soils. Mycorrhiza News. 2002;13(4):14–19.
8. Kumar T, Gohse M. Status of arbuscular mycorrhizal fungi in the Sundarbans of India in relation to tidal inundation and chemical properties of soil. Wetlands Ecol Manage. 2008;16(6):471–483.
9. Wang Y, Qiu Q, Yang Z, et al. Arbuscular mycorrhizal fungi in two mangroves in South China. Plant Soil. 2010;331(1):181–191.
10. Phillips JM, Hayman DJ. Improved procedure for clearing and staining parasitic and vesicular arbuscular mycorrhizal fungi rapid assessment of infection. Transactions of the British Mycological Society. 1970;55(1):158–161.
11. Tandon HLS. Methods of analysis of soils, plants, waters and fertilizers. Fertilizer development and consultation organization; 1999. p. 1–144.
12. Gerdemann JW, Nicolson YH. Spores of mycorrhizae:Endogone species extracted from soil by wet sieving and decanting. Transaction of the British Mycological Society. 1963;46(2):235–244.
13. Schenck NC, Perez Y. Manual for the identification of VA mycorrhizal (VAM) fungi. Florida University of Florida, Synergistic |Publication; 1990. 241 p.
14. Kothamsi D, Kothamasi S, Bhattacharya A, et al. Arbuscular mycorrhiza and phosphate solubilising bacteria of the rhizosphere of the mangrove ecosystem of great Nicobar islands India. Biol Fertil Soil. 2006;42(4):358–361.
15. Gupta N, Routray S, Basak UC, et al. Occurrence of arbuscular mycorrhizal association in mangrove forest of Bhitarkanika, Orissa, India. Ind J Microbiol. 2003;42(3):247–248.
16. Miller SP, Berver JD. Distribution of arbuscular mycorrhizal fungi in stands of the wetland grass Panicum hemitomon along a wide hydrologic gradient. Oecologia. 1999;119(4):586–592.
17. Cheng ZS, Pan JH, Tang WC, et al. Biodiversity and biotechnological potential of mangrove associated fungi. Journal of Forestry Research. 2009;20(1):63–72.
18. Alias SA, Zainuddin N, Jones E BG. Biodiversity of marine fungi in Malaysian mangroves. Botanica Marina. 2010;53(6):545–554.
