Focus on the Methods of Fluvial Migration Architecture

Zhipeng Lin,1 Jingfu Shan,1 Le Chen,1,2 Qianjun Sun,2 Wang Yiwu3

1School of Geosciences, Yangtze University, China
2School of Energy Resources, China University of Geosciences, China
3School of Earth and Space Sciences, Peking University, China

Correspondence: Jingfu Shan, Key Laboratory of Exploration Technologies for Oil and Gas Resources, Ministry of Education, School of Geosciences, Yangtze University, Wuhan 430100, Caidian, Wuhan, China

Received: September 27, 2017 | Published: December 22, 2017

Citation: Lin Z, Shan J, Chen L, Sun Q, Yiwu W (2017) Focus on the Methods of Fluvial Migration Architecture. MOJ Eco Environ Sci 2(8): 00056. DOI: 10.15406/mojes.2017.02.00056

Download PDF

Abstract

Fluvial migration architecture is vital both to restore the historical evolution and anatomy sedimentation structure of river reservoir architecture. Thus it’s essential to figure out the proper methods of study the migration architecture. This paper aims to focus on the methods which have long been used to reveal the law of the fluvial migration. From the past to the modern, as the fast development of science and technology, approaches have been extensively promoted, which in turn enhances the technique to research the laws of the migration. This mini-review has attempted to address the development and advance of methods from the perspective of field outcrops, flume experiments, modern analogs, numerical simulation, satellite images, and seismic slices and models, which intends to promote the understanding of migration architecture of rivers. Moreover, some latest novel approaches are also highlighted in the review and demonstrate the research fronts.

Keywordsmigration architecture, methods, rivers, approaches, fluvial migration

Introduction

The migration architecture of the rivers has a significant influence on a wide range of disciplines. For example, the Geomorphology, the hydraulic, the climate, hydrologic and topographic characteristics and so on. Previous studies relating to the issue of fluvial migration include the literature of river channel patterns,1,2 deposition transport and grain size sorting,3–6 bend meandering processes,7-15 hydraulic characteristics,4,16 climate change,17 flow resistance and bank erosion.18,19 With the new technological developments during the 21st century, an increasing number of studies intending for the deep understanding of migration theories of meandering rivers have been published.20 In the recent years, increasingly studies have tended to discover new ways towards the meandering process of rivers. Latest methods like Google Earth, ACME, and ADCP are gradually developed to complete the task. For the purpose of regulating the fishery, even the fishermen focus on the time and cause of migration of rivers.21 The methods of fluvial migration have also been the subject of intensive research in order to explain the evolution and mechanism of formation of the sinuous rivers. From the initial empirical models15,16,18,22,23 to the process-based quantitative research,20,24–26 from the field outcrops18,19 to the modern analogs,8,27,28 extensive advances have been obtained. The fluvial migration of point bars has been recently revealed by some researchers. Ghinassi & Ielpi8 discussed the architectural and sediment logical features of Downstream-migrating fluvial point bars (DMFPB) from the perspectives of outcrops, borehole, and 3D-seismic datasets. And different modes of meander-bend transformation have also been discussed by studies.9,10,12,15,29 However, different approaches illustrated various limitations, such as the morphology models proposed are limited to steady-state conditions.30 Some models lose sight of the influence of bank erosion,15 vegetation, the relation between channel width and depth.31 Though various migrating models are proposed, the nature of the change of channels has remained a huge challenge. Brice15 proposed the four main categories of loops (simple symmetrical, simple asymmetrical, compound symmetrical, and compound asymmetrical); Parquer32 pointed out that how the channel migration could be correlated with morphological parameters. Thus it is essential to take a look back to the methods for studying the fluvial migration process since it is difficult to understand and may get different answers by different methods (Figure 1). This review has attempted to address the development and advance of methods and intends to promote the understanding of migration architecture of rivers.

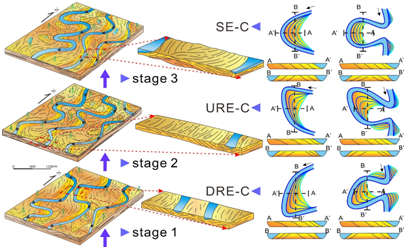

Figure 1 Various stage and models of different period of fluvial migration evolution process.
